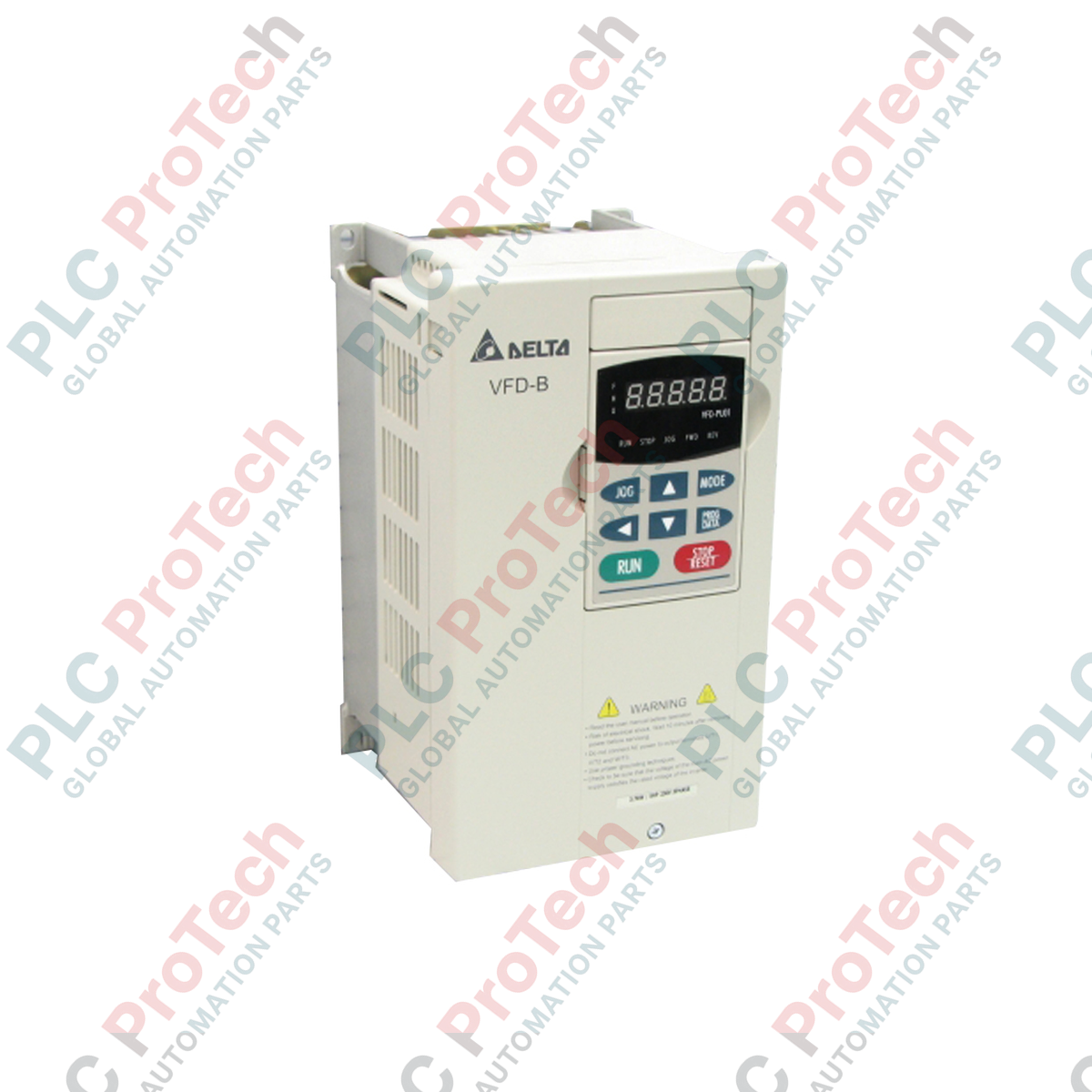

VFD015B43A DELTA VFD-B Series General Purpose AC Drive 1.5 kW

Product Overview

The VFD015B43A (VFD015B43A) is a robust, general-purpose AC motor drive from Delta’s classic VFD-B series. This 460V three-phase inverter is rated for 1.5 kW (2 HP) and is engineered to provide reliable open-loop and closed-loop speed control for a variety of industrial applications. Known for its high torque output and stable performance at low speeds, the VFD015B43A is a staple in industries requiring precise motion control, such as textile machinery, woodworking lathes, and large-scale ventilation systems. Its durable design includes a sophisticated stall prevention system and a high overload capacity, ensuring maximum uptime even under fluctuating load conditions.

Technical Configuration

The hardware of the VFD015B43A is built for heavy-duty performance. It features a fan-cooled chassis that maintains optimal operating temperatures across its power components. The drive offers a high frequency setting resolution of 0.01 Hz, allowing for extremely fine control over motor speed. For protection, it includes a multi-zone Skip Frequency function to avoid mechanical resonance and a programmable Stall Prevention Level (20% to 250%) that automatically adjusts output during sudden load spikes. The drive also supports various communication options and features a built-in RFI switch for interference suppression in sensitive electrical environments.

Technical Specifications

Technical FAQs

What is the purpose of the "Skip Frequency" setting?

Industrial machines often have specific "resonant frequencies" where vibration becomes excessive and can cause mechanical damage. The VFD015B43A allows you to program three independent zones where the drive will not linger, effectively "skipping" over those dangerous vibration speeds while accelerating or decelerating.

How does the Stall Prevention work during acceleration?

If the motor attempts to accelerate faster than the load allows, the current will spike. When the current hits the Stall Prevention Level (e.g., 150%), the drive will automatically pause the frequency increase until the current drops, preventing the drive from tripping on an "Overcurrent" fault.

Is the cooling fan replaceable?

Yes. The VFD015B43A is designed with a field-replaceable cooling fan. To maintain the 3.2 kg unit’s lifespan, the fan should be inspected periodically, especially in dusty environments, to ensure the internal heat sink remains clear of debris.

Engineering & Installation Guide

• Wiring for 460V Systems: Ensure that the input power leads are connected to terminals R, S, and T, and the motor leads to U, V, and W. Under no circumstances should input power be connected to the output terminals, as this will result in permanent damage to the inverter stage.

• Ambient Environment: While the drive can withstand a wide storage range, it should be operated in an ambient temperature between -10°C and 40°C. If installing inside a sealed control cabinet, ensure forced-air ventilation is used to prevent heat buildup, as the fan-cooled design relies on the exchange of ambient air.

• Grounding and EMI: For 460V applications, proper grounding is critical for both safety and signal integrity. Use a dedicated ground wire for the drive and ensure the motor frame is bonded to the same ground point. This minimizes electromagnetic interference that could affect nearby PLC or sensor signals.
