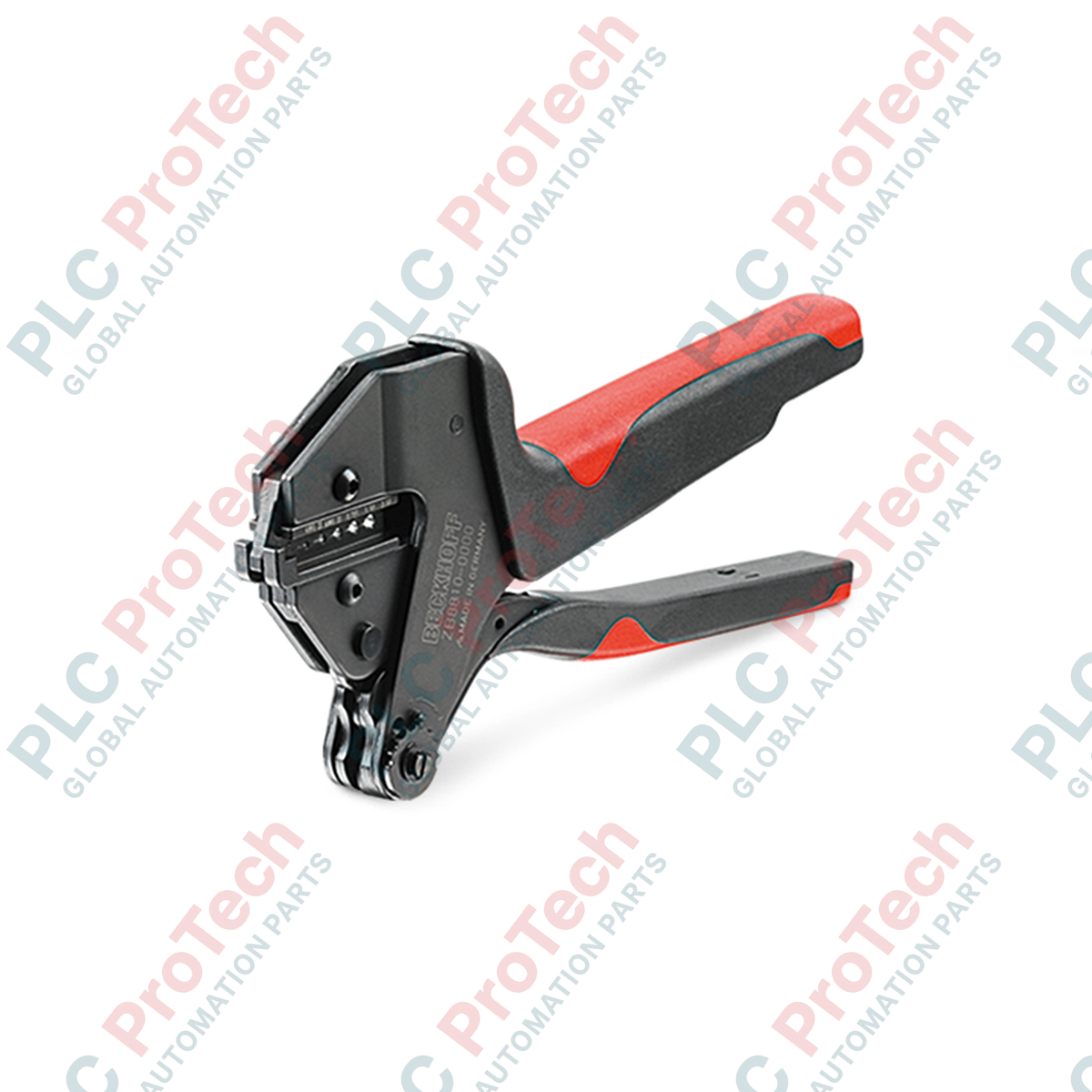

The ZB8810-0000 is a specialized crimping tool manufactured by Beckhoff, specifically designed for the professional assembly of Ethernet contact elements. This versatile tool supports a wide range of connector series, including M8, B12, B17, and B23 contacts. Engineered for industrial electrical assembly, the tool features an ergonomic center of gravity and optimized leverage transfer, ensuring consistent and high-quality crimp connections while minimizing operator fatigue during repetitive tasks.
Features
Compatibility with M8, B12, B17, and B23 Ethernet contact series
Ergonomic design for improved handling and reduced strain
High-leverage mechanism for reliable and durable contact crimping
Robust construction suitable for professional field and workshop use
Technical Specifications
Feature
Specification
Manufacturer
Beckhoff
Model
ZB8810-0000
Function
Crimping tool for Ethernet elements
Supported Contacts
M8, B12, B17, B23
Weight per piece
0.570 kg
Body Material
Ergonomic design with leverage transfer
Usage Guidelines
Application: Use this tool exclusively for the specified Beckhoff Ethernet contact elements (M8, B12, B17, B23). Attempting to use this tool on non-compatible contacts may result in permanent damage to the tool or the connector.
Maintenance: Keep the crimping jaws clean and free of debris to ensure uniform pressure during the crimping cycle. Periodically inspect the pivot points for smooth operation.
Ergonomics: The tool is balanced to reduce hand fatigue; maintain a secure grip on the handles and utilize the full range of motion allowed by the leverage mechanism for a complete crimp cycle.
Safety: Always ensure that cables are prepared to the manufacturer's specified stripping lengths before inserting the contact into the crimping nest.
