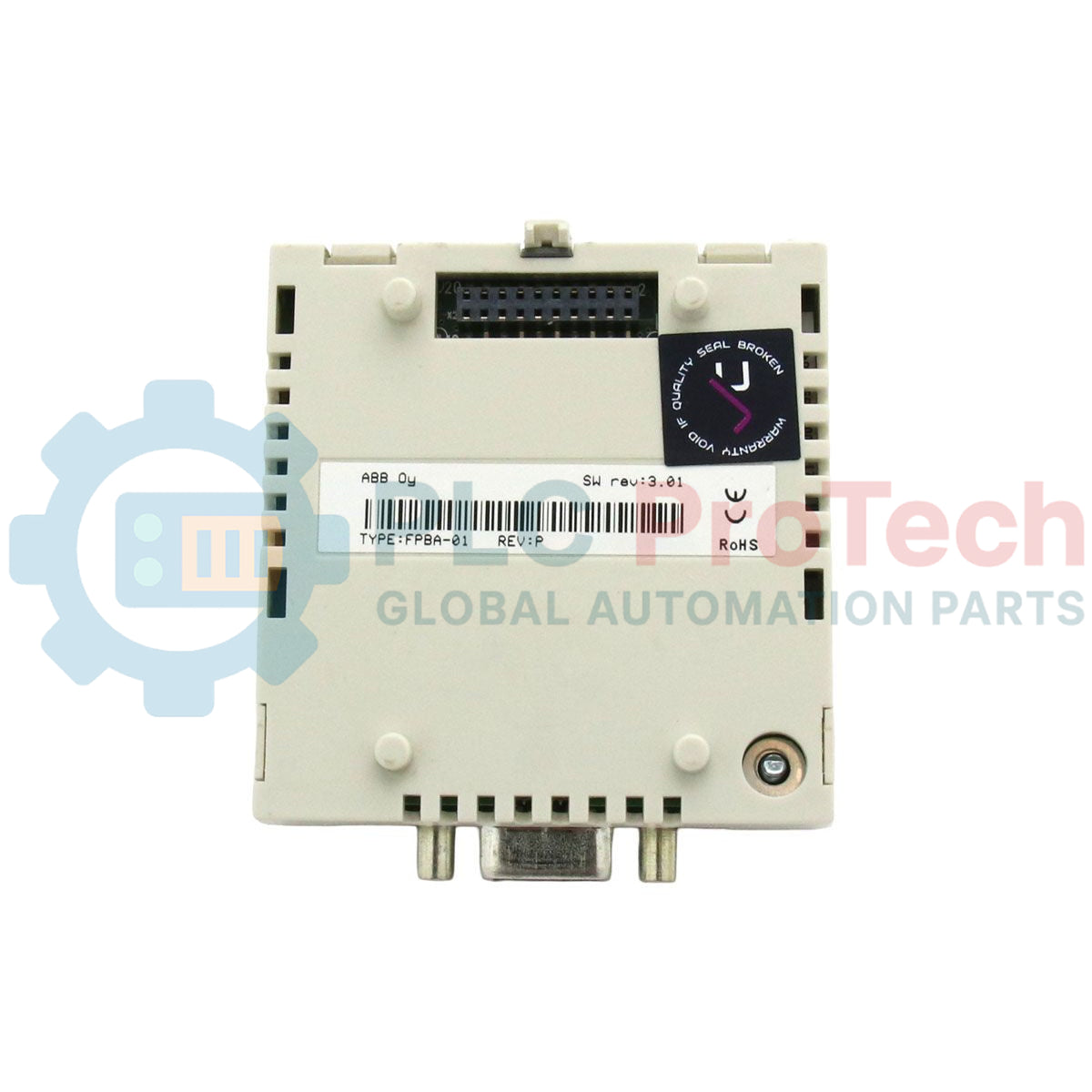

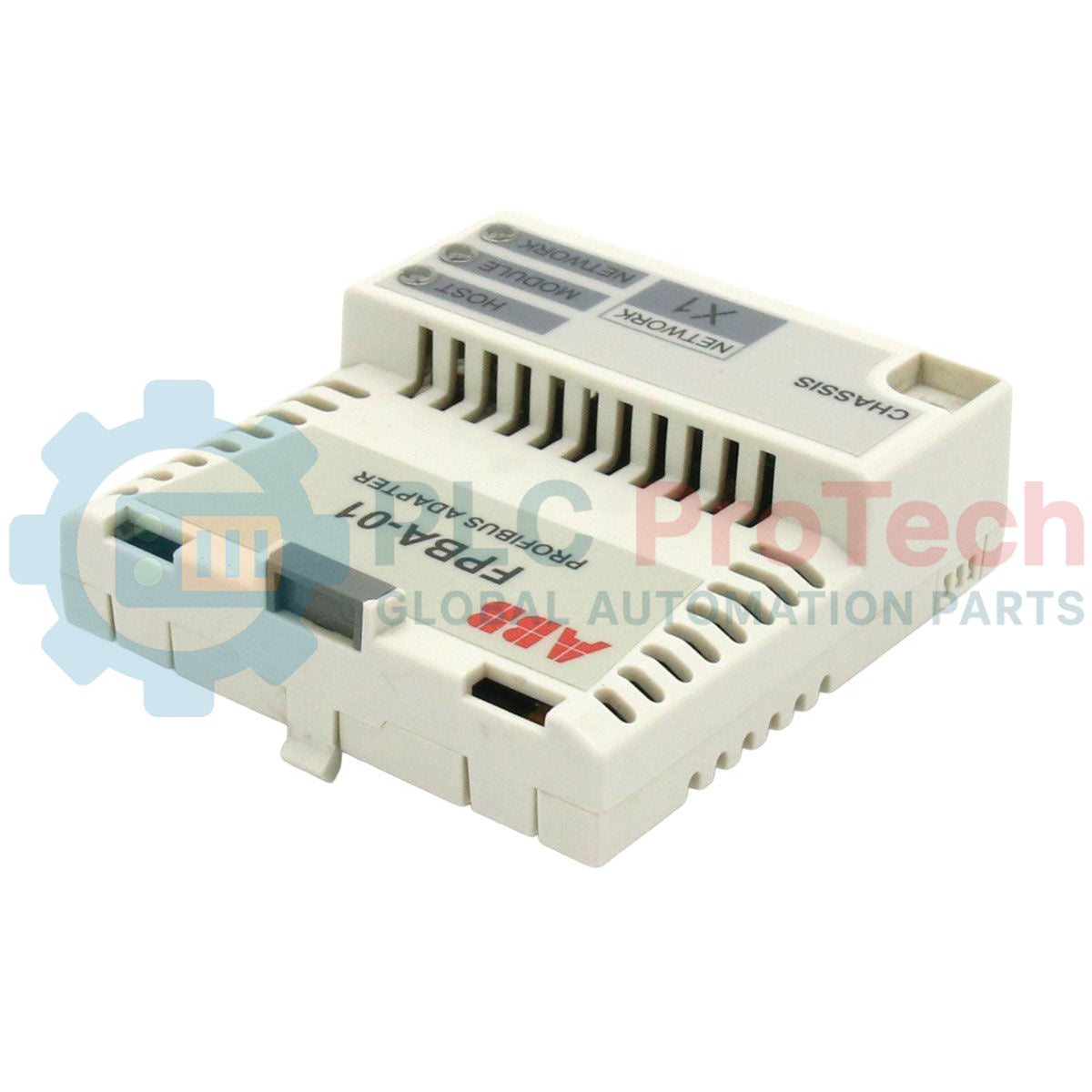

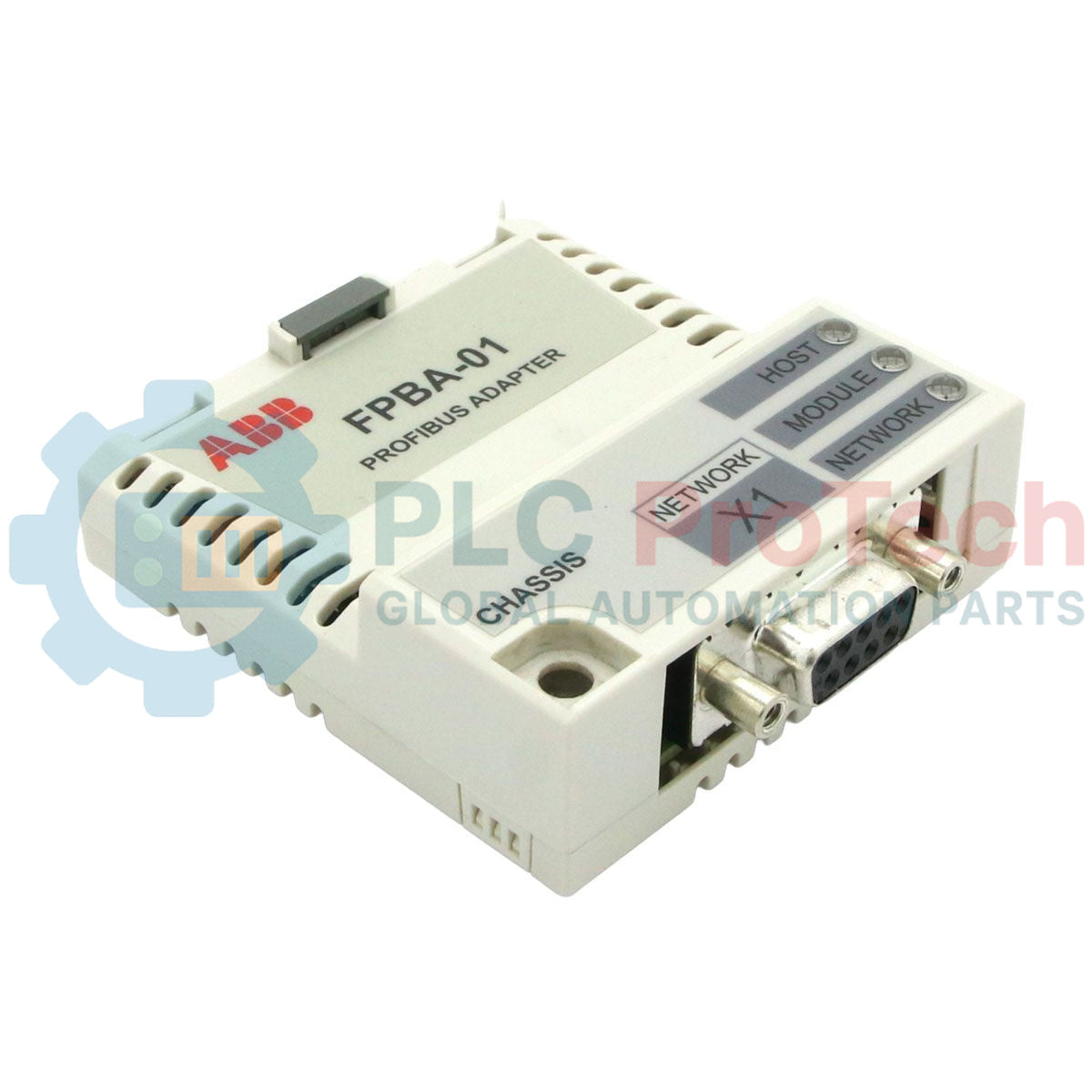

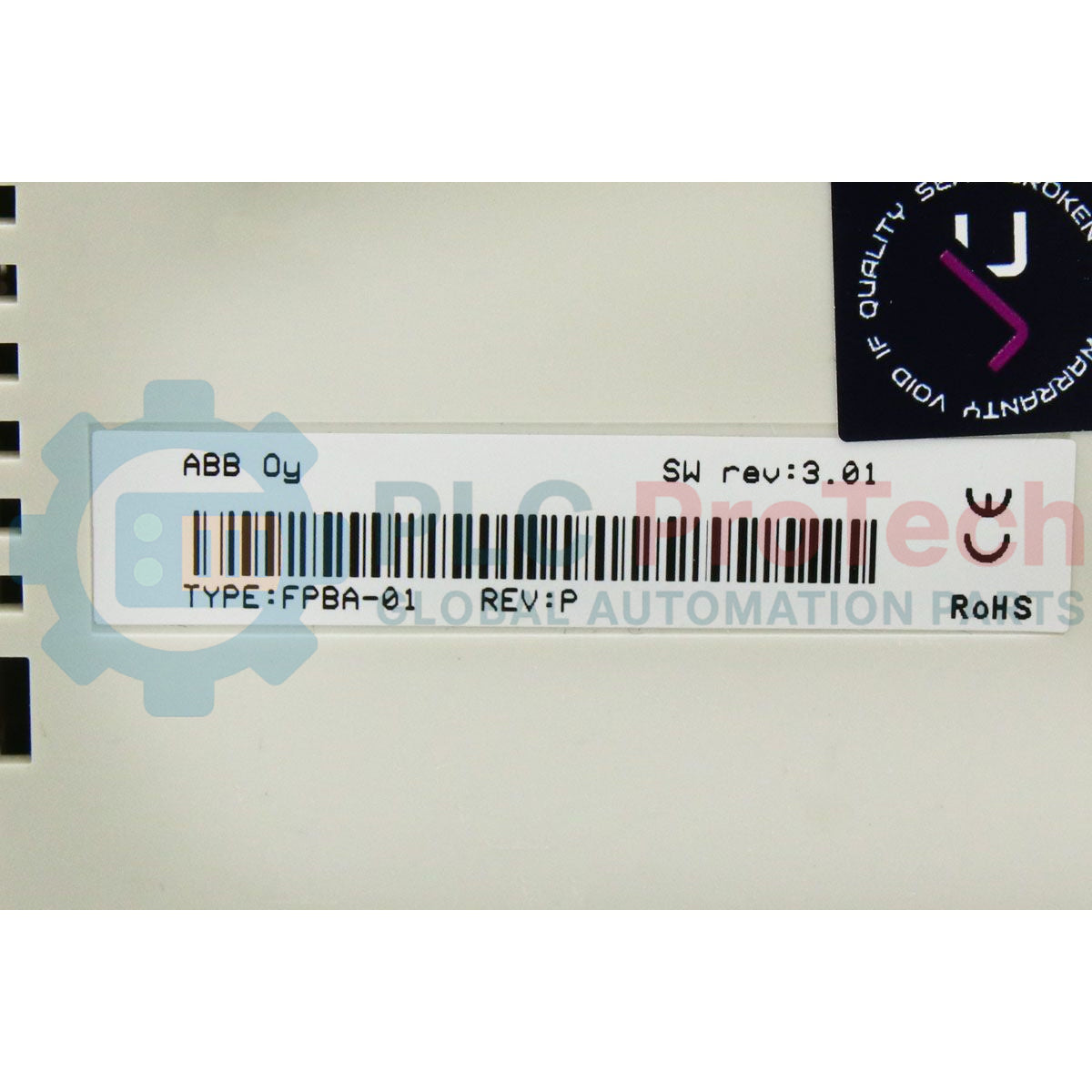

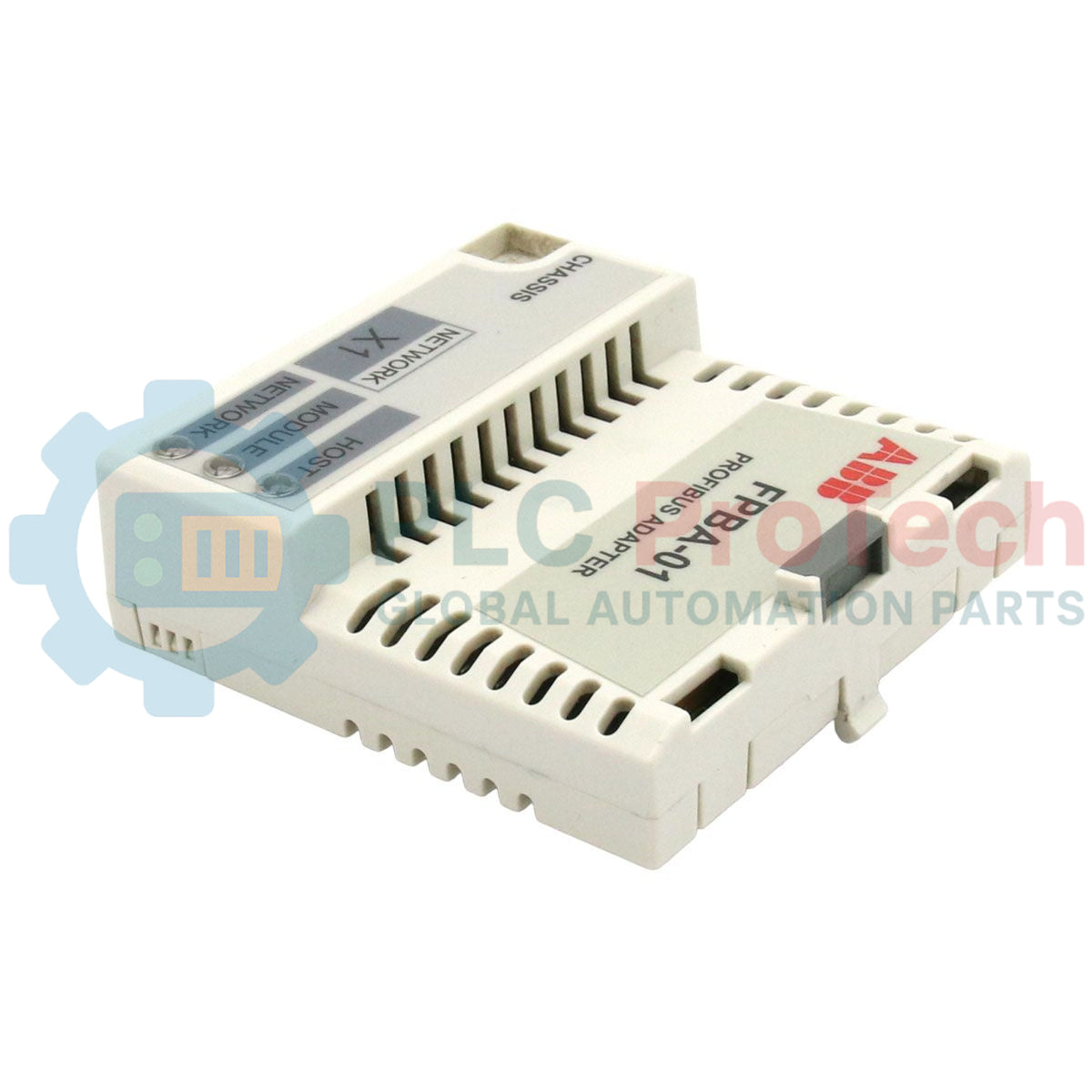

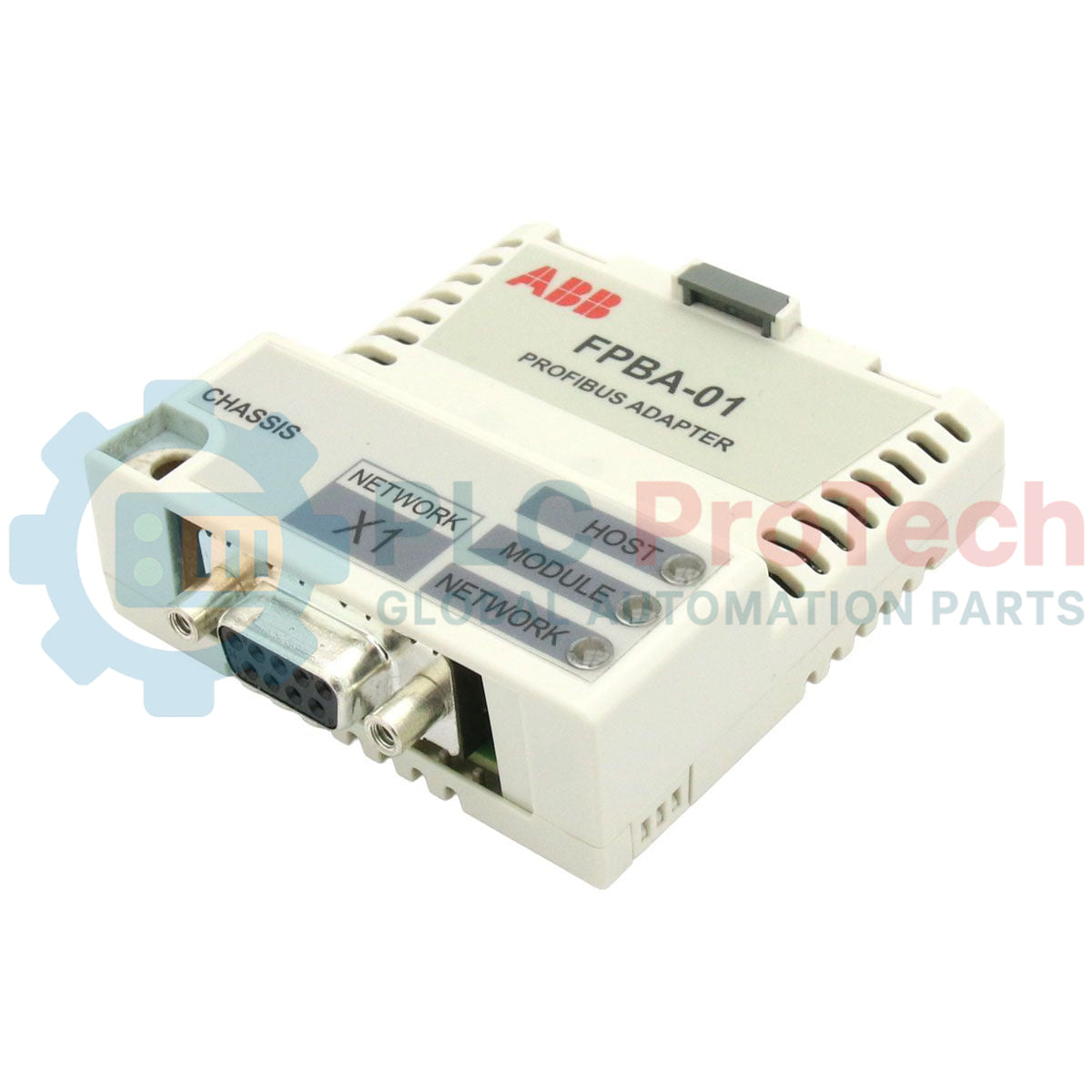

ABB FPBA-01 ACS Series PROFIBUS DP Adapter Module

Description

Establishing high-performance cyclic and acyclic data exchange between industrial control networks and variable speed drives, the ABB FPBA-01 PROFIBUS DP communication adapter module provides seamless integration into distributed control architectures. This interface module slides directly into the drive slot, enabling standard PROFIdrive or ABB Drives communication profiles to command, monitor, and configure parameters on compatible frequency converters. Operating with 16-bit word lengths, it ensures reliable signal transmission under demanding electromagnetic conditions typical of industrial plant floors.

Key Technical Features

• Multi-Protocol Support: Full compliance with both PROFIBUS DP-V0 and DP-V1 standards, allowing cyclic process data exchange and acyclic parameter configuration.
• Adaptive Baud Rate Detection: Automatically locks onto network speeds ranging from 9.6 kbit/s up to 12 Mbit/s, eliminating manual transmission rate configurations.
• Versatile Control Profiles: Native support for the standard PROFIdrive profile as well as the proprietary ABB Drives profile for system flexibility.
• Direct Slot Integration: Compact physical form factor designed to mount inside the drive housing, receiving internal control power directly from the host drive.

Industrial Applications

• Continuous Process Environments: Connecting variable speed pump and fan drives in water/wastewater facilities to centralized PLCs.
• Automated Material Handling: Synchronization of conveyor speed controllers in packaging and logistics distribution lines.
• Machinery Manufacturing: High-density multi-axis machinery configurations using ACS355 drive blocks controlled via a centralized Siemens master controller.

Technical Specifications Table

Connections and Pin Assignments

The fieldbus physical layer utilizes a 9-pin Sub-D female block configured as follows:

Empirical Engineering Insights

Alternative Models & Compatibility

The FPBA-01 acts as a universal communication adapter for multiple series of ABB drives. However, some legacy ACS350 drives require a dedicated firmware revision level to map DP-V1 acyclic blocks correctly. Check parameter group 51 (Fieldbus Parameter Group) after hardware discovery to confirm that the driver version is recognized by the VFD main board.

Application Pitfalls & Engineering Notes

A common cause of bus faults during system startups is the lack of proper network termination on physical line ends. If the FPBA-01 sits at the physical end of the PROFIBUS segment, a SUB-D connector containing integrated termination switches must be used, and the switch must be toggled to 'ON'. Ensure that this termination connector receives power from Pin 6 (+5V) and Pin 5 (DGND) on the FPBA-01 module.

Commissioning & Wiring Tips

When compiling the master PLC database, ensure the correct GSD configuration file is loaded (typically ABB_090F.GSD). After altering parameter values in Group 51, a parameter refresh is mandatory. Trigger Parameter 51.27 (FBA PAR REFRESH) or perform a complete drive power cycle to commit the node address changes to active memory.

Installation Guidelines
