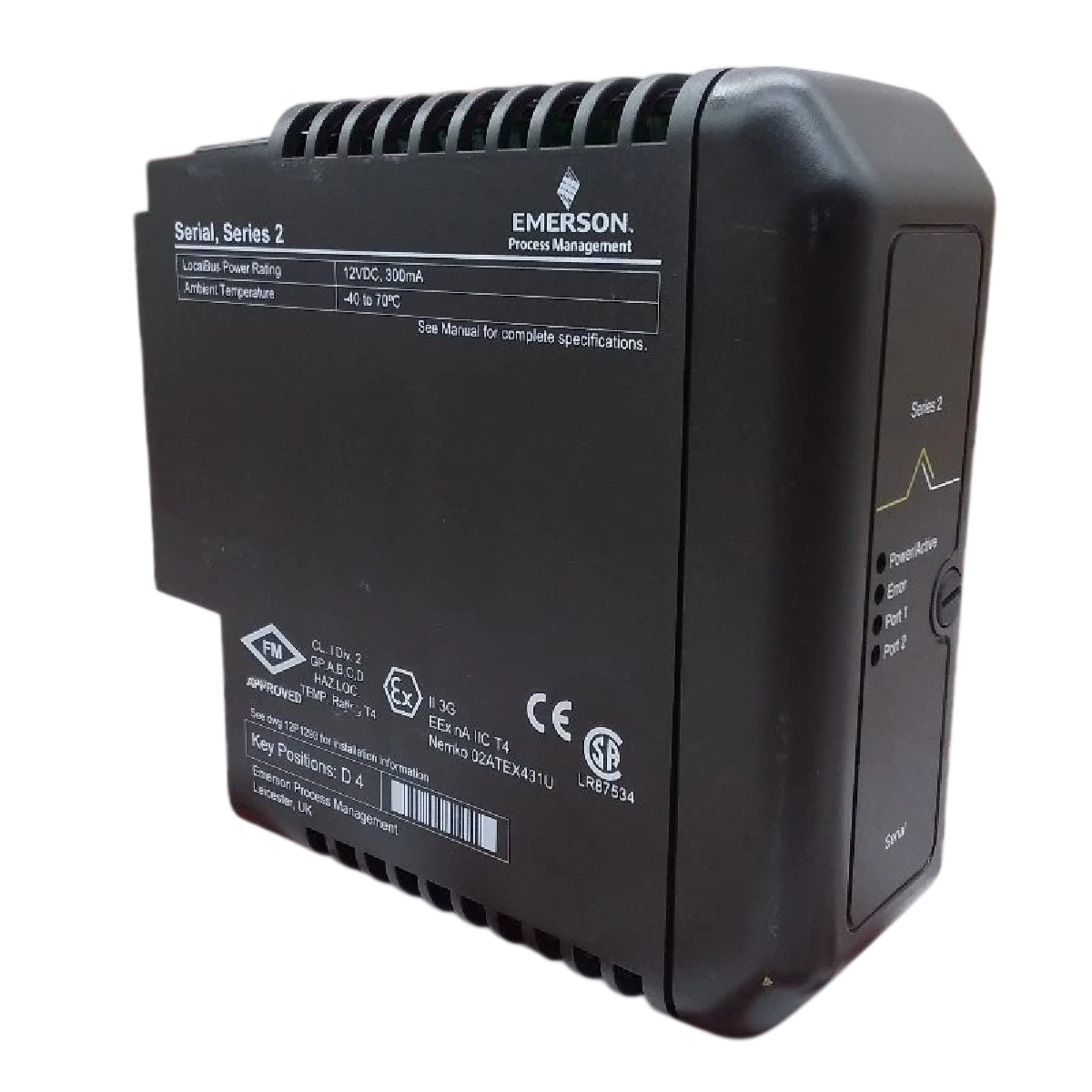

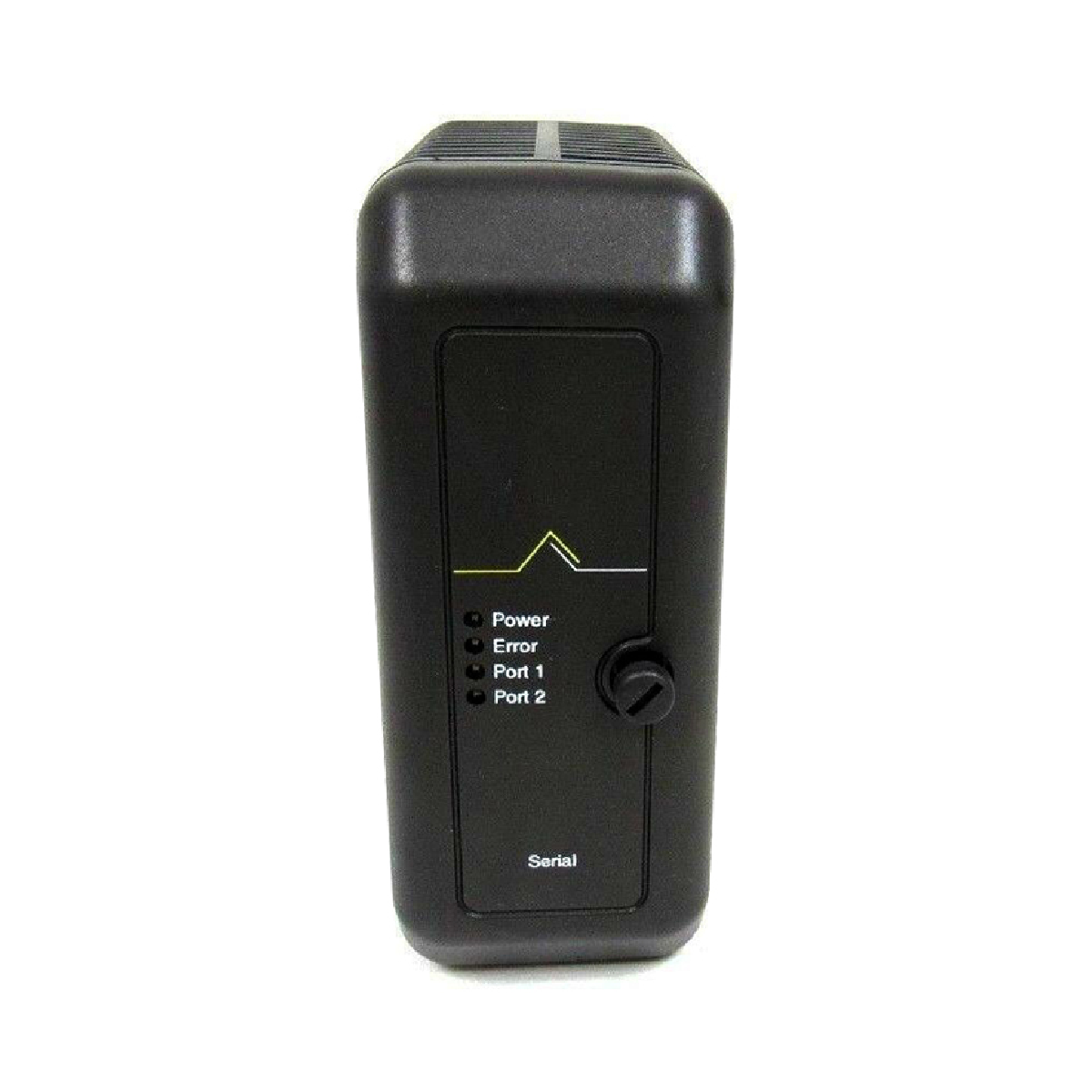

Emerson VE4006P2 KJ3241X1-BA1 M-series Serial Interface Card

Description

The Emerson KJ3241X1-BA1 (also referred to as VE4006P2) is a Serial Interface Card designed for the DeltaV M-series automation platform. This Series-2 module features two communication ports, enabling integration with various field devices through multiple protocols. It supports RS232, RS422/485 half-duplex, and RS422/485 full-duplex communication, providing flexibility for industrial data exchange. Each port is electrically isolated from the system and other ports to ensure signal integrity and protection in demanding process environments.

Features

• M-series Serial Interface Card with 2-port configuration

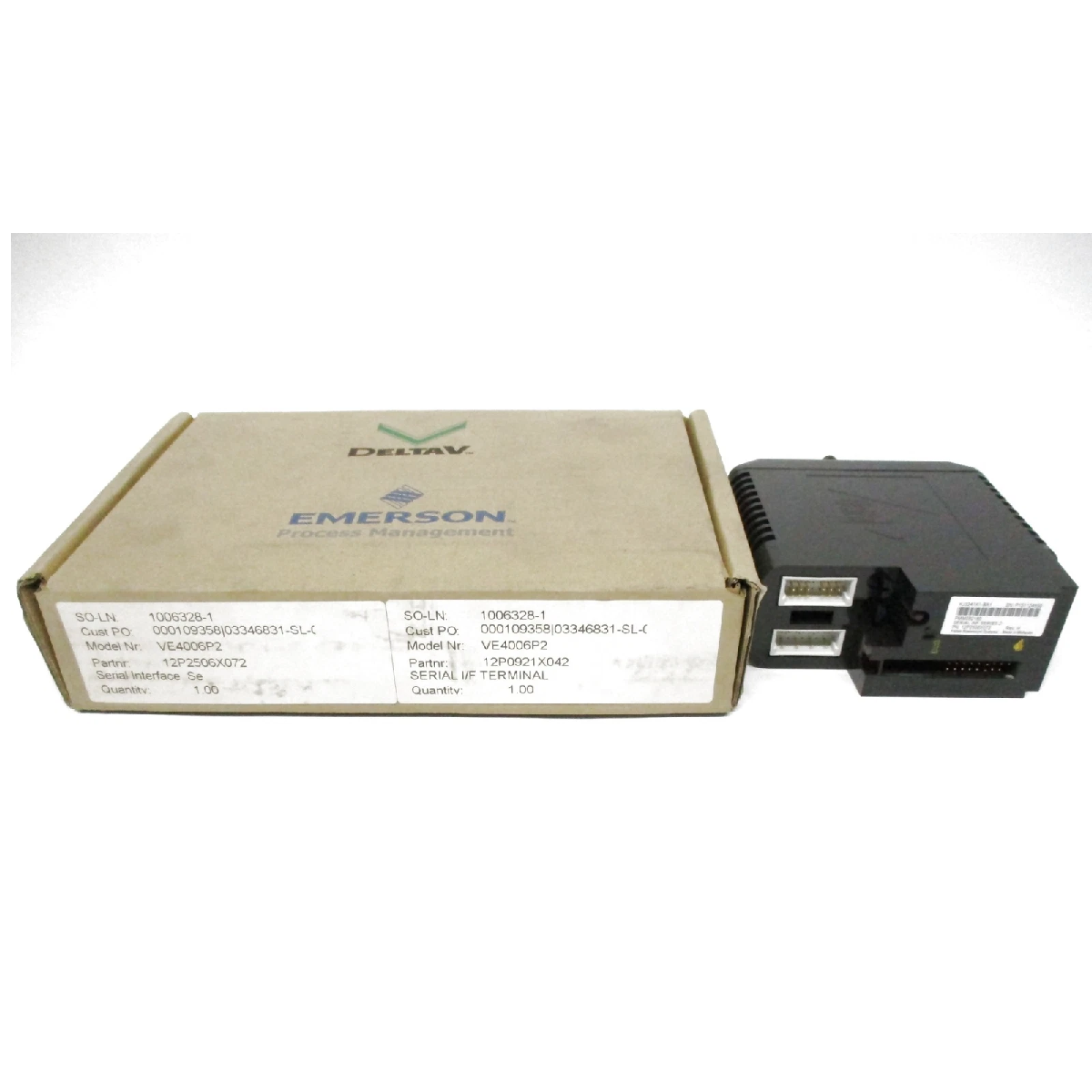

• Includes 1 Interface Card and 1 simplex Terminal Block
• Supports RS232, RS422/485 half-duplex, and full-duplex communication
• Electrical isolation between ports and the system
• Configurable parity: Even, Odd, or None
• Rotational keying system (Key Pos: D4) for terminal block compatibility
• Supports up to 32 data sets (16 per port)

Applications

• Distributed Control Systems (DCS)
• Process automation and industrial communication
• Field device integration and serial data acquisition
• Supervisory control and data monitoring

Technical Specifications

Installation Guidelines

• This unit cannot be removed or inserted with system power energized in hazardous areas.
• A rotary keying system ensures compatibility between the I/O card and terminal block; verify the keys are set correctly before installation.
• Ensure all ports are externally grounded as per system requirements to maintain isolation performance.
• Refer to document 12P2046 for specific instructions regarding installation and operation in hazardous areas.

Compliance and Certifications

• ATEX: II 3G Ex nA nC IIC Gc (FM12ATEX0090U)
• IECEx: IECEX FMG 12.0035U
• FM: CL. 1 Div. 2, GP. A, B, C, D (Temp. Rating T4)
• CE: Approved
