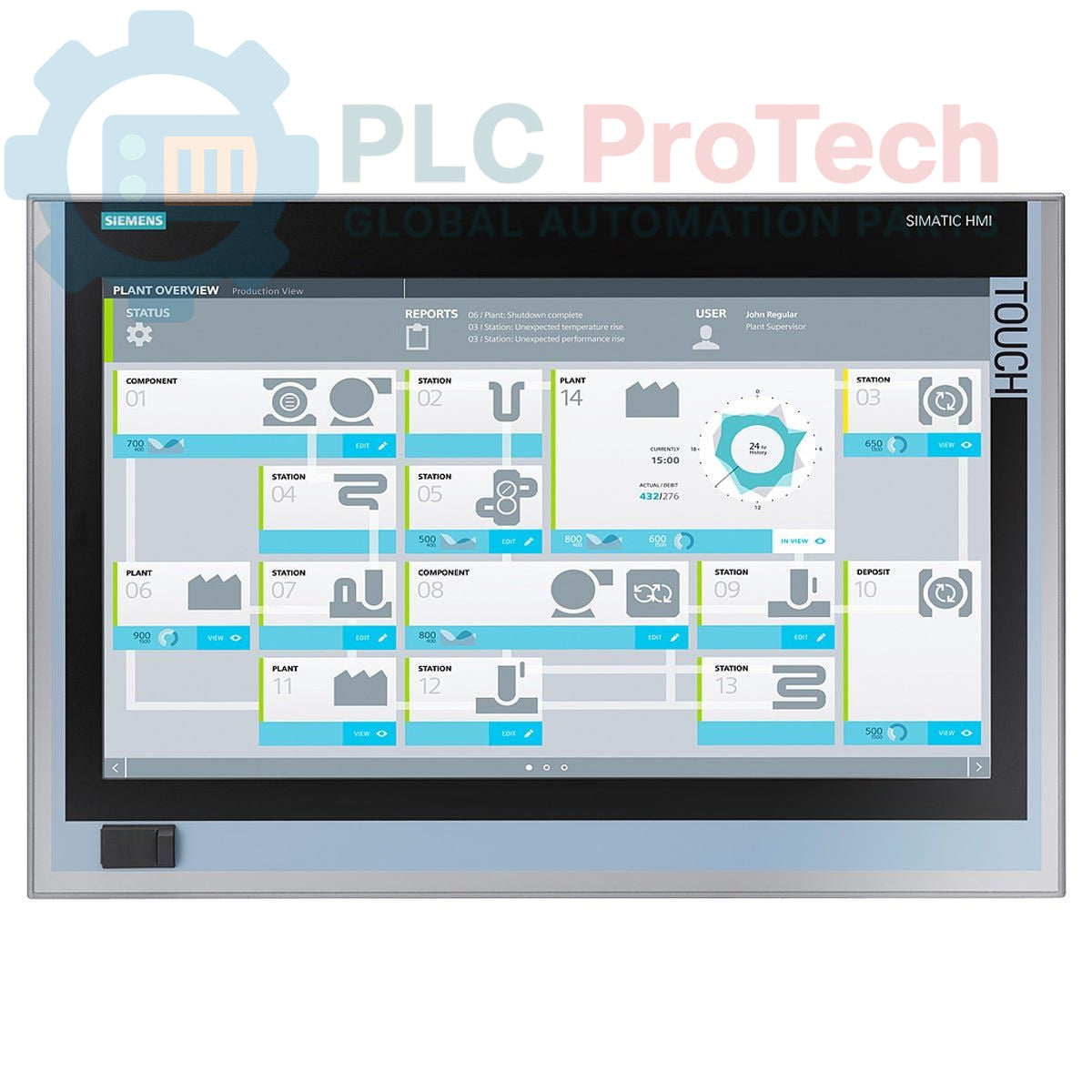

Siemens 6AV7260-1GD20-0BX0 SIMATIC IPC677D Panel PC

Description

Features

• Integrated 19-inch touch display (1366x768 resolution).
• Equipped with Intel Xeon E3-1268LV3 processor (4C/8T, 2.3 (3.3) GHz, 8 MB Cache VT-D, AMT).
• Includes 1 TB SATA HDD and 4 GB DDR3 1600 DIMM RAM.
• Multiple communication interfaces: 2x Gigabit Ethernet, 4x USB V3.0, 1x Serial (COM1).
• Onboard RAID controller for data redundancy.
• Watchdog, temperature, and fan monitoring functions for system stability.
• Pre-installed Windows 7 Ultimate 64-bit SP1 (MUI: DE, EN, FR, ES, IT).
• Industrial power supply unit (AC 110/230V) with NAMUR compatibility.
• Two PCI expansion slots (hardware without expansion).

Applications

• Human-Machine Interface (HMI) and visualization in manufacturing environments.
• Data acquisition and processing in control rooms or on the plant floor.
• Supervisory Control and Data Acquisition (SCADA) systems.
• Machine control and embedded applications requiring a robust PC platform.
• Industrial workstations for process monitoring and operational control.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Power Connection: Connect the Panel PC to an AC 110/230V power source using the provided Europe power supply cable. Ensure the power supply adheres to NAMUR standards if required for your application.
2. Grounding: Properly ground the Panel PC chassis to the industrial grounding system to ensure electrical safety and minimize electromagnetic interference.
3. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate ventilation for heat dissipation, especially for the integrated fan monitoring.
4. Peripheral Connections: Connect necessary peripherals such as keyboards, mice, or external storage devices to the available USB V3.0 ports. Utilize the Ethernet ports for network integration and the serial port (COM1) for legacy device communication.
5. Environmental Considerations: Install the Panel PC in an environment that complies with its specified operating conditions regarding temperature, humidity, and vibration to ensure long-term reliability.
6. Software Configuration: After hardware installation, configure the pre-installed Windows 7 Ultimate 64-bit SP1 operating system and any required application software for your specific control or monitoring tasks.
