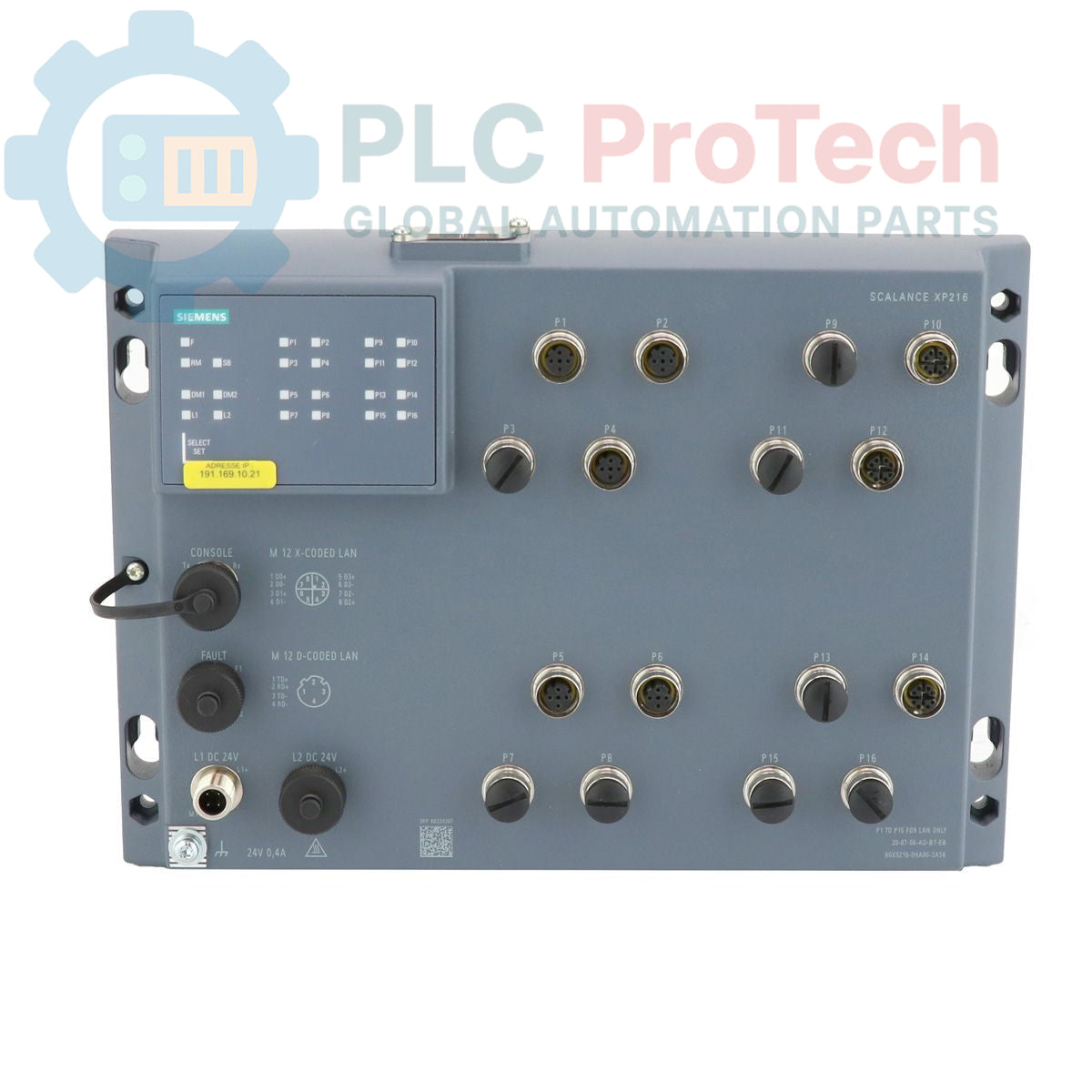

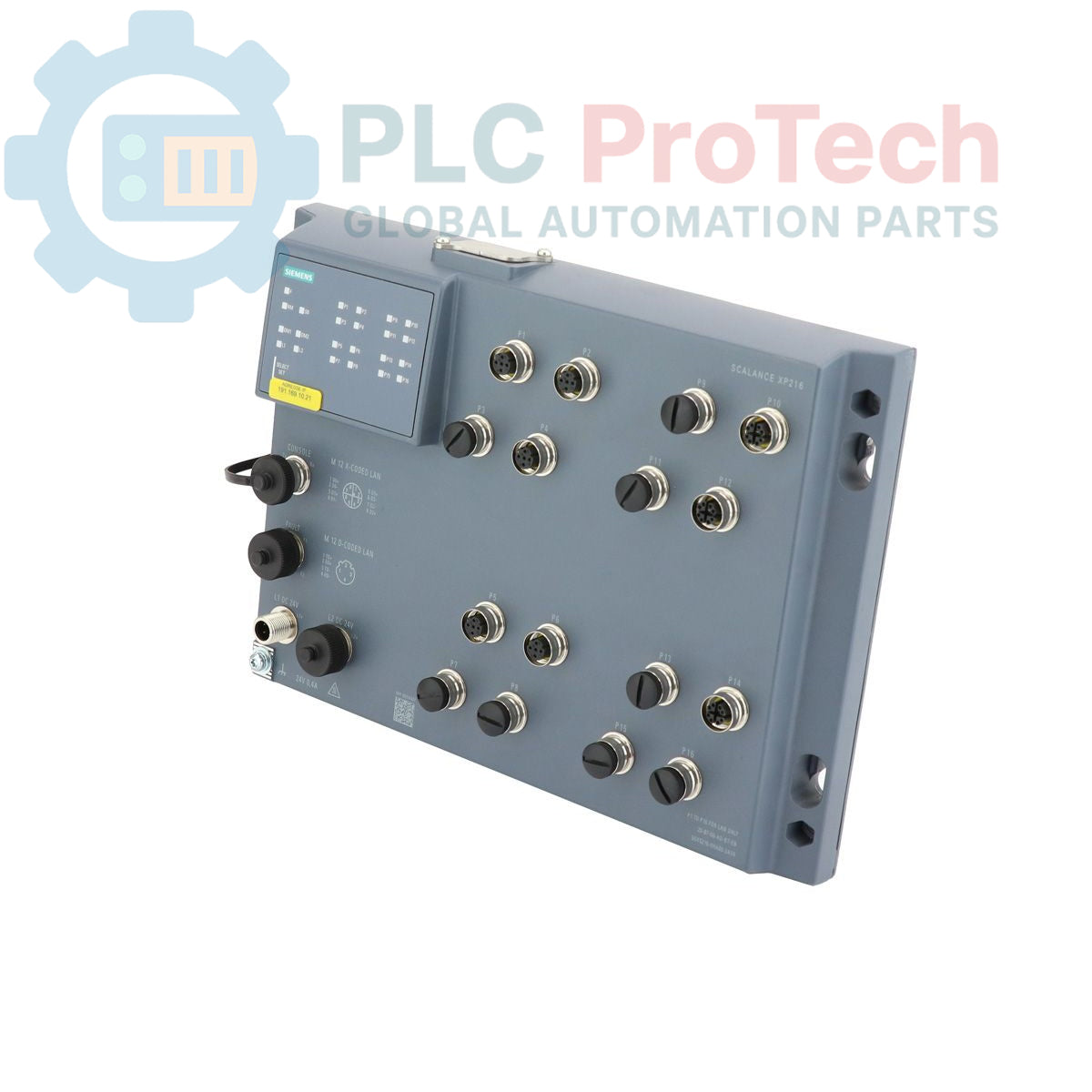

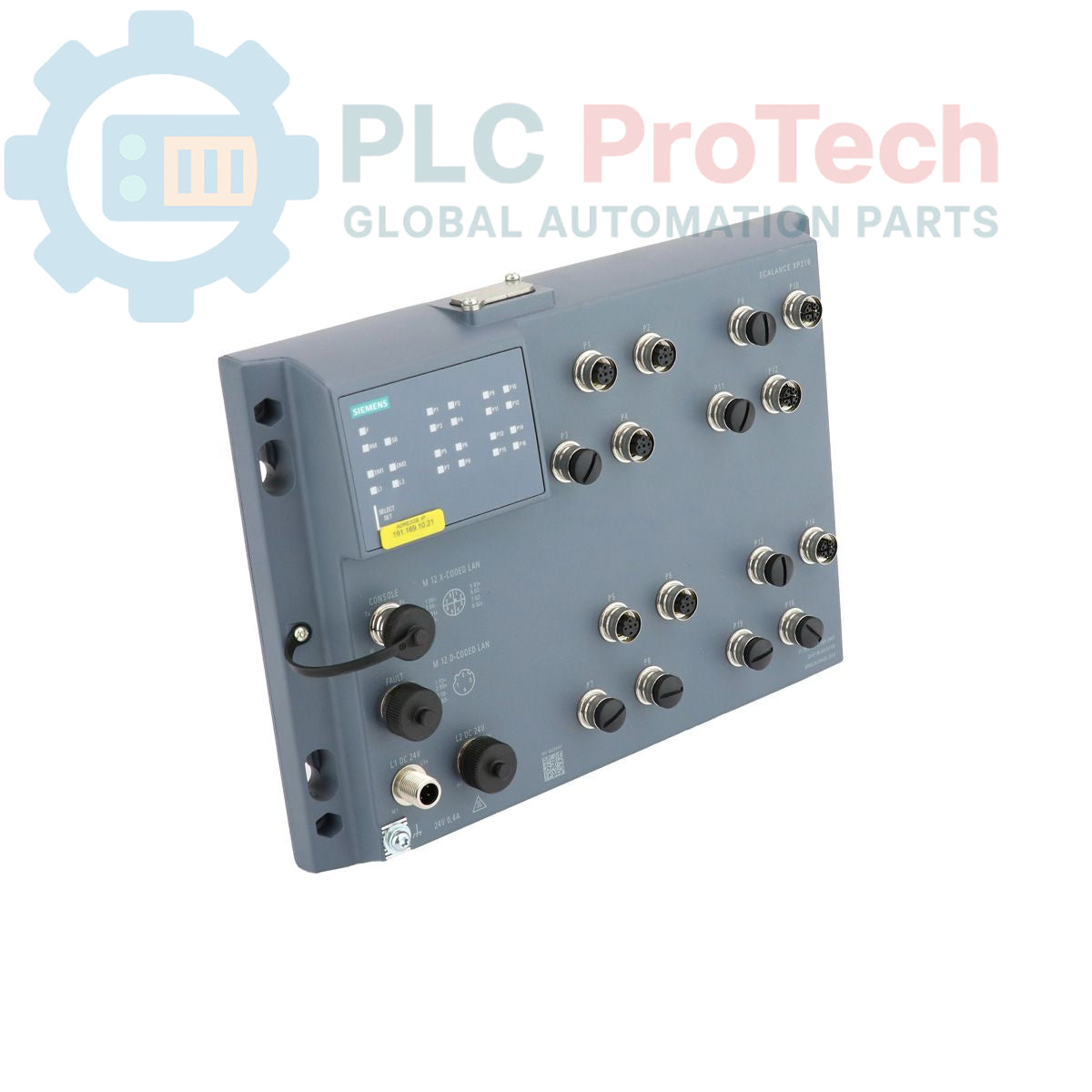

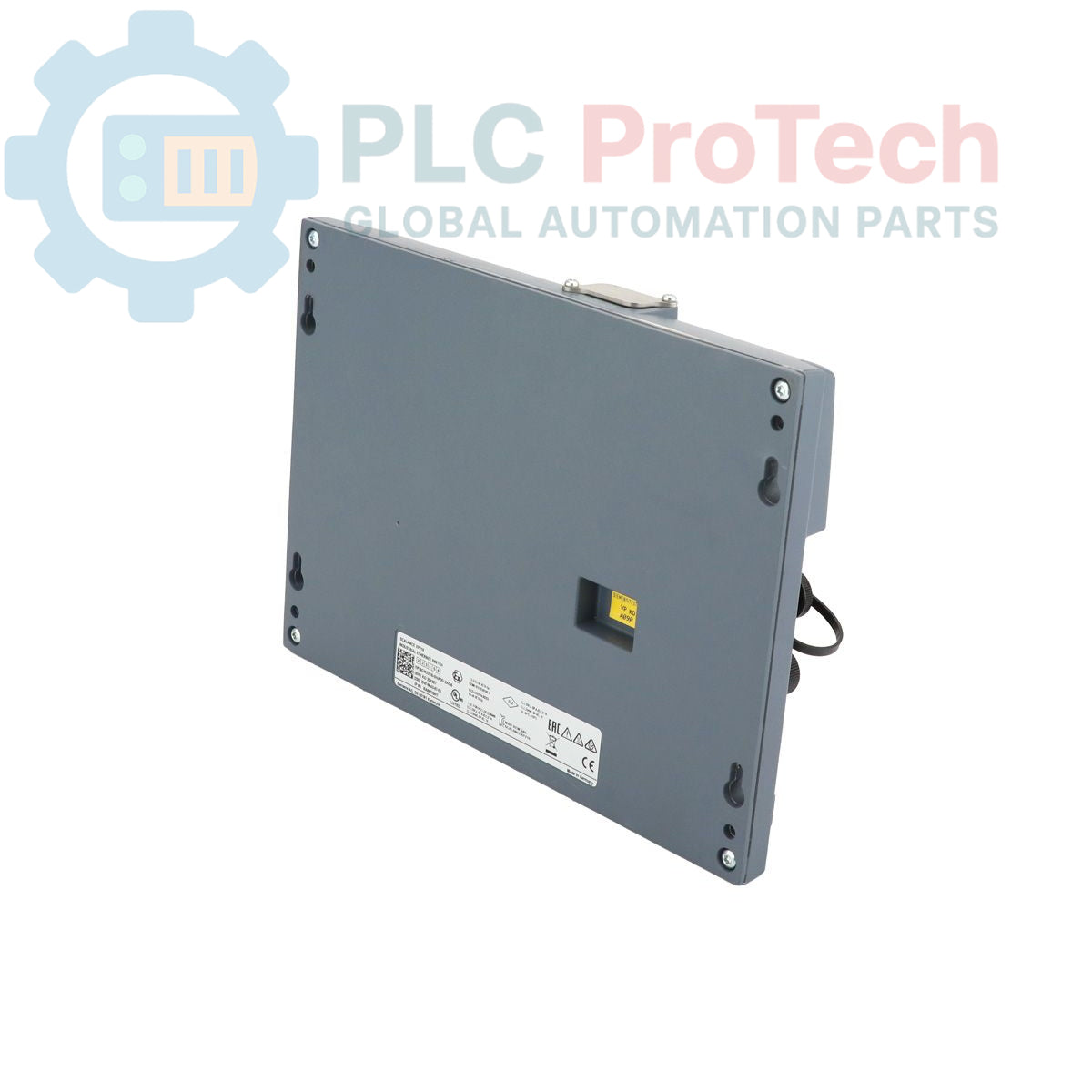

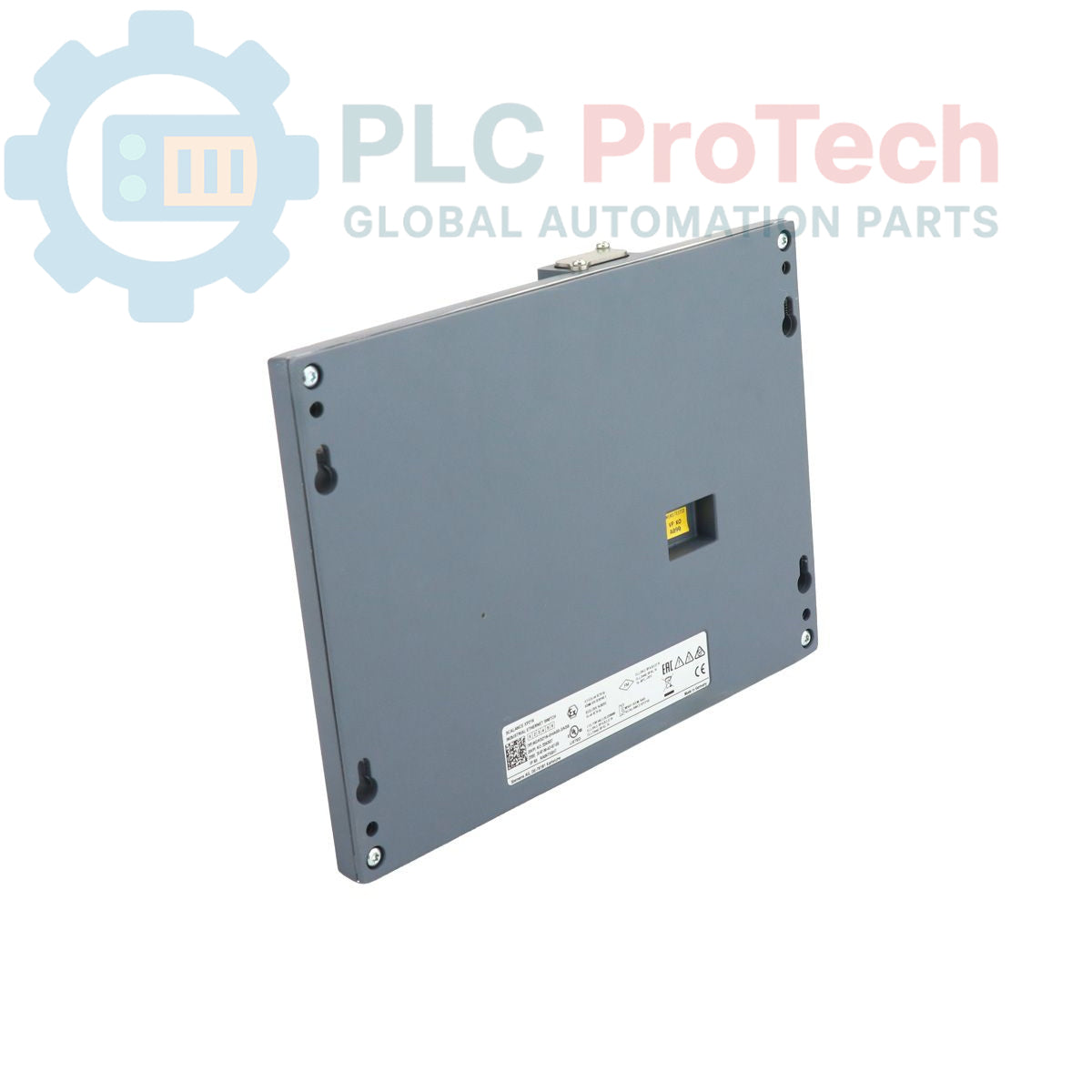

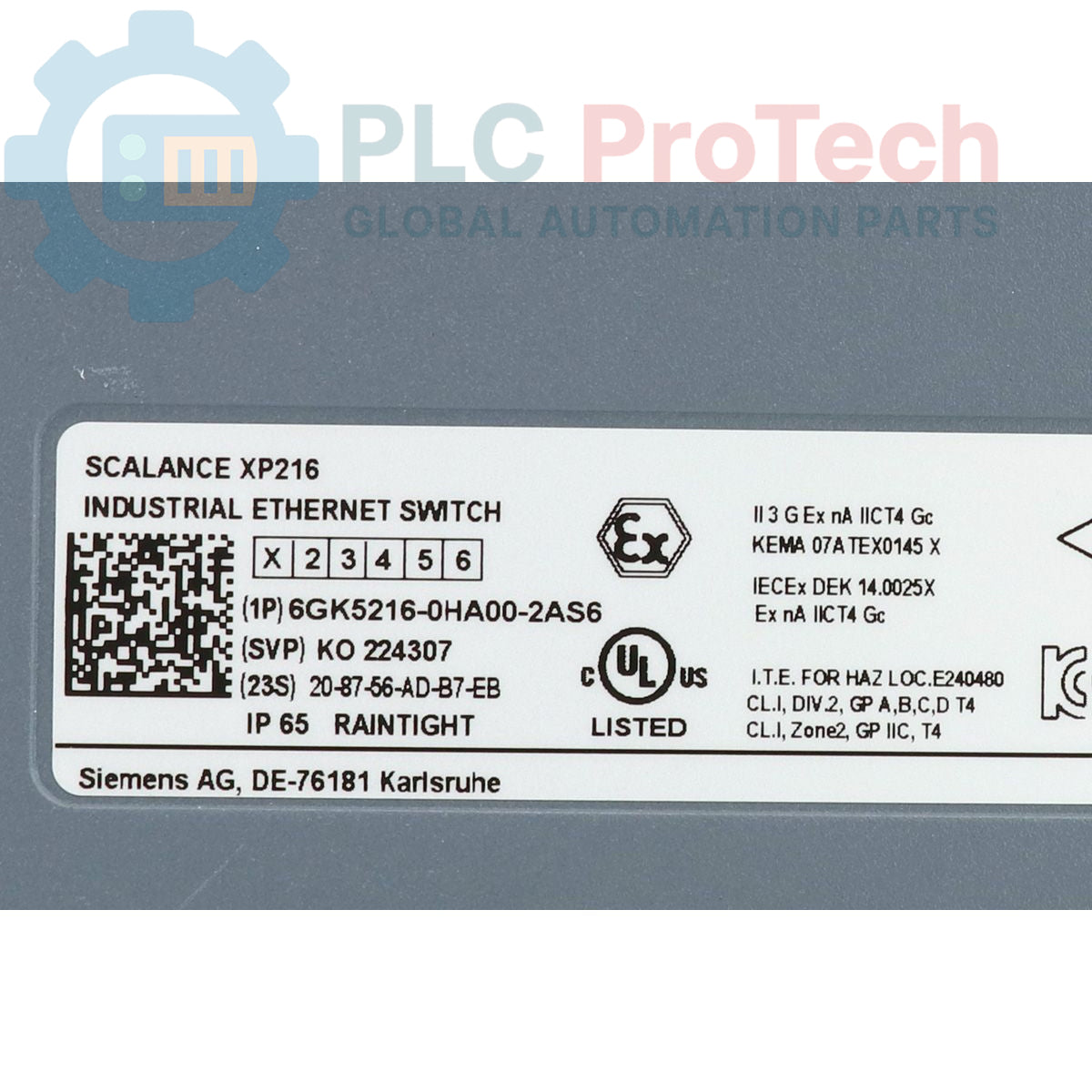

Siemens 6GK5216-0HA00-2AS6 SCALANCE XP216 Managed Industrial Ethernet Switch

Description

The Siemens 6GK5216-0HA00-2AS6 is a managed Industrial Ethernet switch from the SCALANCE XP216 series, designed for reliable network management in demanding industrial environments. This device provides a total of 16 ports, including 12 x 10/100 Mbps M12 ports and 4 x 10/100/1000 Mbps M12 ports for versatile connectivity. Engineered for harsh conditions, the switch features a rugged enclosure with an IP65 protection rating and supports redundant power supplies for high operational availability. It functions as a PROFINET IO device and is certified to IEC 62443-4-2, ensuring compliance with modern industrial cybersecurity standards.

Features

• Managed Layer 2 Industrial Ethernet switch
• 12 x 10/100 Mbps ports with M12 connectors
• 4 x 10/100/1000 Mbps ports with M12 connectors
• IP65-rated enclosure for protection against dust and water ingress
• Functions as a PROFINET IO device for seamless automation integration
• Supports redundant ring operation for network fault tolerance
• Redundant power supply input for increased system uptime
• Integrated LED diagnostics for at-a-glance status monitoring
• Includes an error signaling contact for external fault indication
• Certified according to IEC 62443-4-2 for industrial security

Applications

• Machine building and factory automation
• Automotive manufacturing and assembly lines
• Transportation systems (rail, traffic control)
• Food and beverage processing plants
• Applications requiring cabinet-free, decentralized networking

Technical Specifications

Installation Guidelines

1. 1 De-energize System: Before installation, ensure all related power sources to the control panel or mounting location are completely de-energized, locked out, and tagged out according to site safety procedures.
2. 2 Mount the Switch: Securely mount the SCALANCE XP216 switch to a stable, flat surface or DIN rail (if an adapter is used) in its intended operational environment. Ensure adequate clearance for cable routing and heat dissipation.
3. 3 Connect Protective Earth (PE): Connect a low-impedance protective earthing conductor to the designated grounding terminal on the switch chassis. A proper ground connection is critical for safety and noise immunity.
4. 4 Terminate Power Supplies: Connect the primary and, if used, redundant power supply cables to the M12 power connector. Verify the voltage and polarity match the device's specifications before connection.
5. 5 Connect Network Cables: Connect the Ethernet cables to the appropriate M12 ports. Ensure connectors are fully seated and tightened to the manufacturer's recommended torque to maintain the IP65 rating. Use the included dust caps for any unused ports.
6. 6 Connect Signaling Contact: If required, connect the wiring for the error signaling contact to the designated terminals. This allows for remote monitoring of the switch's health status.
7. 7 Power On and Verify: After removing all locks and tags, re-energize the system. Observe the device's LEDs to confirm correct power-up, network link status, and activity.
