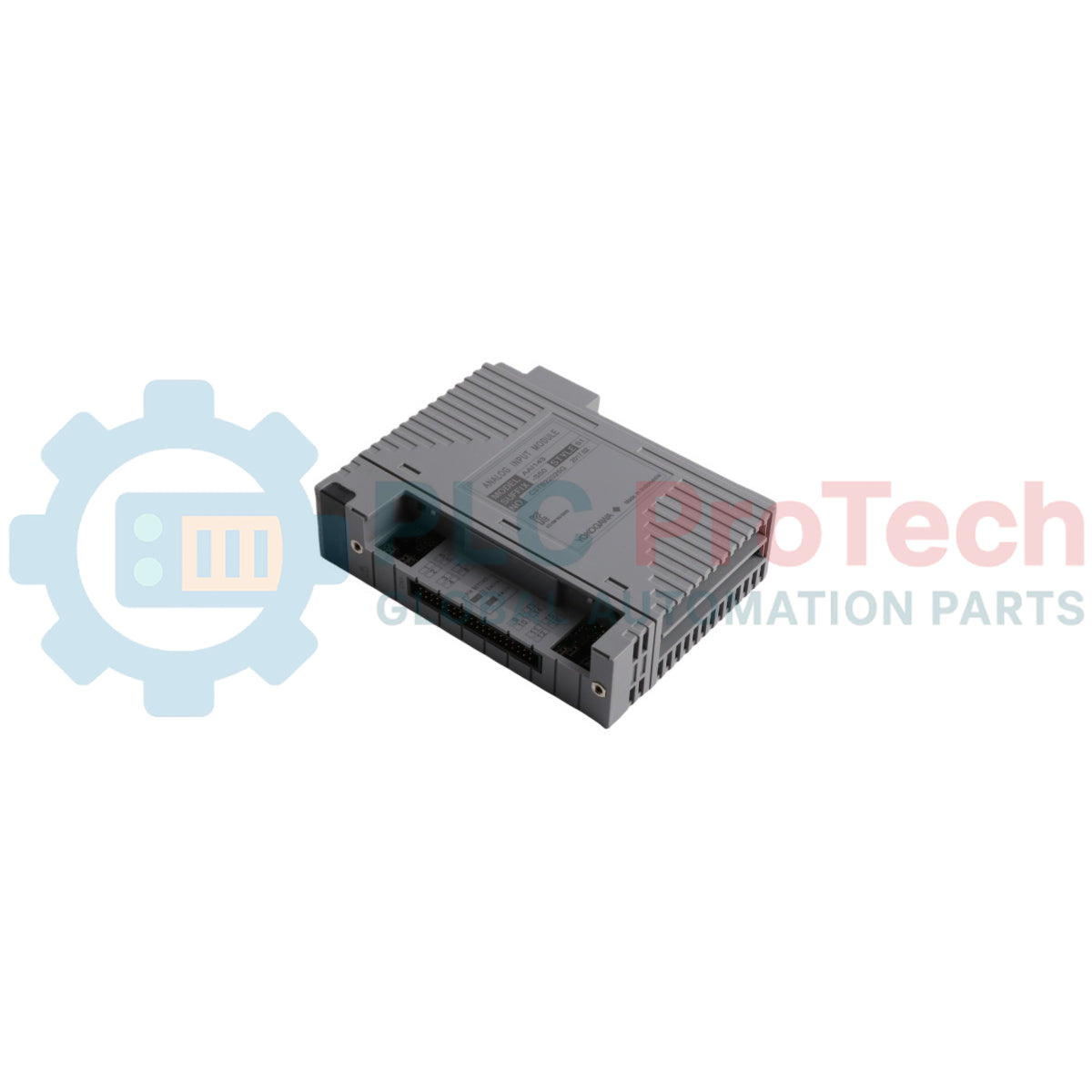

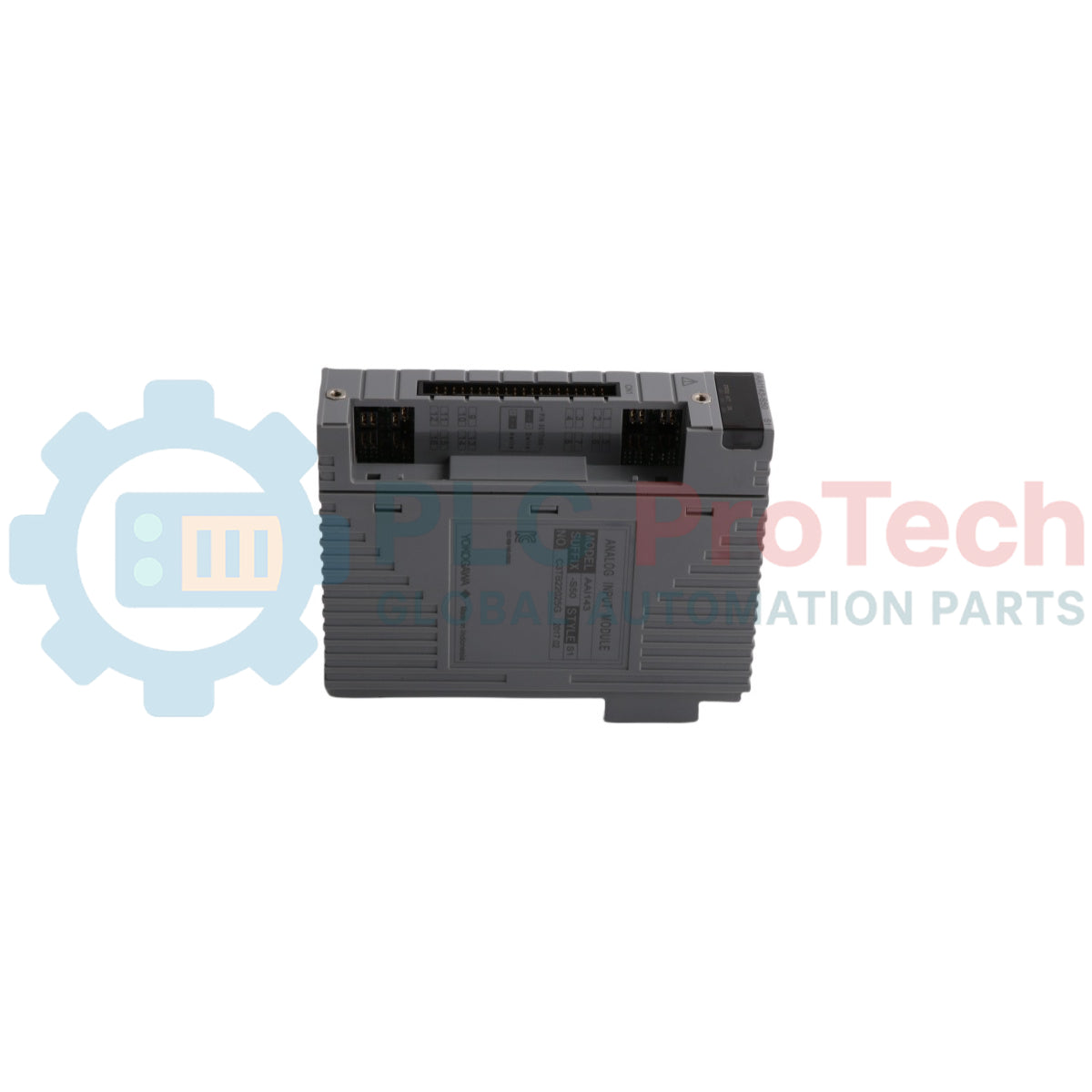

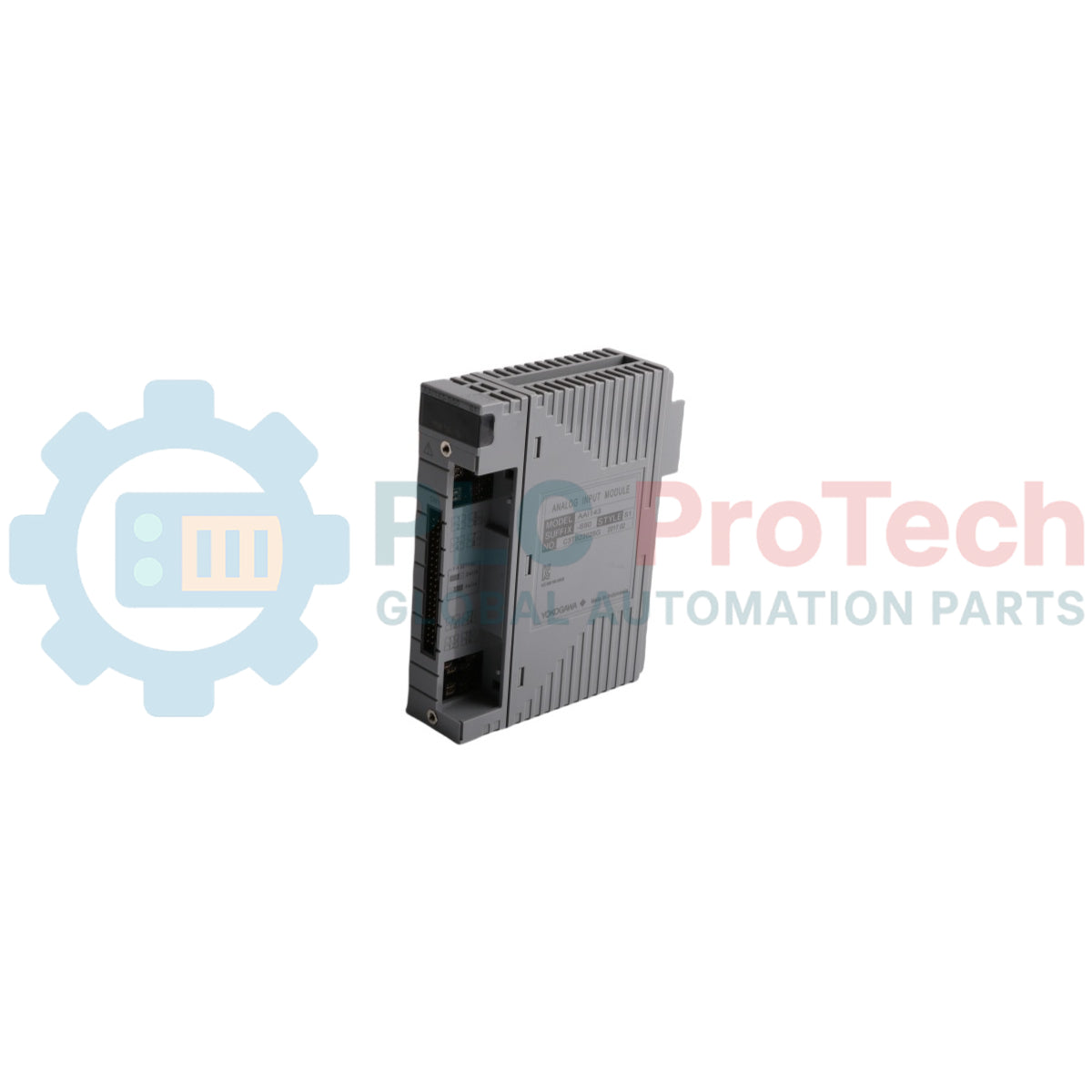

Yokogawa AAI143-S50 S1 Analog Input Module

The Yokogawa AAI143-S50 S1 is a high-density Analog Input Module for the CENTUM VP and STARDOM industrial automation systems. It features 16 channels designed to interface with 4 to 20 mA field signals from transmitters, ensuring high precision and electrical isolation for critical process data.

Technical Specifications

Suffix Code Breakdown

• -S: Standard type.

• 5: Standard conversion speed.

• 0: Always 0 (Basic specification).

• S1: Indicates the hardware is equipped with Pressure Clamp Terminal Blocks. This design provides a secure, vibration-resistant connection without the need for ring lugs, ideal for high-density cabinet wiring.

Key Features

• High-Speed Conversion: Capable of scanning all 16 channels in 10 ms, making it suitable for fast-acting control loops.

• Dual-Redundancy: Supports redundant configuration when used with a compatible duplex field control station (FCS), ensuring process uptime even if one module fails.

• HART Communication: This module supports digital signal superposition, allowing for remote configuration and diagnostics of HART-enabled field instruments.

• Isolation: Every channel is isolated from the system electronics, protecting the main controller from field-side electrical surges or ground loops.

Installation & Wiring Guidelines

• Terminal Connection: 1. Strip the wire insulation (approx. 7 mm).

  2. Insert the wire into the Pressure Clamp opening.

  3. Tighten the screw to 0.5 - 0.6 N·m.

• Heat Dissipation: When installing multiple high-density AAI143 modules, ensure the cabinet has adequate airflow. High-density analog modules can generate significant heat during operation.

• Cable Selection: Use twisted-pair shielded cable (minimum 0.5 $mm^2$ or 20 AWG) to maintain signal integrity and meet EMC requirements.

Frequently Asked Questions (FAQs)

What is the benefit of the "S1" Pressure Clamp over standard screws?

The S1 pressure clamp uses a compression plate to hold the wire. This prevents the screw from "shredding" the copper strands of the cable and maintains a constant tension that is superior in high-vibration environments compared to standard direct-screw terminals.

Can this module power the transmitters?

Yes, the AAI143 is an "Input" module that typically provides the loop power (24 VDC) for 2-wire transmitters, or it can be configured to receive signals from 4-wire (externally powered) transmitters.

How do I handle unused channels?

It is best practice to short-circuit unused channels or disable them in the software configuration to prevent the system from generating "Open Circuit" or "Out of Range" alarms
