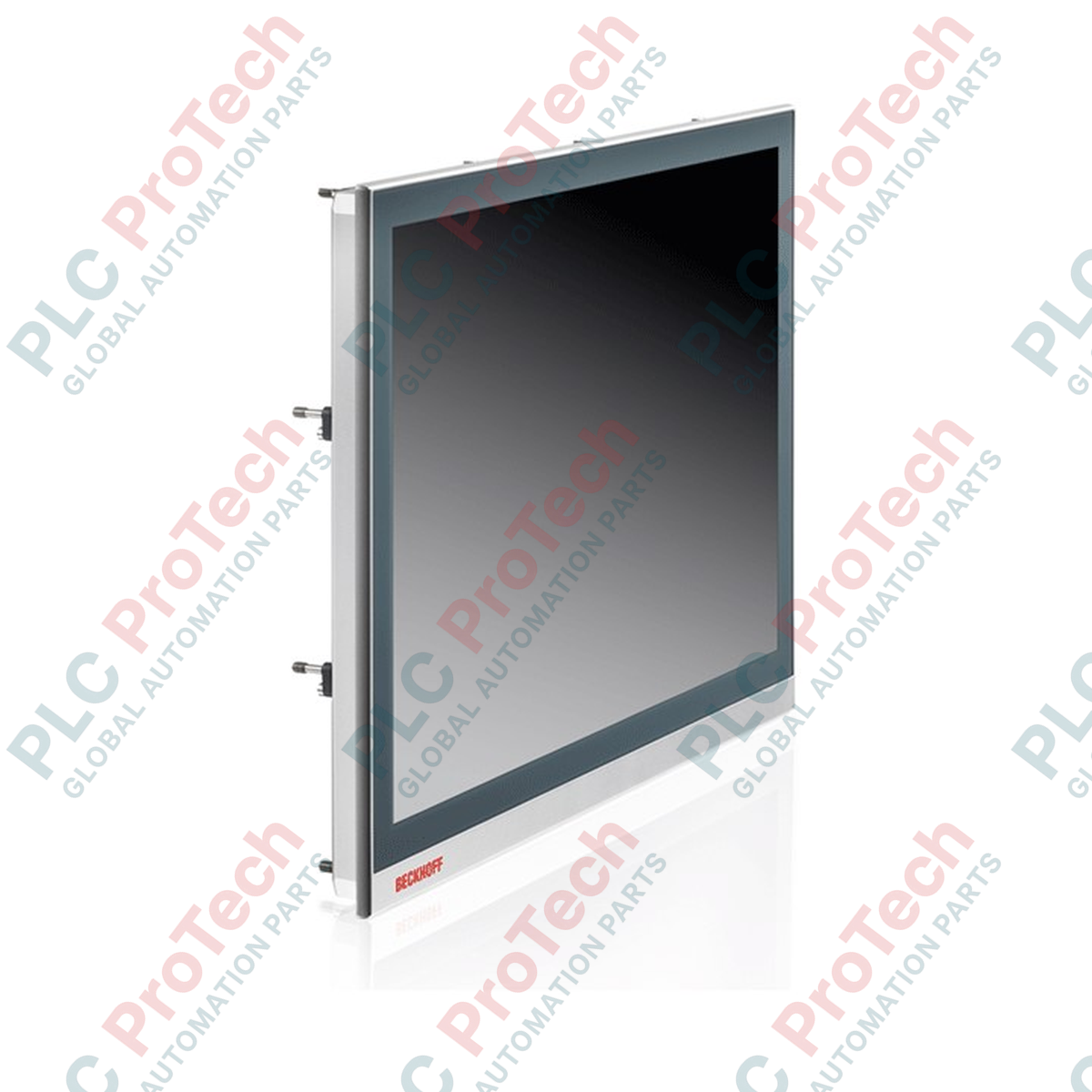

Beckhoff CP2913-0000 CP29xx Multi-touch Built-in Control Panel

Designed for direct integration into control cabinets and consoles, the Beckhoff CP2913-0000 serves as a high-performance human-machine interface featuring advanced multi-touch capabilities and integrated DVI/USB Extended technology. This unit combines a robust industrial design with a high-resolution 19-inch display, enabling precise operator control in demanding manufacturing environments.

Key Features

• Projected capacitive (PCAP) multi-finger touch screen technology for intuitive, multi-touch operation.
• Integrated DVI-E and USB-E 2.0 connection technology, enabling remote operation up to 50 meters from the industrial PC.
• Robust front panel construction featuring an aluminum housing with a scratch-resistant glass front.
• High-resolution 19-inch display providing clear visualization of complex industrial processes.
• Pull-out clamping levers for fast, secure installation without loose mounting hardware.

Industrial Applications

• Automotive assembly lines requiring centralized operator control and visualization.
• Machine tool control panels where high-resolution graphics and multi-touch operation are critical.
• Packaging and food processing plants utilizing remote industrial PC architectures.
• Process automation systems requiring IP65-rated front panel protection against dust and moisture.

Technical Specifications

Connections and Interfaces

Alternative Models & Compatibility

The CP2913-0000 utilizes DVI-E and USB-E 2.0 for signal extension. When replacing older CP29xx models, verify whether your existing installation uses CP-Link 4 (which combines video, USB, and power into a single CAT6A cable). The CP2913-0000 requires separate power routing (24 V DC) and is not directly compatible with CP-Link 4 transmitter modules such as the CU8803. Ensure a compatible DVI/USB transmitter unit (e.g., CU8801) is installed on the PC side.

Application Pitfalls & Engineering Notes

When operating the panel at the maximum 50-meter distance, USB bandwidth is strictly limited to USB 2.0 speeds (480 Mbit/s). High-bandwidth devices, such as external USB 3.0 vision cameras, should not be connected to the rear USB ports of the panel over this extended link. Additionally, ensure the cabinet cutout provides adequate clearance for the pull-out clamping levers to engage fully without binding against internal components.

Commissioning & Wiring Tips

For the USB-E 2.0 connection, always use high-quality, shielded CAT7 STP (Shielded Twisted Pair) cabling. Unshielded cables are highly susceptible to electromagnetic interference (EMI) from nearby variable frequency drives (VFDs) and high-voltage motor lines, which can cause intermittent touch screen disconnects. Ensure the panel's functional earth terminal is connected to the central cabinet ground with a low-impedance conductor.

Installation Guidelines
