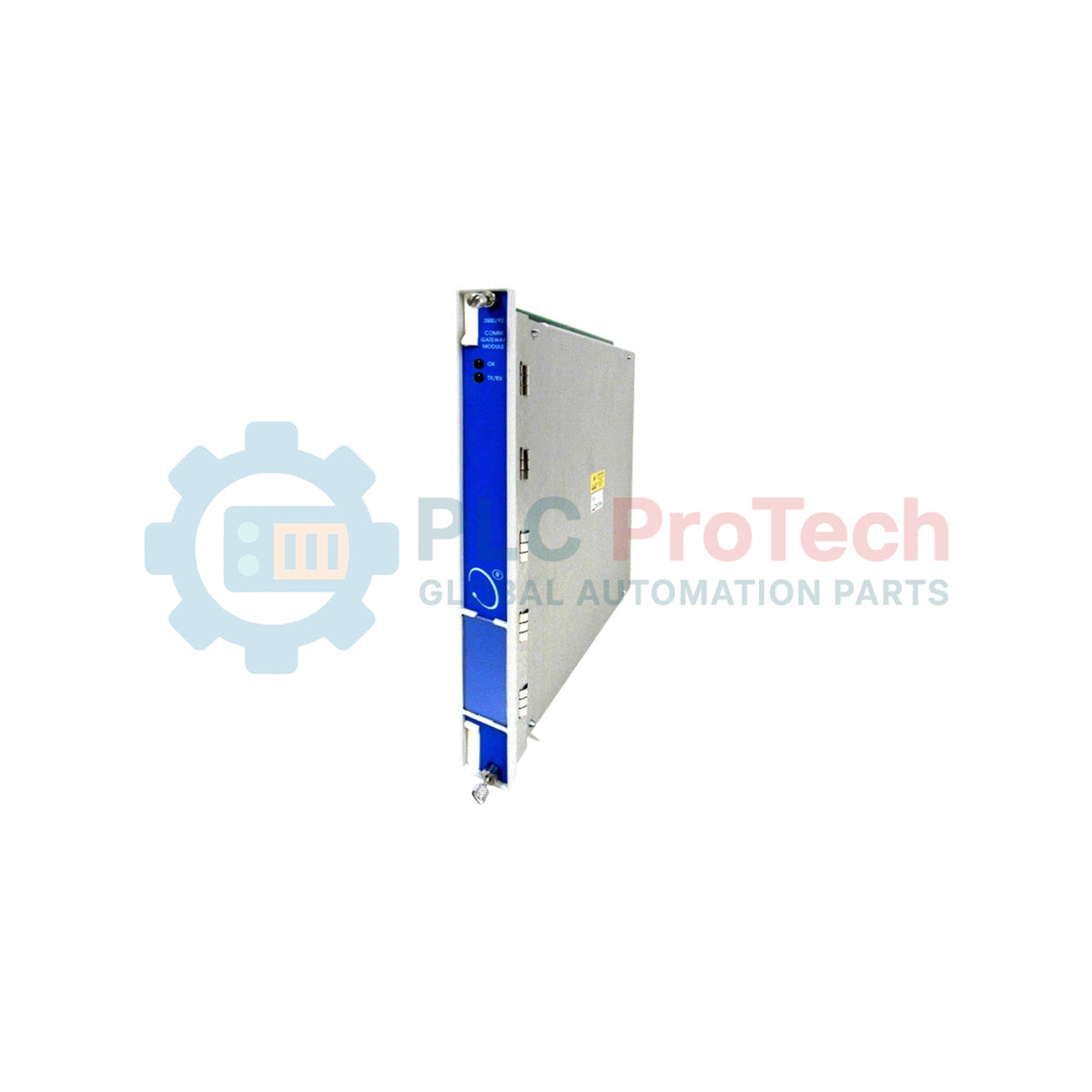

Bently Nevada 3500/92-02-01-00 3500 Series Communication Gateway

Description

Providing direct, high-speed integration between critical machinery protection systems and plant-wide control networks, the Bently Nevada 3500/92-02-01-00 acts as a reliable communication hub for the 3500 monitoring platform. This module collects static and dynamic data from all other modules in the rack and transmits it to host systems such as DCS, PLC, or SCADA networks. Designed with a Modbus RS485 I/O Module and a Low Memory configuration, it supports robust serial digital communications. The hardware is configured with no specific agency approvals (Option 00), making it suitable for standard industrial environments requiring seamless integration of diagnostic and machinery status values.

Key Features

• Serial Integration: Equipped with a dedicated Modbus RS485 interface for reliable, long-distance multi-drop serial configurations.
• Optimized Memory: Features a cost-effective Low Memory architecture designed for standard register mapping requirements.
• Backplane Extraction: Automatically gathers comprehensive machinery data including overall values, statuses, and alert levels directly from the 3500 rack backplane.
• Hot-Swappable Design: Can be removed or replaced under power without interrupting the operation of adjacent protection modules inside the rack.

Applications

• SCADA and distributed control system (DCS) links in power generation facilities.
• Compressor and turbine train status transmission in petrochemical and oil and gas refineries.
• Remote asset condition monitoring networks.
• Factory automation systems requiring unified serial Modbus registers.

Ordering Information

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The 3500/92-02-01-00 utilizes the Low Memory configuration (Option 01). While highly effective for small to mid-sized monitoring arrays, systems running dense 3500 configurations with transient data capture or large-scale spectral tracking may exceed register allocation limits. For high-density systems requiring deep historical record extraction or complex multi-protocol configurations, standardizing on the high-memory alternative is often recommended. Note that changing from serial RS485 I/O to Ethernet interfaces (e.g., Modbus TCP/IP) requires exchanging both the main module firmware settings and the physical I/O module on the back of the rack.

Application Pitfalls & Engineering Notes

When configuring RS485 networks, a common pitfall is ignoring serial line termination. Without proper termination resistors at the extreme ends of the physical daisy chain, signal reflections can cause intermittent CRC errors or communication dropouts. Additionally, the Low Memory option restricts the number of concurrent poll requests the gateway can process. High polling frequencies (intervals under 50ms) from multiple masters can lead to internal processor bottlenecks and delayed telemetry updates on the host DCS.

Commissioning & Wiring Tips

During initial commissioning, verify the polarity of the RS485 network lines. System integrators frequently find that RXD/TXD and +/- labeling conventions vary significantly between host PLCs and the 3500/92. If communication fails during setup, reversing the differential signal lines is an essential diagnostic step. Always utilize high-quality shielded twisted-pair (STP) cabling, and ensure the shield is grounded at only one end of the segment to prevent inductive ground loops from introducing high-frequency noise into the communication path.

Installation Guidelines
