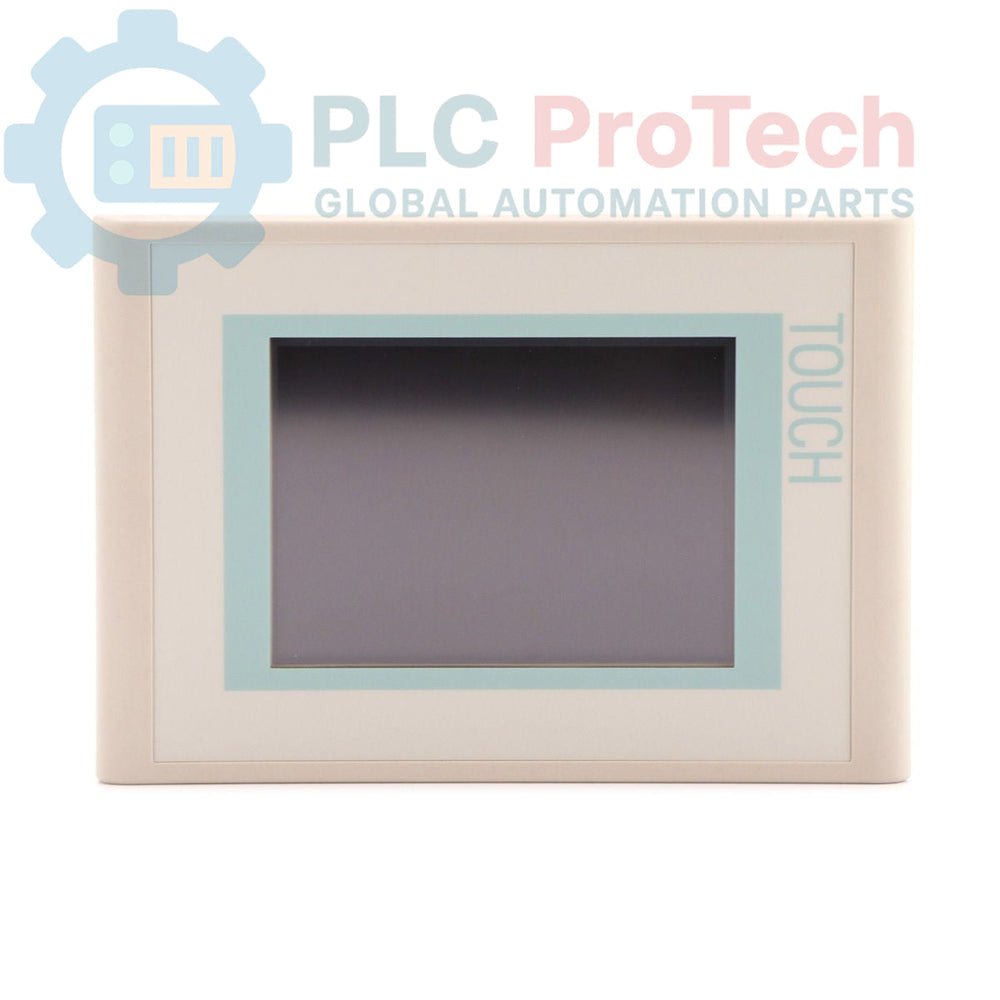

Siemens 6AV6642-0BA01-1AX0 SIMATIC TP177B Dokunmatik Panel

Description

The 6AV6642-0BA01-1AX0 is a SIMATIC TP177B operator panel from the Touch Panels 170 series, designed for intuitive visualization and control in industrial automation. This unit features a 5.7-inch STN color display with a resolution of 320x240 pixels and 256 colors. It is equipped with versatile communication interfaces, including MPI/PROFIBUS-DP, RS485/RS422, USB, and an Ethernet 10/100 interface, ensuring seamless integration into complex network architectures. Configurable via WinCC flexible 2005, this touch panel also provides a slot for MMC cards to manage data and projects efficiently.

Features

• 5.7-inch STN color display (256 colors)
• High-resolution interface (320x240 pixels)
• Extensive communication options: MPI/PROFIBUS-DP, USB, and Ethernet 10/100
• Integrated slot for Multimedia Cards (MMC)
• Compatible with WinCC flexible 2005 software
• Rugged touch-sensitive operation interface

Applications

• Machine-level visualization and control
• Industrial process monitoring
• Integration with PLC-based control systems via PROFIBUS or PROFINET
• Data logging and recipe management on production lines

Technical Specifications

Installation Guidelines

• Mounting: Use the provided mounting clips to secure the TP177B panel into the cabinet cutout. Ensure the gasket is properly seated to achieve the required IP protection rating for the front face.
• Communication: Use shielded cables for PROFIBUS and Ethernet connections to maintain signal integrity in environments with high electromagnetic interference (EMI).
• Power: Connect the unit to a regulated 24V DC power source. Ensure the ground terminal is securely connected to the cabinet's protective earth.
• Storage/Memory: When using an MMC card for project transfers or data logging, ensure the card is inserted fully until locked to prevent intermittent connection failures.
