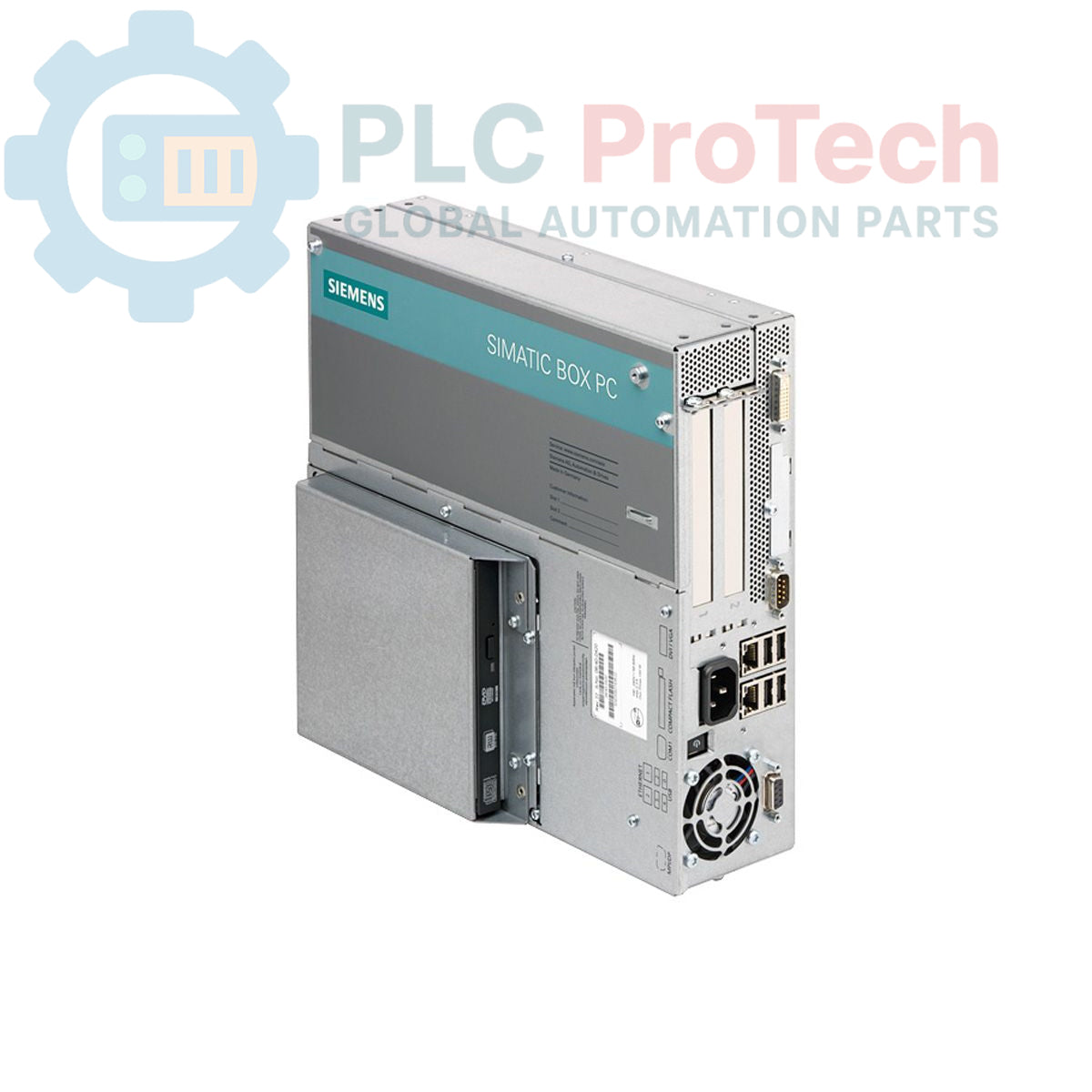

Siemens 6ES7647-6BA16-0AF0 SIMATIC BOX PC 627B Industrial PC

Description

The Siemens 6ES7647-6BA16-0AF0 is an industrial computer from the SIMATIC BOX PC 627B series, designed for demanding automation environments. This unit is equipped with an Intel Celeron M 440 processor, 512 MB of DDR2 RAM, and a 160 GB SATA hard disk drive for local data storage. It operates on a 24 V DC industrial power supply and includes integrated monitoring functions such as a watchdog timer and temperature/fan monitoring. For connectivity, the PC provides dual Gigabit Ethernet ports, four high-current USB 2.0 ports, and a serial COM1 interface. The system comes pre-loaded with Windows XP Embedded (SP2) on a 2 GB CompactFlash card.

Features

• Processor: Intel Celeron M 440 (1.86 GHz, 1 MB L2 Cache, 533 MHz FSB)
• Memory: 512 MB DDR2 667 SODIMM
• Storage: 160 GB SATA Hard Disk Drive (HDD)
• Operating System: Windows XP Embedded (SP2) English on 2 GB CompactFlash
• Power Supply: 24 V DC Industrial Input
• Integrated Monitoring: Watchdog, Temperature, and Fan status
• Expansion: Two available PCI slots
• Onboard RAID controller for data redundancy configurations

Applications

• Human-Machine Interface (HMI) visualization tasks
• Data acquisition and logging systems
• PC-based control and automation
• Gateway and communication server applications
• Supervisory Control and Data Acquisition (SCADA) nodes

Technical Specifications

Installation Guidelines

1. 1 Verify that the installation environment meets the PC's operational temperature and humidity specifications. Ensure the control cabinet or mounting location provides adequate ventilation and clearance around the unit for heat dissipation.
2. 2 Securely mount the PC chassis within the enclosure using appropriate hardware. Connect the chassis to the panel's protective earth (PE) ground point using a low-impedance conductor to ensure proper grounding.
3. 3 Connect the 24 V DC power supply to the designated input terminals. Verify correct polarity before energizing the circuit. Use appropriately sized wiring for the load.
4. 4 Connect all required peripheral devices, including Ethernet cables, USB devices, serial connections, and video monitors. Ensure all connectors are fully seated and secured.
5. 5 After all connections are made and verified, restore power to the unit. Observe the boot sequence to confirm the operating system loads correctly and the hardware is functioning as expected.
