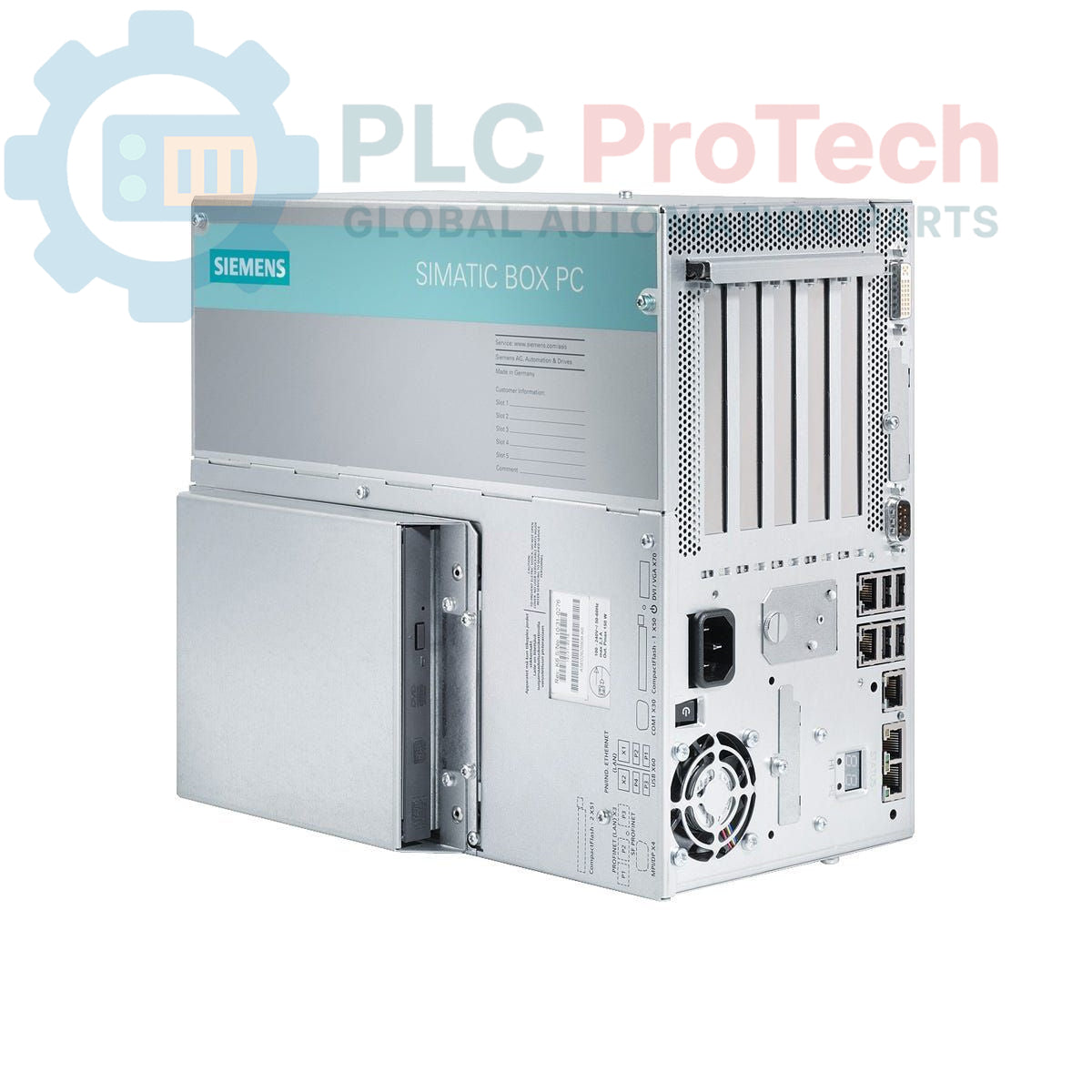

Siemens 6ES7647-6PG30-0HC0 SIMATIC IPC827C Box PC

Stokta sadece 4 adet kaldı

Üretici: Siemens
Ürün No.: 6ES7647-6PG30-0HC0
Menşei ülke:Almanya
Ürün Türü: Industrial Box PC
Barkod: 85371099
Ödeme: T/T, Western Union
Ağırlık: 8g
Boyutlar: 66.50 x 52.00 x 22.00 cm
Gönderim limanı: Xiamen
Garanti: 12 ay

Description

The Siemens 6ES7647-6PG30-0HC0 is a SIMATIC IPC827C series industrial box PC designed for demanding automation tasks. This unit is configured with an Intel Core i7-610E processor, 4 GB of DDR3 RAM, and a redundant storage system featuring two 320 GB SATA drives in a RAID1 configuration. It includes an industrial-grade AC power supply, multiple expansion slots, and a pre-installed Windows 7 Ultimate operating system, providing a robust platform for control and visualization applications.

Features

Equipped with an Intel Core i7-610E dual-core processor with Hyper-Threading.
Onboard RAID controller for enhanced data reliability.
Integrated system monitoring for watchdog, temperature, and fan status.
Dual Gigabit Ethernet ports for network connectivity.
Four high-current USB 2.0 ports for peripheral devices.
Front-accessible CompactFlash drive slot for removable storage.
Includes a DVD+/-RW optical drive for software installation and data backup.

Applications

Human-Machine Interface (HMI) and SCADA systems
Process control and data acquisition
Industrial data logging and analysis
Machine vision and quality control systems
Automation gateways and communication servers

Technical Specifications

Category	Specification
Processor	Intel Core i7-610E (2 Cores / 4 Threads, 2.53 GHz, Turbo Boost, HT, VT, AMT, 4 MB Cache)
Memory	4 GB DDR3 1066 DIMM
Storage	RAID1 configuration with 2x 320 GB SATA (2.5-inch) drives
Optical Drive	DVD +/-RW
Graphics	Onboard HD Graphics
Operating System	Windows 7 Ultimate 64-bit SP1, MUI (English, German, French, Italian, Spanish)
Expansion Slots	3x PCI, 1x PCIe (x4), 1x PCIe (x16)
Interfaces	2x 10/100/1000 Mbps Ethernet (RJ45) 4x USB V2.0 (High Current) 1x Serial (COM 1) 1x CompactFlash Drive (Front)
Power Supply	AC 110/230V Industrial Power Supply Unit with NAMUR
System Monitoring	Watchdog, Temperature/Fan Monitoring
Product Lifecycle	Phase-Out
Manufacturer	Siemens
Shipping Weight	8.00 kg
Package Dimensions (Calculated)	66.50 x 52.00 x 22.00 cm

Installation Guidelines

CRITICAL WARNING: HAZARDOUS VOLTAGE

Disconnect all power sources before installation or maintenance. This equipment is intended for use by qualified personnel only. Failure to de-energize the system can result in severe injury or death.

1 Ensure the mounting location provides adequate clearance for ventilation and cable access. The ambient temperature must remain within the device's specified operating range.
2 Securely fasten the Box PC to the mounting surface using all provided mounting points to ensure stability and proper grounding.
3 Connect the chassis to the main protective earth (PE) terminal of the control cabinet using a low-impedance conductor. This is critical for electrical safety.
4 Connect the AC 110/230V power supply cable to a properly rated and protected power source. Ensure the power cable is securely seated.
5 Connect all required peripherals, including Ethernet networks, USB devices, and serial communication lines.
6 After verifying all connections are secure and correct, re-apply power to the system and confirm that the operating system boots successfully.

Key Features:

#Industrial Box PC #SIMATIC IPC827C

What processor is installed in this IPC?

It is equipped with an Intel Core i7-610E processor featuring 2 cores, 4 threads, a 2.53 GHz base clock, and 4 MB of cache.

What are the storage specifications?

The unit includes two 320 GB SATA drives configured in a RAID1 array for data redundancy and an onboard RAID controller.

What operating system is pre-installed?

The PC comes with Windows 7 Ultimate 64-bit, Service Pack 1. It is a multi-language version including English, German, French, Italian, and Spanish.

What expansion slots are available?

It provides three standard PCI slots, one PCIe (x4) slot, and one PCIe (x16) slot for adding expansion cards.

What is the input power requirement for this Box PC?

The integrated industrial power supply is designed to operate on AC 110/230V mains voltage.
