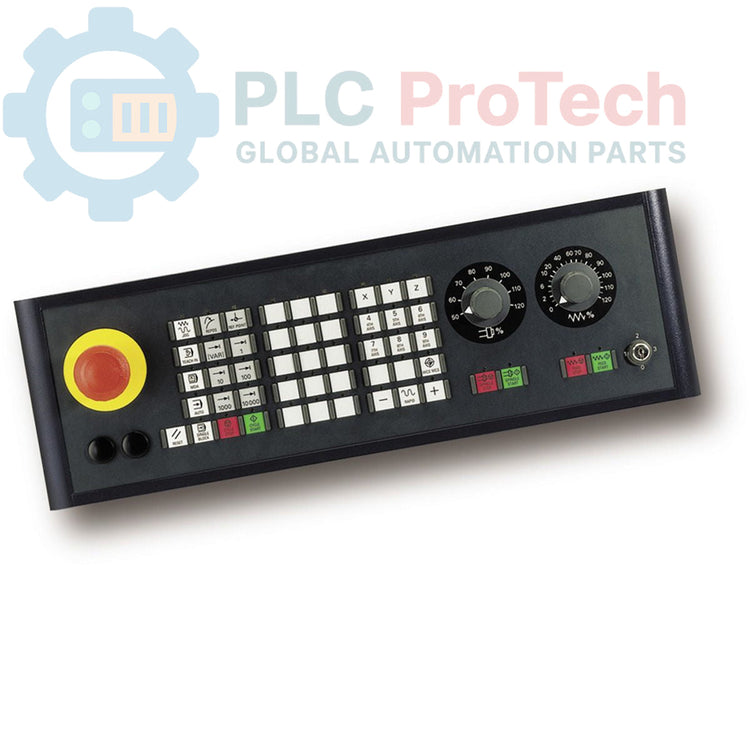

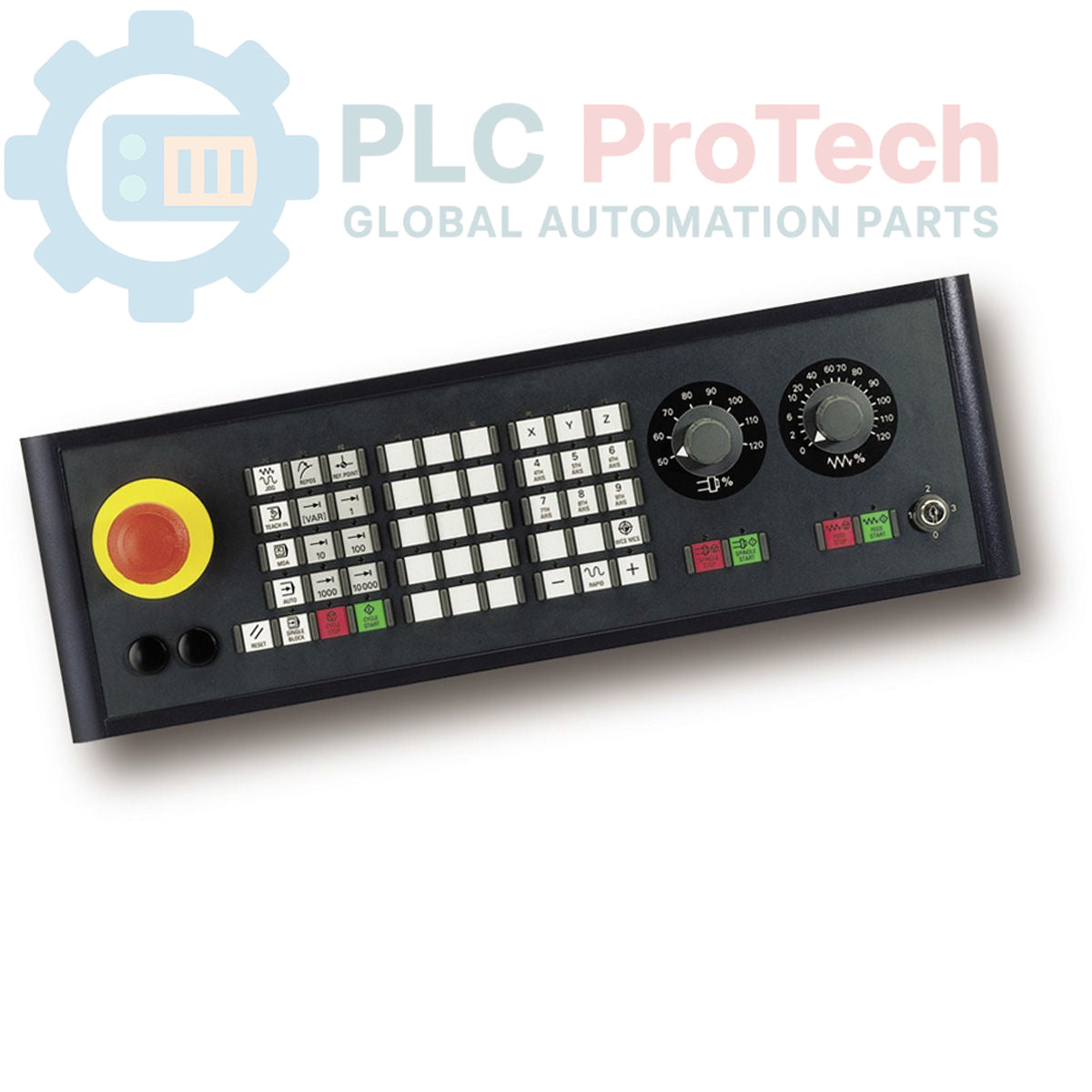

Siemens 6FC5203-0AD12-0AA0 SINUMERIK Makine Kontrol Paneli

Description

The 6FC5203-0AD12-0AA0 is a 19-inch SINUMERIK Machine Control Panel (MCP) designed to provide a high-performance operator interface for CNC systems, specifically the FM-NC, 810D/DE, and 840D/DE series. This operator panel features a durable membrane keyboard designed with a standard US layout, ensuring reliable input capability in demanding workshop and factory floor environments. The 6FC5203-0AD12-0AA0 is built for integration into industrial control consoles, facilitating efficient machine tool management and real-time monitoring of automated machining processes.

Features

• 19-inch operator panel format
• Compatible with SINUMERIK FM-NC, 810D/DE, and 840D/DE systems
• Membrane keyboard design for enhanced durability
• Standard US keyboard layout
• Optimized for industrial CNC machine control
• Robust housing for intensive operational use

Applications

• CNC milling and turning machine interfaces
• Industrial production control consoles
• Automated manufacturing cell visualization
• Retrofitting and maintenance of SINUMERIK-based CNC machines

Technical Specifications

Installation Guidelines

• Mounting: Use the integrated mounting hardware to secure the panel into the machine control cabinet cutout. Ensure the seal is properly seated to maintain the IP protection rating against dust and fluids.
• Connectivity: Route communication cables away from high-voltage power lines to prevent signal interference with the CNC control bus.
• Cleaning: Clean the membrane surface using non-abrasive, industrial-grade cleaning agents. Avoid using sharp tools on the membrane to prevent puncturing the protective layer.
• Grounding: Connect the panel chassis to the cabinet’s central protective earth (PE) point to prevent electrical noise and ensure operator safety.
