Siemens SINUMERIK 6FC3986-3JR Ölçüm Devresi Modülü

Description

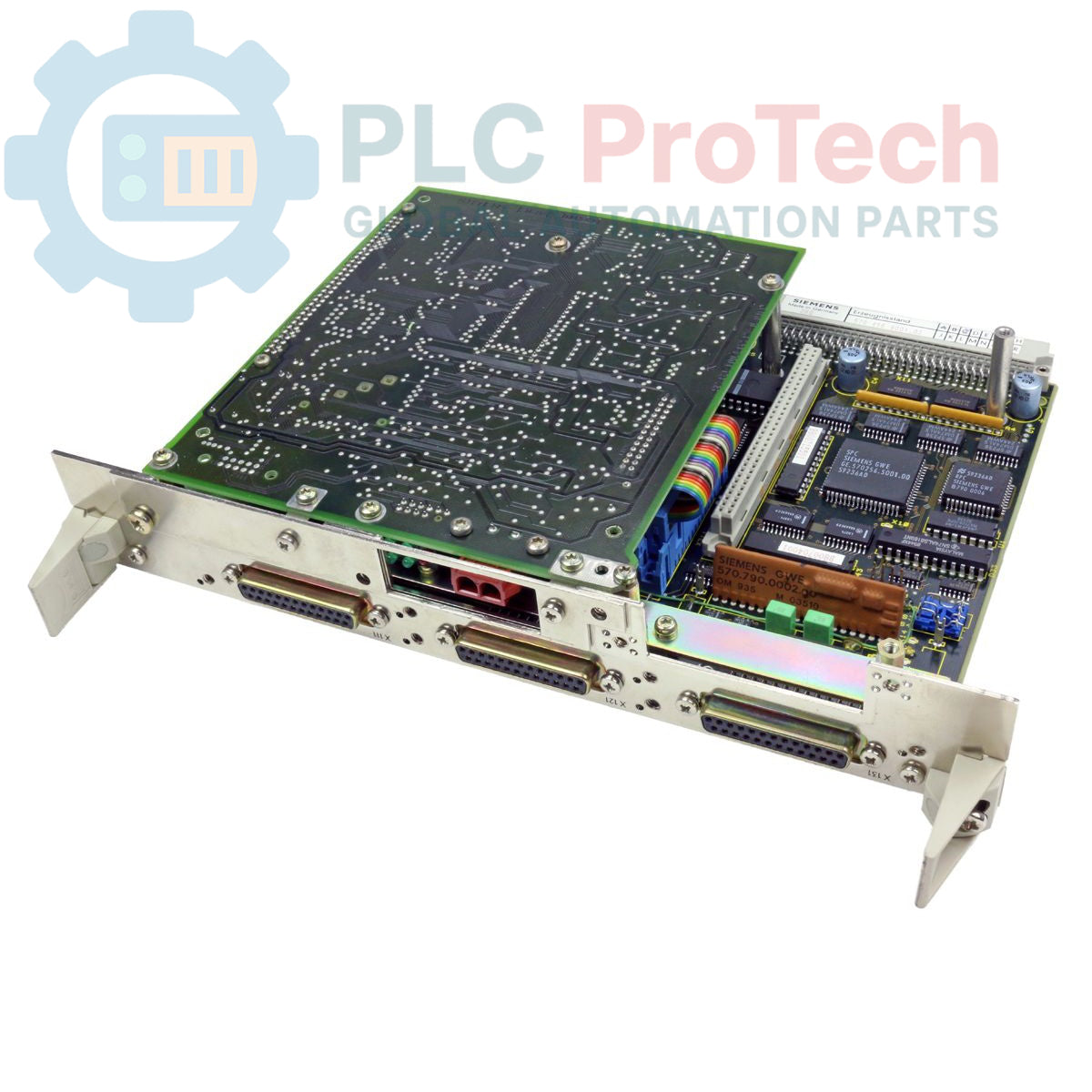

The 6FC3986-3JR is a Measurement Circuit Module (HMS) from the SINUMERIK controller range. Engineered by Siemens, this module is designed to process feedback data for CNC systems, specifically handling 3 actual values and 3 setpoints for absolute positioning applications. It acts as a critical interface between the machine's absolute encoders and the SINUMERIK control unit, ensuring accurate synchronization and precise motion control. Although now classified as Obsolete, this module is essential for the continued operation and maintenance of older SINUMERIK-based machine tool architectures.

Features

• Precision Feedback: Manages 3 actual values and 3 setpoints for reliable motion tracking.
• Absolute Positioning: Optimized for absolute encoder systems to ensure accurate machine coordinate referencing.
• Controller Integration: Serves as a vital link in the SINUMERIK closed-loop control chain.
• Compact Design: Optimized form factor for efficient installation within control cabinets.

Technical Specifications

Installation Guidelines

• Handling: As a sensitive measurement component, use anti-static protection during installation to prevent damage to the onboard circuitry.
• Wiring: Ensure all encoder cables are shielded and correctly terminated to the module to prevent electromagnetic interference (EMI) from affecting measurement accuracy.
• Integration: Double-check the hardware addressing and configuration settings in the SINUMERIK controller software to ensure the module is correctly recognized.
• Environmental: Install in a clean, temperature-controlled cabinet; moisture and conductive dust can lead to signal noise or module failure.
• Maintenance: Always verify power supply stability when working with measurement circuit modules, as voltage fluctuations can lead to intermittent position drift.
