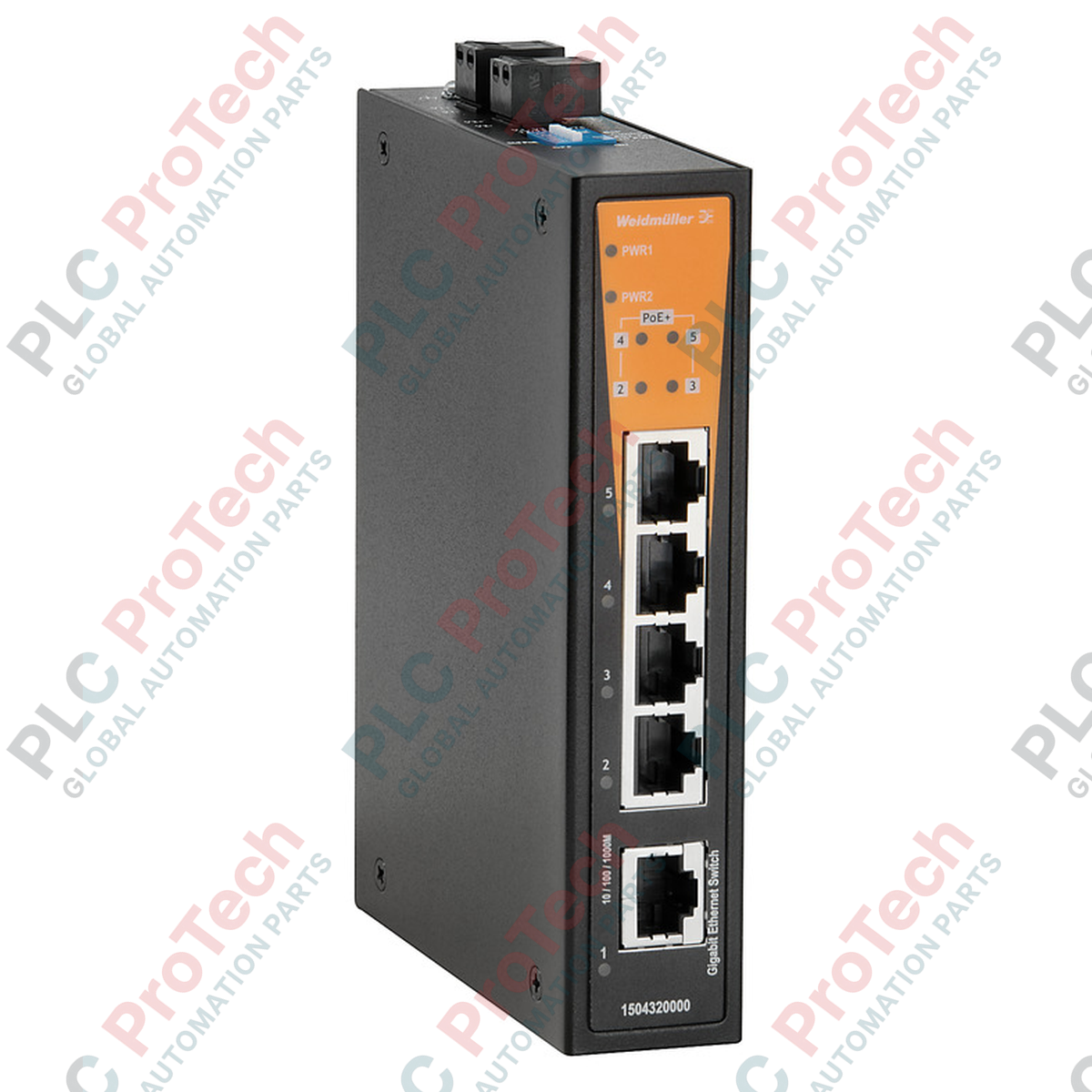

Weidmuller 1504340000 IE-SW-BL05T-1GT-4GTPOE Gigabit PoE Unmanaged Switch

Providing high-performance Gigabit connectivity in harsh electromagnetic environments, the Weidmuller IE-SW-BL05T-1GT-4GTPOE (part number 1504340000) unmanaged industrial Ethernet switch integrates Power over Ethernet (PoE+) capabilities to streamline field device deployment. This ruggedized network switch features four Gigabit PoE+ ports and one Gigabit standard uplink port, delivering reliable data transmission and power distribution over a single cable to compatible field devices.

Key Features

• Four 10/100/1000BaseT(X) PoE+ ports and one 10/100/1000BaseT(X) RJ45 uplink port.
• Extended operating temperature range of -40 to 75 degC for deployment in extreme climates.
• Redundant dual power inputs (12/24/48 V DC) to maximize network availability.
• Robust IP30-rated aluminum housing designed for space-constrained DIN rail installations.
• Jumbo frame support up to 10 KB to optimize high-bandwidth data transfers.
• Store-and-Forward switching architecture with an 8 K MAC address table.

Industrial Applications

• IP Video Surveillance: Powering and networking high-definition security cameras in outdoor or industrial perimeters.
• Factory Automation: Aggregating high-speed data from PLCs, HMIs, and distributed I/O blocks on the factory floor.
• Traffic Control Systems: Reliable data backhaul and power delivery for roadside sensors and signaling equipment.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The T-suffix in the model designation indicates an extended temperature rating (-40 to 75 degC), making it a direct drop-in replacement for standard-temperature variants in harsh environments. It is fully backward compatible with standard 10/100 Mbps Fast Ethernet devices, automatically negotiating speed and duplex settings.

Application Pitfalls & Engineering Notes

Be mindful of the switch's high inrush current of 17.4 A at 24 V DC during startup (lasting up to 1 ms). Ensure upstream power supplies and circuit breakers are sized to handle this transient load without tripping or causing voltage sags that could affect adjacent control hardware.

Commissioning & Wiring Tips

To achieve true power redundancy, connect the two removable 2-pole terminal blocks to separate, independent industrial power supplies. Always ground the switch housing using the integrated grounding screw to minimize electromagnetic interference and protect internal circuitry from electrostatic discharge.

Installation Guidelines
