Üretici: Weidmuller
Ürün No.: IE-SW-VL05MT-3TX-2SC
Menşei ülke:Almanya
Ürün Türü: Industrial Ethernet Switches
Ödeme: T/T, Western Union
Ağırlık: 1500g
Boyutlar: 53.6 mm x 135 mm x 105 mm
Gönderim limanı: Xiamen
Garanti: 12 ay

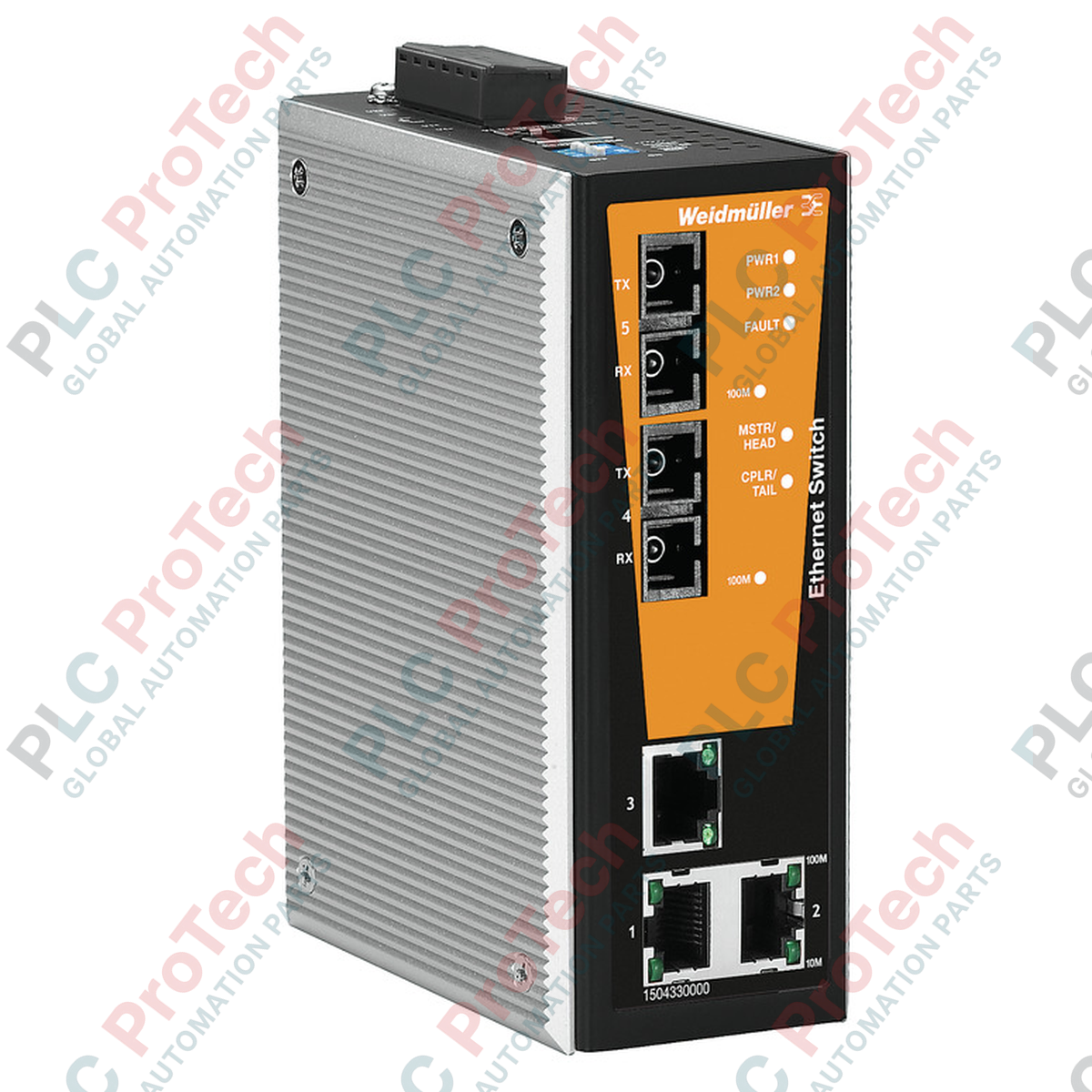

Engineered to maintain reliable communication links in high-interference environments, the Weidmuller 1504350000 IE-SW-VL05MT-3TX-2SC is a managed ValueLine Industrial Ethernet Switch featuring three RJ45 ports and two multimode SC-Duplex fiber optic ports. This device provides robust network management, ring redundancy, and traffic prioritization directly at the field level, making it ideal for critical infrastructure and demanding automation networks.
| Parameter | Value |
|---|---|
| Manufacturer | Weidmuller |
| Article Number / SKU | 1504350000 |
| Model Type | IE-SW-VL05MT-3TX-2SC |
| Switch Type | Managed (ValueLine) |
| RJ45 Ports | 3x 10/100BaseT(X), auto negotiation, full/half duplex, auto MDI/MDI-X |
| Fiber Ports | 2x 100BaseFX, Multimode, SC-Duplex connector |
| Transmission Distance | 5 km (typical over 50/125 or 62.5/125 um multimode fiber) |
| Wavelength | 1310 nm |
| Input Voltage | 12 / 24 / 48 V DC (Redundant inputs) |
| Operating Temperature | -40 degC to 75 degC |
| Storage Temperature | -40 degC to 85 degC |
| Ambient Humidity | 5% to 95% (non-condensing) |
| MAC Table Size | 2 K |
| Packet Buffer Size | 1 Mbit |
| Housing Material | Metal (IP30 protection degree) |
| Mounting Type | DIN rail (TS 35), Panel mounting (with optional kit) |
| Dimensions (W x H x D) | 53.6 mm x 135 mm x 105 mm |
| Net Weight | 650 g |
| Shipping Weight (Calculated) | 1.5 kg |
| Terminal Pin | Signal Assignment | Description |
|---|---|---|
| Pin 1 | V1+ | DC Power Input 1 (Positive) |
| Pin 2 | V1- | DC Power Input 1 (Negative / Common) |
| Pin 3 | STATE (NC) | Fault Relay Output (Normally Closed) |
| Pin 4 | STATE (COM) | Fault Relay Output (Common) |
| Pin 5 | V2+ | DC Power Input 2 (Positive) |
| Pin 6 | V2- | DC Power Input 2 (Negative / Common) |
This managed switch serves as a direct upgrade to the unmanaged IE-SW-VL05-3TX-2SC series, offering advanced diagnostics and ring redundancy protocols (such as Turbo Ring or RSTP) to prevent network loops. When replacing older revisions, verify that the existing network management software or PLC configuration supports standard SNMP or the specific Weidmuller ring topology parameters.
When deploying the multimode SC-Duplex ports over long distances, ensure that the total optical power budget does not exceed the receiver's saturation limits. For short-run fiber connections (under 100 meters), optical attenuators are generally not required, but clean fiber end-faces are critical to prevent packet loss. Ensure the switch is mounted vertically on the DIN rail to facilitate natural convection cooling, especially when operating near the upper thermal limit of 75 degC.
To ensure electromagnetic compatibility (EMC), connect the functional earth (FE) terminal on the DIN-rail ground block directly to a low-impedance earth ground. When wiring the redundant power inputs, use a wire gauge between 12 and 24 AWG. Tighten the terminal block screws to a torque of 0.5 Nm to prevent loose connections under high-vibration conditions.
CRITICAL WARNING
De-energize all power sources before connecting or disconnecting the 6-pin terminal block. Do not insert or remove fiber optic cables while the transceiver is active to avoid potential eye injury from invisible laser radiation.
Snap the switch onto the TS 35 DIN rail, ensuring the top hook engages first, then push the bottom of the unit until the metal latch clicks securely into place.
Connect the functional ground terminal to the local protective earth system using a short, heavy-gauge wire.
Insert the RJ45 copper network cables and the SC-Duplex multimode fiber optic cables into their designated ports until they lock in place.
Wire the redundant power supplies to the 6-pin terminal block, plug the block into the switch, and apply power to verify status via the front-panel LED indicators.
