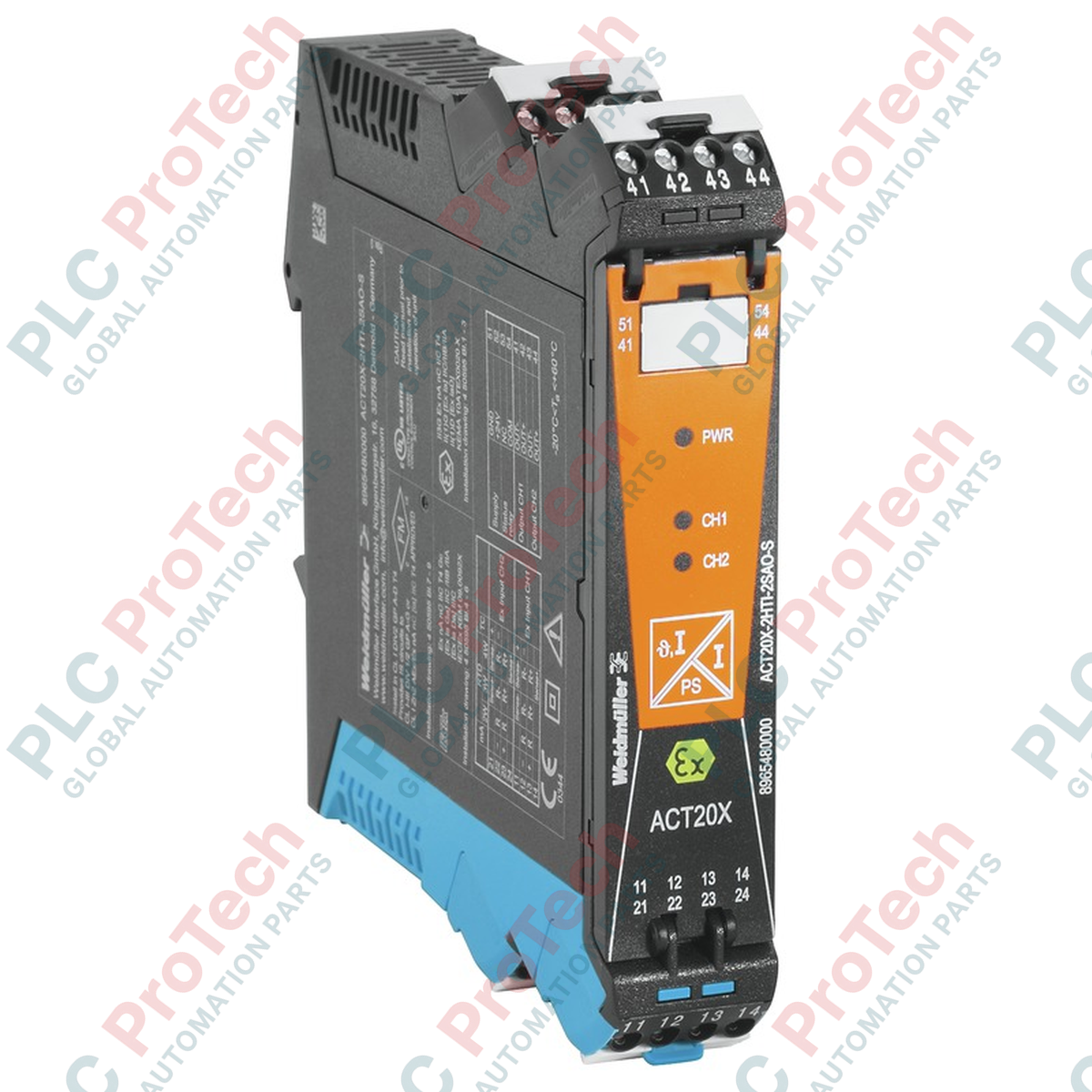

Weidmuller 8965490000 ACT20X-HUI-SAO-S Universal Measurement and Signal Isolating Converter

Stokta sadece 10 adet kaldı

Üretici: Weidmuller
Ürün No.: 8965490000
Menşei ülke:Almanya
Ürün Türü: Signal Isolators
Ödeme: T/T, Western Union
Ağırlık: 202g
Boyutlar: 117.2 mm x 22.5 mm x 113.6 mm
Gönderim limanı: Xiamen
Garanti: 12 ay

Weidmuller 8965490000 ACT20X-HUI-SAO-S Universal Measurement and Signal Isolating Converter

Description

Processing temperature and electrical signals from hazardous areas requires specialized, intrinsically safe isolation. The Weidmuller 8965490000 ACT20X-HUI-SAO-S functions as a highly adaptable universal signal isolator and measurement converter, designed to condition, isolate, and convert analog signals from Ex Zone 0, 1, or 2 environments. This module accepts a wide range of inputs including RTDs, thermocouples, resistors, and active/passive current or voltage signals, converting them into standard active or passive current/voltage analog outputs.

Equipped with an integrated alarm relay, the device provides rapid fault signaling in the event of sensor errors or power loss. Configuration is managed via standard FDT/DTM software, allowing precise parameterization for diverse industrial applications. The compact 22.5 mm housing saves valuable DIN rail space while ensuring high galvanic isolation between the input, output, power supply, and relay contacts.

Features

Intrinsically safe input circuit (Ex ia) certified for Zone 0, 1, and 2 applications.
Universal input capabilities supporting RTDs, thermocouples, potentiometers, resistance, and mA/V signals.
Flexible analog output configurable for active or passive current and voltage loops.
Integrated relay output for limit value monitoring and system alarm functions.
Galvanic 4-way isolation between input, output, power supply, and relay contacts.
FDT/DTM software-based configuration for precise calibration and diagnostic monitoring.
Secure screw connection technology for reliable field wiring in high-vibration environments.

Applications

Chemical and petrochemical processing plants.
Oil and gas extraction, refining, and distribution.
Water and wastewater treatment facilities.
Power generation and thermal plant monitoring.
Hazardous area signal conditioning and safety instrumented systems (SIS).

Technical Specifications

Manufacturer	Weidmuller
Part Number/Model	8965490000 (ACT20X-HUI-SAO-S)
Product Type	Universal Measurement and Signal Isolating Converter
Supply Voltage	19.2 to 31.2 V DC
Power Consumption	≤ 2.1 W
Input Types	RTD (Pt100, Pt500, Pt1000, Ni100, Ni120), Thermocouples (B, E, J, K, L, N, R, S, T, U, W3, W5), Resistance (10 Ohm to 10 kOhm), Voltage (± 20 mV to ± 10 V), Current (± 20 mA)
Output Types	Active/Passive Current (0/4 to 20 mA), Voltage (0 to 10 V)
Relay Output	1 NO contact (Alarm function: No supply voltage, Device error)
Nominal Switching Voltage	≤ 125 V AC / 110 V DC
Continuous Current	≤ 0.5 A AC / 0.3 A DC
Configuration Interface	FDT/DTM software
Connection Type	Screw connection
Protection Degree	IP20
Operating Temperature	-20 degC to +60 degC
Storage Temperature	-20 degC to +85 degC
Humidity	0 to 95% (no condensation)
Dimensions (H x W x D)	117.2 mm x 22.5 mm x 113.6 mm
Weight	0.202 kg

Connections and Interfaces

Terminal Pin	Function
11, 12	Power Supply (+ / -)
13, 14	Analog Output (+ / -)
21, 22	Relay Output (Alarm / Fault)
41, 42, 43, 44	Sensor Input (RTD, Thermocouple, Resistance, Voltage, Current)

Installation Guidelines

Mounting: Snap securely onto standard TS 35 DIN rails in a vertical orientation to optimize heat dissipation.
Wiring Separation: Maintain a minimum distance of 50 mm between intrinsically safe (Ex i) field wiring and non-intrinsically safe power/control cabling.
Grounding: Ensure the DIN rail is properly bonded to the protective earth (PE) system of the enclosure.
Configuration: Perform software configuration and parameterization via the FDT/DTM interface prior to commissioning the system in hazardous environments.

Compliance and Certifications

CE
ATEX (II (1) G [Ex ia Ga] IIC/IIB/IIA)
IECEx
cULus (Class I, Division 2, Groups A, B, C, D)
FM

Key Features:

#ACT20X Series #Signal Isolators

What is the primary function of the Weidmuller 8965490000 ACT20X-HUI-SAO-S?

It is a universal measurement and signal isolating converter designed to process, isolate, and convert temperature, resistance, voltage, and current signals from hazardous areas (Ex Zone 0, 1, 2) into standard analog outputs.

How is the ACT20X-HUI-SAO-S configured?

The module is configured using standard FDT/DTM software via a PC connection, allowing precise parameterization of input types, output ranges, and alarm thresholds.

What types of inputs does this module support?

It supports a wide range of inputs including RTDs (such as Pt100), thermocouples, potentiometers, resistance, and active or passive current and voltage signals.

Does the module have built-in diagnostics or alarm outputs?

Yes, it features an integrated relay output that triggers an alarm in the event of a device error or a loss of supply voltage.

What is the protection rating of this device?

The Weidmuller ACT20X-HUI-SAO-S has an IP20 protection rating and is designed for installation in a clean, dry control cabinet or enclosure.
