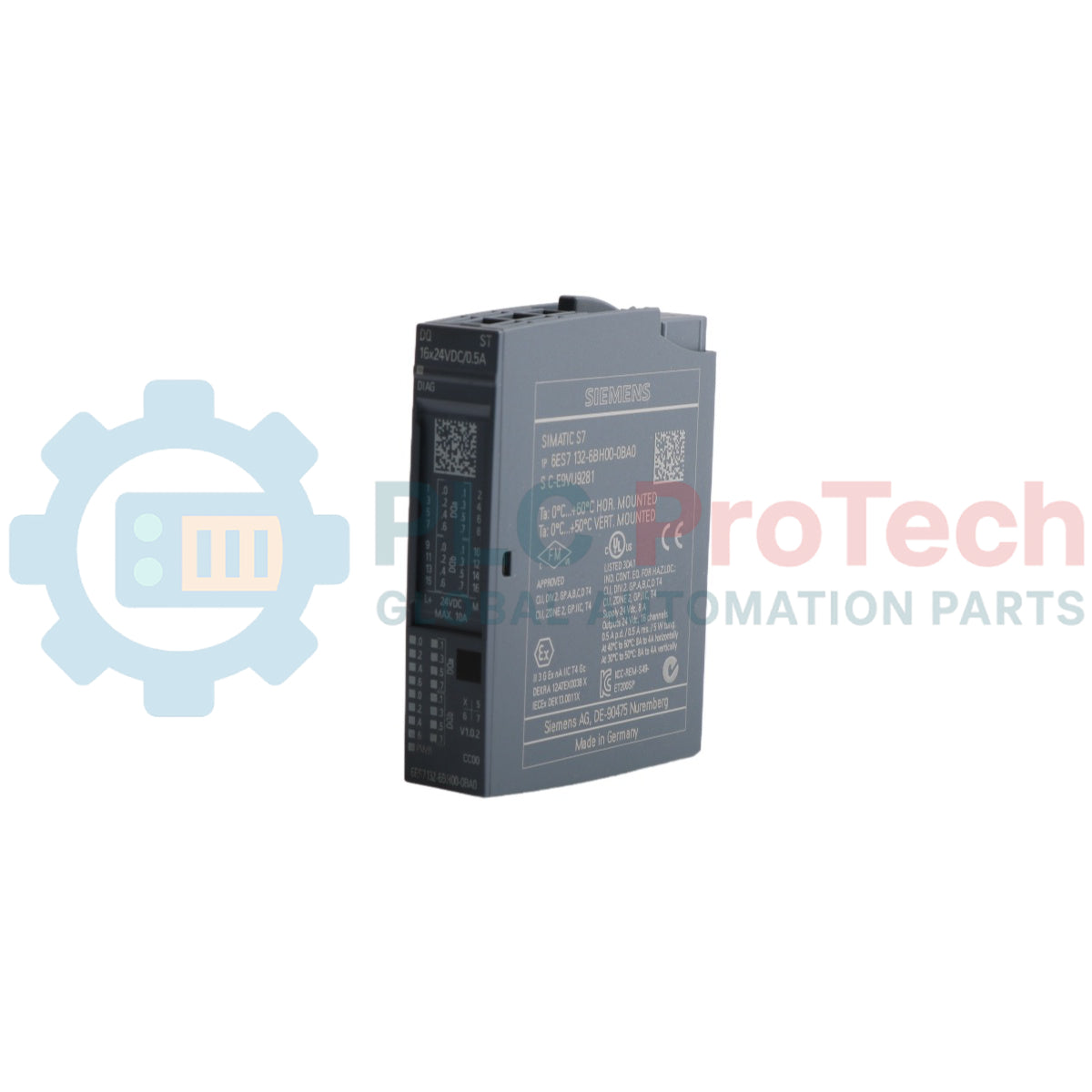

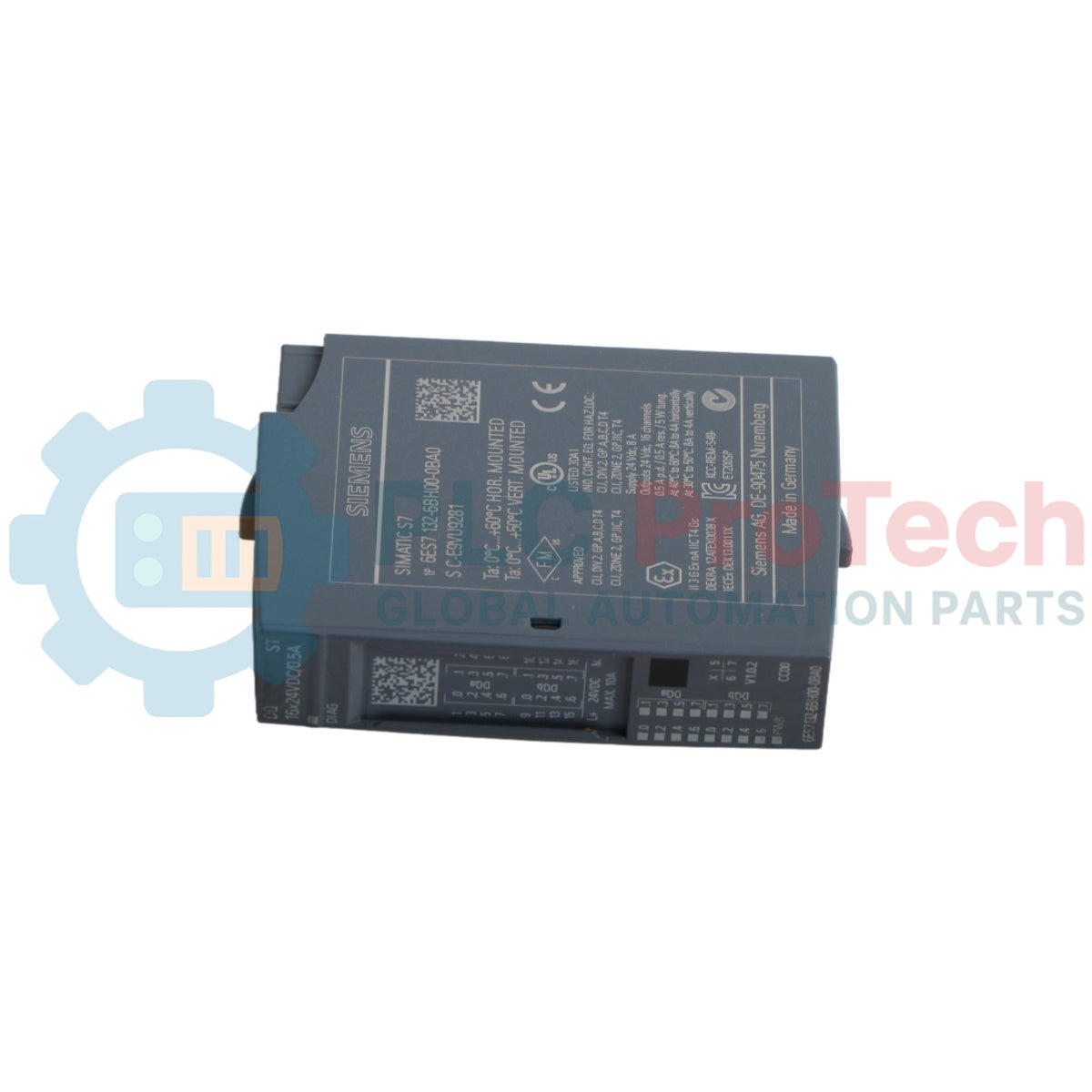

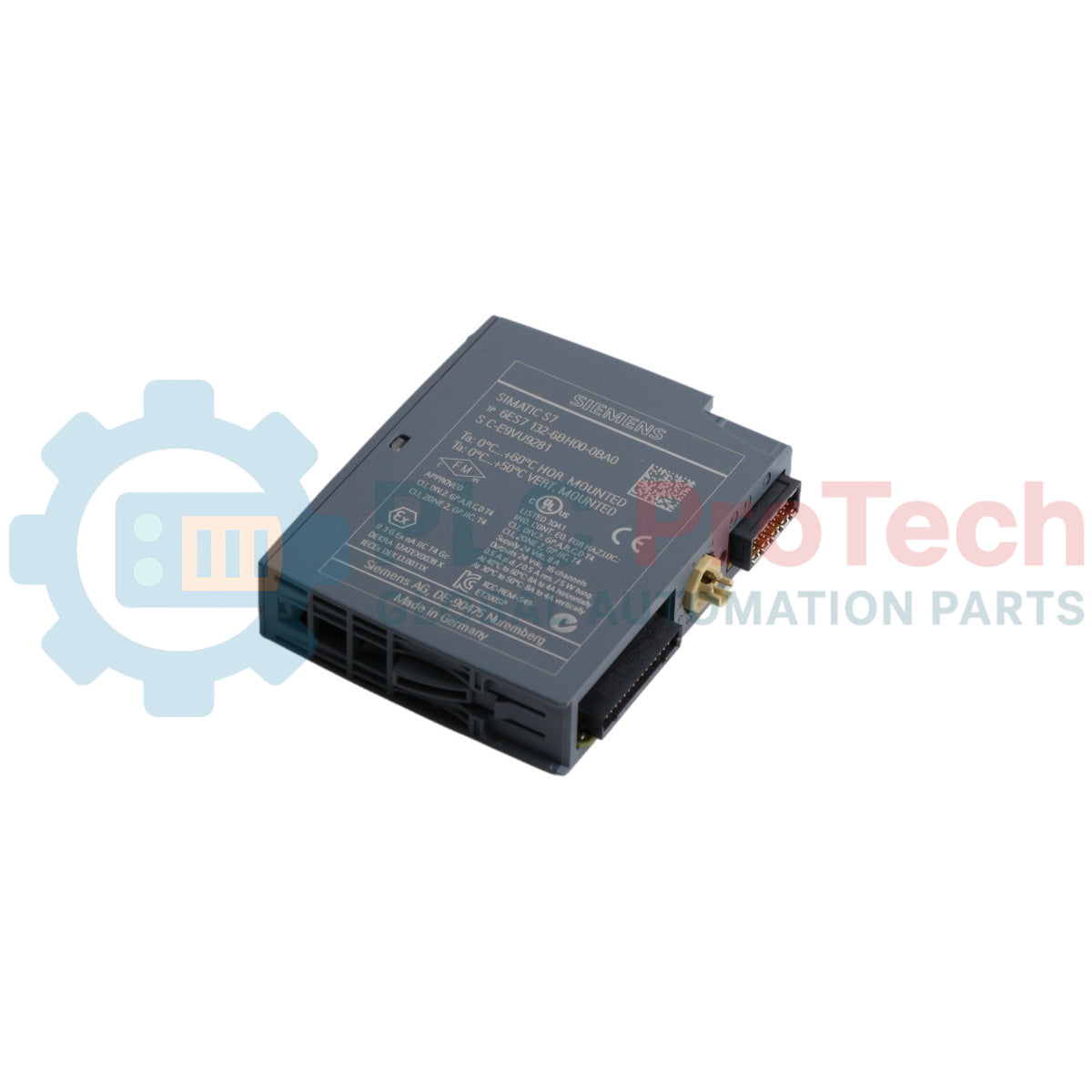

Siemens 6ES7132-6BH00-0BA0 SIMATIC ET 200SP Digital Output Module

Description

This is a 16-channel digital output module for the Siemens SIMATIC ET 200SP distributed I/O system. The Siemens 6ES7132-6BH00-0BA0 provides 16 PNP (sourcing) switching outputs, each rated for 24V DC at 0.5A, designed to drive actuators, solenoids, valves, and other field devices. This compact module is compatible with BU-type A0 base units and uses the CC00 color coding scheme for straightforward installation. It features comprehensive onboard diagnostics, including short-circuit and wire-break detection, to enhance system reliability and simplify troubleshooting in industrial automation environments.

Features

• ■16 digital output channels
• ■PNP (source) switching configuration
• ■Rated output of 24V DC / 0.5A per channel
• ■Integrated module diagnostics for short-circuits and wire breaks
• ■Supply voltage supervision for enhanced safety
• ■Supports substitute value output for fault conditions
• ■Designed for use with SIMATIC ET 200SP BaseUnits of type A0
• ■PROFINET communication support for seamless controller integration

Applications

• ■Control of pneumatic and hydraulic valves
• ■Switching of contactors and relays
• ■Driving small DC motors and solenoids
• ■Activation of indicator lights and alarms
• ■Distributed I/O for manufacturing and assembly lines

Technical Specifications

Installation Guidelines

1. 1 De-energize the ET 200SP station and verify the absence of voltage before handling any components.
2. 2 Align the module with the corresponding BU-type A0 BaseUnit on the DIN rail, ensuring the locking mechanism is open.
3. 3 Firmly press the module onto the BaseUnit until it clicks securely into place. The module should be flush with adjacent modules.
4. 4 Terminate field device wiring at the BaseUnit terminals according to the system wiring diagrams. Ensure correct polarity for all 24V DC connections.
5. 5 Verify that all wiring is secure and that cable shields are properly terminated to the designated grounding points to minimize electrical noise.
6. 6 After completing all connections, remove LOTO devices and re-energize the system. Check the module's diagnostic LEDs for correct status indication.
