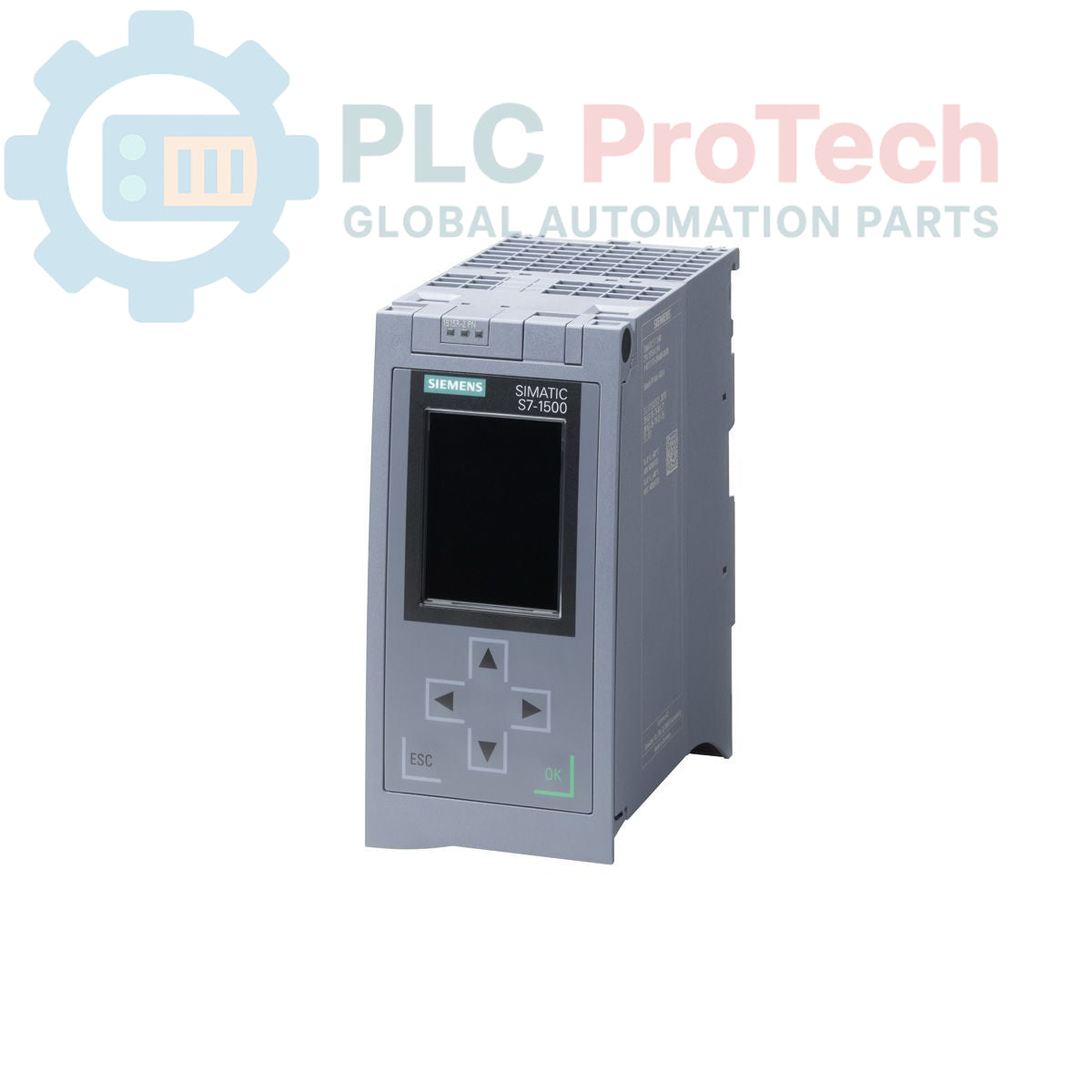

Siemens 6ES7515-2RM00-0AB0 SIMATIC S7-1500R CPU 1515R-2 PN Central Processing Unit

Description

The Siemens 6ES7515-2RM00-0AB0 is a SIMATIC S7-1500R CPU 1515R-2 PN Central Processing Unit. This module is an integral component of the SIMATIC S7-1500R range, providing core processing capabilities essential for industrial automation. It features 500 KB of work memory dedicated to program execution and an additional 3 MB for data storage. The CPU is equipped with a first PROFINET RT interface that includes a 2-port switch, alongside a second dedicated PROFINET interface, facilitating robust industrial communication. Operation of this module requires a SIMATIC Memory Card.

Features

• Designed for the SIMATIC S7-1500R series.
• Designated as a CPU 1515R-2 PN model.
• Provides 500 KB of work memory for program.
• Offers 3 MB of work memory for data.
• Integrates a PROFINET RT interface with a 2-port switch.
• Includes an additional PROFINET interface.
• Requires a SIMATIC Memory Card for functionality.

Applications

• Central processing for industrial automation systems.
• Deployment in distributed control architectures utilizing PROFINET communication.
• Process control within manufacturing and production facilities.
• Integration into SIMATIC S7-1500R redundant systems for enhanced availability.

Technical Specifications

Installation Guidelines

1. Ensure all power to the automation system or rack is completely de-energized before beginning installation or handling the module.
2. Mount the 6ES7515-2RM00-0AB0 CPU module securely into its designated slot within the SIMATIC S7-1500R rack or onto a compatible mounting rail.
3. Insert a suitable SIMATIC Memory Card into the specified slot on the CPU module. This card is essential for operation.
4. Connect the PROFINET communication cables to the integrated interfaces according to your network topology and system design.
5. Verify that all electrical and communication connections are firm, correctly terminated, and free from strain.
6. Once all connections are verified, re-apply power to the system and observe the CPU's diagnostic indicators for proper startup and operation.
