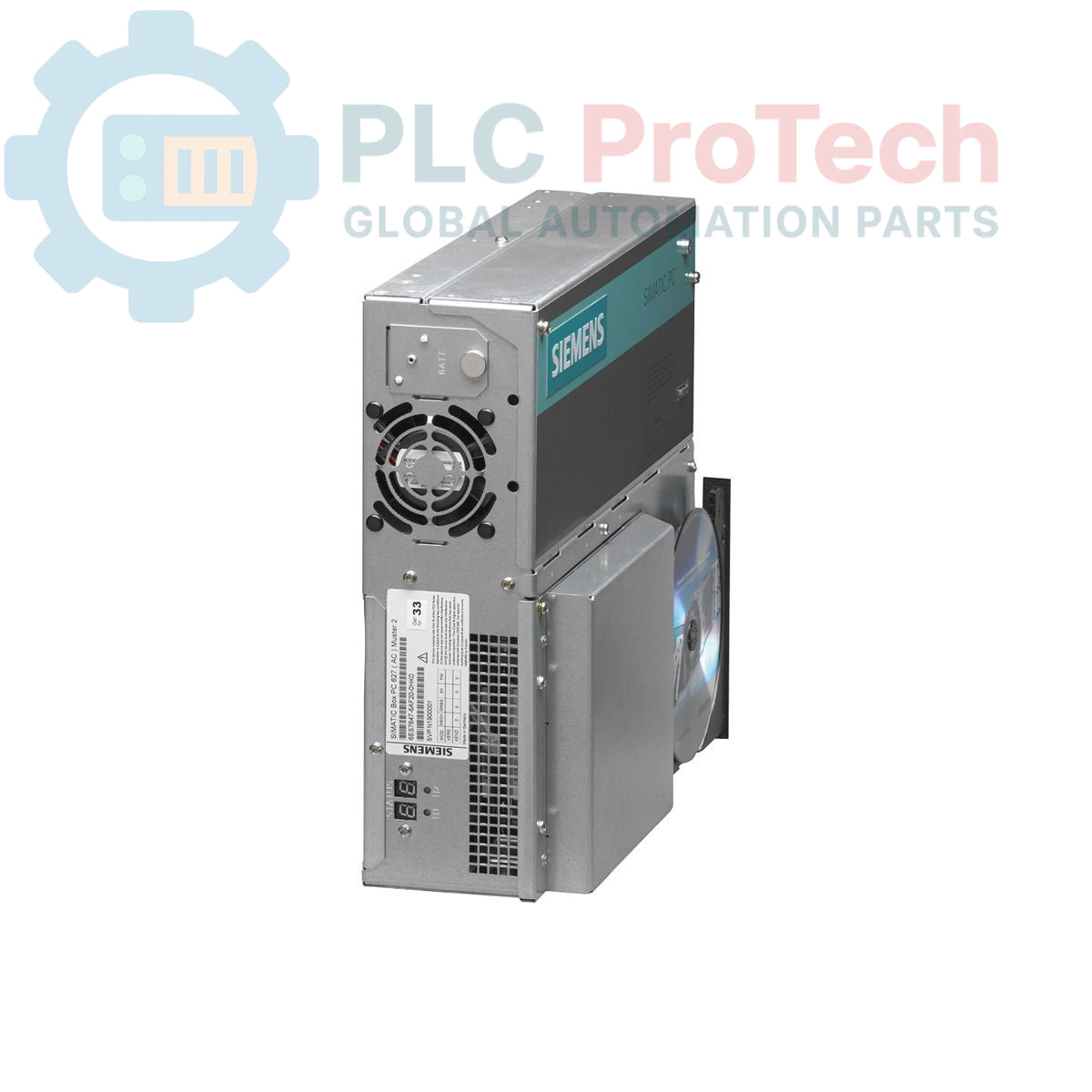

Siemens 6ES7647-6AB25-0HK0 SIMATIC Box PC 627 Box PC

Description

The Siemens 6ES7647-6AB25-0HK0 is a SIMATIC Box PC 627 designed for robust industrial computing applications. This Box PC features onboard AGP Graphics with 8-128 MB shared memory, dual 10/100 Mbit/s Ethernet RJ45 ports, four USB V2.0 (High Current) ports, and one serial (COM1) interface. It includes an onboard RAID controller, a slot for a Compact Flash drive, and integrated Watchdog, Temperature, and Fan Monitoring functions. The system is powered by a Celeron M 370 1.5 GHz processor with a 400 MHz FSB and 1 MB SLC, and comes with 512 MB DDR2 533 SODIMM RAM. Communication capabilities include PROFIBUS/MPI. For storage, it features RAID1 with two 60 GB SATA (2.5") drives and a DVD ROM. The unit operates on a DC 24V industrial power supply and is pre-installed with Windows XP Professional Multi-Language SP2. It also provides two free PCI slots for expansion.

Features

• AGP Graphics Onboard with 8-128 MB Shared Memory
• 2 x 10/100 Mbit/s Ethernet RJ45 Ports
• 4 x USB V2.0 (High Current) Ports
• 1 x Serial (COM1) Port
• Onboard RAID Controller
• 1 x Slot for Compact Flash Drive
• Watchdog, Temperature, and Fan Monitoring
• 2 x Free PCI Slots
• Celeron M 370 1.5 GHz CPU, 400 MHz FSB, 1 MB SLC
• PROFIBUS/MPI Interface
• 512 MB DDR2 533 SODIMM RAM
• DC 24V Industrial Power Supply
• RAID1 with 2x60 GB SATA (2.5") Storage + DVD ROM
• Pre-installed Windows XP Professional Multi-Language SP2 (EN, GE, FR, IT, SP)

Applications

The Siemens SIMATIC Box PC 627 is suitable for a wide range of industrial automation tasks, including:

• Machine control and visualization
• Data acquisition and processing
• Human-Machine Interface (HMI) applications
• Industrial communication gateways
• Distributed control systems
• Manufacturing execution systems (MES) integration

Technical Specifications

Connections / Interfaces

• Ethernet: 2 x RJ45 (10/100 Mbit/s)
• USB: 4 x USB V2.0 (High Current)
• Serial: 1 x COM1
• Fieldbus: PROFIBUS/MPI
• Power: DC 24V Terminal

Installation Guidelines

1. De-energize System: Ensure all power to the system and associated equipment is disconnected before installation.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or control cabinet, ensuring adequate ventilation and clearance for cable routing.
3. Power Connection: Connect the DC 24V industrial power supply to the designated terminals, observing correct polarity.
4. Grounding: Establish a proper protective earth (PE) connection to the chassis of the Box PC to ensure electrical safety and minimize electromagnetic interference.
5. Ethernet Connections: Connect RJ45 cables for network communication to the 10/100 Mbit/s Ethernet ports.
6. USB and Serial Connections: Connect USB devices and serial peripherals to the respective USB V2.0 and COM1 ports as required.
7. PROFIBUS/MPI Connection: If utilizing PROFIBUS/MPI, connect the appropriate cable to the designated interface.
8. Cooling: Ensure the operating environment maintains specified temperature limits and that the integrated fan monitoring system can function effectively.
9. Cable Management: Route all cables neatly and securely, separating power and signal cables to prevent interference.
10. Re-energize System: After all connections are verified, re-apply power to the system and verify proper operation.
