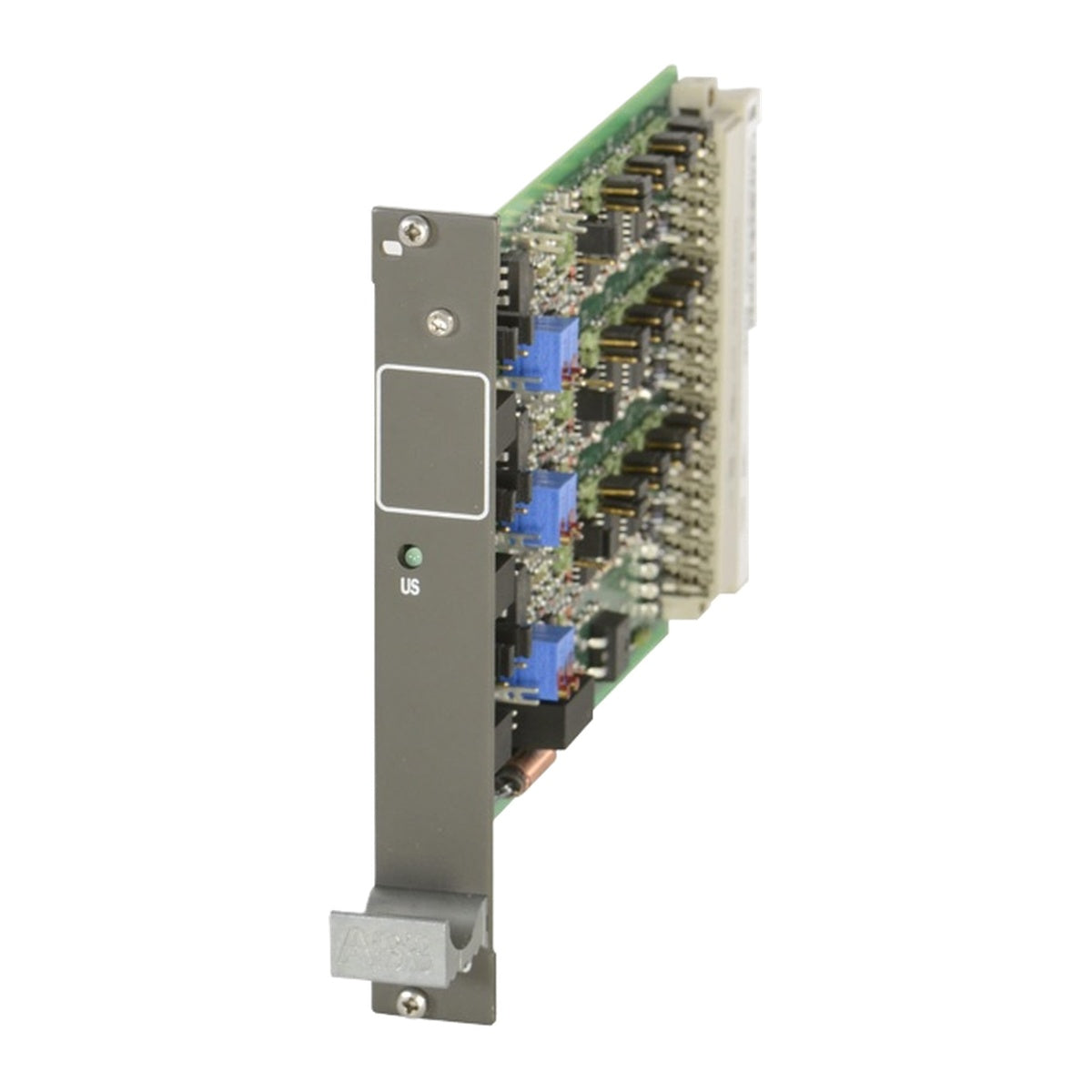

ABB 89AS30R0100 GKWN000317R0100 Procontrol P14 Analog Signal Multiplier

Only 2 item(s) left in stock

Manufacturer: ABB
Product No.: 89AS30R0100 GKWN000317R0100
Country of origin:Switzerland
Product Type: Analog Signal Multiplier
Payment: T/T, Western Union
Weight: 300g
Dimensions: 160 mm x 20 mm x 128 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

View full details

Description

The ABB 89AS30R0100 (Order Number GKWN000317R0100) is an analog signal multiplier module designed for converting and multiplying analog signals within the Procontrol P14 control system. Operating with three independent function units, this device processes input signals of 0... 20 mA, 4 ... 20 mA, or 0... 10 V DC, with configurable selection available via jumpers. From each input, the unit generates three isolated current outputs (0... 20 mA or 4 ... 20 mA) and one voltage output (0... 10 V DC). Inputs feature electrical isolation from the internal circuitry and incorporate dedicated 15 V DC or 24 V DC transmitter power supply outputs.

Features

Three identical and independent function units
Jumper-selectable input signal ranges for current or voltage
Individually selectable current output ranges per channel via jumpers
Electrically isolated inputs and separated outputs
Integrated 15 V DC and 24 V DC power supply for transmitters and field devices
Front-panel green LED operation status indication

Applications

Analog signal conversion and isolation
Signal duplication for redundant monitoring or control circuits
Transmitter power supply and signal processing in DCS environments
Steam power generation and industrial automation control systems

Ordering Information

Type Designation	Order Number
89AS30R0100	GKWN000317R0100

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model / Type Designation	89AS30R0100
Order Number	GKWN000317R0100
Supply Voltage	+24 V DC
Current Consumption	approx. 110 mA + output currents
Voltage Input (E1, E2, E3)	0 ... 10 V (max. 30 V)
Input Resistance (Voltage)	> 100 kOhm
Current Input (E1, E2, E3)	0 ... 20 mA, 4 ... 20 mA
Load Resistance (Input Current)	55 Ohm
Transmitter Supply (US1, US2, US3)	15 V DC or 24 V DC, max. 25 mA (jumper selectable)
Current Outputs (A11 to A13, A21 to A23, A31 to A33)	0 ... 20 mA, 4 ... 20 mA (jumper selectable)
Max. Burden (Current Outputs)	1000 Ohm
Voltage Outputs (A14, A24, A34)	0 ... 10 V (max. 12 V)
Max. Current (Voltage Outputs)	5 mA
Transmission Error	<= 0.3%
Signal Delay	< 1 msec
Operating Temperature	0 to +70 degC
Storage / Transport Temperature	-40 to +85 degC
Relative Humidity (Operating)	5% to 95% RH
Atmospheric Pressure (Operating)	86 kPa to 106 kPa
Board Size	3 units, 1 division, 160 mm deep
Connector Type	1 x 48-pole edge connector, type F (to DIN 41 612/IEC 60603-2)
Weight	approx. 0.3 kg

Connections/Interfaces

Connector Pin	Function
d02 / b02 / z02	Input E3+ / Input E2+ / Input E1+
d04 / b04 / z04	Input E3- / Input E2- / Input E1-
d06 / b06 / z06	Transmitter Supply US3+ / US2+ / US1+
d08 / b08 / z08	Transmitter Reference Z3 / Z2 / Z1
d12 / b12 / z12	Output A31+ / Output A21+ / Output A11+
d14 / b14 / z14	Output A31- / Output A21- / Output A11-
d16 / b16 / z16	Output A32+ / Output A22+ / Output A12+
d18 / b18 / z18	Output A32- / Output A22- / Output A12-
d20 / b20 / z20	Output A33+ / Output A23+ / Output A13+
d22 / b22 / z22	Output A33- / Output A23- / Output A13-
d24 / b24 / z24	Output A34+ / Output A24+ / Output A14+
d26 / b26 / z26	Output A34- / Output A24- / Output A14-
d30 / b30 / z30	Reference potential Z
d32 / b32 / z32	Power supply USA / USA / USB

Installation Guidelines

Verify jumper positions on the board prior to insertion to configure input signal ranges, output ranges, and transmitter supply voltages.
Ensure power is disconnected before installing or removing the module from the 48-pole DIN 41 612 / IEC 60603-2 rack connector.
Observe transducer power limits when wiring four-core transducers; total current consumption per supply output must remain below 25 mA.
Maintain operating environment conditions between 0 and +70 degC with relative humidity levels between 5% and 95% non-condensing.

Compliance and Certifications

EMC Directive 2014/30/EC
EN 61000-6-4: 2007/A1:2011 (EMC Emission - Industry)
EN 61000-6-2: 2005/AC:2005 (EMC Immunity - Industry)

Product Image	Model Number / Title	Condition	Availability	Action
	ABB GKWE858000R1210 83SR52R1210 Procontrol P14 Control Module	Original New	In Stock	View Details

Key Features:

#Procontrol P14 #Signal Multipliers

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What is the primary function of the module?

The module converts and multiplies analog signals across three independent processing channels.

What input signal types are supported by the device?

The device processes input signals of 0 to 20 mA, 4 to 20 mA, or 0 to 10 V DC based on jumper configuration.

What power supply voltage does the transmitter output provide?

The transmitter supply outputs can be set to either 15 V DC or 24 V DC using internal jumpers, with a maximum load of 25 mA.

How many outputs are generated per input channel?

Each input channel generates three separate current outputs (0/4 to 20 mA) and one voltage output (0 to 10 V DC).
