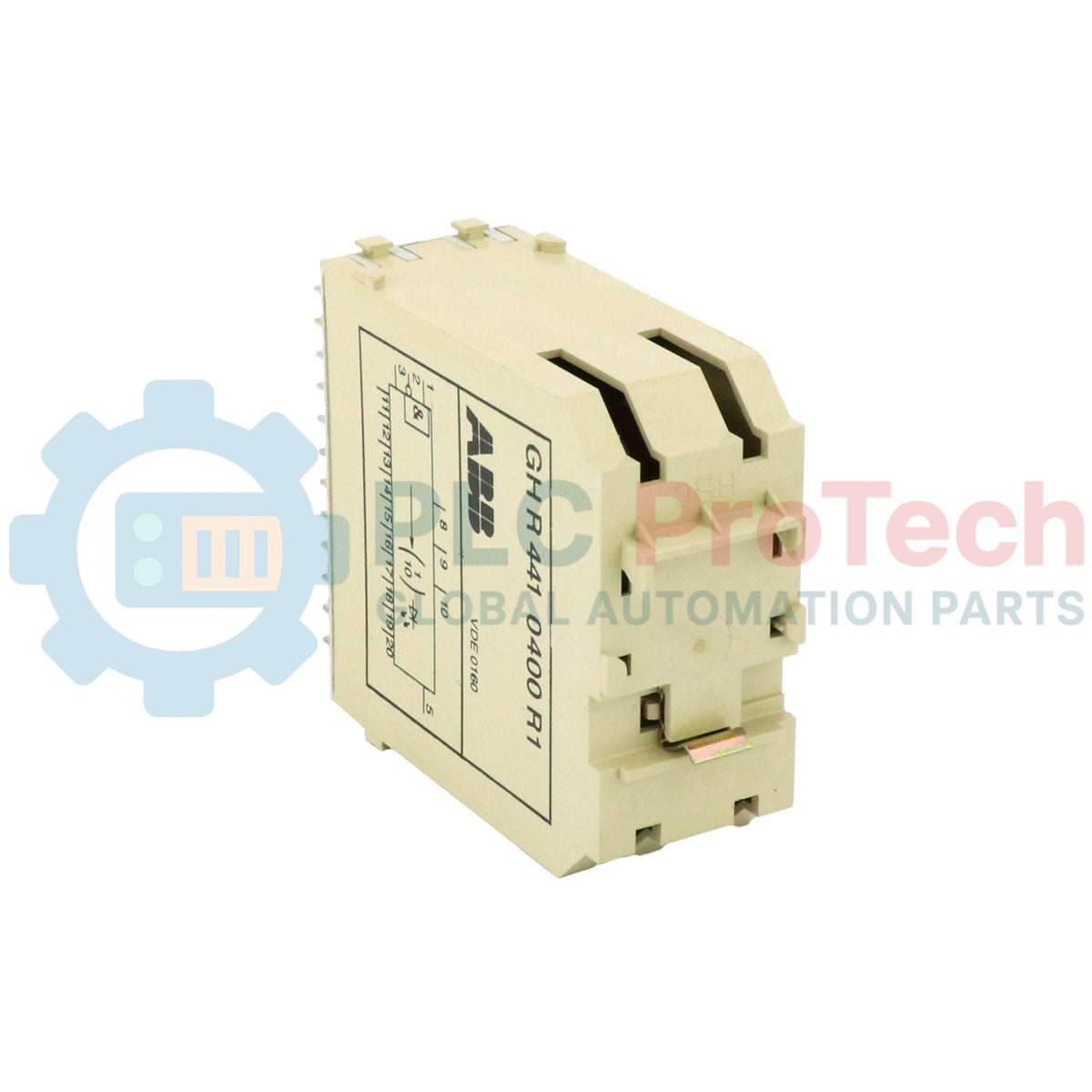

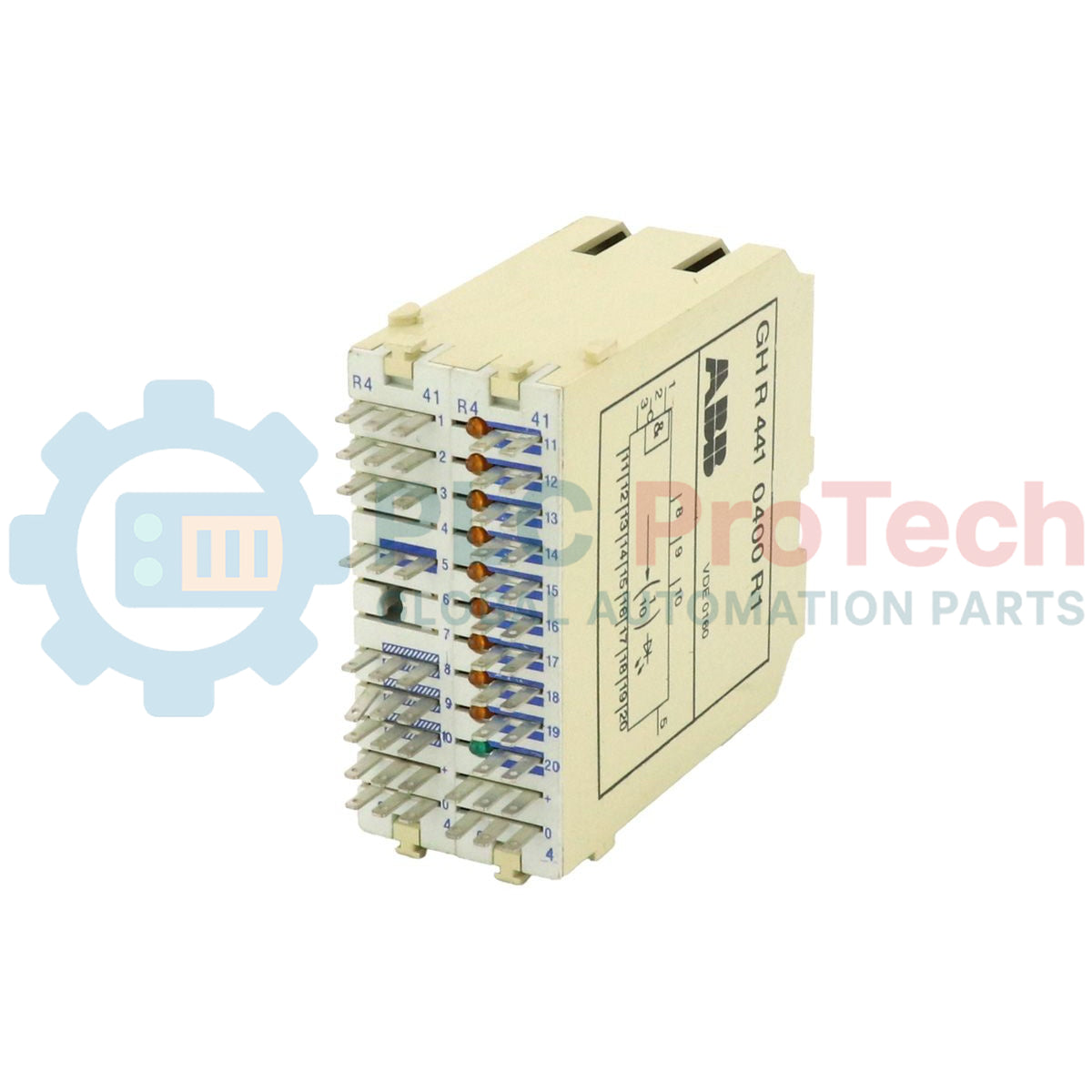

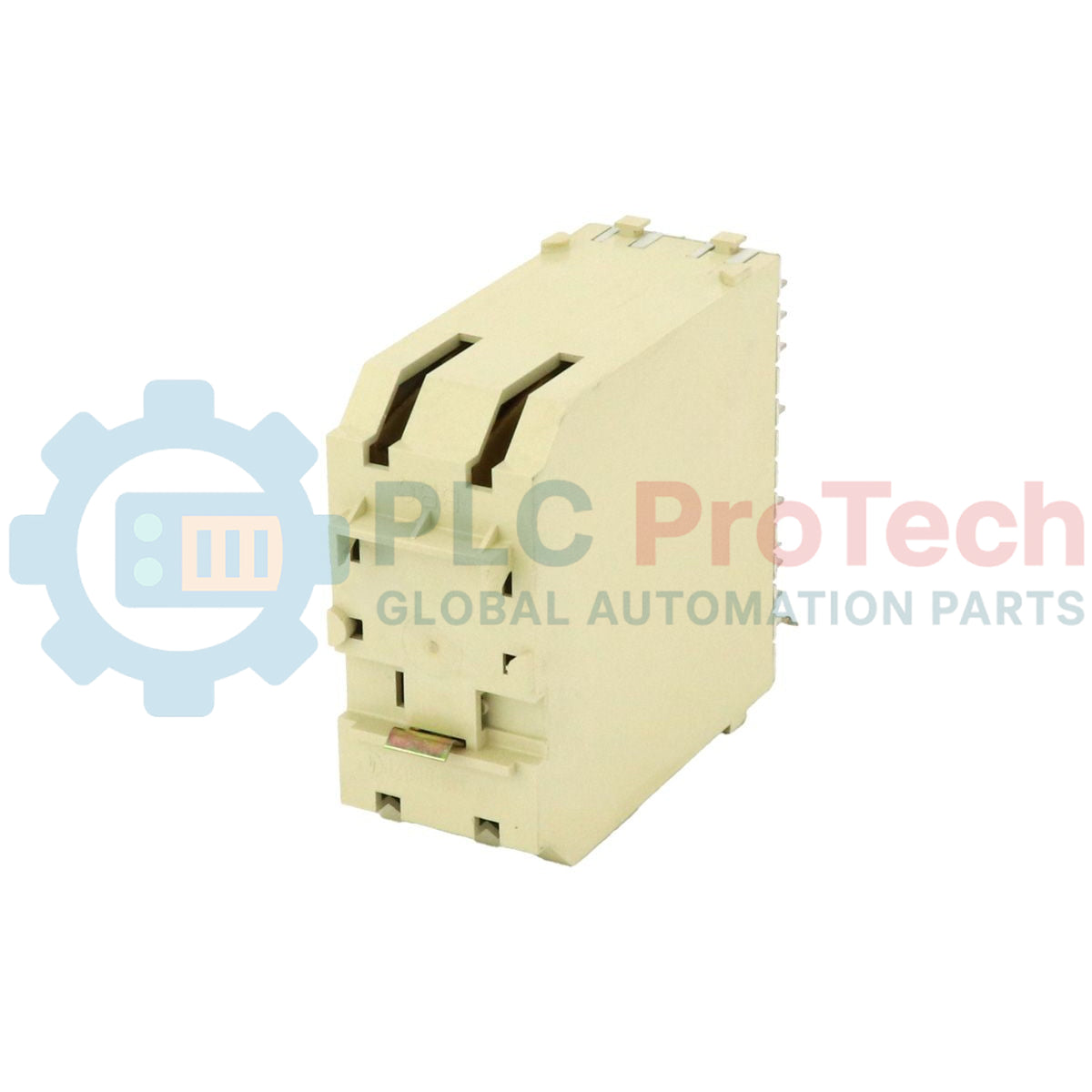

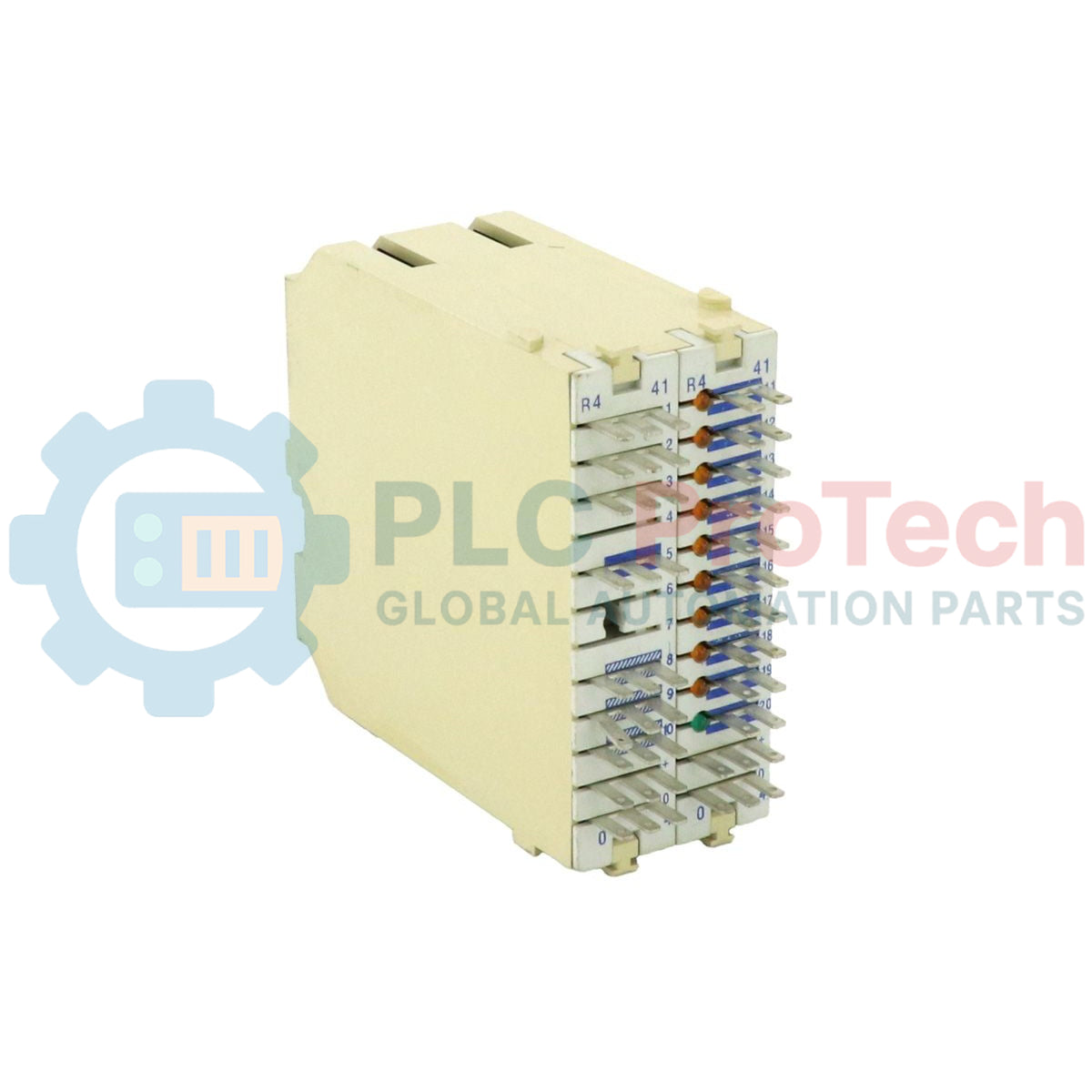

ABB GHR4410400R1 Procontic Forward Counter Module

Description

Engineered for legacy industrial automation environments, the GHR4410400R1 acts as a dependable forward counter module within the ABB Procontic control system line. This hardware unit processes counting sequences and provides instant visual feedback through its integrated faceplate configuration.

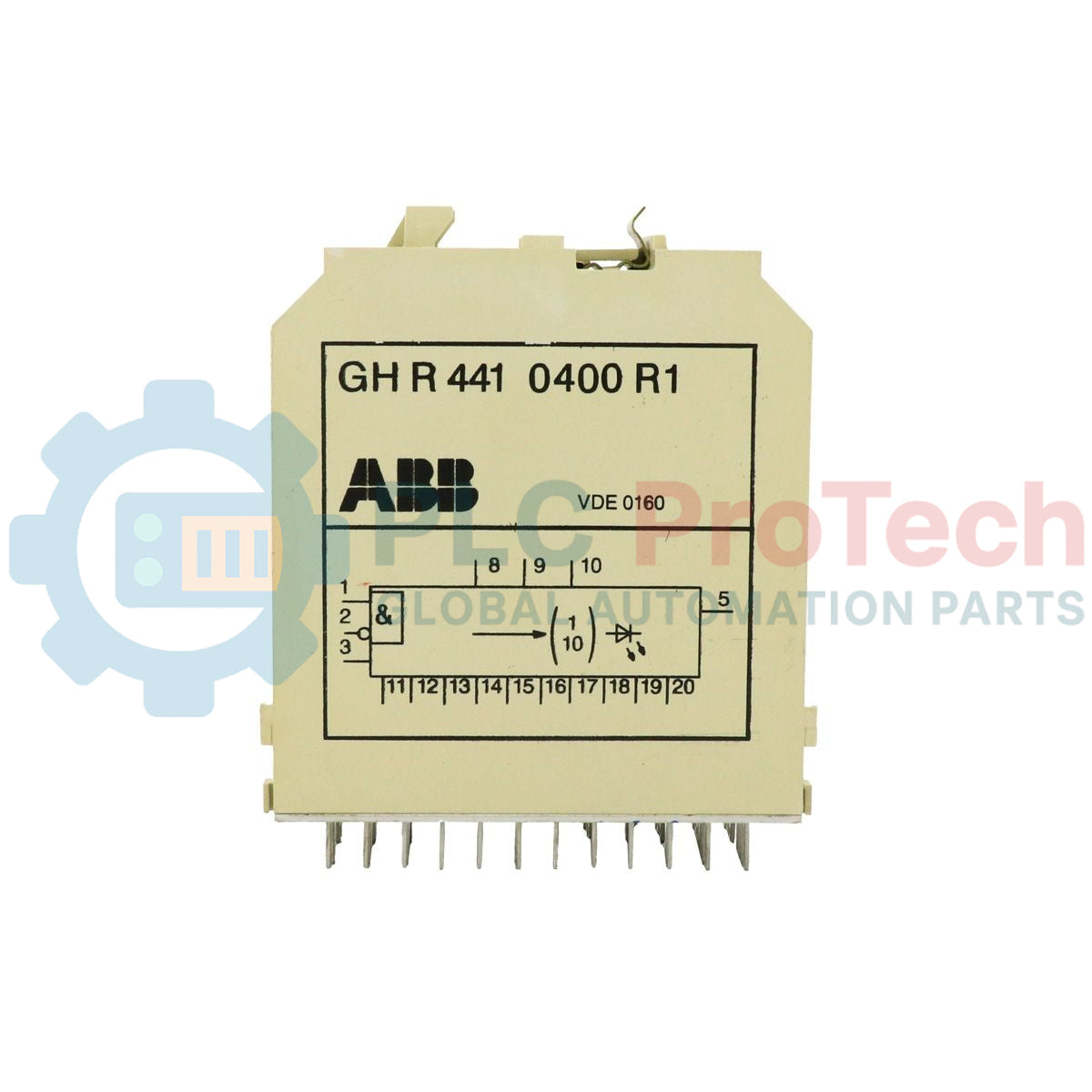

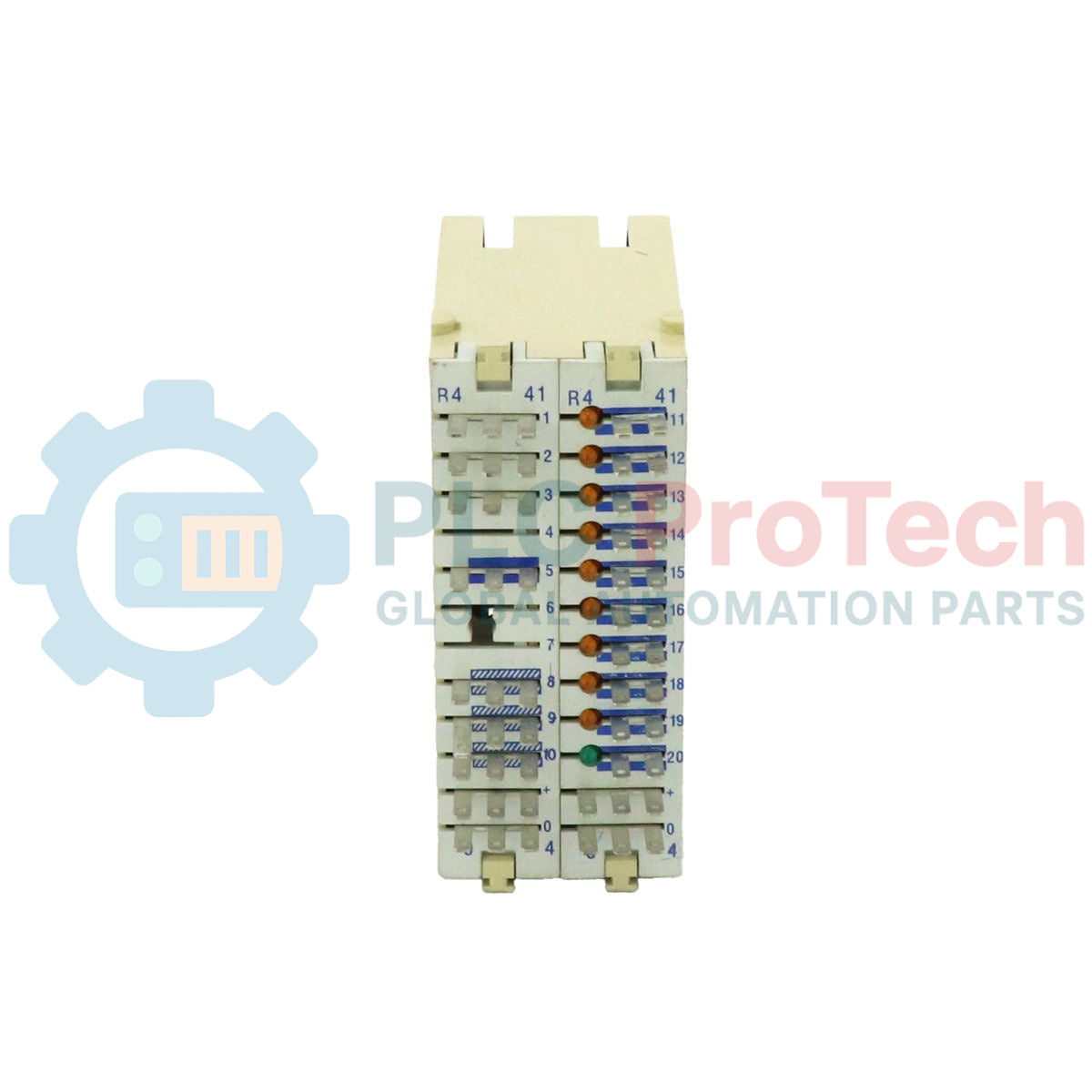

The module features a 1-out-of-10 LED indicator arrangement, allowing operators to verify the current counter status or active output channels at a glance. Built to withstand standard industrial environments, this unit integrates directly into existing backplanes, serving as a direct replacement part for maintaining operational continuity in established control systems.

Features

• Dedicated forward counting functionality for high-reliability process monitoring.
• Integrated front-panel LED interface displaying a 1-out-of-10 diagnostic state.
• Compatible design for rapid slot-in installation within ABB Procontic control racks.
• Robust housing construction optimized for passive heat dissipation.

Applications

• Legacy DCS and PLC system maintenance.
• Material handling and parts counting verification.
• Sequence monitoring in automated manufacturing processes.
• Industrial retrofitting and spare parts replacement.

Technical Specifications

Installation Guidelines

To ensure safe and reliable operation of the counter module, observe the following electrical and physical installation procedures:

• Always isolate input power and backplane voltage before inserting or removing the module to prevent electrical arcing or damage to internal components.
• Align the module carefully with the designated guide rails of the Procontic rack before applying pressure to seat the connectors.
• Ensure environmental conditions comply with standard control room specifications, avoiding direct moisture, high humidity, or excessive dust accumulation.
• Follow regional grounding and shielding protocols to minimize electromagnetic interference on counting signal lines.
