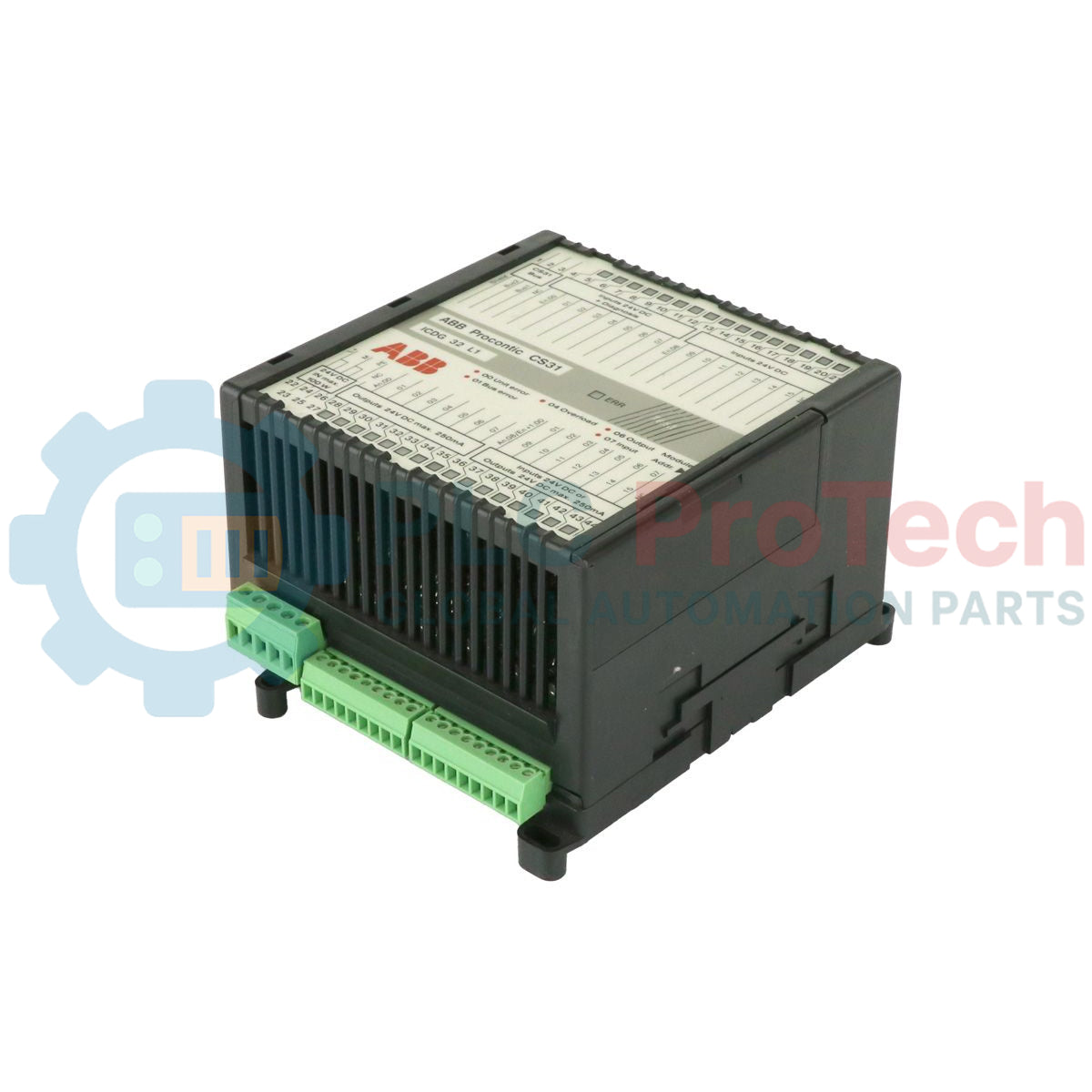

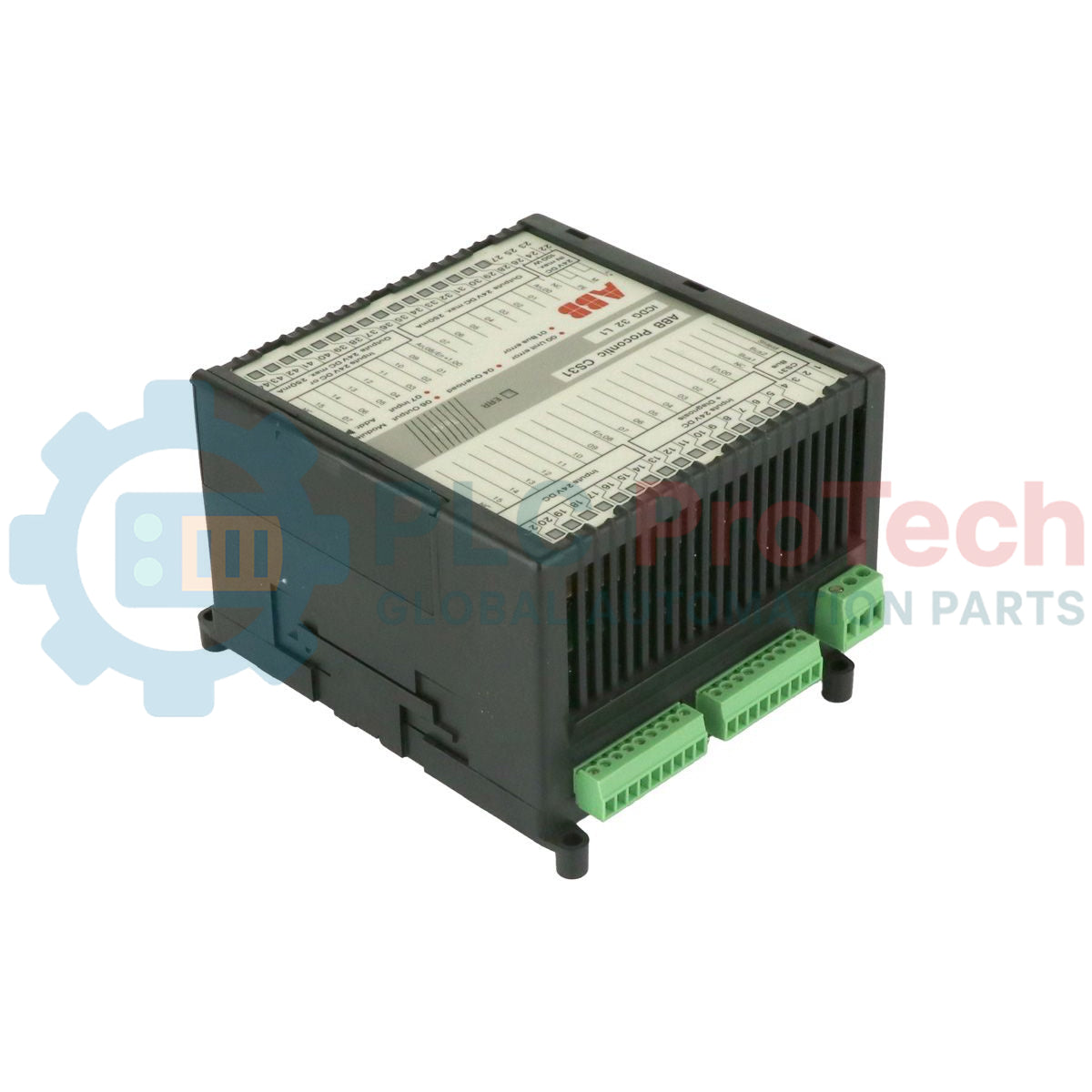

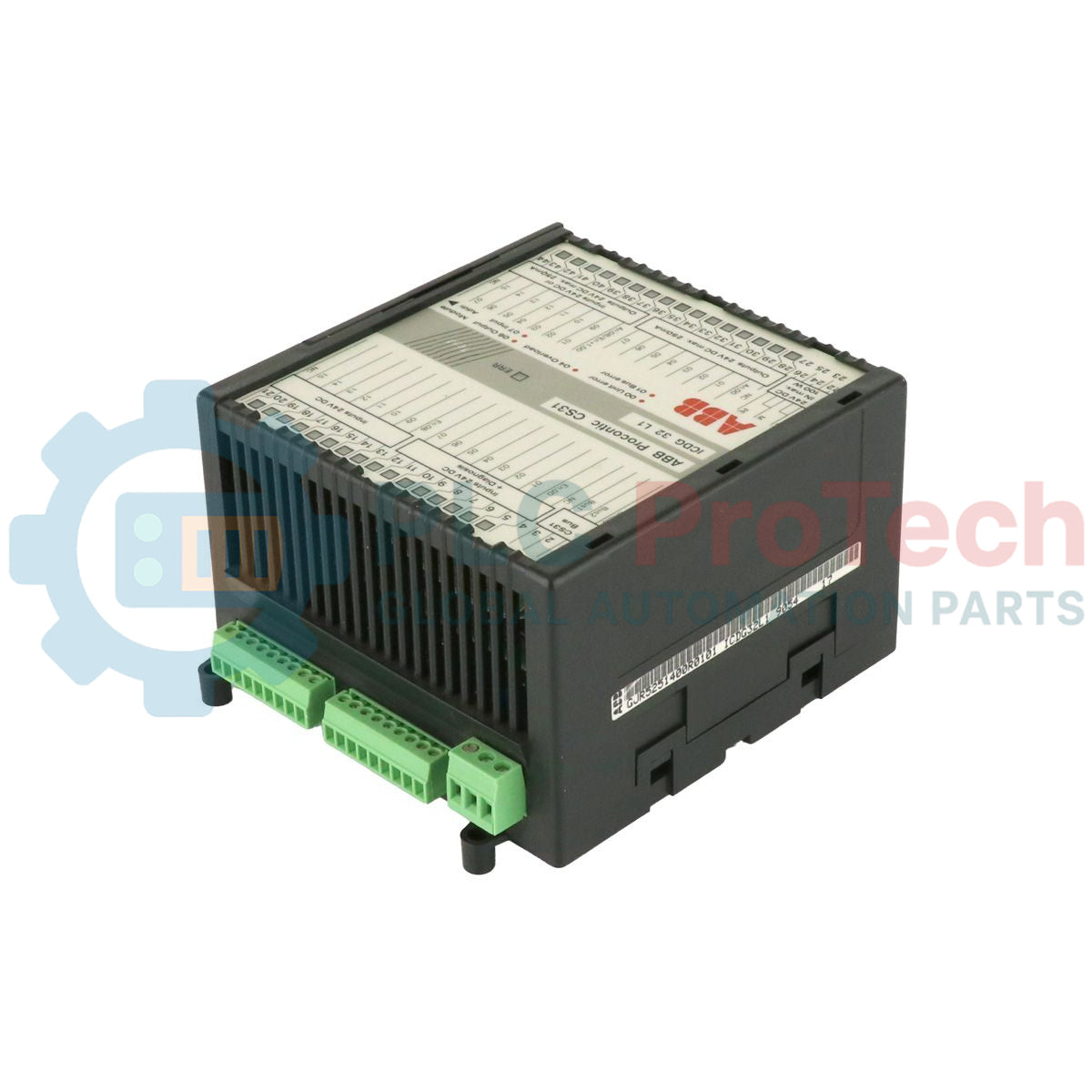

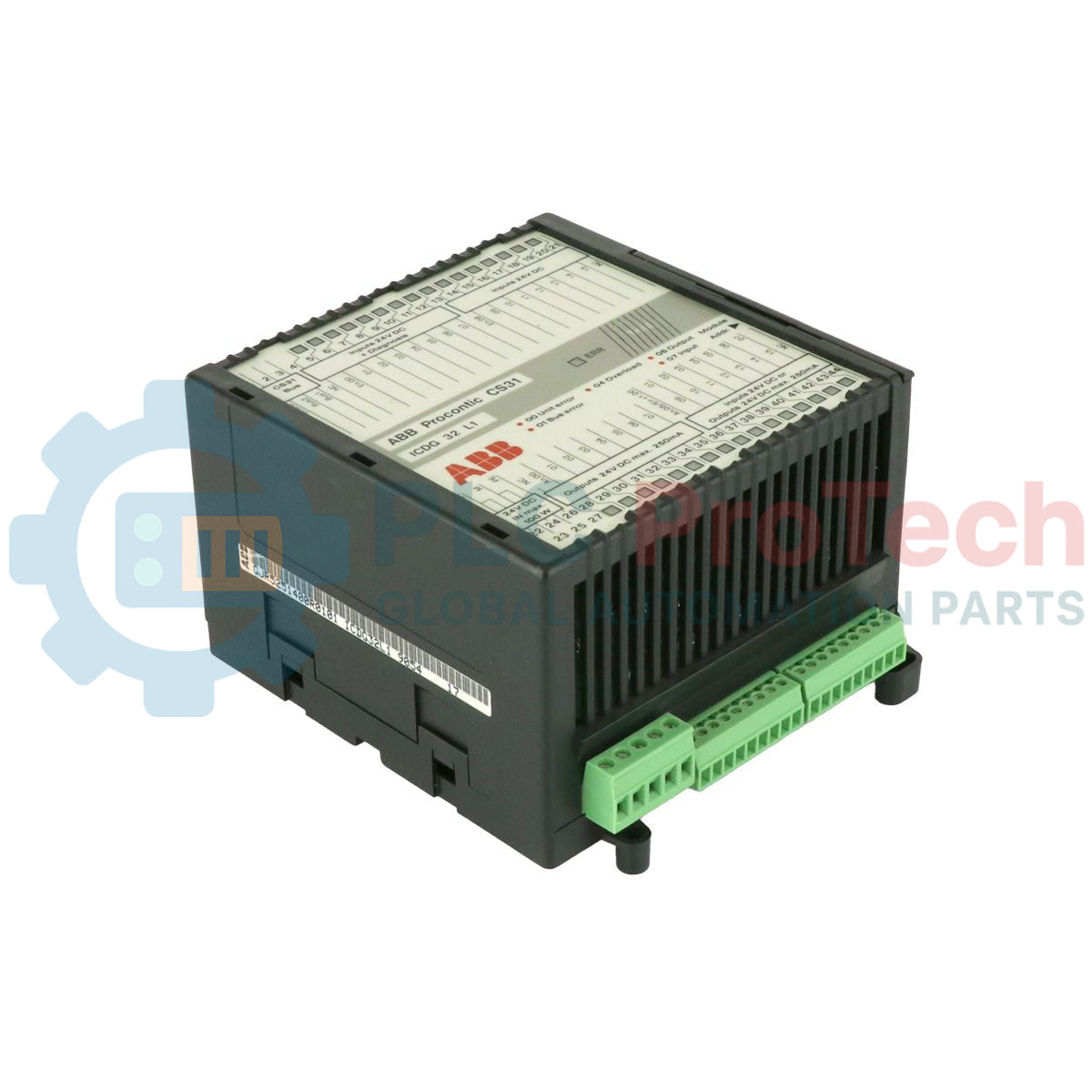

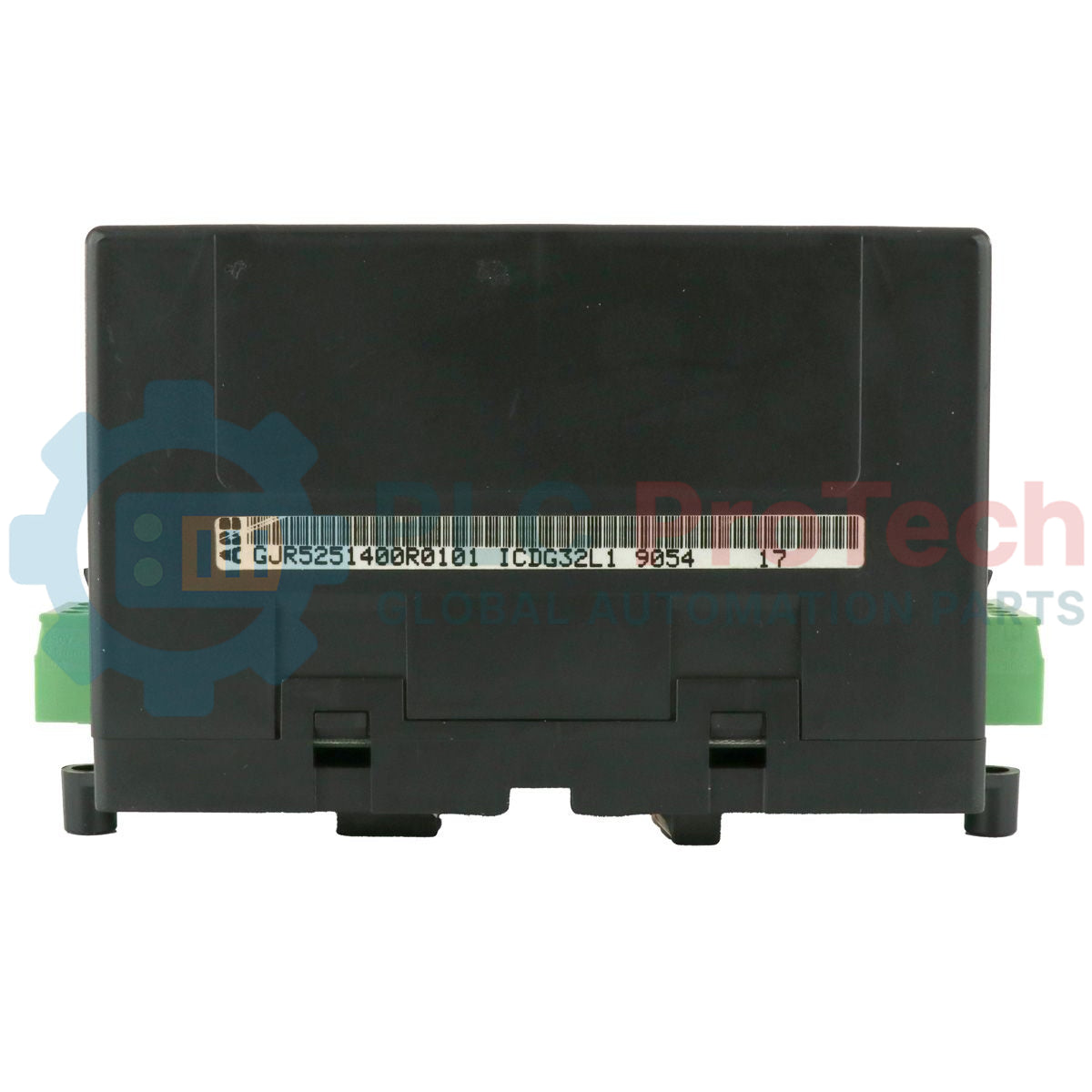

ABB ICDG32L1 GJR5251400R0101 Binary Input/Output Module

Only 15 item(s) left in stock

Manufacturer: ABB
Product No.: GJR5251400R0101
Country of origin:Швеция
Product Type: Binary Input/Output Module
Barcode: 85371099
Payment: T/T, Western Union
Weight: 1200g
Dimensions: 15.20cm x 10.20cm x 25.40cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

The ABB ICDG32L1 is a binary input/output module for the Procontic CS31 system bus.
It provides 32 binary channels, including 16 inputs, 8 transistor outputs, and 8 configurable I/O channels.
Moreover, it features isolated CS31 bus communication and supports DIN rail mounting for industrial automation applications.

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product Type	Binary Input/Output Module
Model / Type Designation	ICDG32L1
Product ID / Order Number	GJR5251400R0101
System	ABB Procontic CS31
Total Binary Channels	32
Digital Inputs	16 (two groups of 8)
Transistor Outputs	8, 250 mA per channel, max 4 A total
Configurable I/O Channels	8 channels, programmable as input or output
Input Voltage Range	Signal 0 / Signal 1 defined; overvoltage protection up to +36 V
Input Delay	Typical 7 ms
Output Protection	Short-circuit and overload protected, with free-wheeling and Z-diodes
Status Indication	LED per input/output channel
Power Supply	24 V DC
Mechanical Configuration	DIN rail mounting
Dimensions (L × W × H)	120 × 140 × 85 mm
Net Weight	0.45 kg
Wiring	Screw-type removable terminal blocks, up to 2.5 mm² conductor cross section
Operating Temperature Range	0–65 °C

Typical Applications

<ul> <li>Industrial process digital I/O control</li> <li>Remote I/O expansion on CS31 system bus</li> <li>Flexible allocation of binary inputs and outputs</li> <li>Compact DIN rail installations</li> <li>Signal monitoring and automated control in industrial environments</li> </ul>

Key Features:

#Binary Input/Output Module #Procontic
