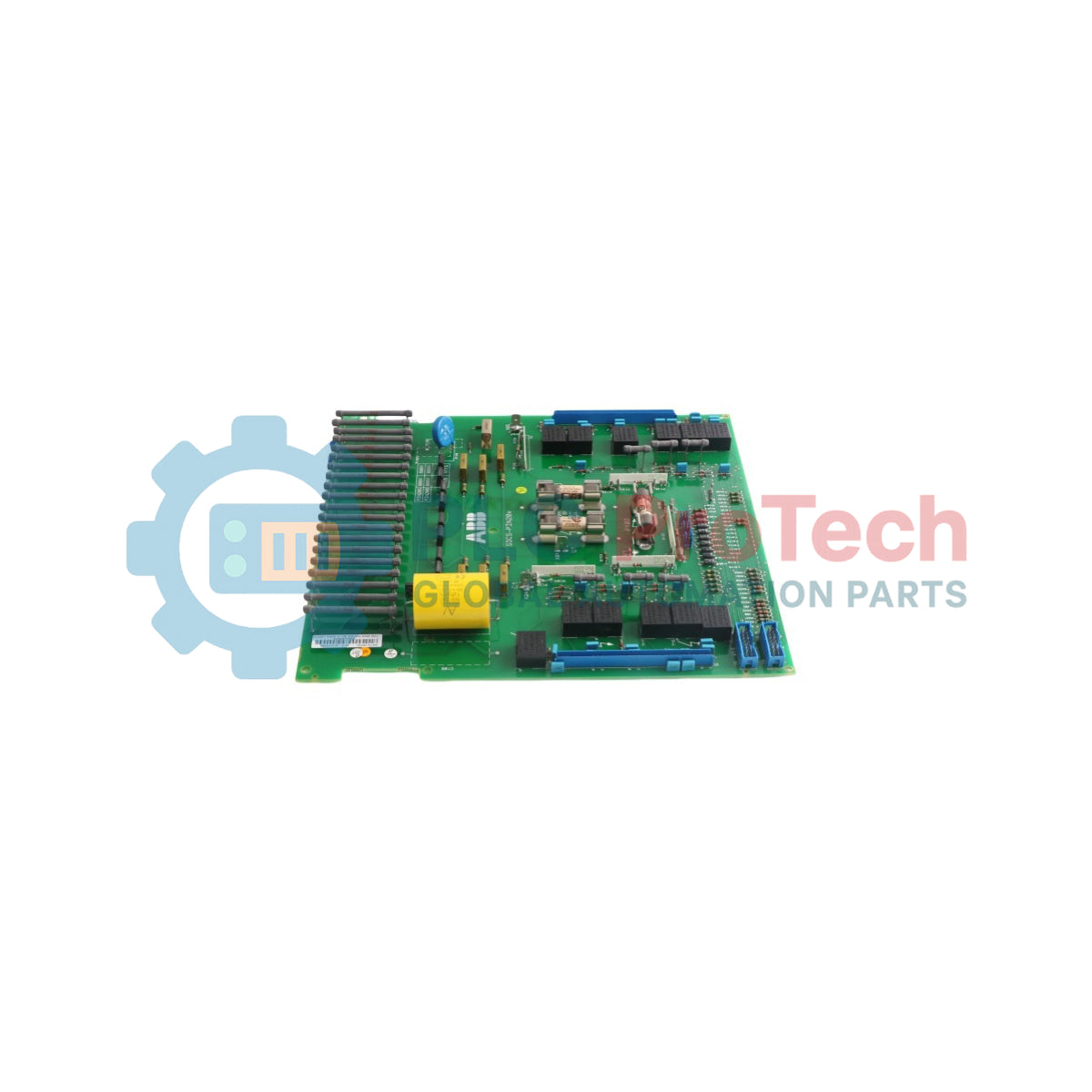

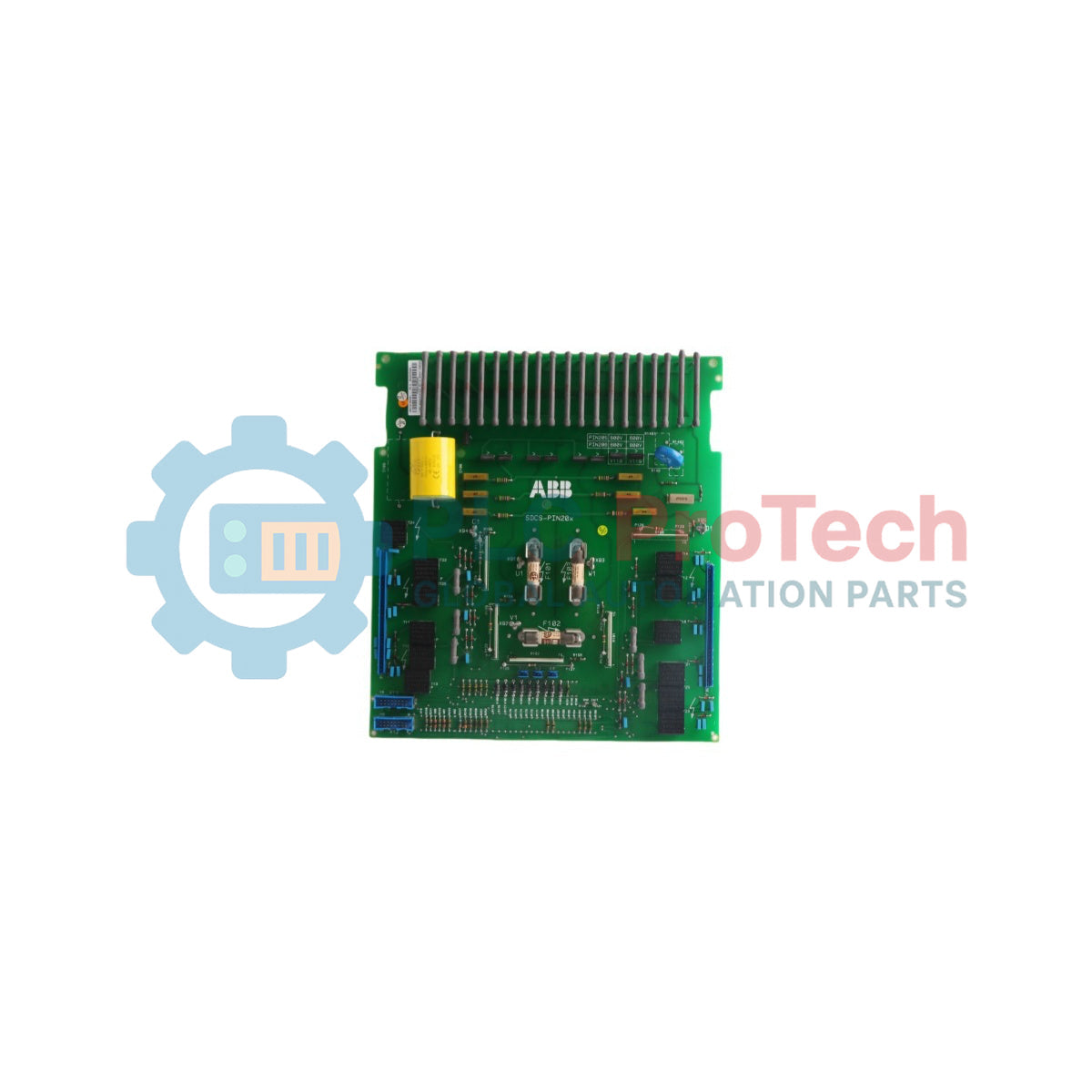

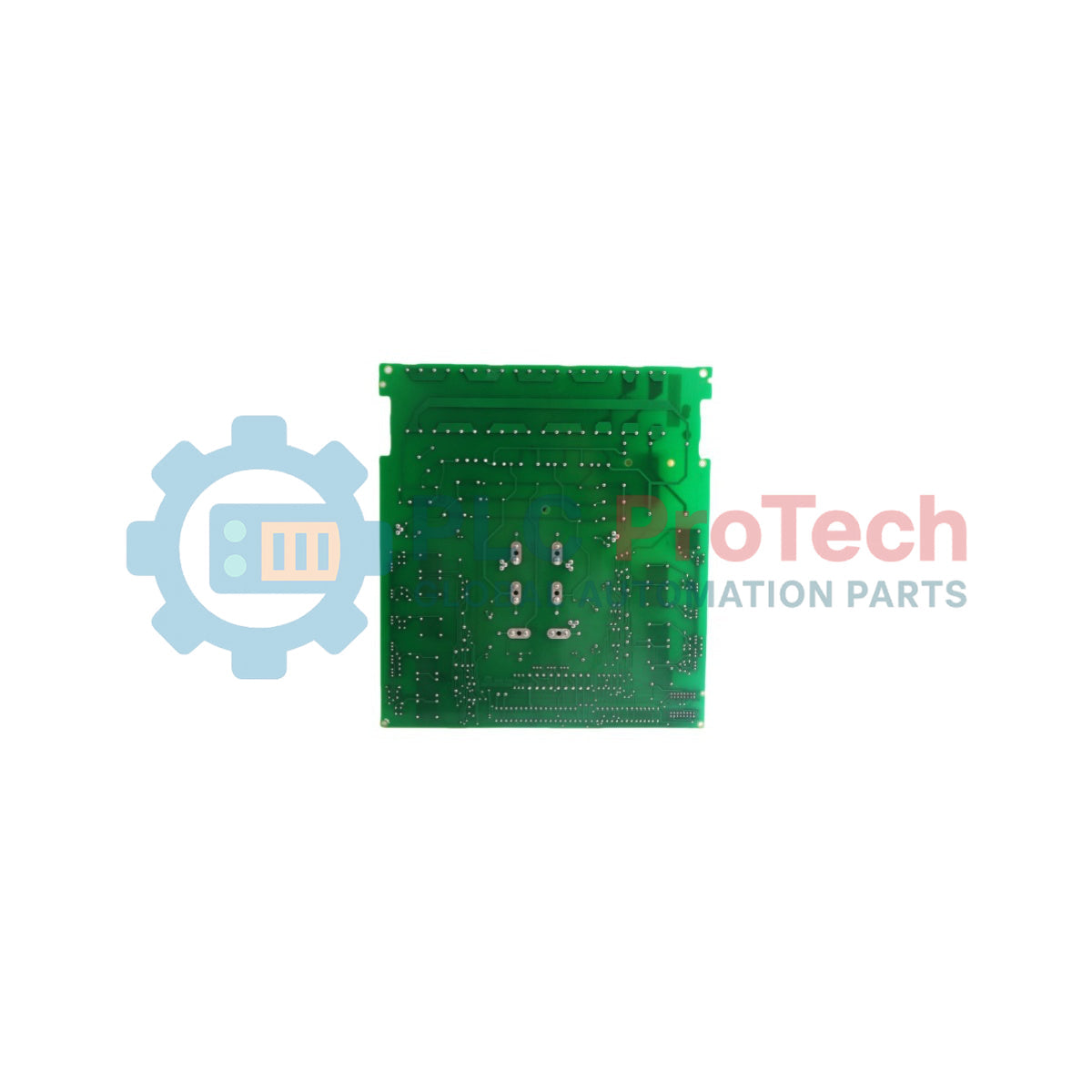

ABB SDCS-PIN-205 (3ADT310500R1) DCS600 Power Interface Board

Only 5 item(s) left in stock

Manufacturer: ABB
Product No.: SDCS-PIN-205 3ADT310500R1
Country of origin:Финландия
Product Type: Power Interface Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 500g
Dimensions: 25.3 cm x 28 cm x 4 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The ABB SDCS-PIN-205 is an industrial power gate driver and synchronization card engineered for three-phase thyristor converters within the DCS600 variable-speed DC drive ecosystem. Functioning fundamentally as a high-integrity power interface board, this device bridges the gap between the low-voltage microprocessor control electronics and the heavy power electronics bridge handling nominal current applications from 100A up to 700A at voltages up to 500V.

This hardware module integrates on-board voltage measurement paths, mains synchronization circuits, and pulse amplification channels that coordinate the precise firing sequence of the bridge thyristors. The SDCS-PIN-205 features optimized electrical trace layouts to prevent cross-talk and jitter under high dV/dt switching conditions. It includes multi-channel isolation barriers designed to shield upstream digital processing cards from destructive line transients and back-EMF spikes under heavy non-linear inductive loads.

Features

Direct Firing Distribution: Delivers synchronized, high-energy gate pulses required to cleanly switch large power semiconductors across mid-range converter frames.
Mains Synchronization Network: Incorporates reliable step-down measurement circuits to monitor line phase angles directly from the 500V power bus.
Robust Component Geometry: Assembled with industrial-grade insulation and physical spacing to safely withstand localized thermal dissipation within electronic trays.

Applications

Main current gate interface and synchronization for ABB DCS600 thyristor power converters.
Mid-range DC drive packages running industrial hoist machinery, main extruders, and material handling conveyors.

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model Designation	SDCS-PIN-205
Product ID / Order Number	3ADT310500R1
Device Classification	Power Interface Board
Converter Current Rating Span	100 A to 700 A
Nominal Operational Voltage	500 V
Part Type Status	Original / New
Country of Origin	Finland (FI)
Shipping Weight (Calculated)	0.55 kg
Package Dimensions (Calculated)	240 mm x 180 mm x 55 mm

Alternative Models & Compatibility

The SDCS-PIN-205 power interface board is specifically sized for medium frame converters between 100A and 700A running on a 500V main supply. It is not interchangeable with higher voltage cards or large-frame units designed for 1000A systems due to structural scaling and scaling resistance variations. When executing an emergency spare replacement, engineers must ensure the hardware settings, wire routing, and jumpers match the precise thyristor bridge layout defined in the original commissioning records.

Installation Guidelines

CRITICAL WARNING: HIGH-VOLTAGE RISK

Completely isolate, turn off, and lock out all incoming three-phase AC line connections, auxiliary instrumentation power, and external DC field controls before working on the enclosure. Power converters house bulk capacitive nodes that hold lethal voltages long after primary supply lines are broken. Allow at least 15 minutes for self-discharge, and verify zero electrical potential using a calibrated multi-meter across all terminal blocks before touching internal components.

Attach an approved electrostatic discharge (ESD) wrist strap to an unpainted grounded spot on the enclosure chassis to disperse residual charge before handling the assembly.

Carefully mark, note, and unseat all low-voltage control ribbons, gate lead connections, and multi-pin bus connectors from their header positions.

Unscrew the card from its metal tray standoffs, remove the worn card, slide the new interface board onto the mounting holes, fasten all screws uniformly, and replug the electrical connections snugly.

Key Features:

#DCS600 #Power Interface Board

What power converter current spans does this board support?

This card is strictly dimensioned to operate within ABB converters rated from 100A up to 700A.

What is the maximum nominal operational line voltage for this assembly?

The interface is engineered to monitor line synchronization and drive gate channels on networks up to 500V.

Does this board coordinate thyristor gate firing signals directly?

Yes, it distributes and isolates firing signals running between the digital control processors and the power bridge thyristors.
