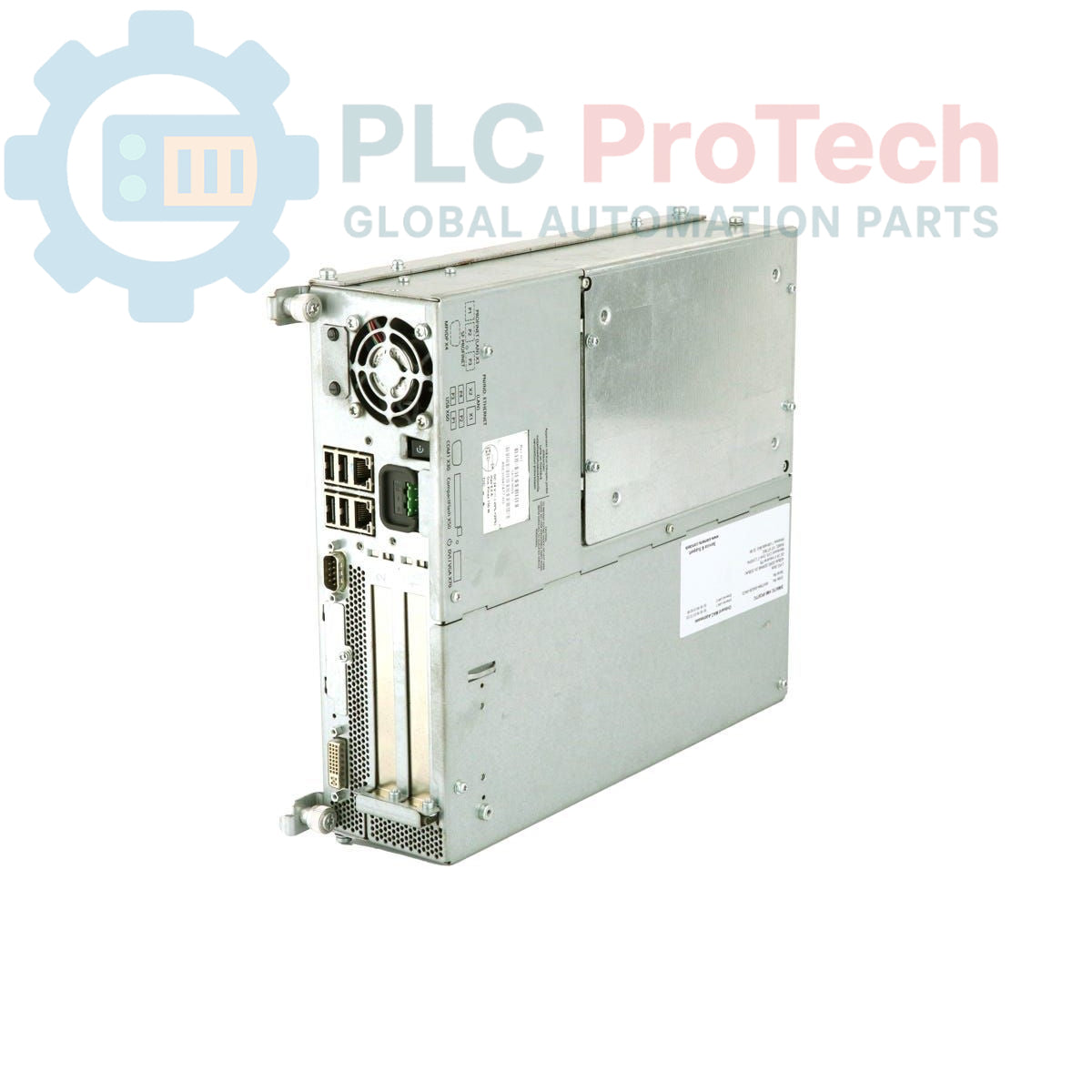

Siemens 6AV7894-1BG63-1BE0 SIMATIC IPC677C Panel PC

Description

This Siemens 6AV7894-1BG63-1BE0 is a SIMATIC IPC677C Panel PC designed for demanding HMI and control applications in industrial environments. It features a 19-inch touchscreen display with a 1280x1024 resolution, powered by an Intel Core i7-610E processor. The system is configured with 4 GB of DDR3 ECC memory for high reliability and includes dual 320 GB SATA hard drives managed by an onboard RAID controller. Connectivity is provided by dual Gigabit Ethernet ports, four USB 2.0 ports, and a serial interface. Integrated monitoring functions for watchdog, temperature, and fan status ensure operational stability.

Features

• 19-inch touchscreen display with 1280 x 1024 resolution
• Intel Core i7-610E dual-core processor (2.53 GHz)
• 4 GB DDR3 1066 DIMM with Error-Correcting Code (ECC)
• Dual 320 GB SATA Hard Disk Drives (HDD)
• Onboard RAID controller for data redundancy
• Integrated DVD+/-R+/-RW optical drive
• Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
• Built-in monitoring for watchdog, temperature, and fan
• Pre-installed with Windows 7 Ultimate 64-bit (MUI)
• Expandable with one PCI and one PCIe (x16) slot

Applications

• Human-Machine Interface (HMI) for process visualization
• Supervisory Control and Data Acquisition (SCADA) systems
• Industrial data logging and analysis
• Machine control and automation platforms
• Factory floor information systems

Technical Specifications

Installation Guidelines

1. 1 Verify the panel cutout dimensions match the IPC677C specifications for a secure and flush fit. Ensure the mounting surface is flat and can support the unit's weight.
2. 2 Secure the Panel PC into the cutout using all provided mounting clamps. Tighten the clamps evenly to the manufacturer's recommended torque to ensure a proper seal and prevent chassis distortion.
3. 3 Connect the main power supply cable to a stable, grounded AC power source that matches the 110/230 V AC rating. Use a dedicated circuit with appropriate overcurrent protection.
4. 4 Establish a protective earth (PE) connection to the designated grounding terminal on the chassis. A low-impedance ground connection is critical for safety and noise immunity.
5. 5 Connect Ethernet, USB, and serial communication cables. Route cables away from high-voltage lines and sources of electromagnetic interference (EMI). Use shielded cabling for all data connections where specified.
