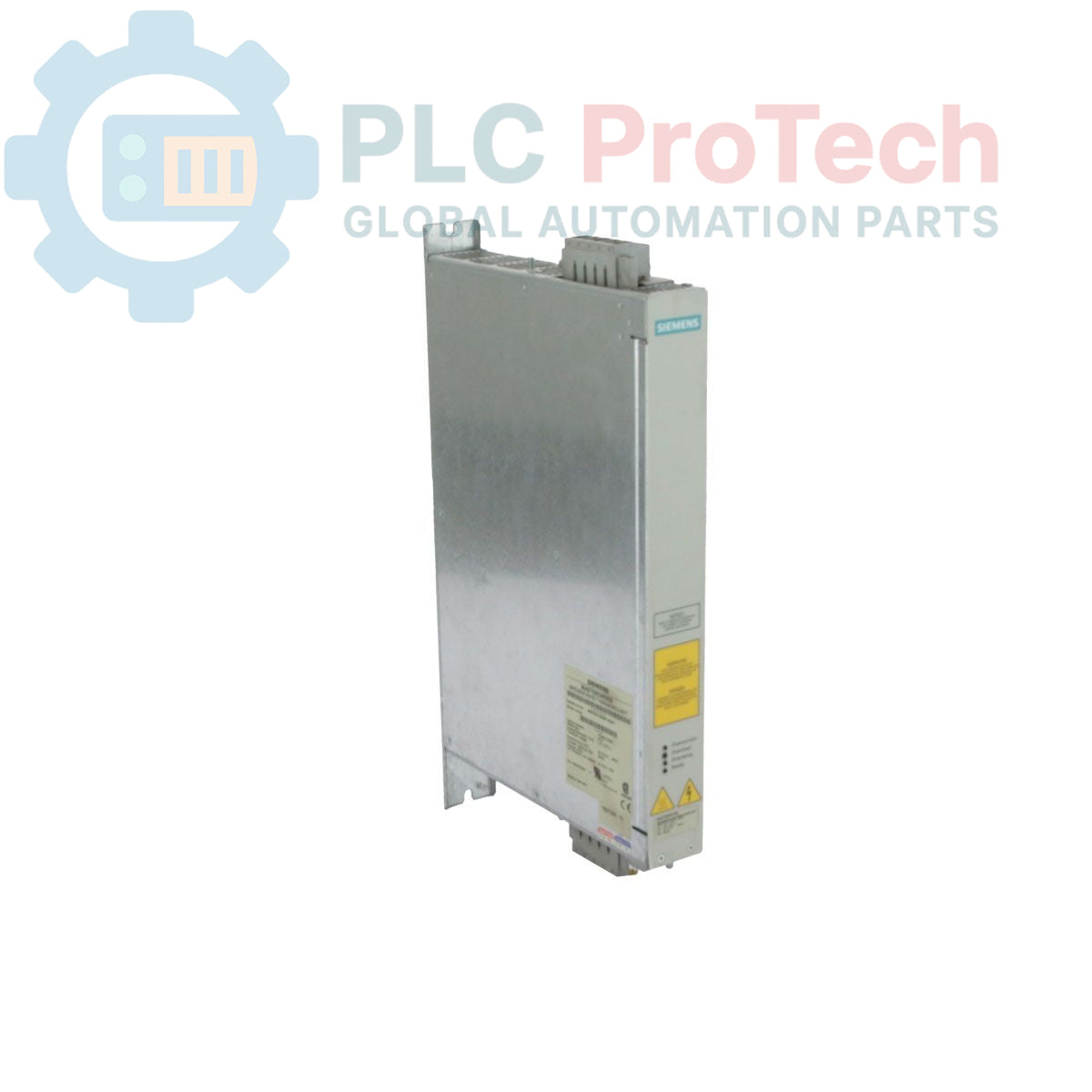

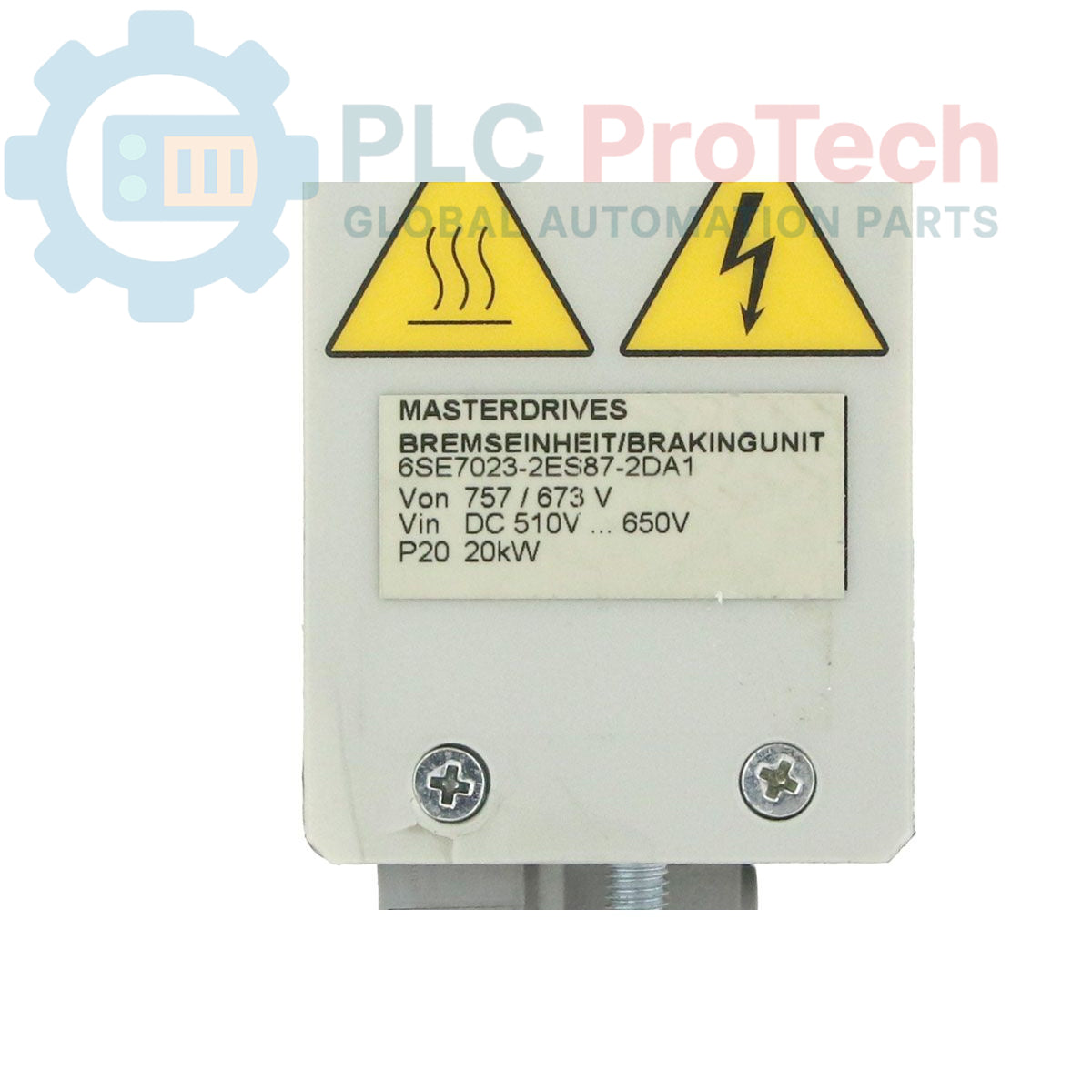

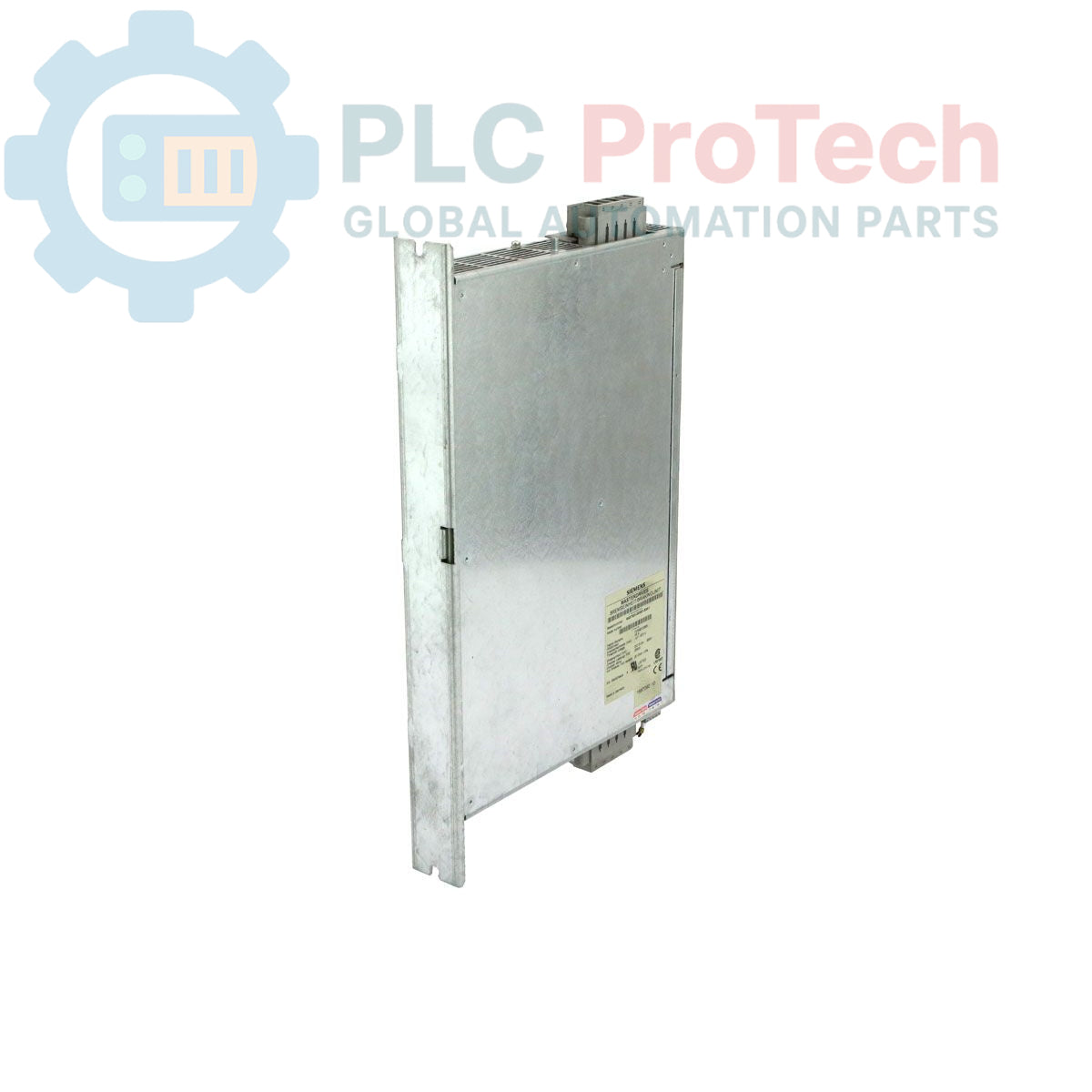

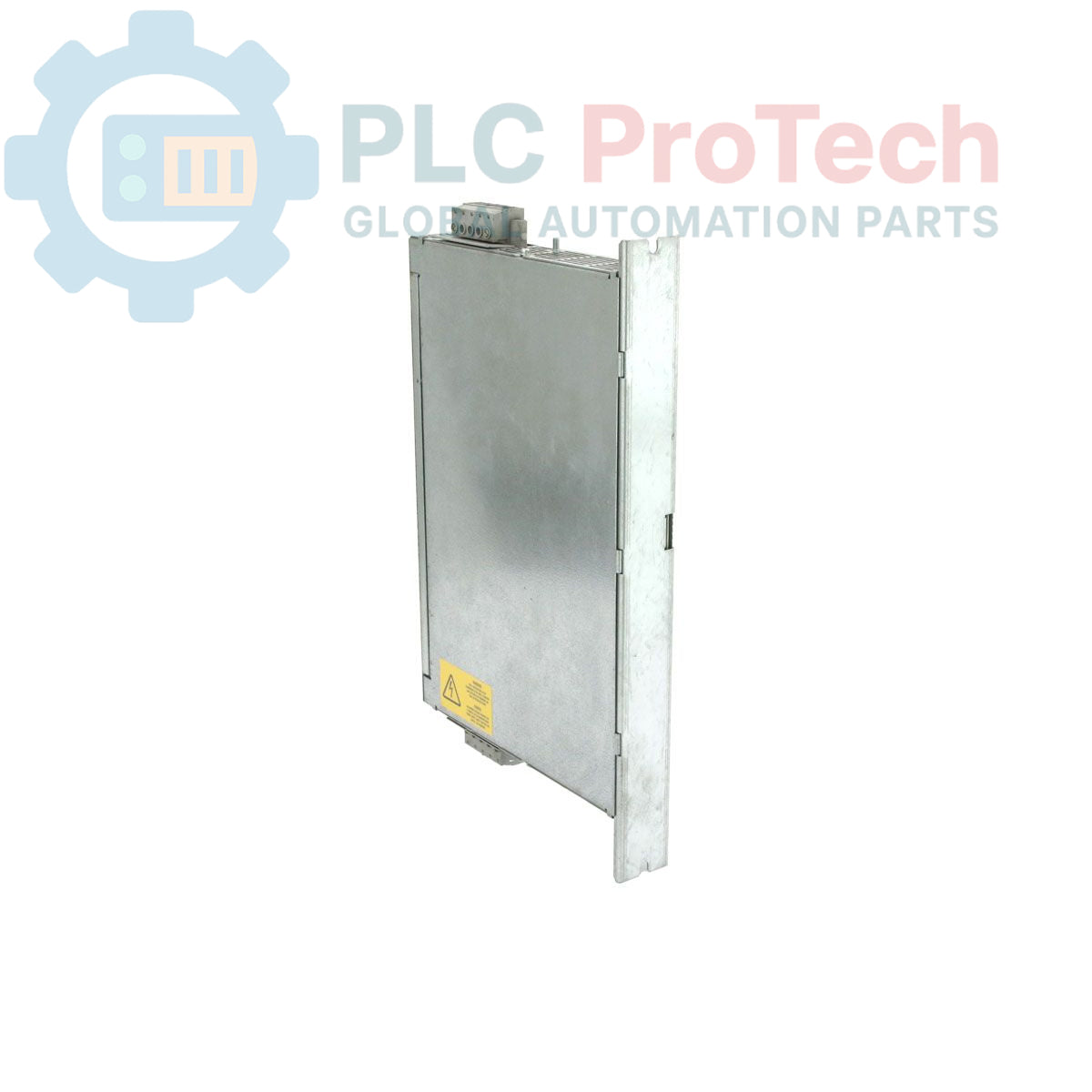

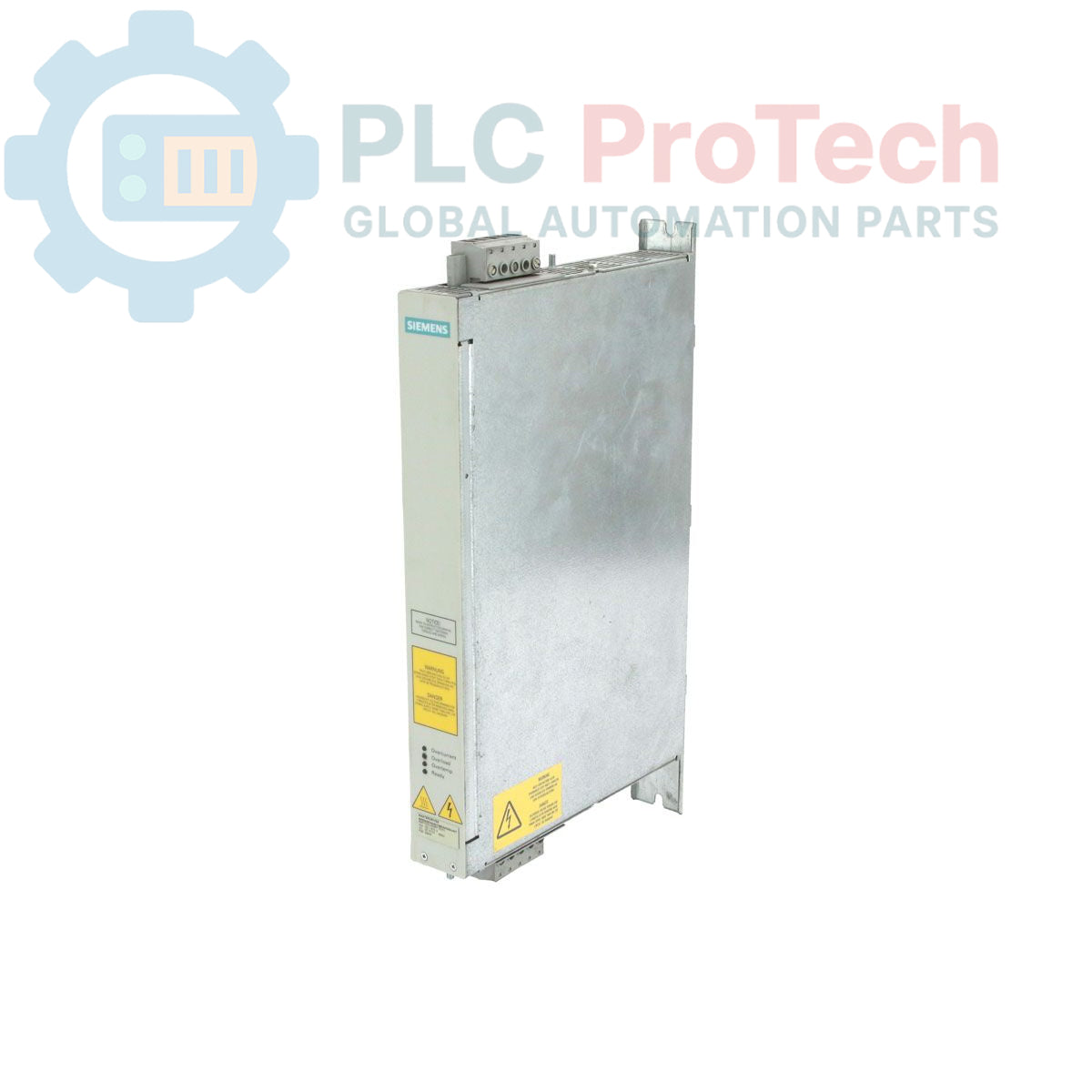

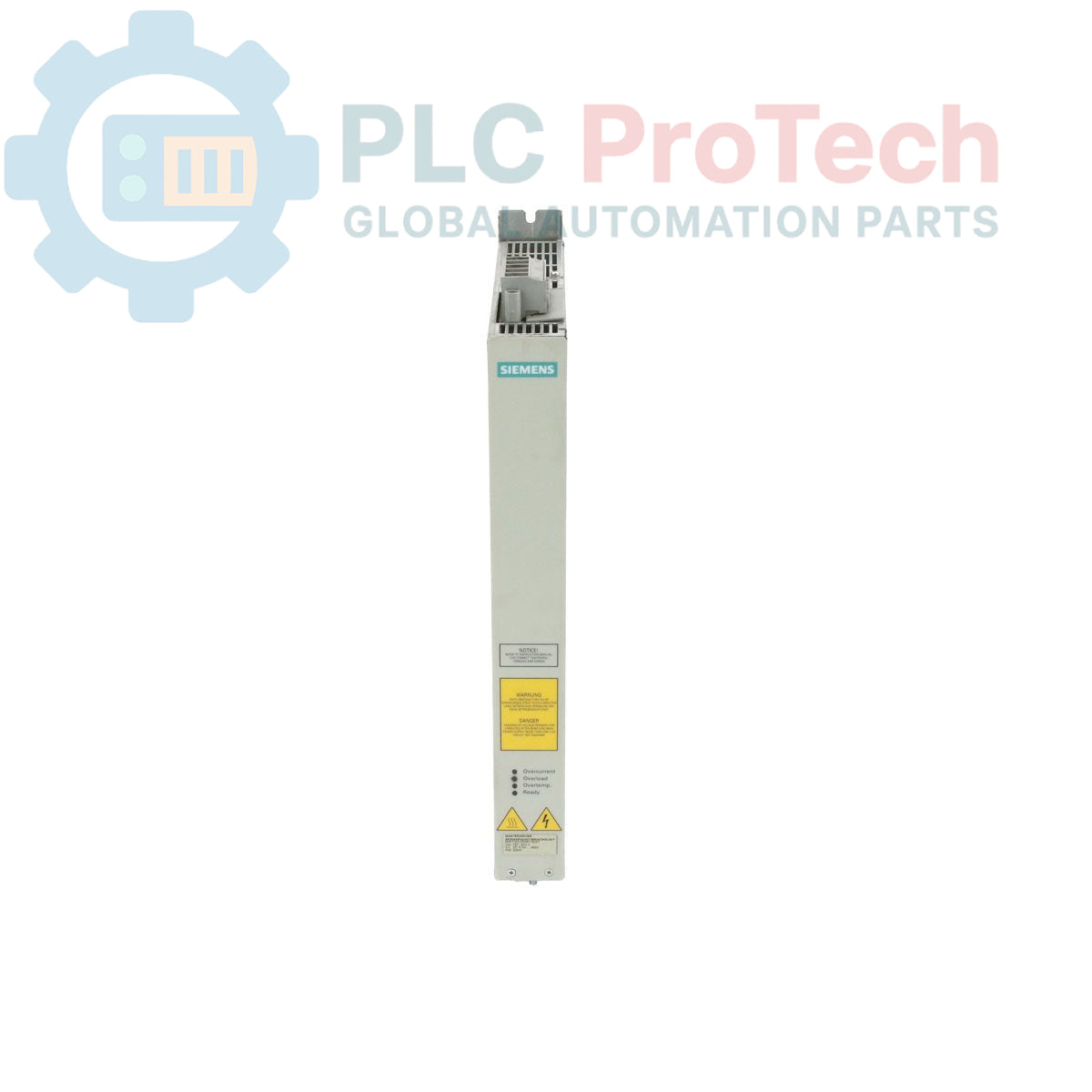

Siemens 6SE7023-2ES87-2DA1 SIMOVERT MASTERDRIVES Braking Module

The 6SE7023-2ES87-2DA1 is a SIMOVERT MASTERDRIVES braking module engineered to manage regenerative energy in high-power industrial drive systems. Designed for DC link circuits, this module handles voltages between 510V and 650V DC and provides a braking power capability of 20 kW. Its "Compact Plus" construction allows for space-efficient integration within electrical control cabinets, while the IP20 degree of protection provides a standardized level of safety against solid objects.

Features

• Series: SIMOVERT MASTERDRIVES
• Function: Braking module for energy dissipation
• Power Rating: 20 kW
• DC Voltage Range: 510-650 V DC
• Form Factor: Compact Plus construction
• Protection Class: IP20
• Status: Phase-Out

Applications

• Managing regenerative energy from motor deceleration
• Crane and hoist control systems
• High-inertia centrifuge or fan drives
• Emergency stop deceleration support for large-scale drives
• Elevator and vertical lift systems

Technical Specifications

Installation Guidelines

• Mounting: Install the module in a vertical orientation to ensure adequate convection airflow through the cooling channels.
• Thermal Management: Given the heat dissipation involved in braking, ensure the cabinet is equipped with sufficient ventilation or climate control.
• DC Link Connection: The module must be connected to the DC link busbar of the inverter system. Ensure the cable cross-section is sized appropriately for the 20 kW peak load.
• Braking Resistor: This module requires an external braking resistor (sold separately). Ensure the resistor is sized to match the 20 kW power limit and mounted in a location where heat can be safely exhausted.
• Wiring: Use twisted-pair cabling for signal connections to minimize EMI, and ensure all power cables are properly shielded.
