Hersteller: ABB
Produkt-Nr.: S202M-K2UC 2CDS272061R0277
Herkunftsland:Schweden
Produkttyp: Miniature Circuit Breakers
Zahlung: T/T, Western Union
Gewicht: 234g
Abmessungen: 88 mm x 35 mmx 69 mm (H x W x D)
Versandhafen: Xiamen
Garantie: 12 Monate

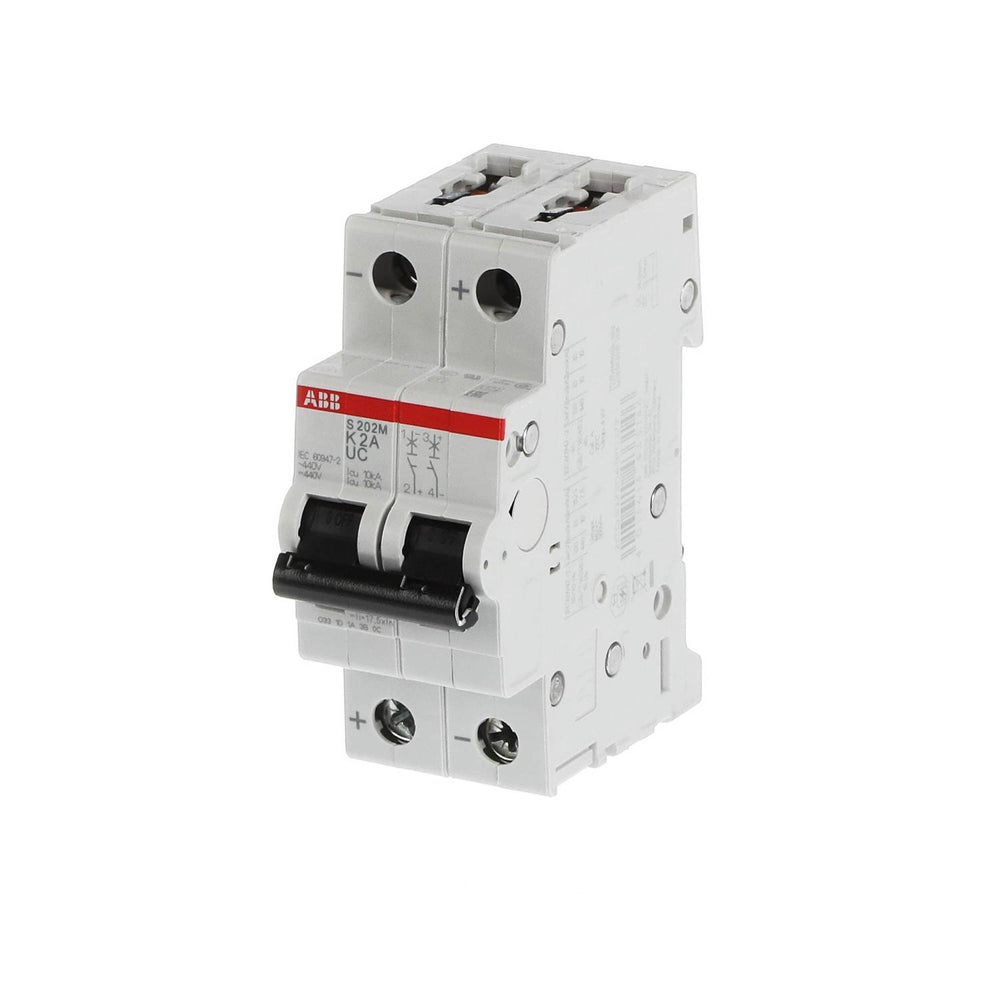

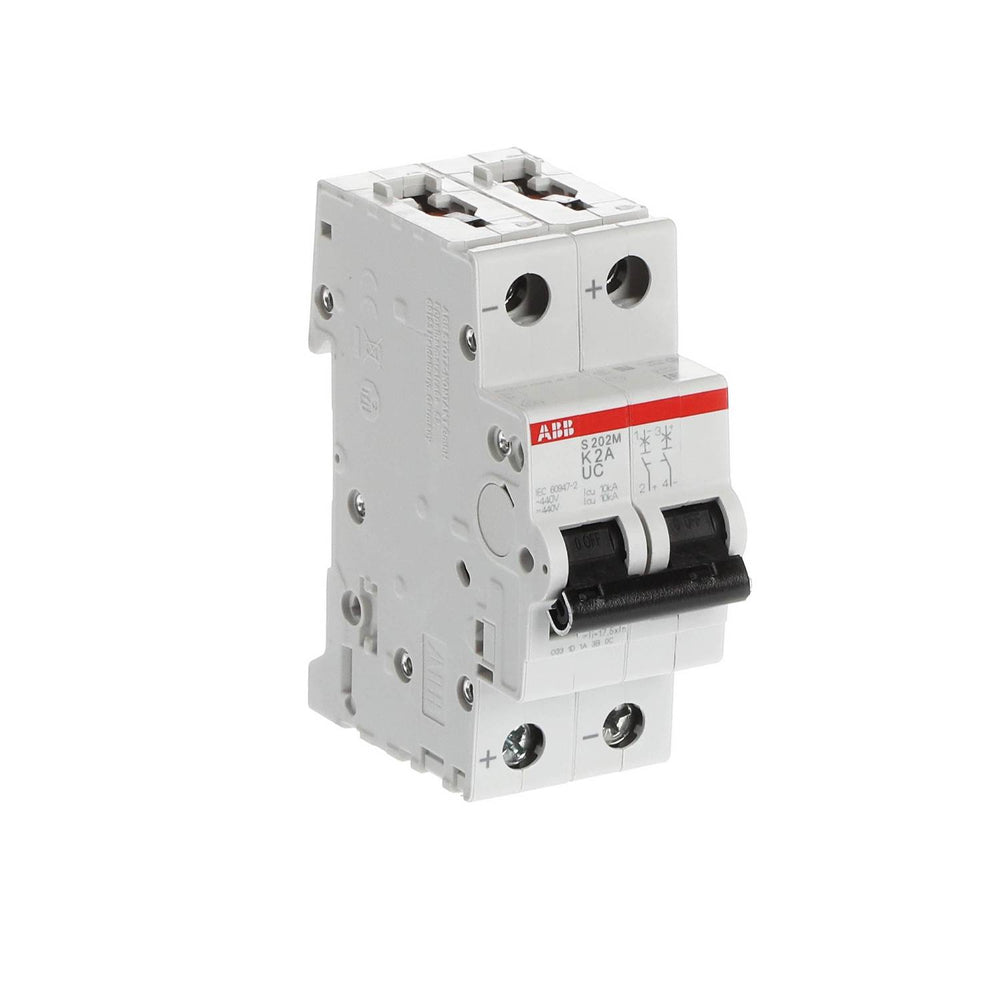

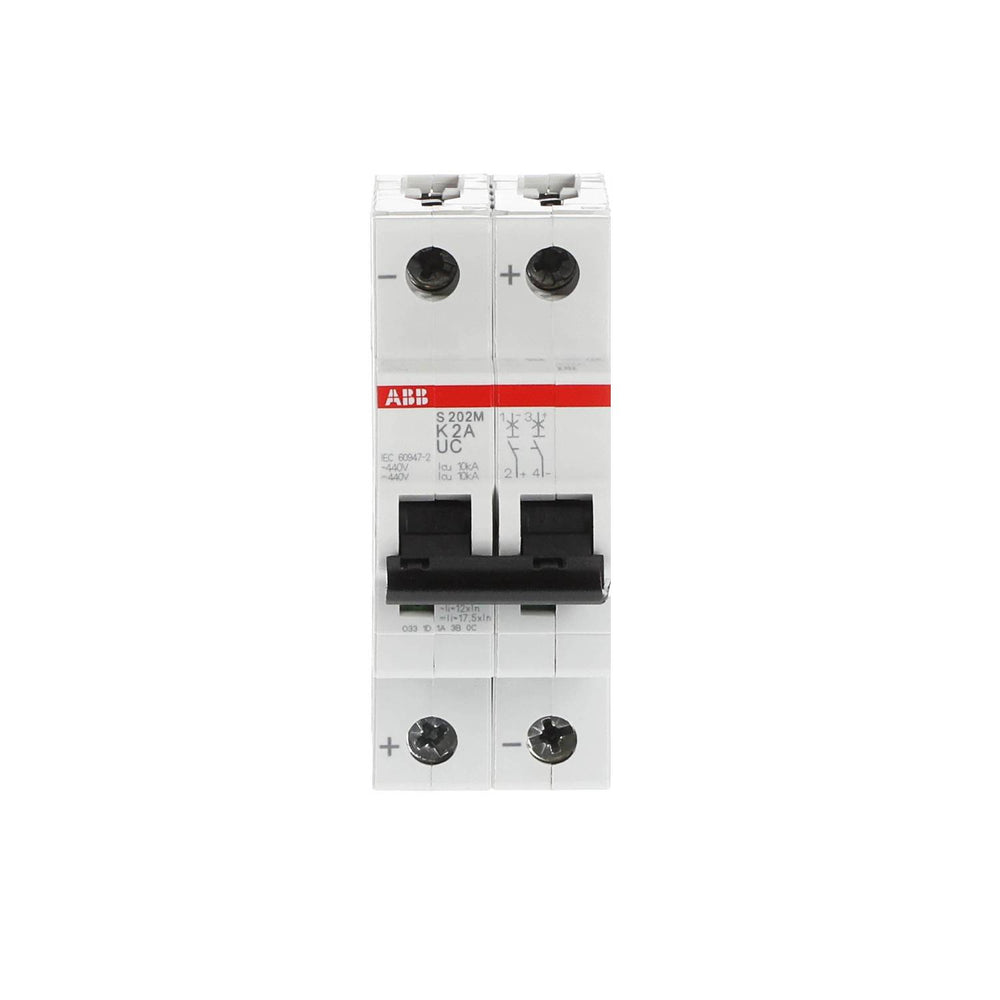

The S202M-K2UC universal current configuration with Product ID 2CDS272061R0277 is a 2-pole miniature circuit breaker engineered to provide flexible overcurrent protection and short-circuit fault mitigation in both alternating current (AC) and high-voltage direct current (DC) industrial networks. As a modular component of the System pro M compact S200MUC series, this device incorporates a delayed thermal tripping mechanism for overload safety alongside an electromechanical magnetic tripping mechanism tailored for instantaneous short-circuit protection. It operates across a wide performance range with a certified breaking capacity up to 10 kA at 440 V AC/DC, making it highly compatible with specialized electrical infrastructure layout panels, field distribution systems, and global industrial automation backup assemblies.
| Parameter | Value |
|---|---|
| Extended Product Type | S202M-K2UC |
| Product ID | 2CDS272061R0277 |
| EAN | 4013614433146 |
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Extended Product Type | S202M-K2UC |
| Product ID | 2CDS272061R0277 |
| Number of Poles | 2P |
| Number of Protected Poles | 2 |
| Tripping Characteristic | K |
| Rated Current (In) | 2 A |
| Input Voltage Type | AC/DC |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC / acc. to IEC 60947-2 440 V AC / acc. to IEC 60947-2 440 V DC |
| Rated Frequency (f) | 50/60 Hz / DC |
| Power Loss | 3.56 W (1.78 W per Pole at Rated Operating Conditions) |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (5 kV at 2000 m / 6.2 kV at Sea Level) |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V DC) 25 kA / (230 V AC) 15 kA / (400 V AC) 15 kA / (440 V AC) 10 kA / (440 V DC) 10 kA / (230 V) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V DC) 20 kA / (230 V AC) 10 kA |
| Rated Short-Circuit Capacity | (AC) 10 kA / (230 V AC) 10 kA / (400 V AC) 10 kA / (230 V) 10 kA / (400 V) 10 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 15 kA / (400 V) 15 kA |
| Energy Limiting Class | 3 |
| Contact Position Indication | Red ON / Green OFF |
| Mechanical Endurance | 20000 cycle |
| Housing Material | Insulation Group I, RAL 7035 |
| Actuator Material | Insulation Group II, Black, Sealable |
| Actuator Type | Toggle |
| Actuator Marking | 1/0 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Tightening Torque | 2.8 N-m |
| Recommended Screw Driver | Pozidriv 2 |
| Connecting Capacity | Busbar 10/10 mm² / Flexible with Ferrule 0.75 ... 25 mm² / Flexible 0.75 ... 25 mm² / Rigid 0.75 ... 35 mm² / Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Ambient Air Temperature | Operation -25 ... +55 degC / Storage -40 ... +70 degC |
| Degree of Protection | IP20 (Enclosure with Cover IP40) |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles with 55 degC / 90-96% and 25 degC / 95-100% |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Maximum Operating Voltage UL/CSA | 500 V DC / 480Y/277 V AC |
| Interrupting Rating acc. to UL1077 | (220 V AC) 10 kA / (277 V AC) 6 kA / (440 V DC) 10 kA / (480Y/277 V AC) 10 kA / (500 V DC) 10 kA |
| Connecting Capacity UL/CSA | Busbar 14-8 AWG / Conductor 14-4 AWG |
| Tightening Torque UL/CSA | 25 in-lb |
| Product Net Width | 35 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.234 kg |
