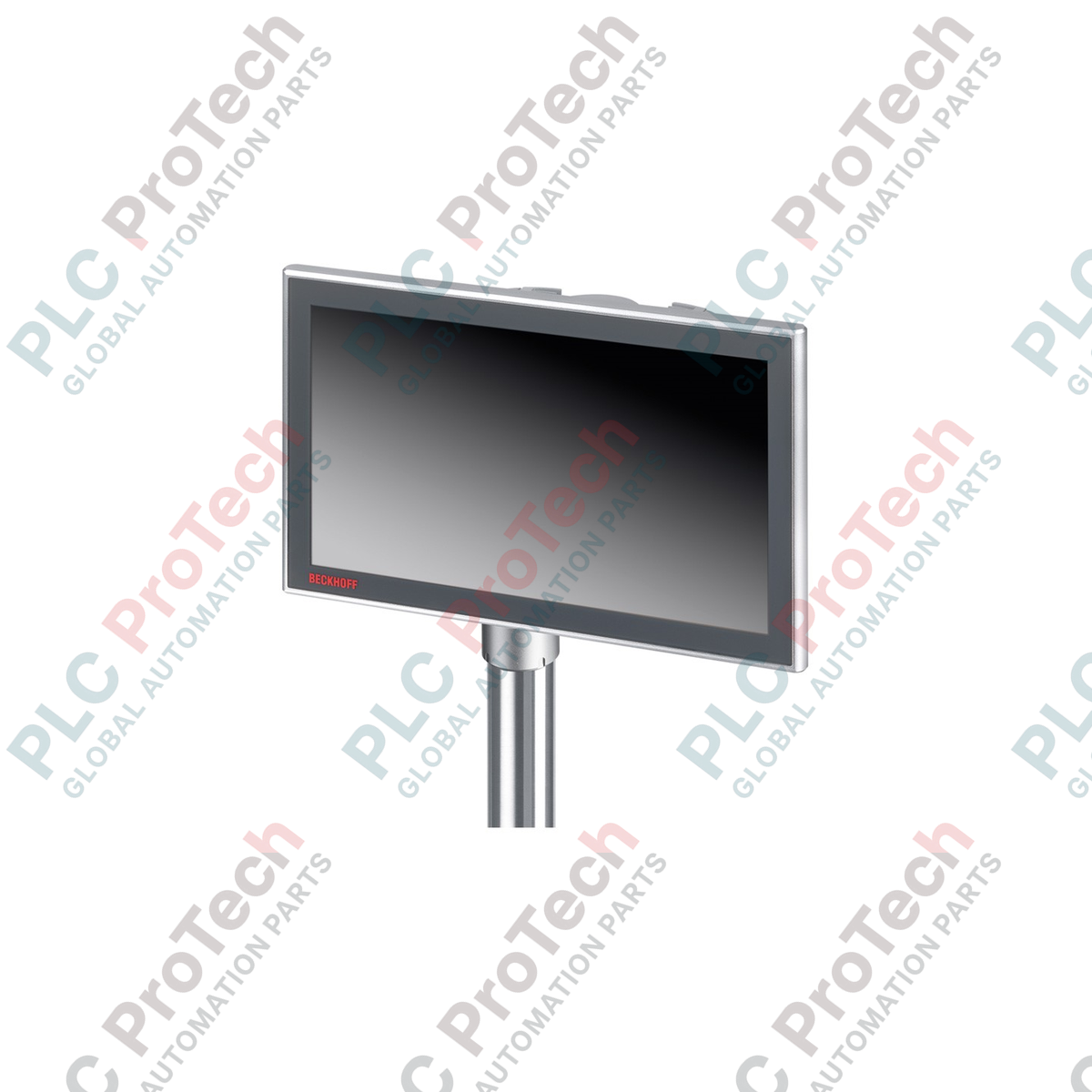

Beckhoff CP3212-0020 CP32xx Series Multi-touch Panel PC

Description

Engineered for direct machine-level integration, the Beckhoff CP3212-0020 combines an industrial-grade multi-touch panel with a high-performance 3.5-inch motherboard housed in a robust, pole-mounted enclosure. This control unit is optimized for mounting arm installation, enabling operators to access complex HMI and control functions directly at the machine face. Powered by 6th and 7th generation Intel processors, the CP3212-0020 delivers reliable computing performance for resource-intensive automation tasks, while its advanced thermal management systems maintain structural integrity and system reliability in challenging plant environments.

Key Features

• Rugged Aluminum Enclosure: Designed for mounting arm installation with a rotatable and tiltable adapter compatible with Rittal and Rolec 48 mm tube systems.
• Multi-Touch Capability: Equipped with a projective capacitive multi-finger touch screen for intuitive and precise operator input.
• Optimized Thermal Design: Passive cooling via an external heat sink, supplemented by an internal fan to ensure uniform heat distribution across all housing walls.
• Expandable Storage & Slots: Offers configurable slots for 2.5-inch SSDs, CFast cards, and a PCIe module slot for peripheral expansions.
• Industrial Protection: Full IP65 rating shielding the internal electronics from dust, moisture, and low-pressure water jets from all directions.

Applications

• Machine-Level HMI: Direct integration onto packaging lines, CNC machinery, and assembly systems.
• Automotive Assembly: Real-time visualization and control stations along assembly bays requiring articulating arm mounts.
• Process Control Monitoring: Distributed control operations in environments needing washdown-resistant operator interfaces.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The CP3212-0020 utilizes the CP32xx series multi-touch architecture. When configuring replacement units, pay close attention to the TwinCAT software generation requirements: Celeron G3900TE processors scale within TwinCAT 2/3 performance class 50, whereas upgraded Core i7 profiles escalate processing requirements to TwinCAT 3 performance class 80 licenses. Interface compatibility with existing cabling systems should be verified against the 1 x Ethernet 100/1000BASE-T push-pull configuration.

Application Pitfalls & Engineering Notes

For effective heat management, passive cooling requires a minimum clearance of 20 cm (7.9 inches) of free space for air circulation around the enclosure. Operating close to the 45 degC limit without this volume restriction can trigger CPU thermal throttling, potentially degrading PLC cycle performance. Ensure the internal circulation fan is clean and unobstructed to avoid localized hot spots inside the aluminum structure.

Commissioning & Wiring Tips

The wiring compartment supports up to six IP65-sealed industrial connectors. When passing cables through the mounting arm, route high-voltage lines separately from Ethernet and signal cables to limit EMI induction. For applications with critical uptime, utilize the 24 V DC power configuration with an external UPS to prevent database and state-machine corruption during sudden utility supply drops.
