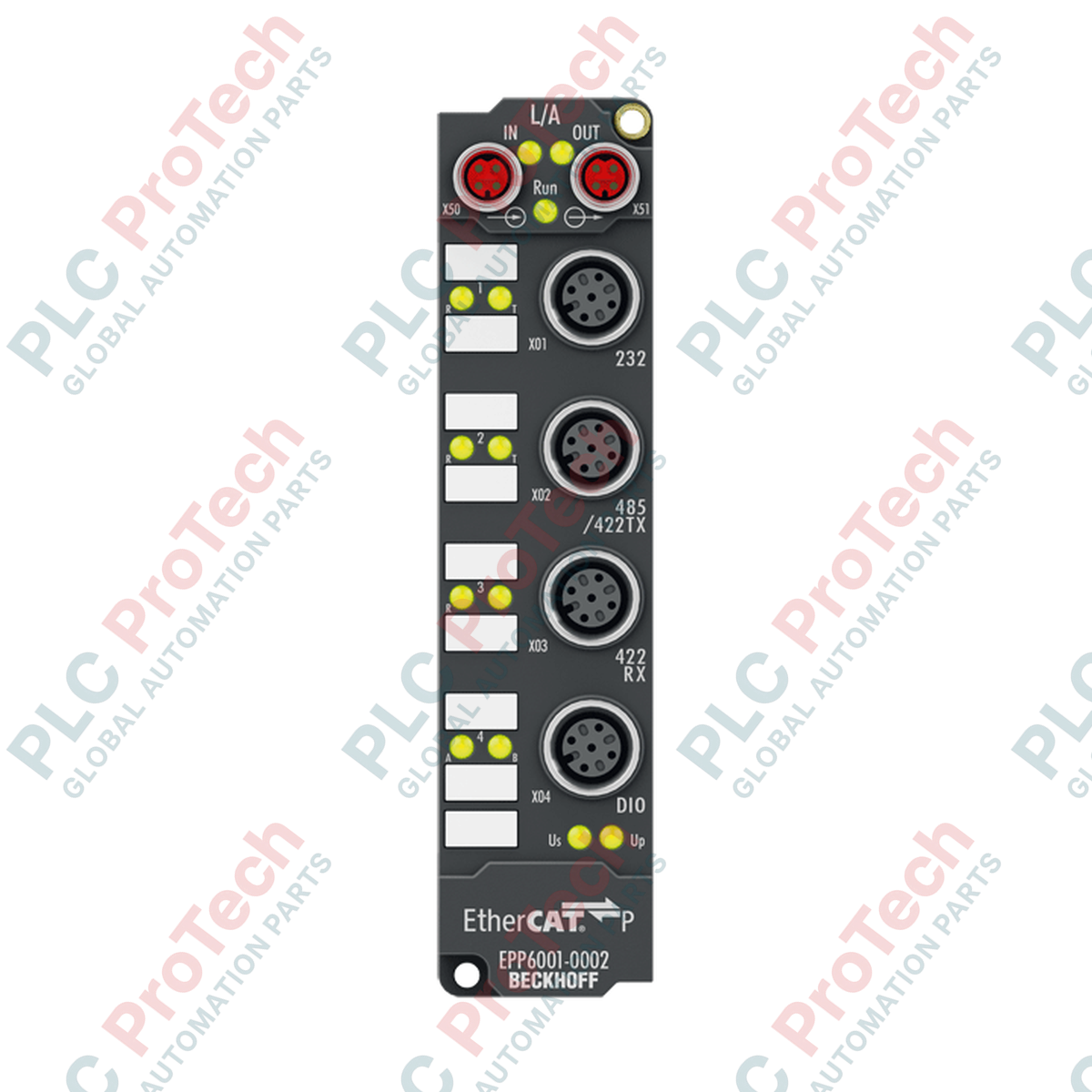

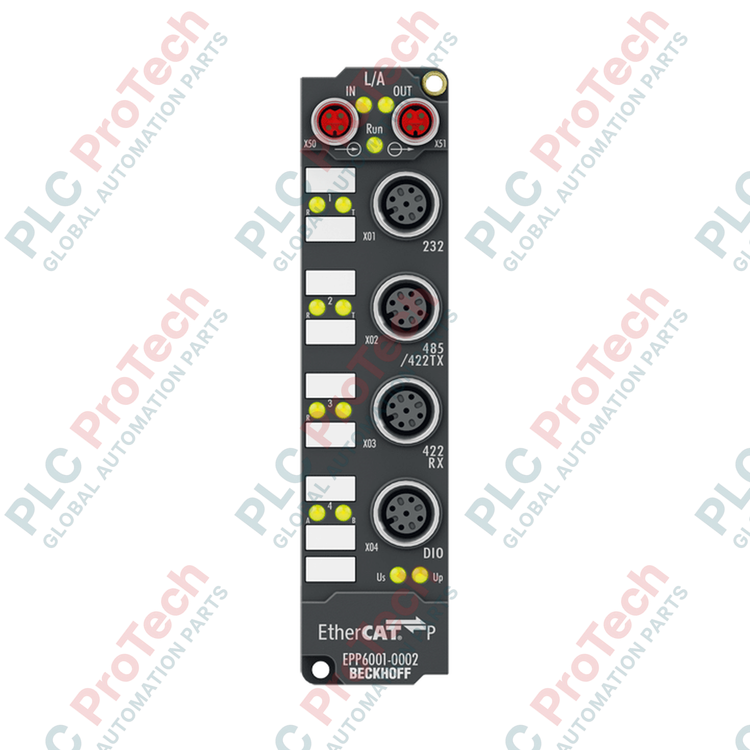

Beckhoff EPP6001-0002 EtherCAT P Box Serial Interface Module

Description

Designed for direct connection of serial devices in harsh industrial environments, the Beckhoff EPP6001-0002 serial interface module provides high-performance data transmission via the EtherCAT P network protocol. This compact, machine-mountable I/O box enables the integration of devices featuring RS232, RS485, or RS422 interfaces directly into the control network, bypassing the need for protective control cabinets.

The module transmits serial data in a fully bidirectional format to the controller, utilizing an active internal buffer to manage high-speed communication independent of the EtherCAT cycle time. It features integrated digital inputs and outputs, alongside an auxiliary 5 V DC power supply to directly drive connected sensors or terminal equipment, minimizing external wiring requirements.

Features

• Selectable Communication Interfaces: Configure each channel individually for RS232, RS485, or RS422 standards.
• Integrated Device Supply: Delivers a local auxiliary +5 V DC, 1 A supply specifically for end devices.
• Dual Digital I/O: Outfitted with two digital 24 V DC inputs and two short-circuit proof digital 24 V DC outputs.
• Robust EtherCAT P Integration: Utilizes shielded, P-coded M8 connections for combined power and data transmission.
• Hardened IP67 Enclosure: Encased in a durable polyamide housing with excellent resistance to vibration, shock, and moisture.

Applications

• Oil and Gas processing facilities
• Power generation and distribution systems
• Water and wastewater treatment infrastructure
• Robotic assembly and specialized material handling lines

Technical Specifications

Installation Guidelines

• Mounting: Attach to a flat machine surface using the two integrated 3.5 mm diameter fixing holes designed for M3 screws.
• Connector Torque: Ensure all M8 and M12 connectors are tightened to their designated torque specification to maintain the IP67 ingress protection rating.
• Shielding: Grounding and shielding connection must be established correctly via the EtherCAT P bus interface connectors to limit electromagnetic interference.
• Thermal Management: Maintain unobstructed air space around the unit when operating near the upper ambient temperature limit of +60 degC.

Compliance and Certifications

• CE
• UL
• EMC Immunity/Emission: EN 61000-6-2 / EN 61000-6-4
• Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
