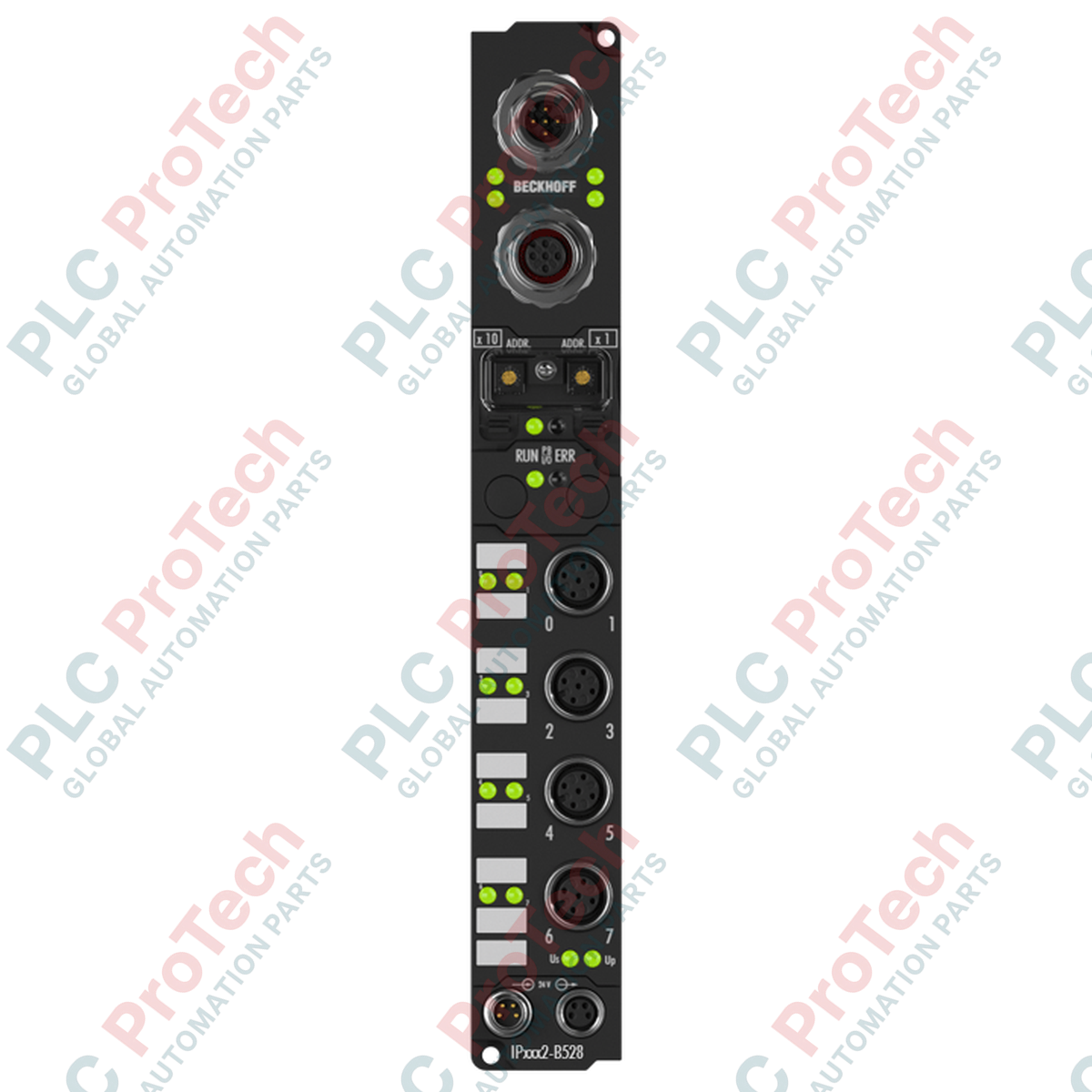

BECKHOFF IP2022-B528 Feldbus Box

Description

Designed for decentralized automation tasks requiring high-performance I/O capabilities, the Beckhoff IP2022-B528 serves as a robust digital output fieldbus box within DeviceNet industrial networks. This module allows the direct connection of up to eight digital actuators to a DeviceNet controller without requiring an electrical control enclosure, streamlining installation and reducing cabling footprints in distributed architectures.

The unit features an integrated T-connector, enabling simplified routing and looping of the DeviceNet physical line directly from one module to the next. High load-carrying capabilities of up to 2 A per channel make it suitable for driving solenoids, contactors, indicators, and small DC motors. Communication diagnostics and channel status are visible locally via integrated LED indicators, ensuring rapid troubleshooting and maintenance on the factory floor.

Features

• Eight independent digital outputs with a high load capacity of 2 A per channel.
• Integrated DeviceNet interface supporting data rates up to 500 kbaud.
• Built-in T-connector for direct, simplified network loop-through.
• M12 connection technology for secure, vibration-resistant digital signal connections.
• Short-circuit-proof outputs with status indicators.
• IP67 protection rating for direct mounting in harsh industrial environments without external enclosures.

Applications

• Decentralized control architectures in packaging and material handling.
• Automotive assembly line automation and robotic tooling systems.
• Conveyor system control and distributed actuator switching.
• Machine tool manufacturing and pneumatic valve block control.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Mount the module directly onto a flat, stable machine surface using M4 screws through the designated mounting holes. Do not exceed recommended torque limits.
• Grounding: Ensure a low-impedance connection to the machine ground system via the mounting screws or the functional ground tab to mitigate electromagnetic interference.
• Cabling: Use shielded DeviceNet-compliant M12 cabling for bus lines. Avoid routing control and communication cables parallel to high-voltage power lines to prevent signal disruption.
• Voltage Supply: Provide isolated, stabilized 24 V DC power sources for both Us (control) and Up (load) feeds to protect internal logic circuits from field-induced surges.

Compliance and Certifications

• CE
• UL
