Beckhoff ZB7203-R001 EtherCAT P Cable

Nur noch 10 Artikel auf Lager verfügbar

Hersteller: BECKHOFF
Produkt-Nr.: ZB7203-R001
Herkunftsland:Deutschland
Produkttyp: EtherCAT P Cables
Zahlung: T/T, Western Union
Gewicht: 500g
Abmessungen: 1 x 4 x 0.34 mm
Versandhafen: Xiamen
Garantie: 12 Monate

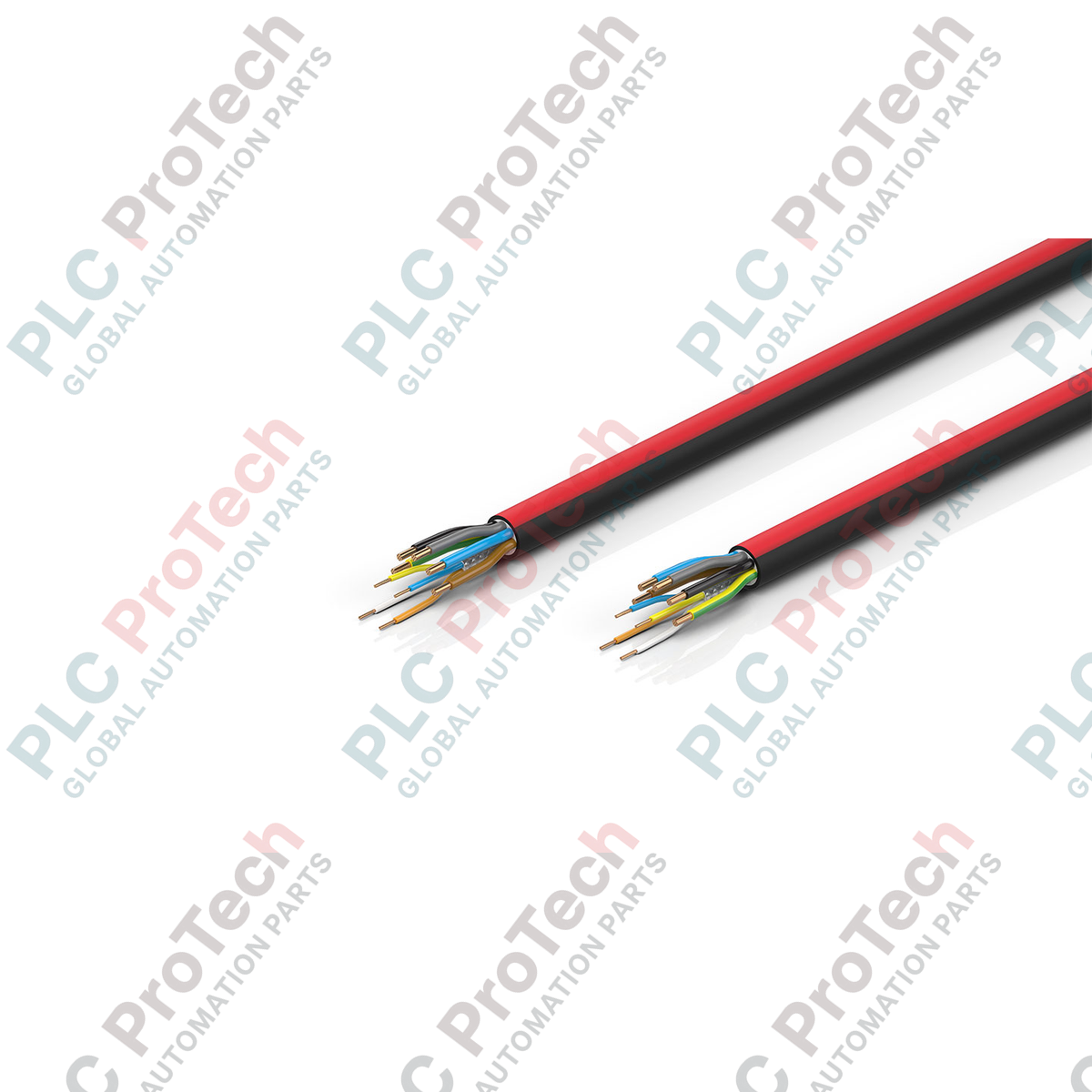

Facilitating both high-speed data transmission and robust power delivery in decentralized automation architectures, the Beckhoff ZB7203-R001 serves as a specialized EtherCAT P cable engineered for demanding industrial environments. By integrating Ethernet communication and auxiliary power lines within a single wear-resistant sheath, this cable simplifies field wiring and minimizes installation footprints in complex machine layouts.

Key Features

Dual-Purpose Design: Combines 4-core Ethernet data transmission and 5-core power supply lines in a single cable.
Drag-Chain Suitability: Engineered with highly flexible conductors and a durable outer jacket to withstand continuous bending cycles in dynamic applications.
Polyurethane (PUR) Jacket: Provides excellent resistance against mechanical abrasion, industrial oils, coolants, and environmental wear.
High-Visibility Identification: Features a black jacket (similar to RAL 9005) with a distinctive yellow stripe (similar to RAL 1003) for rapid identification of EtherCAT P networks in the field.

Applications

Dynamic cable carriers and drag chains in multi-axis CNC machinery.
Decentralized I/O routing utilizing Beckhoff EtherCAT P box modules.
Robotic assembly arms and automated material handling systems.
Packaging and food processing machinery requiring oil-resistant cabling.

Technical Specifications

Parameter	Specification Value
Manufacturer	Beckhoff
Model Number	ZB7203-R001
Cable Type	EtherCAT P (Data + Power)
Shielding	No overall shield
Ethernet Cross-Section	1 x 4 x 0.34 mm2 (AWG 22)
Power Cross-Section	5 x 1.5 mm2 (AWG 16 equivalent)
Jacket Material	PUR (Polyurethane)
Outer Cable Diameter	11.0 mm +/- 0.2 mm (0.4331 inches +/- 0.0079 inches)
Jacket Color	Black (RAL 9005) with yellow stripe (RAL 1003)
Flexibility Class	Drag-chain suitable
Shipping Weight (Calculated)	2.0 kg

Empirical Engineering Insights

Alternative Models & Compatibility

The ZB7203-R001 is specifically designed for EtherCAT P systems, which integrate both communication and dual 24V DC power supplies (Us and Up). It is compatible with Beckhoff field-wireable connectors such as the ZS7000 series. Ensure that mating connectors are rated for EtherCAT P (coding pins differ from standard EtherCAT/Ethernet connectors to prevent accidental cross-connection).

Application Pitfalls & Engineering Notes

Because this specific model features no overall shield, it is highly recommended to maintain physical separation from high-voltage AC motor lines, variable frequency drives (VFDs), and unshielded power cables. Electromagnetic coupling from high-power sources can degrade the 100 Mbps Ethernet communication signal, leading to packet loss or bus state faults.

Commissioning & Wiring Tips

When installing the cable in dynamic drag chains, ensure it is laid flat without twists or kinks. Do not secure cables together inside the carrier; allow them to move freely. Maintain a minimum clearance of at least 10% of the cable diameter relative to adjacent cables in the chain to prevent friction-induced jacket wear.

Installation Guidelines

CRITICAL WARNING

De-energize all associated power supplies (both Us and Up channels) before stripping, terminating, or routing the cable. Working on live connections can cause permanent damage to connected EtherCAT P modules and pose electrical hazards to personnel.

Measure the required run length, factoring in the full travel distance of the drag chain plus adequate strain-relief loops at both anchor points.

Carefully strip the outer PUR jacket using a rotary stripping tool calibrated for an 11.0 mm outer diameter to prevent nicking the inner conductor insulation.

Terminate the AWG 22 Ethernet cores and AWG 16 power cores into the corresponding terminals of the EtherCAT P connector, ensuring correct pin assignment to avoid cross-wiring the data and power circuits.

Secure the cable at both ends of the drag chain using broad-surface clamps to provide robust strain relief without crushing the cable profile.

Product Image	Model Number / Title	Condition	Availability	Action
	BECKHOFF EPP2328-0002 EtherCAT P Box I/O-Modul	Original New	In Stock	View Details
	EPP2316-0008 BECKHOFF EtherCAT P Box 16-Kanal Hochdichte Ein-/Ausgabe	Original New	In Stock	View Details

Key Features:

What is the difference between standard EtherCAT and the EtherCAT P cable used here?

EtherCAT P combines 100 Mbps EtherCAT communication and two electrically isolated 24V DC power supplies (Us for logic/sensors and Up for actuators/outputs) into a single cable, reducing wiring complexity.

Can this cable be used in continuous flexing applications?

Yes, the ZB7203-R001 features a highly durable polyurethane (PUR) jacket and conductor stranding optimized for continuous motion in drag chains and cable carriers.

How should the lack of an overall shield be managed during installation?

Since this cable has no overall shield, route it away from high-noise sources such as unshielded motor power cables or VFD lines, and maintain standard physical separation in cable trays.
