Bently Nevada 330104-00-03-05-02-00 3300 XL 8 mm Näherungssonde

Description

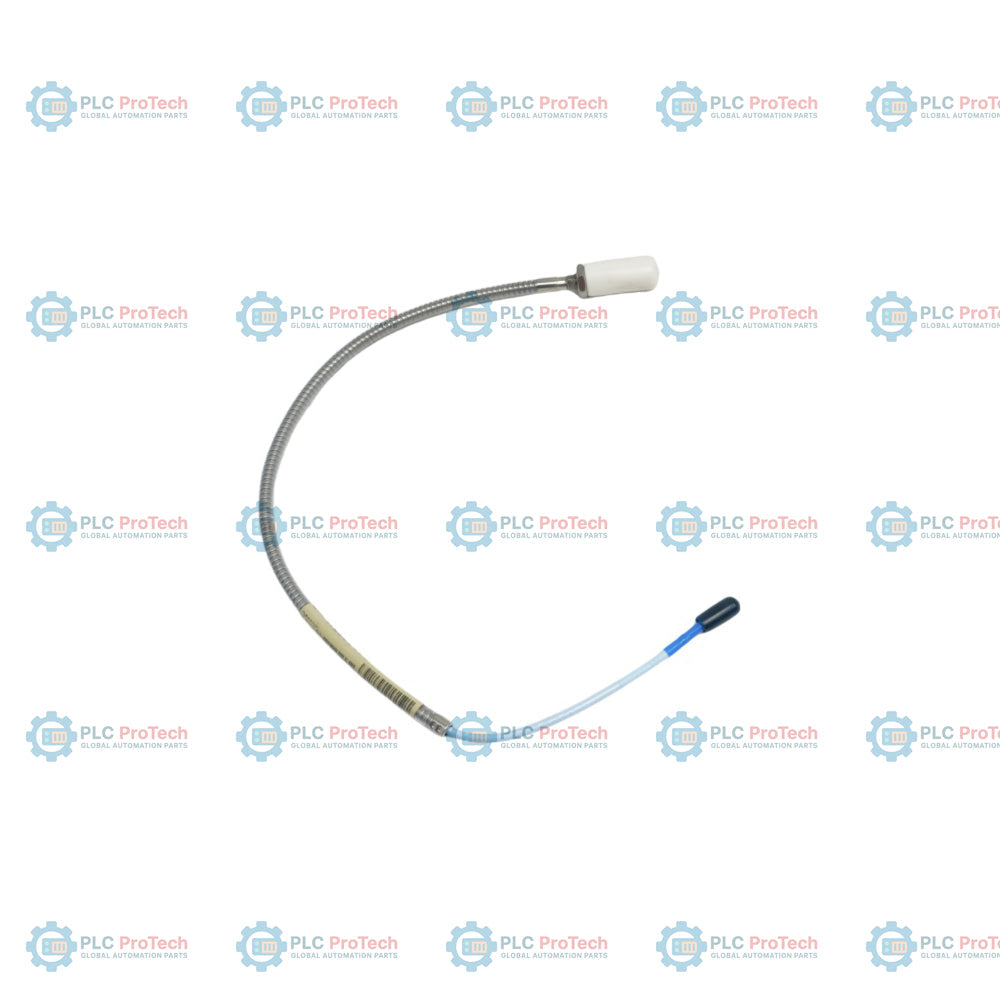

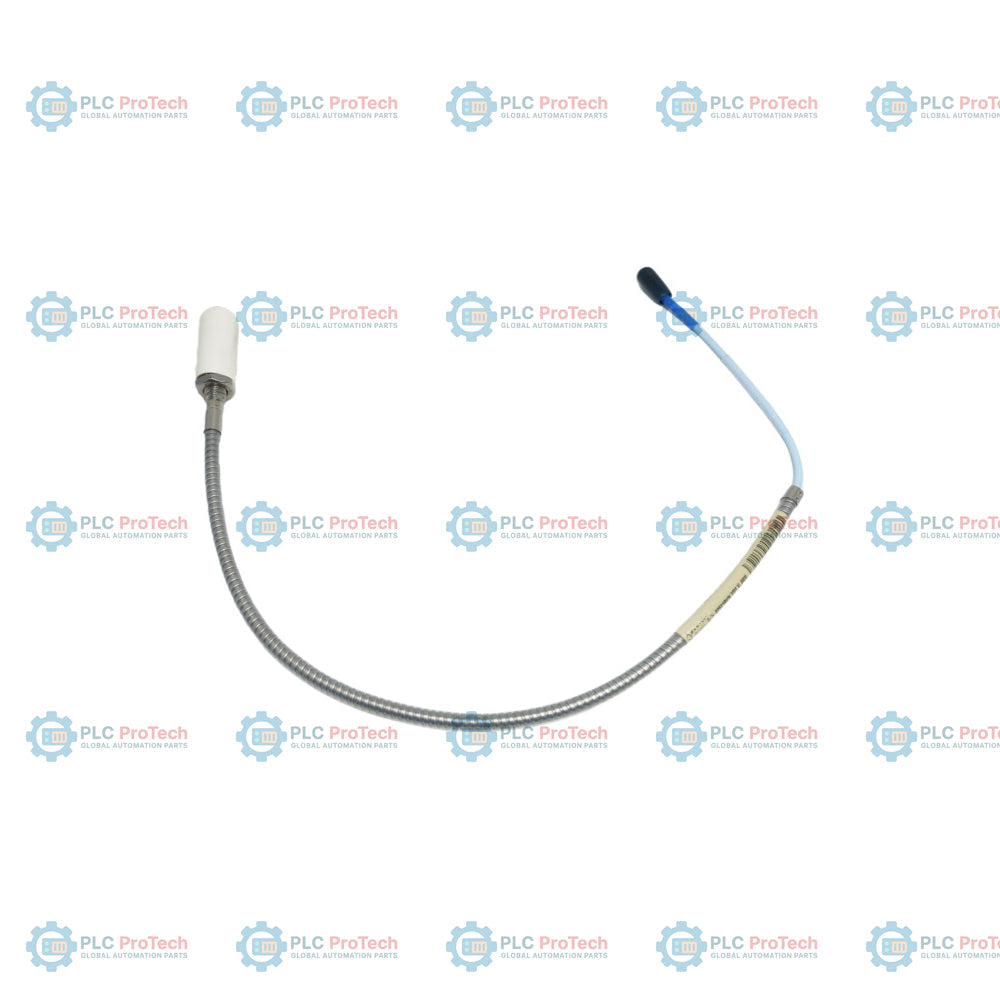

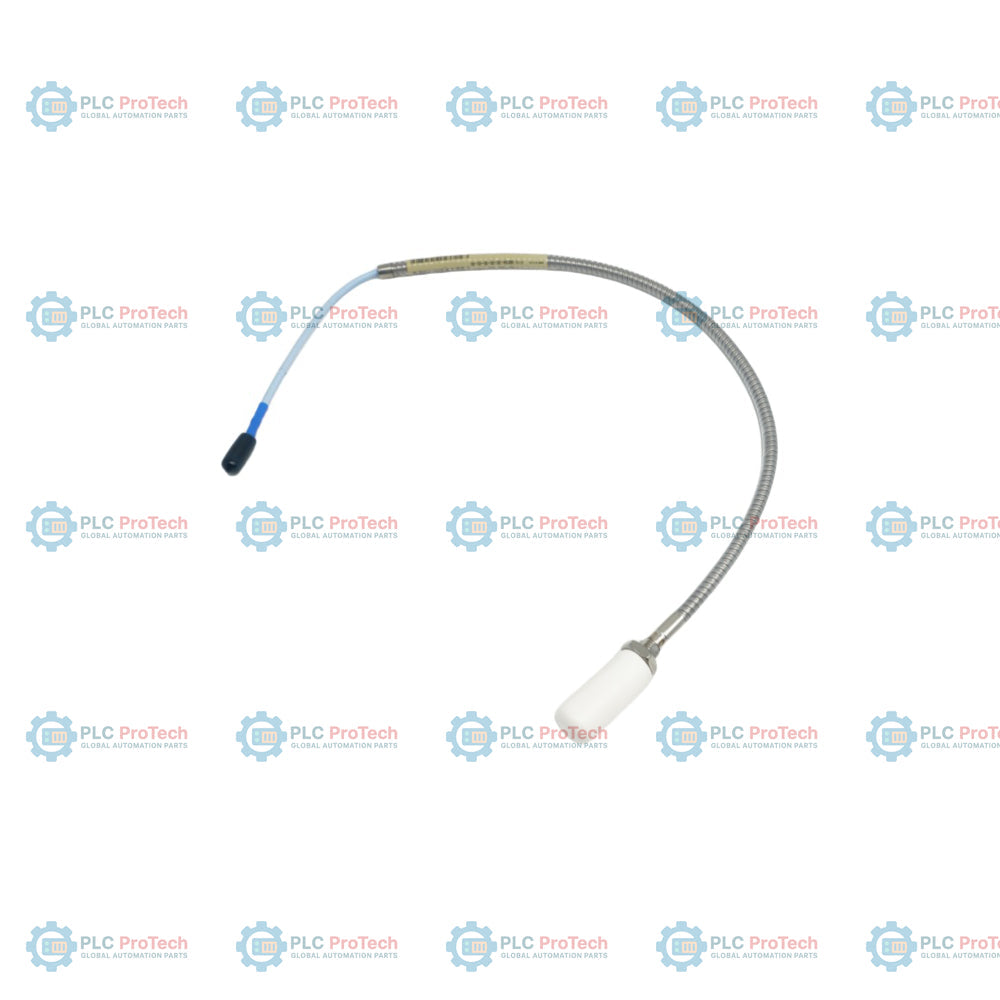

330104-00-03-05-02-00: 3300 XL 8 mm proximity probe with metric M10 x 1 thread and integrated stainless steel armor. Option 00 specifies a fully threaded probe case with 0 mm unthreaded length, while Option 03 defines a 30 mm overall case length. This configuration operates as a non-contacting eddy-current transducer to measure shaft vibration, axial position, and speed on rotating machinery.

This assembly incorporates a 0.5-meter (1.6 feet) total length (Option 05) armored cable terminated with a miniature coaxial ClickLoc connector (Option 02). The integrated stainless steel armor provides physical protection against physical damage and abrasion in demanding industrial environments, distinguishing it from unarmored metric equivalents like the 330103 model. This configuration does not include agency approval certification (Option 00) and connects directly to a standard 3300 XL Proximitor sensor and compatible extension cable to form a complete 5-meter or 9-meter transducer system.

Features

• Metric M10 x 1 threaded body with 30 mm case length and 0 mm unthreaded length (fully threaded)
• Integrated flexible stainless steel armor (AISI 302 or 304 SST) with an outer FEP jacket for durable physical protection
• 0.5 meter (1.6 feet) total length standard triaxial cable
• Miniature coaxial ClickLoc connector for a secure connection
• Operating temperature range from -52 degC to +177 degC (-62 degF to +350 degF)
• Polyphenylene sulfide (PPS) probe tip with high chemical resistance and mechanical strength
• AISI 303 or 304 stainless steel case material providing high corrosion resistance

Applications

• Hydroelectric, steam, and gas turbine shaft vibration and position monitoring
• Industrial compressor axial displacement and radial vibration tracking
• Boiler feed pump, fan, and blower shaft monitoring
• High-vibration machinery and abrasive environments requiring armored cable protection
• Balance of plant rotating machinery protection in power generation and chemical manufacturing

Ordering Information

Technical Specifications

Installation Guidelines

To ensure proper operation of the proximity probe system, follow these standard practices:

• Avoid exceeding the maximum thread engagement limit of 15 mm for M10 x 1 threads to prevent binding.
• Install the probe case with the recommended installation torque of 7.5 N-m (66 in-lbf). Do not exceed 22.6 N-m (200 in-lbf) on the first three threads.
• Observe the minimum bend radius of 25.4 mm (1.0 in) for the armored cable to prevent damage to the FEP jacket, stainless steel armor, and triaxial core.
• Verify that all connectors are clean and dry before assembly. Tighten coaxial connections to finger tight only. Do not exceed the maximum connector torque of 0.565 N-m (5 in-lbf).
• Maintain appropriate physical clearance from surrounding structural metals to prevent calibration errors.

Compliance and Certifications

This specific configuration (Option 00 for segment E) does not include hazardous area approvals. For applications requiring CSA, ATEX, or IECEx certifications, select Option 05 configurations.
