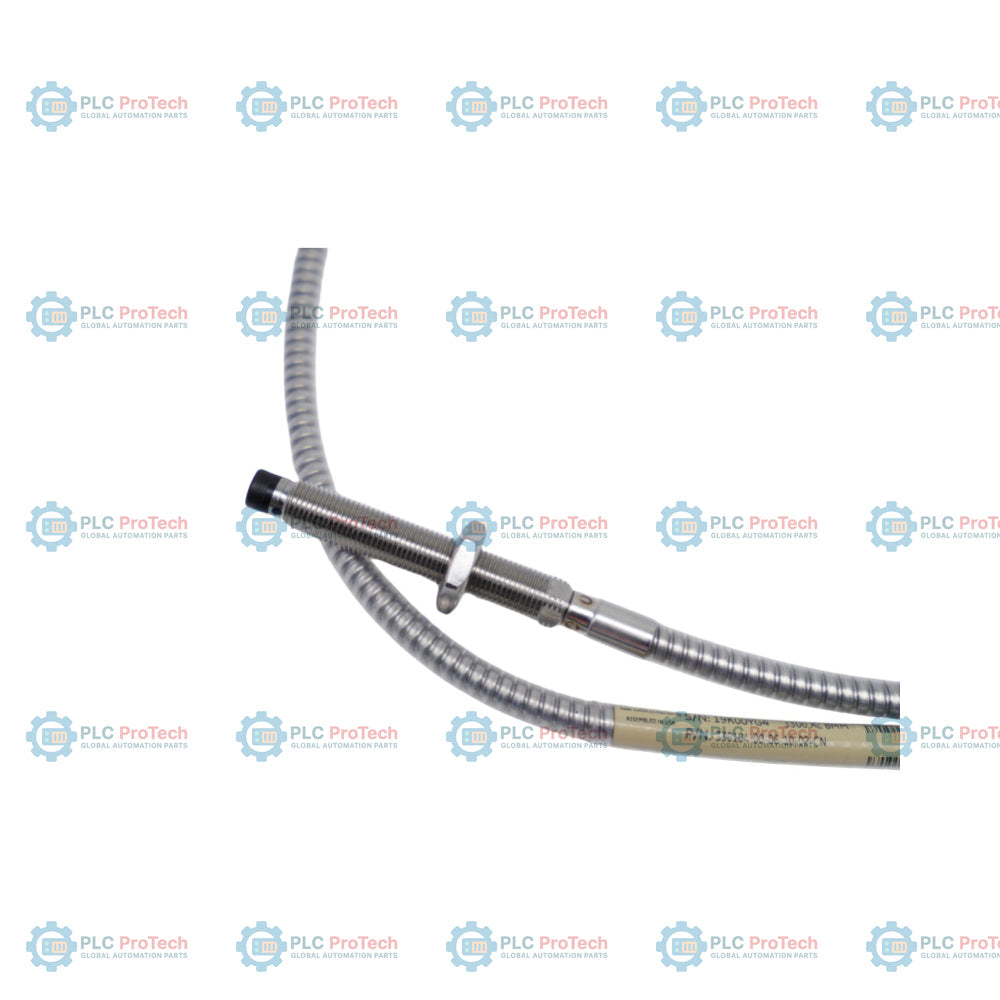

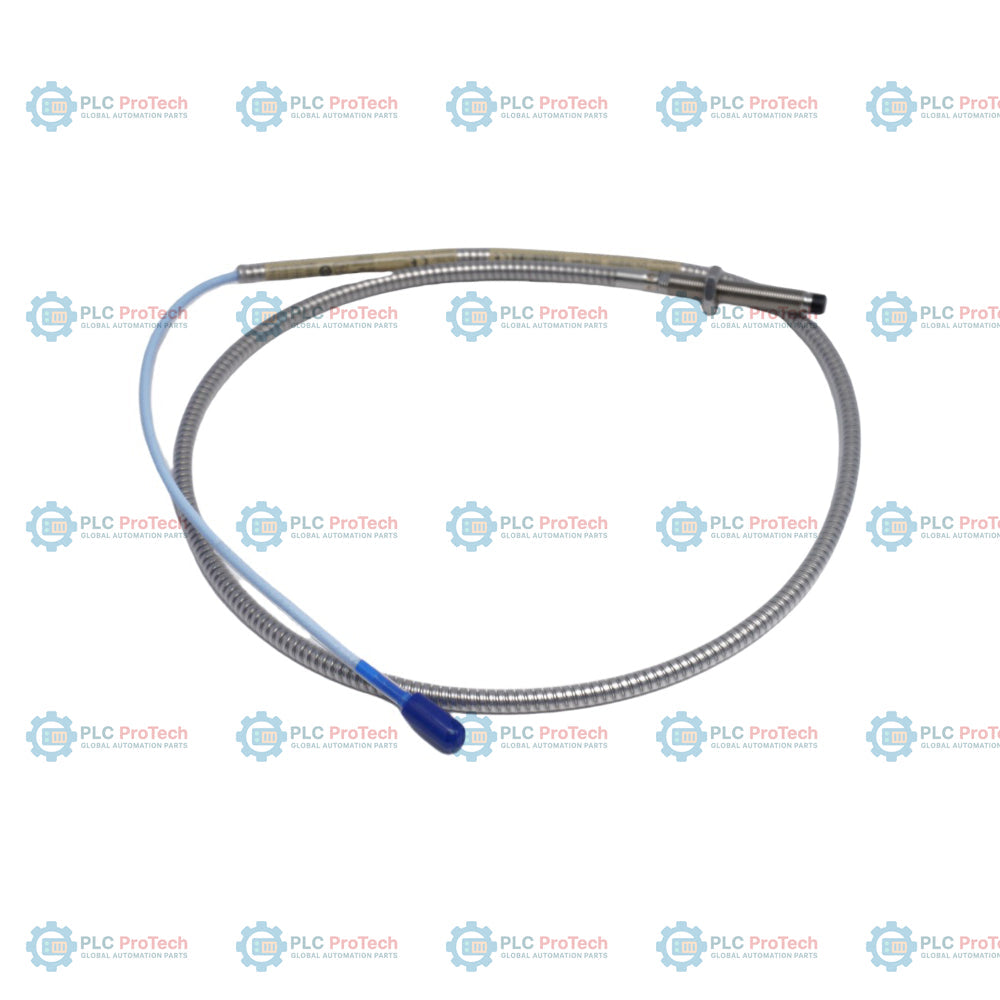

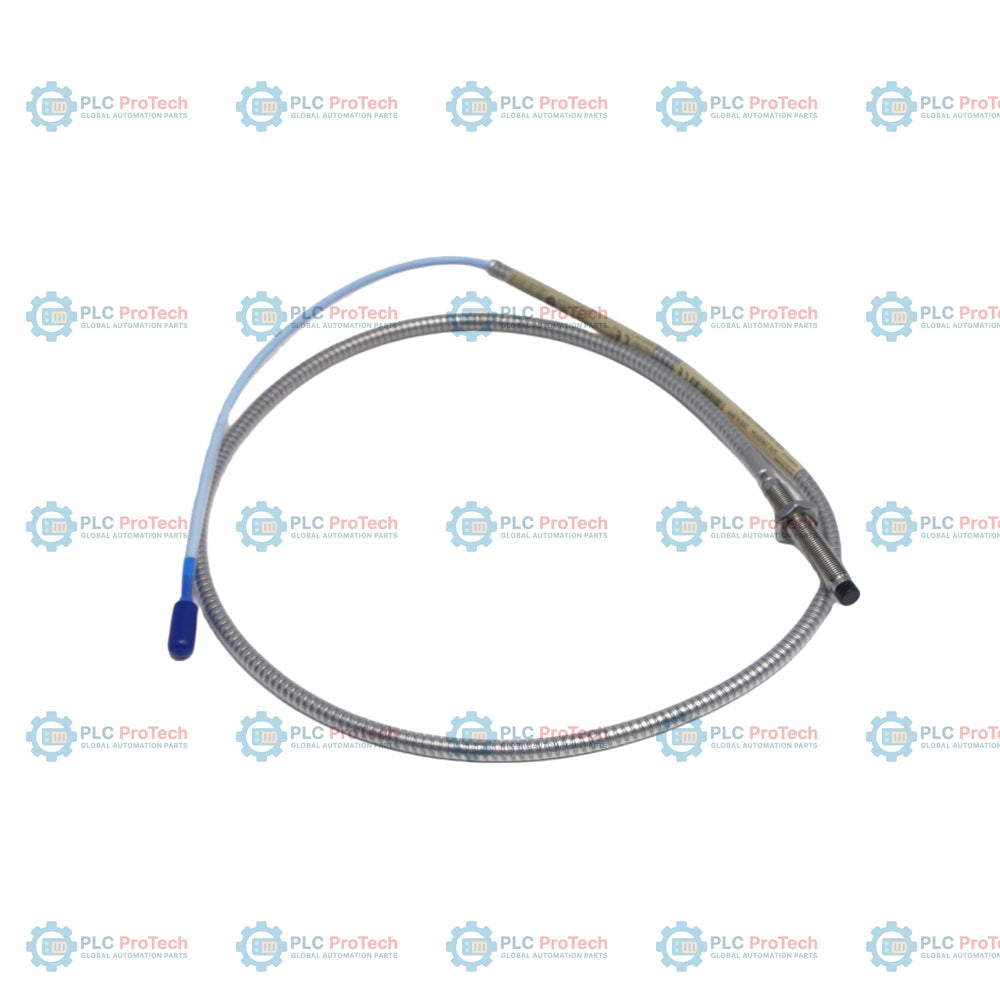

Bently Nevada 330104-00-06-10-02-CN 3300 XL 8 mm Proximity Probe

Description

330104-00-06-10-02-CN: 3300 XL 8 mm proximity probe with M10 x 1 metric thread, integrated stainless steel armor, 0 mm unthreaded length, 60 mm overall case length, 1.0 m total cable length, and miniature coaxial ClickLoc connector.

This configuration incorporates Option 00 (fully threaded case) and Option 06 (60 mm case length) in a metric M10 x 1 threaded body. Unlike the unarmored 330103 series, the 330104 series includes flexible stainless steel armor to protect the 75-ohm coaxial cable from abrasive mechanical wear. The 1.0 m cable (Option 10) terminates in a miniature coaxial ClickLoc connector (Option 02, without a connector protector), and the -CN trailing suffix specifies the China hazardous area approval package (NEPSI and CCC certification).

Features

• Metric M10 x 1 threaded body configuration with 0 mm unthreaded length (Option 00)
• 60 mm overall case length (Option 06)
• Integrated flexible stainless steel armor to shield the 75-ohm coaxial cable from physical damage
• 1.0 meter (3.3 feet) overall cable length (Option 10)
• Miniature coaxial ClickLoc male connector for solid, click-to-lock connection (Option 02)
• -CN China hazardous area approval package providing NEPSI and CCC markings
• 8.0 mm probe tip diameter designed for rugged machinery environments
• Complete electrical and physical compatibility with other Bently Nevada 3300 XL system components

Applications

• Shaft vibration and axial position measurements on high-speed rotating machinery
• Keyphasor phase reference and rotational speed monitoring applications
• Fluid-film bearing monitoring in turbine, generator, compressor, and pump assemblies
• Heavy industrial machinery environments requiring armored protection against mechanical wear

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure that the minimum cable bend radius of 25.4 mm (1.0 in) is not violated during cable routing to prevent attenuation or mechanical failure of the triaxial core.
• Avoid exceeding the maximum rated case torque of 22.6 N-m when mounting the M10 x 1 threaded probe body. The recommended torque value for metric thread installation is 7.5 N-m.
• Clean the threaded mounting port thoroughly before insertion to prevent thread binding or damage to the integrated stainless steel armor.
• Maintain appropriate side view clearances and tip-to-tip spacing relative to nearby metal surfaces to prevent target field interference.

Compliance and Certifications

• CCC: China Compulsory Certification (hazardous area package)
• NEPSI: National Supervision and Inspection Center for Explosion Protection and Safety of Instrumentation (China)
• CE Mark: Electromagnetic Compatibility Directive
