Mitsubishi Electric GT2104-RTBD GOT2000 HMI

Nur noch 10 Artikel auf Lager verfügbar

Hersteller: Mitsubishi Electric
Produkt-Nr.: GT2104-RTBD
Herkunftsland:Vereinigte Staaten
Produkttyp: HMI Touch Panels
Zahlung: T/T, Western Union
Gewicht: 400g
Abmessungen: 128 mm x 102 mm x 40 mm
Versandhafen: Xiamen
Garantie: 12 Monate

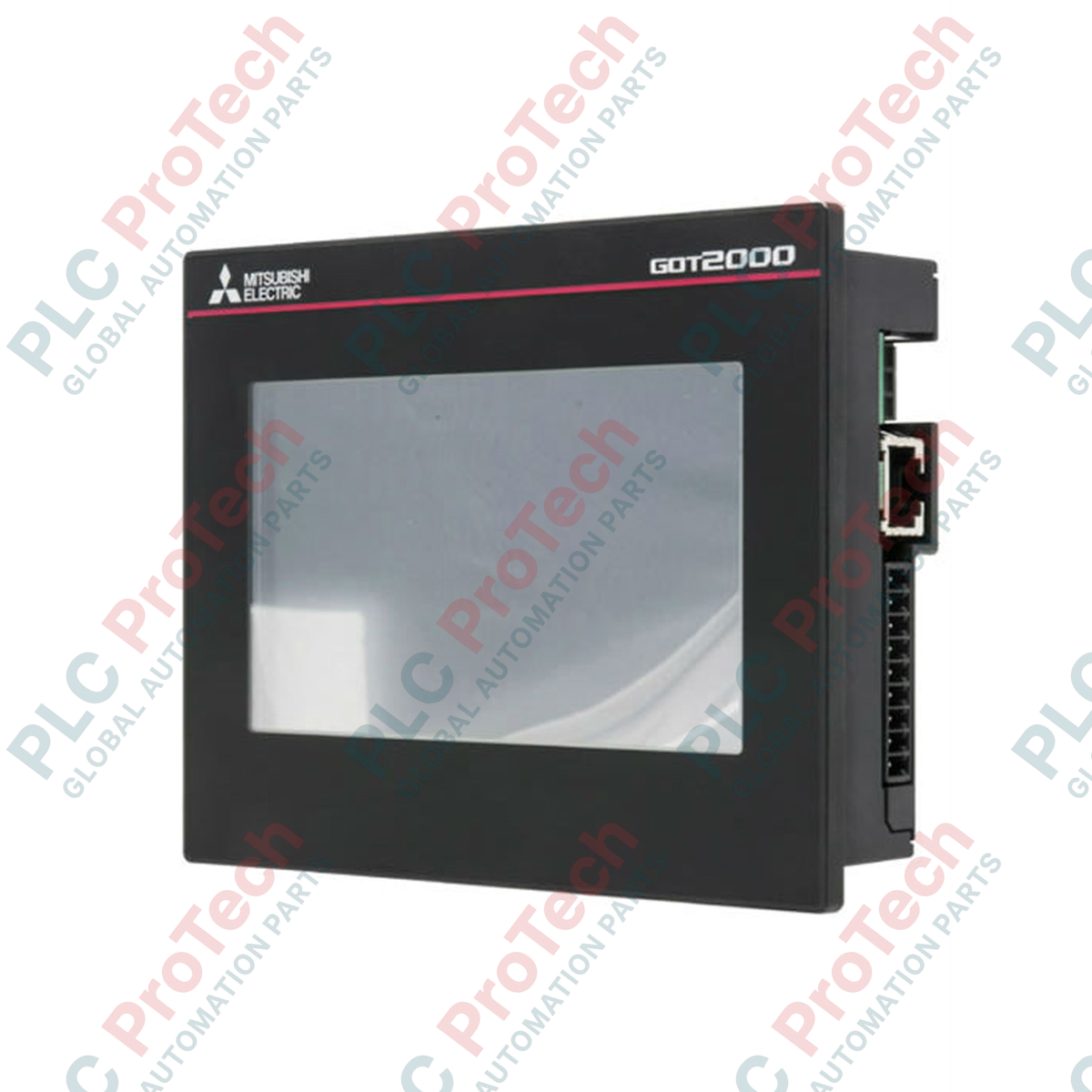

Mitsubishi Electric GT2104-RTBD GOT2000 HMI

Description

Engineers requiring a compact, high-resolution visualization interface for industrial machinery utilize the **GT2104-RTBD** graphic operation terminal. This **HMI touch panel** belongs to the Mitsubishi Electric GOT2000 series, offering a 4.3-inch widescreen display with 65,536 colors for clear graphical representation of machine states and control parameters. Designed for seamless integration with MELSEC PLCs and third-party controllers, it features built-in Ethernet, RS-232, and RS-422/485 communication interfaces to facilitate efficient data exchange on the factory floor.

Features

4.3-inch TFT color widescreen display with 480 x 272 dot resolution.
65,536 display colors for high-fidelity graphic rendering and clear operator alerts.
9 MB user flash memory capacity for project storage, screen data, and logging.
Analog resistive touch panel supporting single-point touch operation.
Multiple communication interfaces: Ethernet, RS-232, and RS-422/485.
SD memory card slot for data logging, backup, and restore operations.
IP67F front panel protection rating against dust and water ingress when panel-mounted.

Applications

Packaging machinery control and monitoring.
Small-scale water treatment automation.
HVAC and environmental control systems.
Conveyor and material handling systems.
Assembly line monitoring and operator interface.

Technical Specifications

Manufacturer	Mitsubishi Electric
Part Number/Model	GT2104-RTBD
Series	GOT2000
Screen Size	4.3 inches
Display Type	TFT color LCD
Resolution	480 x 272 dots
Display Color	65,536 colors
Backlight	LED (non-replaceable)
Touch Panel Type	Analog resistive
Simultaneous Press	Single-point touch (simultaneous press prohibited)
User Memory	9 MB (ROM)
Power Supply Voltage	24 V DC
Dimensions (W x H x D)	128 mm x 102 mm x 40 mm
Weight	0.4 kg

Connections and Interfaces

Interface Port	Function / Description
Ethernet	1 channel (RJ45) for host PLC communication and network connection
RS-232	1 channel for serial communication with controllers or peripherals
RS-422/485	1 channel for multi-drop serial connection to PLCs and drives
USB Mini-B	1 channel for PC connection (screen design software transfer)
SD Card Slot	1 slot for SD/SDHC memory cards (data logging and OS updates)

Installation Guidelines

Panel Mounting: Insert the unit into the panel cutout and secure it using the provided mounting brackets. Tighten the screws to the specified torque to maintain the IP67F protection rating.
Clearance: Maintain a minimum clearance of 100 mm from other devices or enclosure walls to ensure adequate ventilation and prevent overheating.
Grounding: Connect the functional ground terminal to a dedicated ground point with a ground resistance of 100 ohms or less using a minimum 2 mm square wire.
Wiring: Route communication and power cables separately from high-voltage AC lines to minimize electromagnetic interference.

Compliance and Certifications

CE Directive Compliant
UL / cUL Listed
KC (Korean Certification)

Key Features:

#GOT2000 Series #HMI Touch Panels

What is the screen size and resolution of the GT2104-RTBD?

The GT2104-RTBD features a 4.3-inch TFT color widescreen display with a resolution of 480 x 272 dots.

Does the GT2104-RTBD support multi-touch operations?

No, the analog resistive touch panel on the GT2104-RTBD supports single-point touch only; simultaneous pressing of multiple points is prohibited.

What communication interfaces are built into this HMI?

It includes built-in Ethernet (RJ45), RS-232, RS-422/485, and a USB Mini-B port for programming.

What is the user memory capacity of the GT2104-RTBD?

The unit features 9 MB of internal flash memory (ROM) for storing project data, screens, and system configurations.
