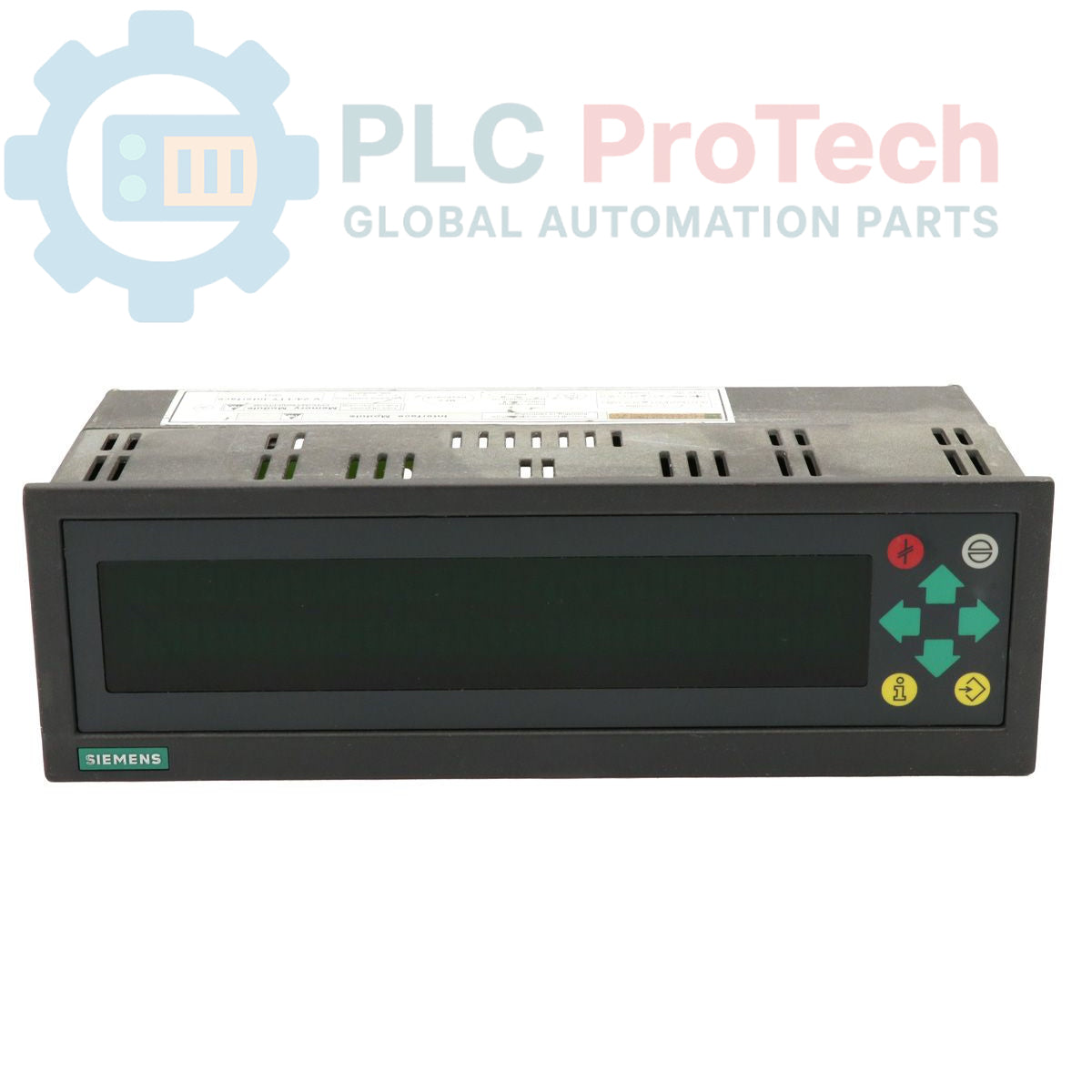

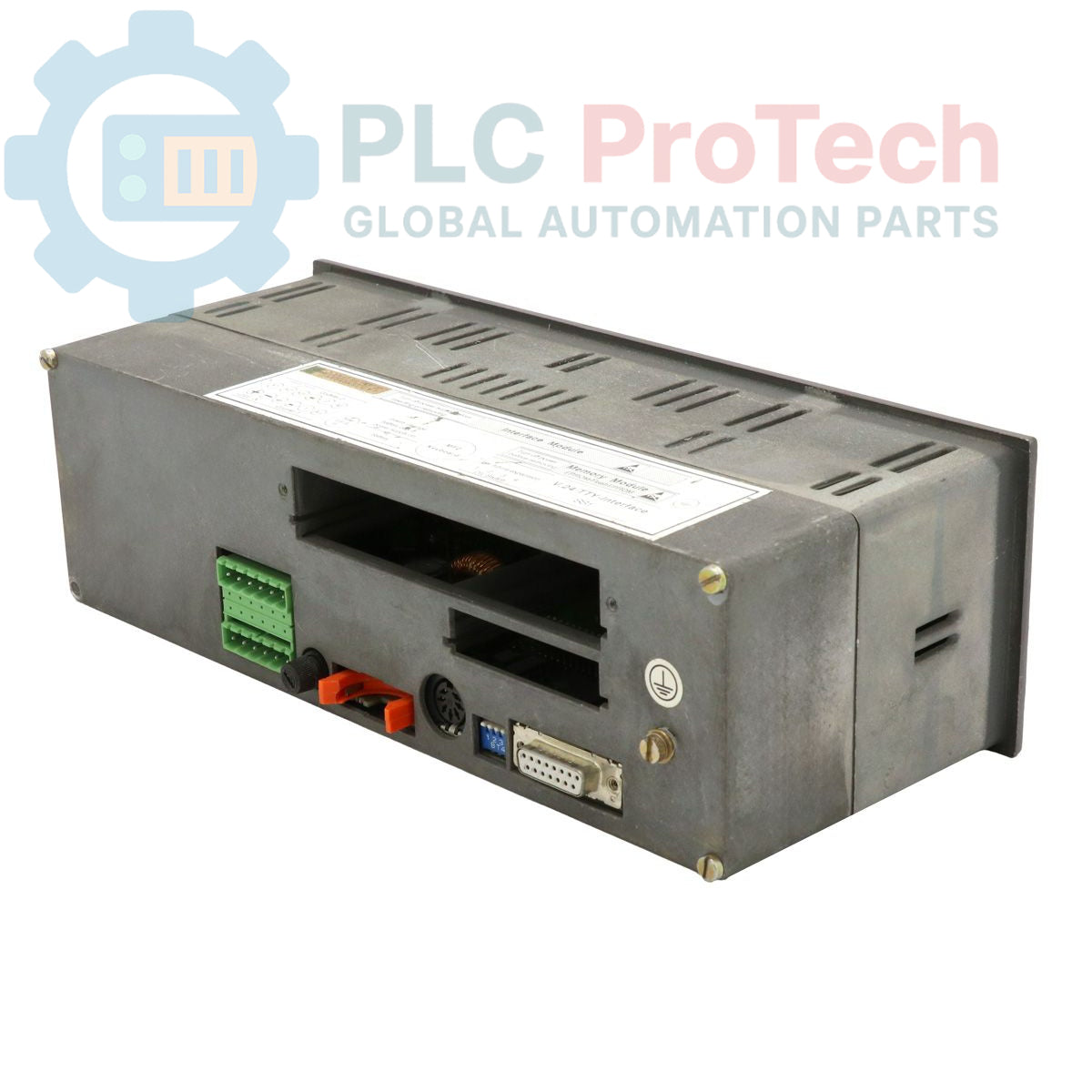

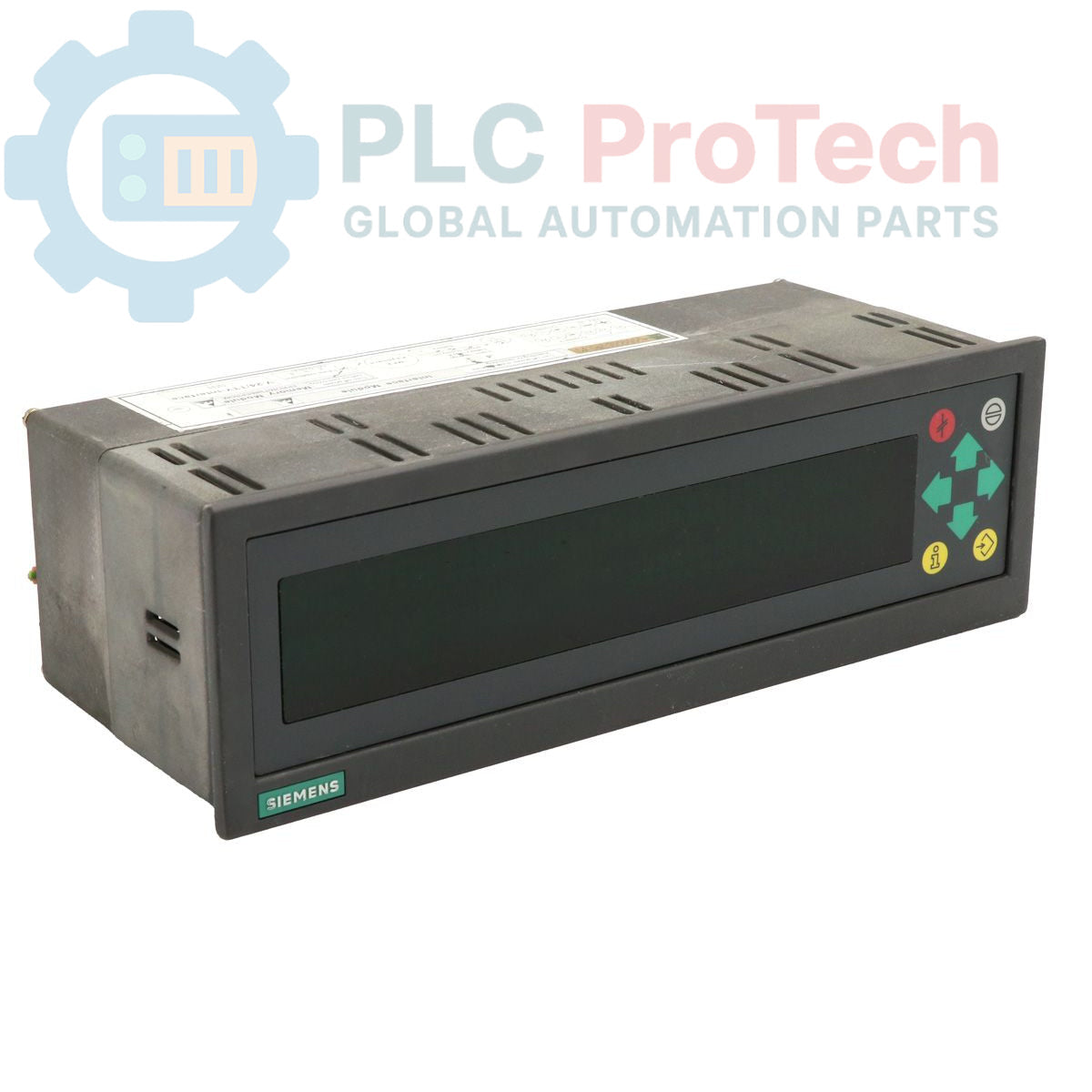

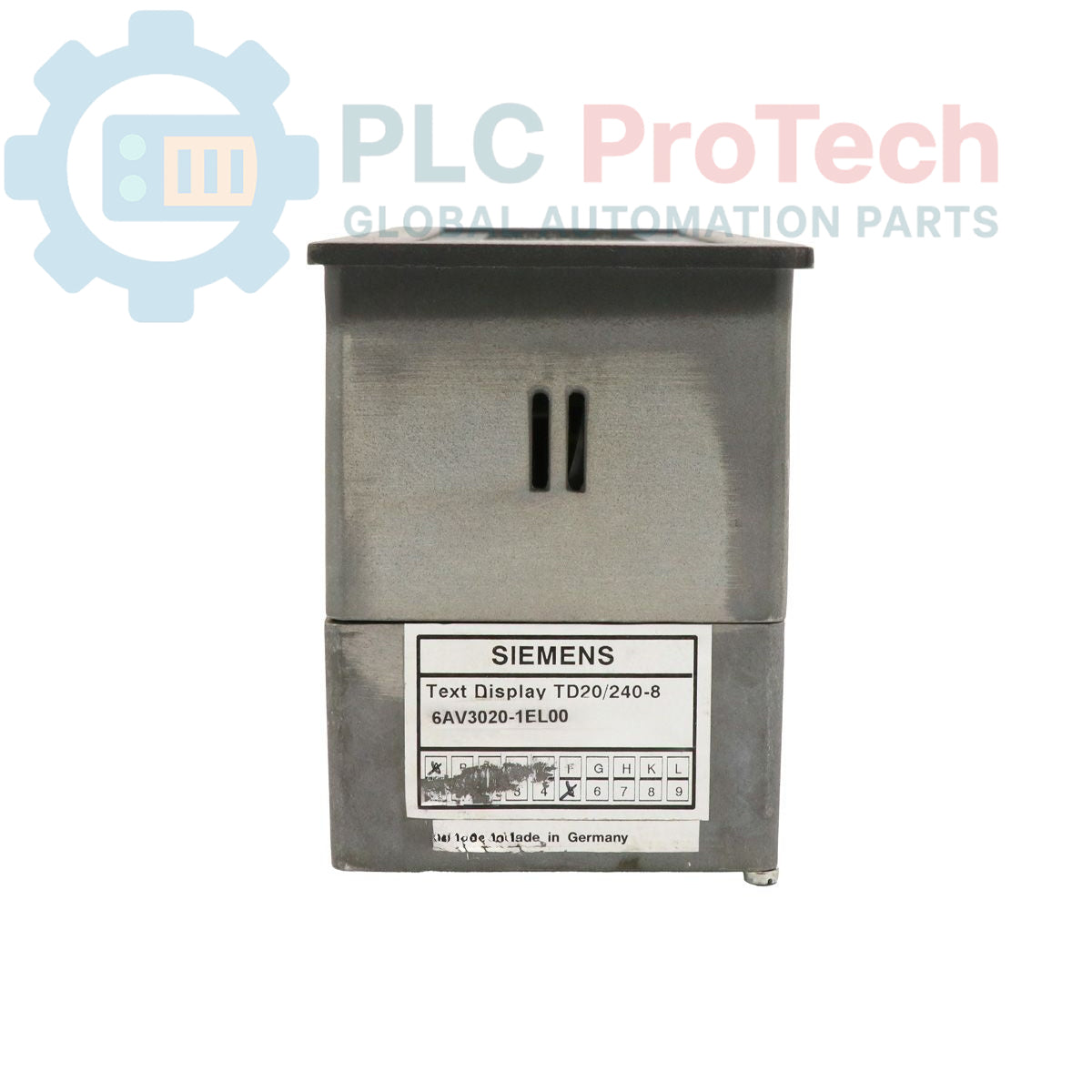

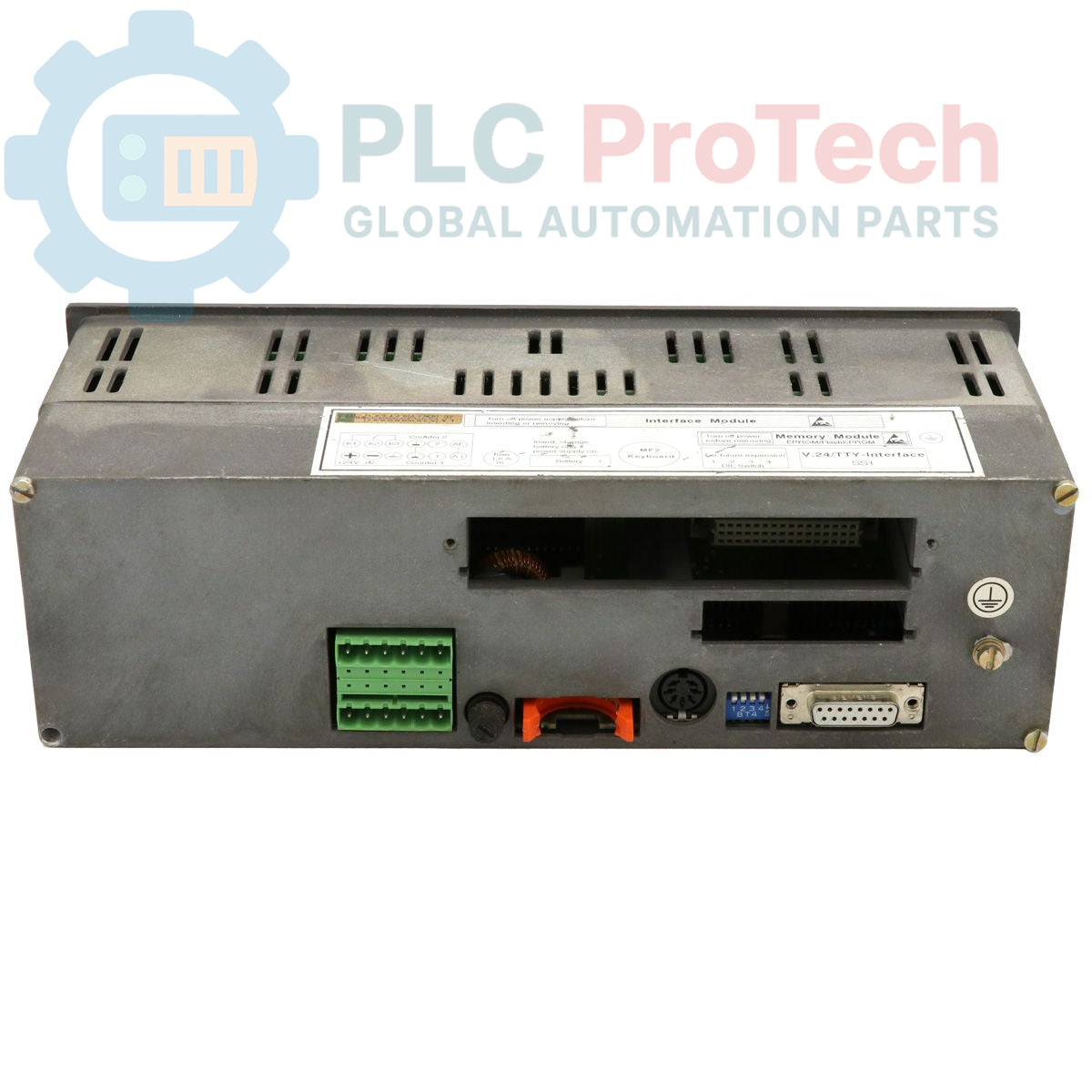

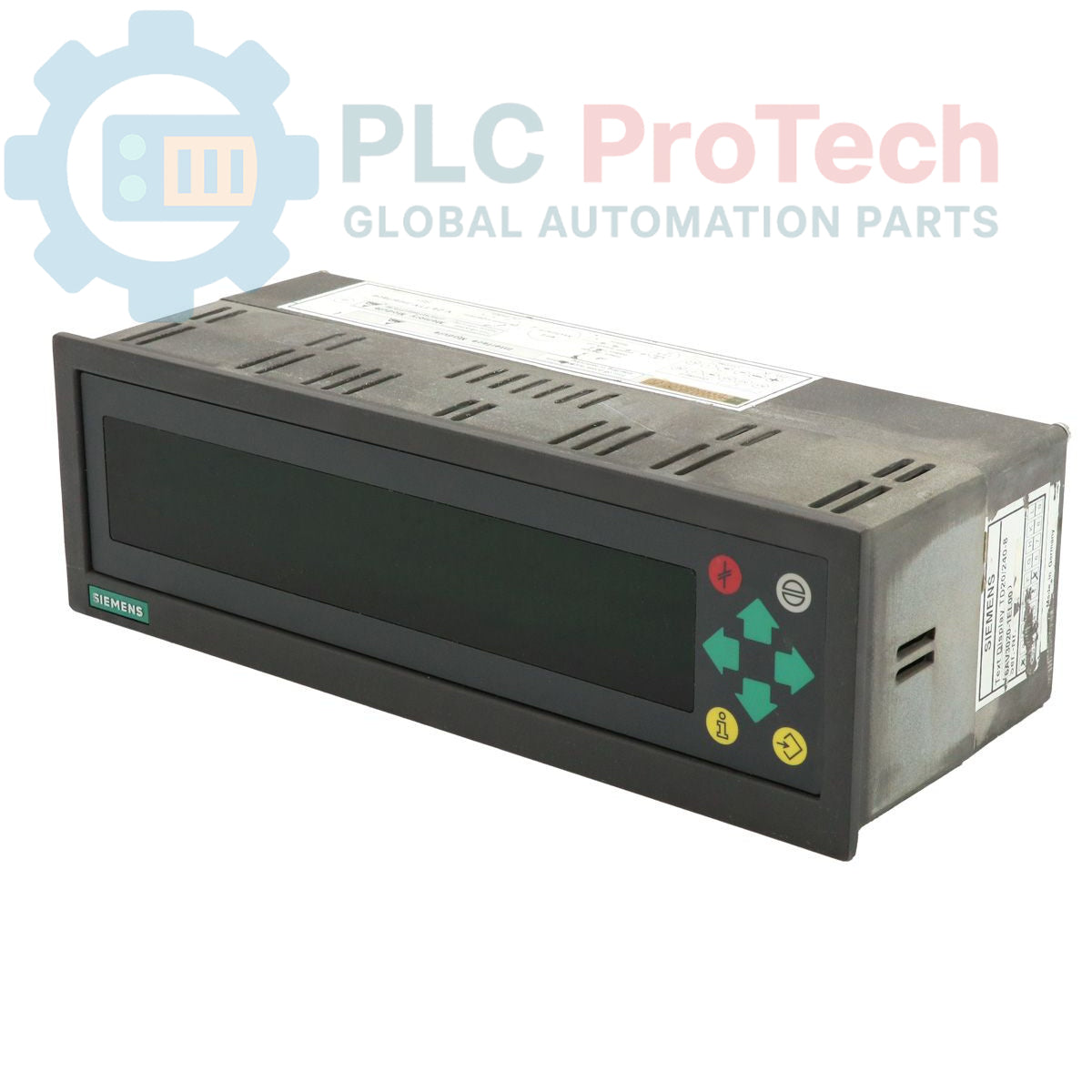

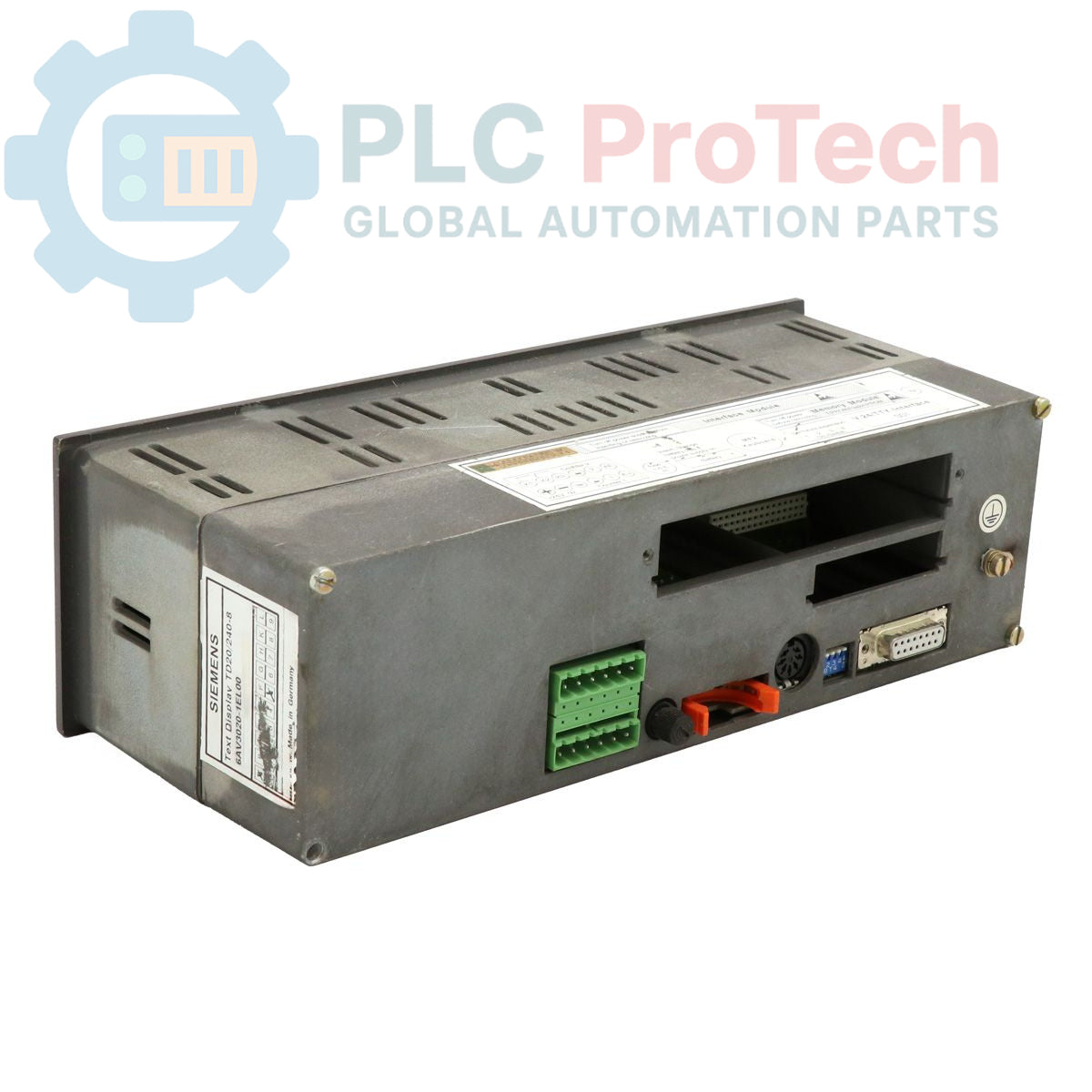

Siemens 6AV3020-1EL00 SIMATIC HMI Text Display

Nur noch 4 Artikel auf Lager verfügbar

Hersteller: Siemens
Produkt-Nr.: 6AV3020-1EL00
Herkunftsland:Deutschland
Produkttyp: Text displays
Strichcode: 85044083
Zahlung: T/T, Western Union
Gewicht: 1950g
Abmessungen: 33.00cm x 20.00cm x 5.00cm
Versandhafen: Xiamen
Garantie: 12 Monate

Description

The 6AV3020-1EL00 is a SIMATIC HMI Text Display module, specifically categorized as a TD 20/24O-8 unit designed for industrial monitoring and operator interface applications. This device features a two-line display capable of showing up to 40 characters per line, providing a structured interface for visualizing process data, system status, and diagnostic information in automation environments. It is engineered for integration into control panels, facilitating direct interaction between operators and PLC-based systems to ensure efficient process oversight.

Features

Two-line display with 40 characters per line
Compact physical footprint for space-constrained control panels
Designed for continuous operation in industrial settings
Direct integration for status monitoring and process interaction

Applications

Production line monitoring
Industrial control panel operator interfaces
Machine diagnostic status display
Process parameter visualization

Technical Specifications

Feature	Specification
Manufacturer	Siemens
Brand	SIMATIC HMI
Product Type	Text Display
Display Configuration	Two-line, 40 characters per line
Dimensions	33.00 cm x 20.00 cm x 5.00 cm
Weight	1.95 kg
Product Phase	Obsolete
Commodity Code	85044083
Export Control (ECCN)	N

Installation Guidelines

Ensure the mounting surface provides adequate support for the 1.95 kg weight of the module.
Verify panel cutout dimensions to match the physical constraints of 33.00 cm x 20.00 cm.
Maintain proper clearance around the unit to ensure readability and access to the interface.
Use appropriate grounding techniques for the control panel housing to reduce electromagnetic interference.
Follow standard industrial wiring practices for signal integrity when connecting to the control system.

Key Features:

#Siemens SIMATIC HMI #Text Displays

What is the primary function of the 6AV3020-1EL00?

This module serves as a text-based operator interface to display status information, process data, and diagnostics in industrial automation systems.

How much information can be displayed on this unit?

The device features a two-line display, with a capacity of 40 characters per line.

Is this model currently in active production?

No, the 6AV3020-1EL00 is currently classified as an obsolete product.

What are the physical dimensions of the unit?

The module measures 33.00 cm x 20.00 cm x 5.00 cm.
