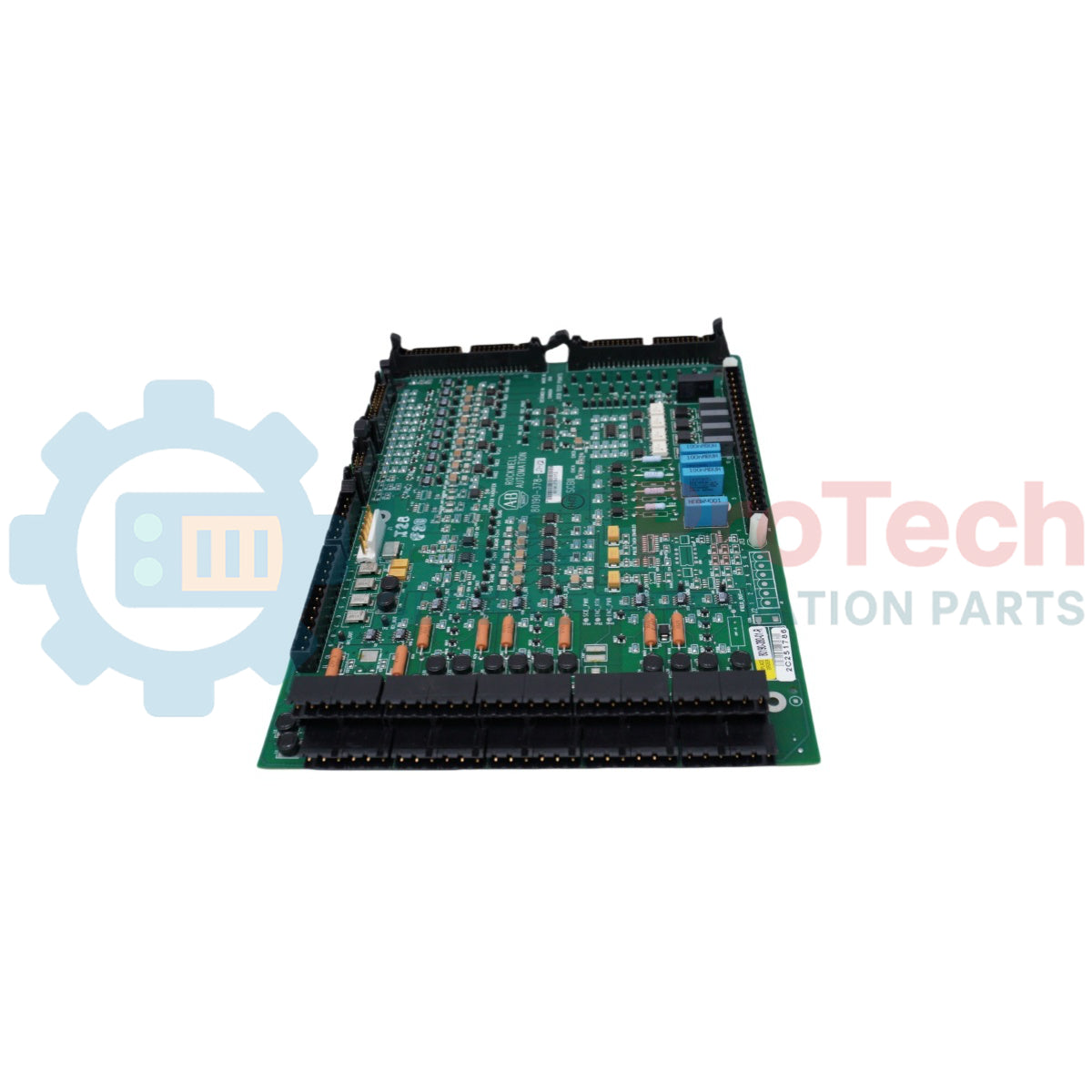

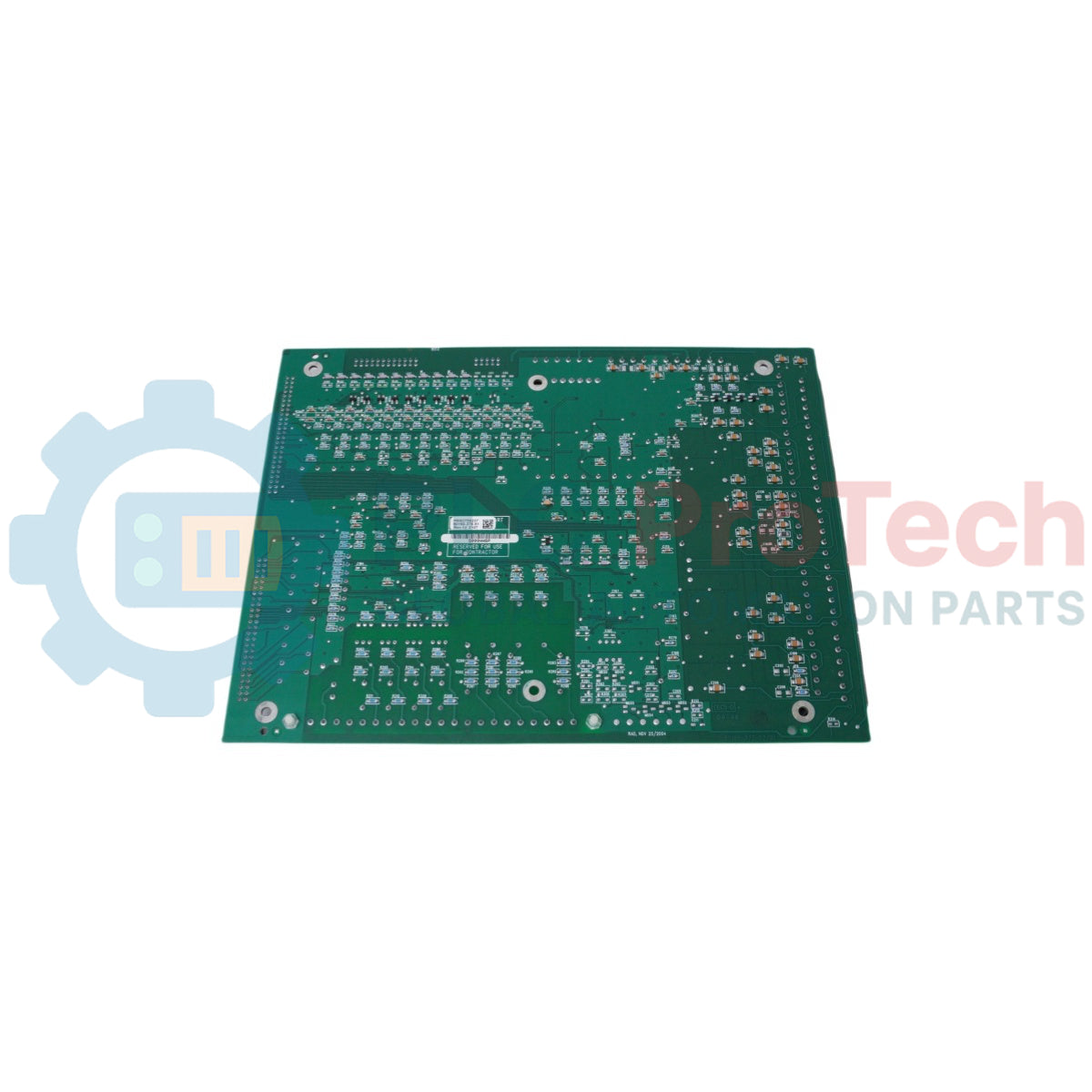

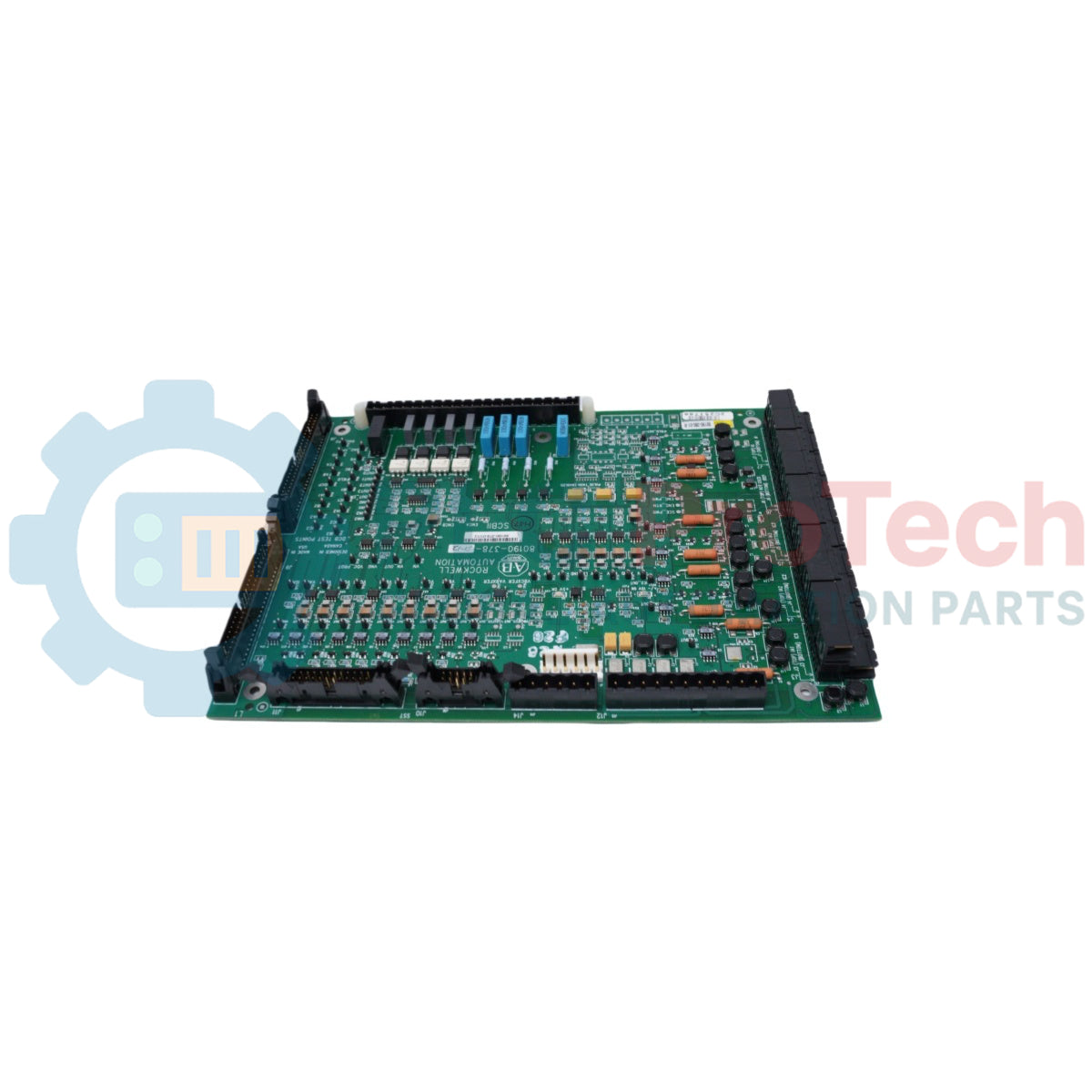

Allen-Bradley 80190-378-51 Print Circuit Board

Allen-Bradley 80190-378-51 is a high-performance Circuit Board engineered for industrial control environments. This module is designed to provide reliable signal processing and connectivity within automation systems, ensuring consistent operation in demanding applications.

The 80190-378-51 supports versatile input configurations, facilitating seamless integration with various sensors and control instruments. Built for durability and precision, the Circuit Board features robust construction to meet the requirements of modern control architectures.

Features

• Supports a wide input range of 0–10 V DC / 4–20 mA.
• Internal power input of 24V DC.
• High-resolution signal processing with 12-bit or 16-bit capability.
• Integrated 120V AC Digital I/O functionality.
• Designed for reliable operation across a temperature range of 0–60 degC.

Applications

• Industrial automation control systems.
• Signal conditioning and data acquisition.
• Process monitoring and factory automation.
• Power distribution and logic control interfaces.

Technical Specifications

Installation Guidelines

• Ensure the device is installed in a clean, dry environment to prevent moisture accumulation.
• Maintain adequate clearance around the unit to facilitate proper cooling and ventilation.
• Verify that the 24V DC power supply is correctly regulated and wired with proper polarity before energizing.
• Use shielded cabling for input signals to minimize EMI/RFI interference.
• Ensure all electrical connections are secure to prevent loose contacts and signal degradation.
