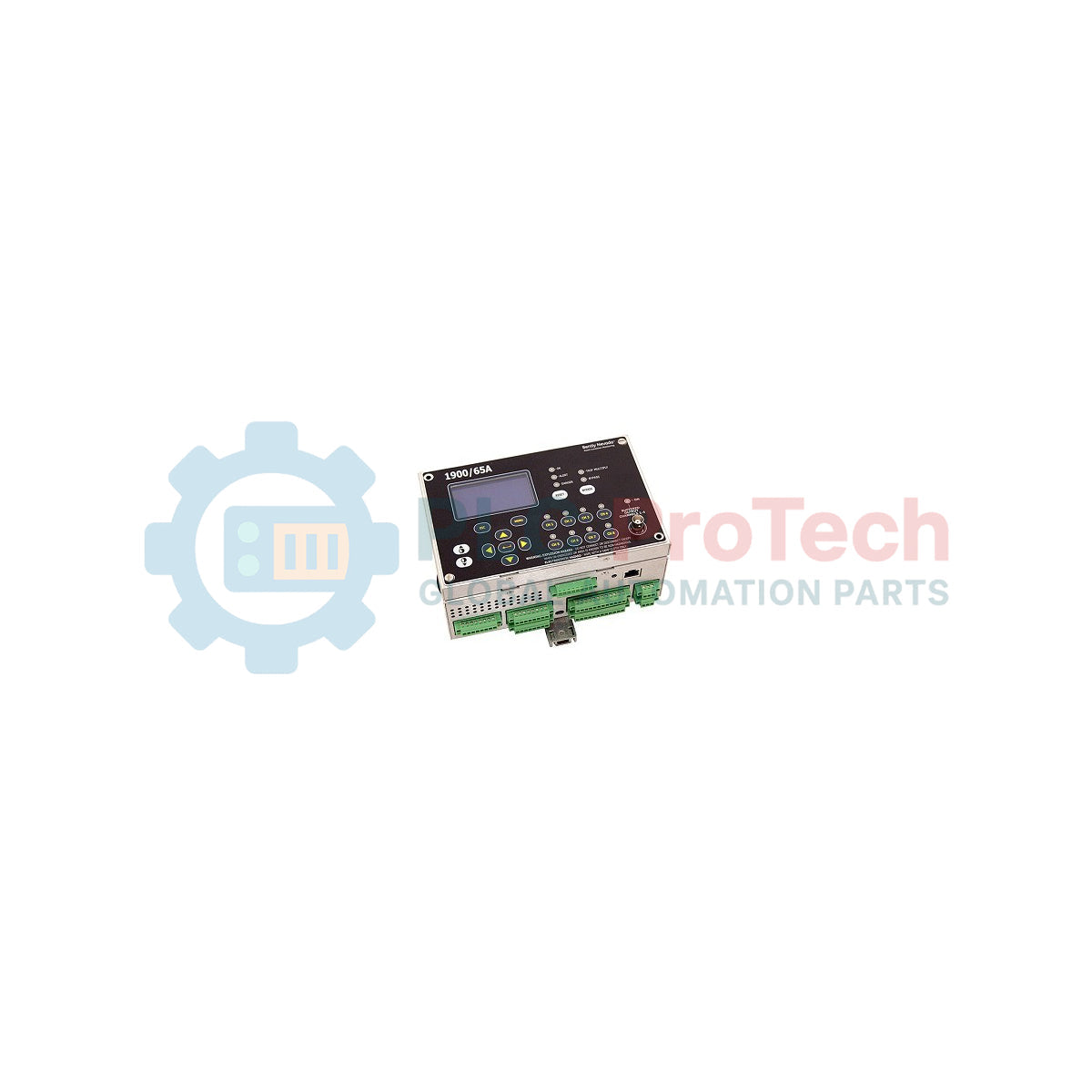

Bently Nevada 1900/65A-01-01-02-00-00 General Purpose Equipment Monitor

Description

Providing dedicated, continuous machinery protection in space-constrained or standalone applications, the Bently Nevada 1900/65A functions as a self-contained, four-channel general-purpose monitor. This system is engineered to track critical dynamic variables such as vibration, velocity, acceleration, or shaft displacement, alongside direct temperature inputs. This specific configuration, model number 1900/65A-01-01-02-00-00, integrates an AC/DC universal power supply, an attached display module, expanded relay/recorder outputs, and Modbus communications. By processing sensor signals directly at the machine face, it delivers instantaneous alarm and trip capabilities to prevent catastrophic mechanical failures.

Features

• Four configurable transducer channels supporting proximity probes, accelerometers, or velocity sensors.
• Four dedicated temperature channels compatible with RTDs and Type E, J, K, or T thermocouples.
• Six programmable SPDT relay outputs for flexible trip-multiply and alarm voting configurations.
• Four 4 to 20 mA analog outputs for direct PLC/DCS chart recording integration.
• Integrated display interface providing real-time channel readings, alarm statuses, and system diagnostics.
• Dual Modbus communications supporting both Modbus RTU (serial) and Modbus TCP/IP (Ethernet) protocols.

Applications

• Balance-of-plant machinery monitoring including cooling tower fans, industrial blowers, and air handlers.
• Continuous vibration tracking for centrifugal and positive displacement water pumps.
• Thermal and dynamic oversight of large-frame electric induction motors.
• Protection of small reciprocating and screw-type gas compressors.

Ordering Information

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The "A" designation represents the enhanced version of the legacy 1900/65 monitor. While the standard wiring footprints are highly compatible, the 1900/65A introduces upgraded internal processing capabilities and extended Modbus mapping ranges. When substituting older modules with the 1900/65A-01-01-02-00-00, verify that your SCADA/PLC Modbus polling register maps have been updated to reflect the new contiguous parameter locations.

Application Pitfalls & Engineering Notes

Ensure that total transducer excitation current does not exceed the internal rail limits. While the unit provides native -24 Vdc sensor power, drawing maximum current simultaneously on all channels at high ambient temperatures (above 60 degC) can accelerate thermal fatigue of the internal DC/DC converter. If using heavy-current active accelerometers, verify the total load beforehand.

Commissioning & Wiring Tips

To prevent electromagnetic interference from corrupting critical vibration readings, always land the transducer cable shields directly at the monitor's dedicated shield terminals. Never ground the shield at both ends, as this will introduce a ground loop capable of distorting the high-frequency AC components of your dynamic signals.
