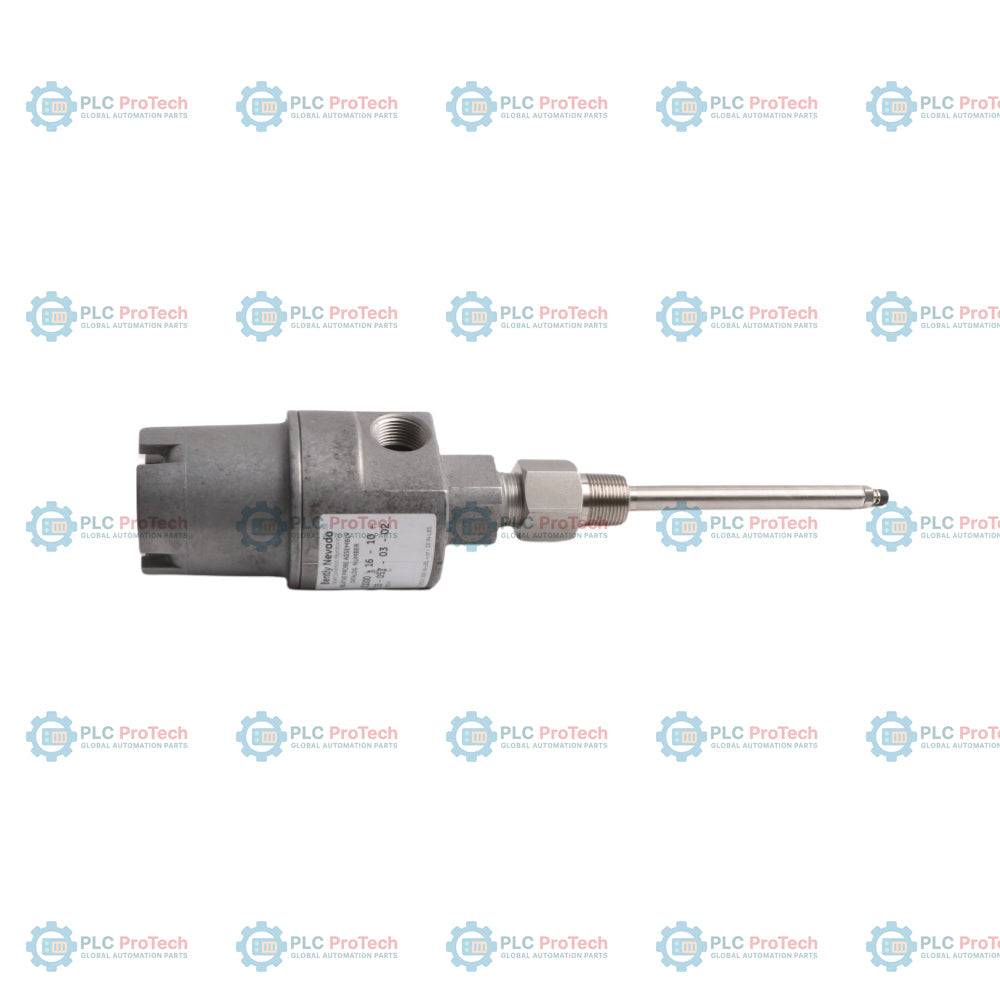

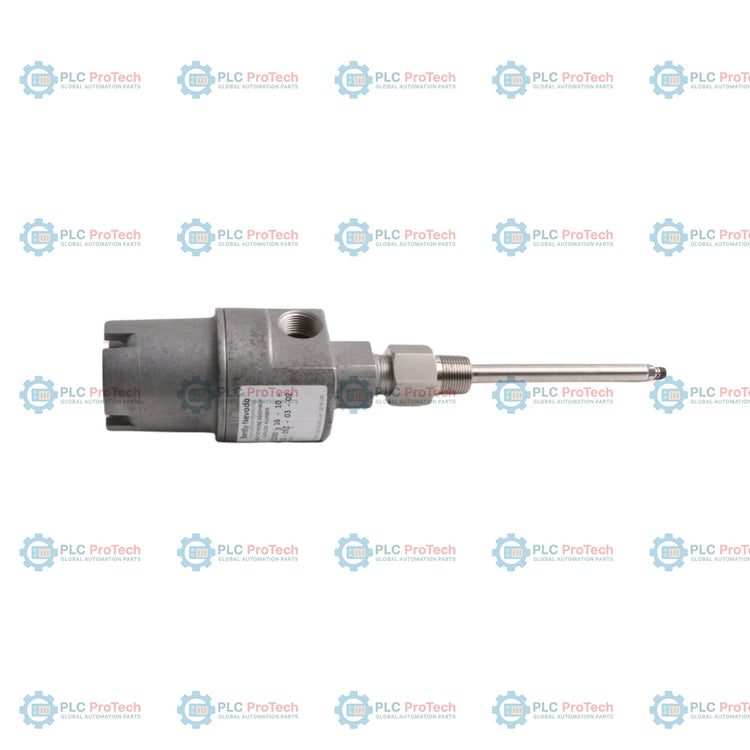

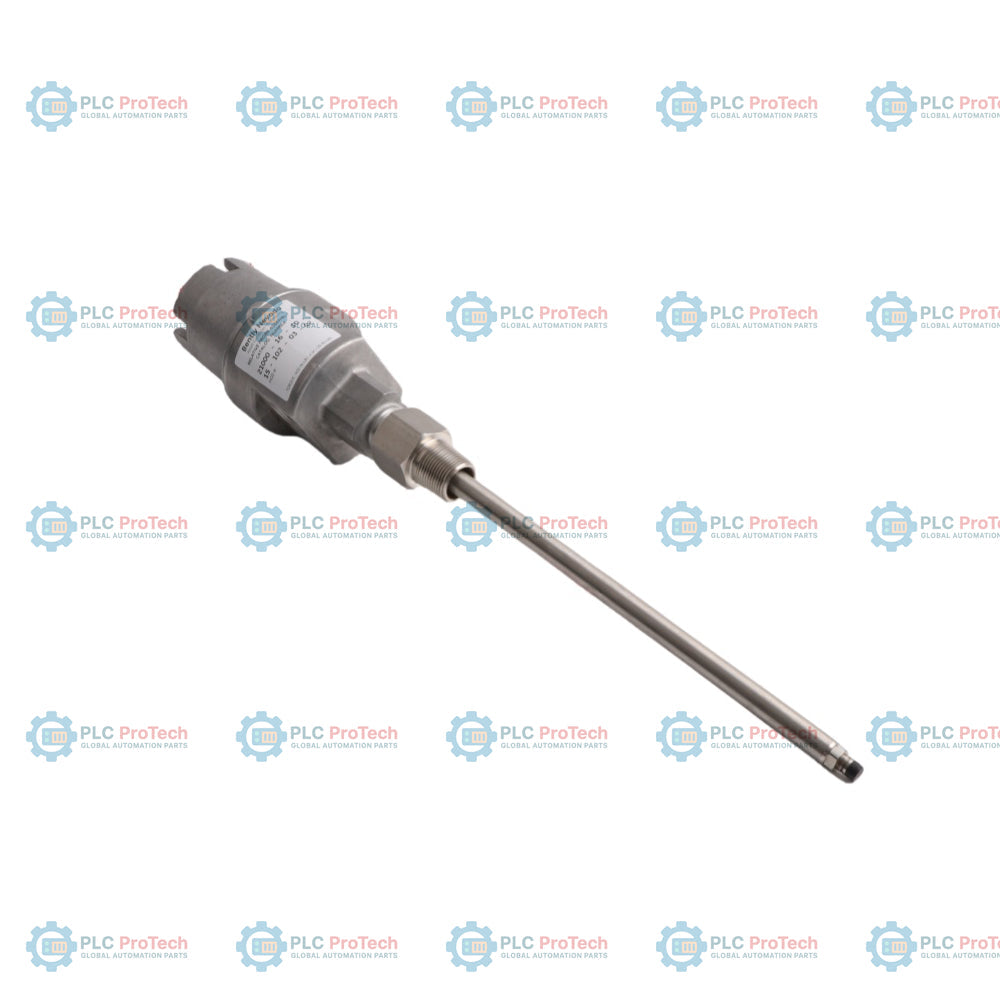

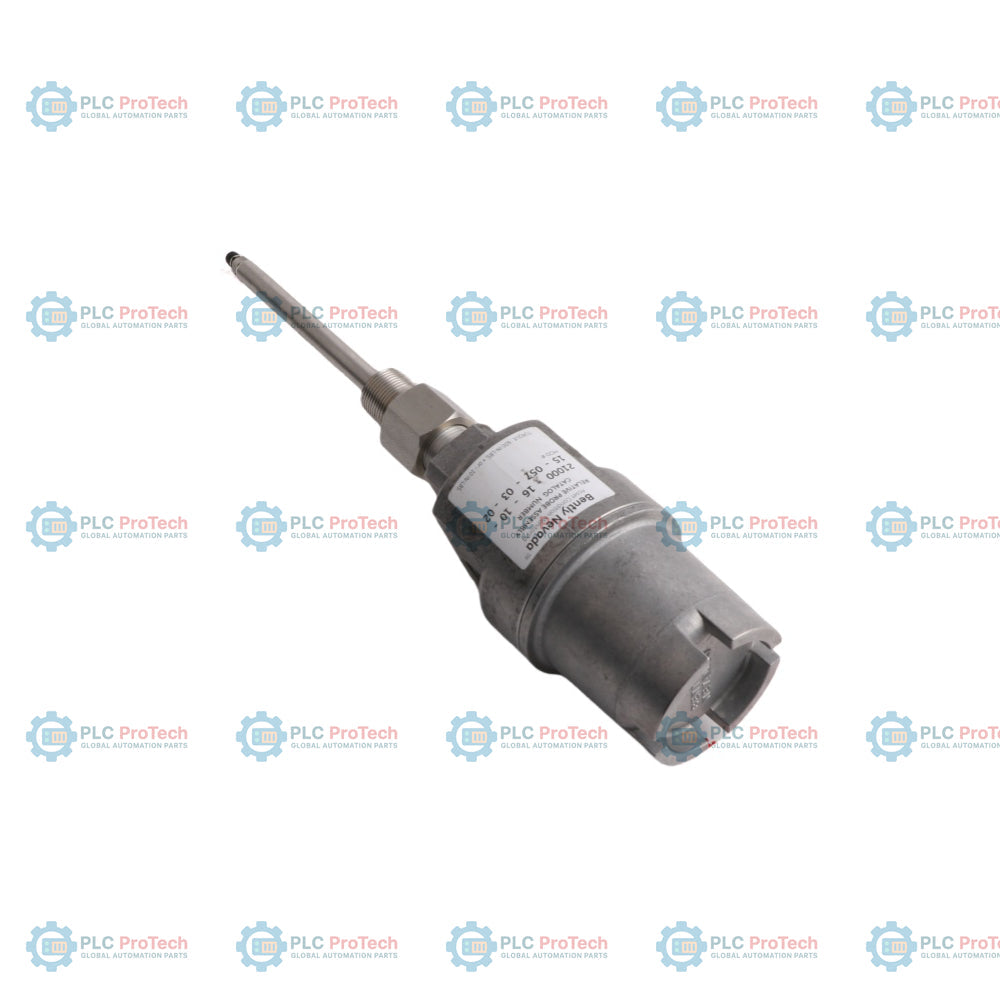

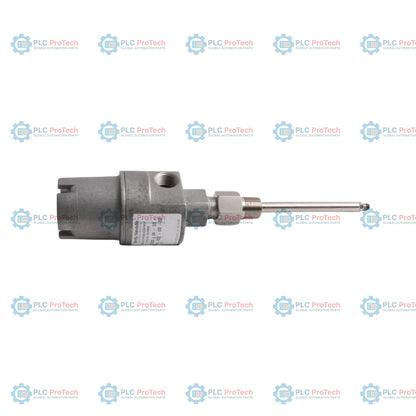

Bently Nevada 21000-16-10-000-062-03-02 21000 Series Proximity Probe Housing Assembly

Description

Optimizing physical sensor protection in high-velocity rotating machinery, the Bently Nevada 21000-16-10-000-062-03-02 serves as a ruggedized, explosion-proof external enclosure designed for precise positioning of proximity probes. This heavy-duty mechanical assembly permits external adjustments of transducer gap clearances without necessitating machinery shutdown. Constructed from copper-free aluminum, it protects critical 3300 or 3300 XL proximity sensors from aggressive industrial solvents, mechanical hazards, and explosive atmospheric hazards typical of petrochemical and power generation facilities.

Features

• Explosion-proof physical housing designed for harsh hazardous environment installations.
• Allows full external adjustments of the sensor's physical gap while the machine remains operational.
• Heavy-wall, copper-free aluminum dome and base with a robust protective finish.
• Integrated internal sleeve system shielding the transducer cable against physical damage and moisture.
• Equipped with dual conduit entries to isolate electrical cabling from environmental contaminants.

Applications

• Steam, gas, and hydro turbine bearing casing monitoring.
• Centrifugal compressor shaft vibration and axial position displacement measurements.
• Large-scale industrial pump and cooling fan bearing protection.
• High-pressure casing penetrations within oil and gas refining processes.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The 21000 Series aluminum housing is designed to shield standard English thread proximity systems. If physical installations demand high corrosion resistance (such as marine environments or sour gas processes), transition to the 24701 Stainless Steel housing assembly. Ensure that your probe sleeve length option matches actual target shaft recess dimensions; a mismatch will cause either severe tip collision or an out-of-range sensor gap failure.

Application Pitfalls & Engineering Notes

Under thermal loading, the housing sleeve undergoes thermal expansion. For high-temperature turbine casings, compute the longitudinal expansion rate of the 6.2-inch aluminum and steel components to prevent drift in the physical voltage-gap calibration. Always verify the Viton elastomer (-03 option) compatibility with the specific synthetic diester or mineral lubricants present within the casing to prevent fluid leakage past the O-ring interface.

Commissioning & Wiring Tips

Always secure the internal proximity probe to the sleeve using a thread-locking compound or the dedicated mechanical locking collar. Avoid sharp bends in the delicate coaxial extension cable when feeding it through the internal sleeve pathway. Maintain the OEM-specified minimum bend radius of 25.4 mm (1.0 inch) to prevent structural cable failure and high-frequency noise spikes in the radial vibration monitor.
