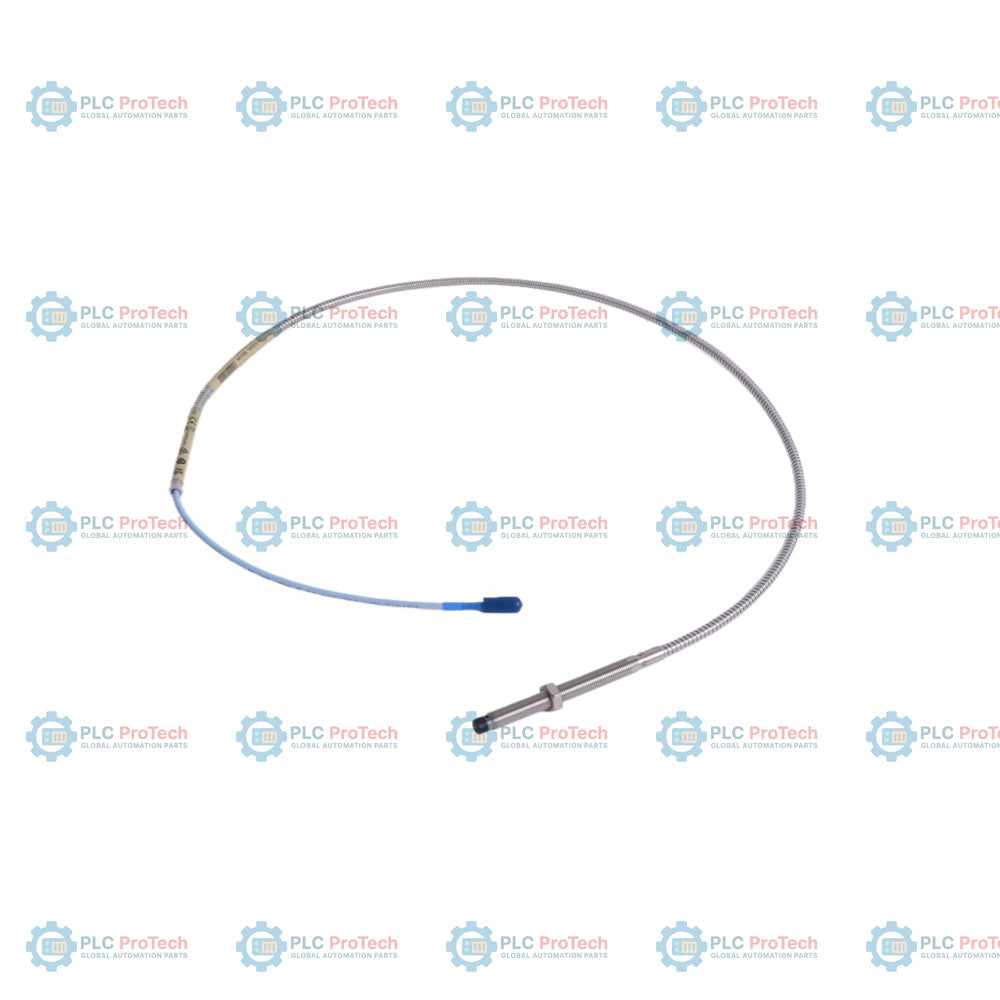

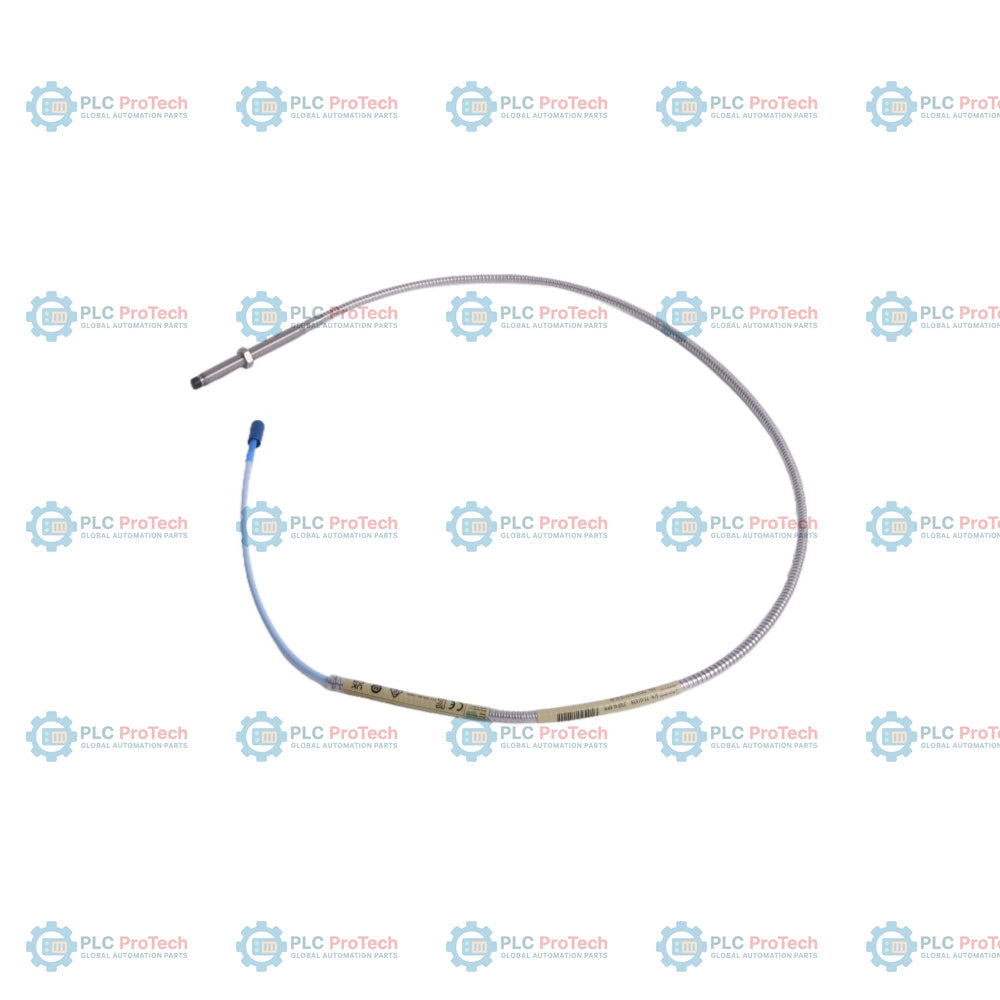

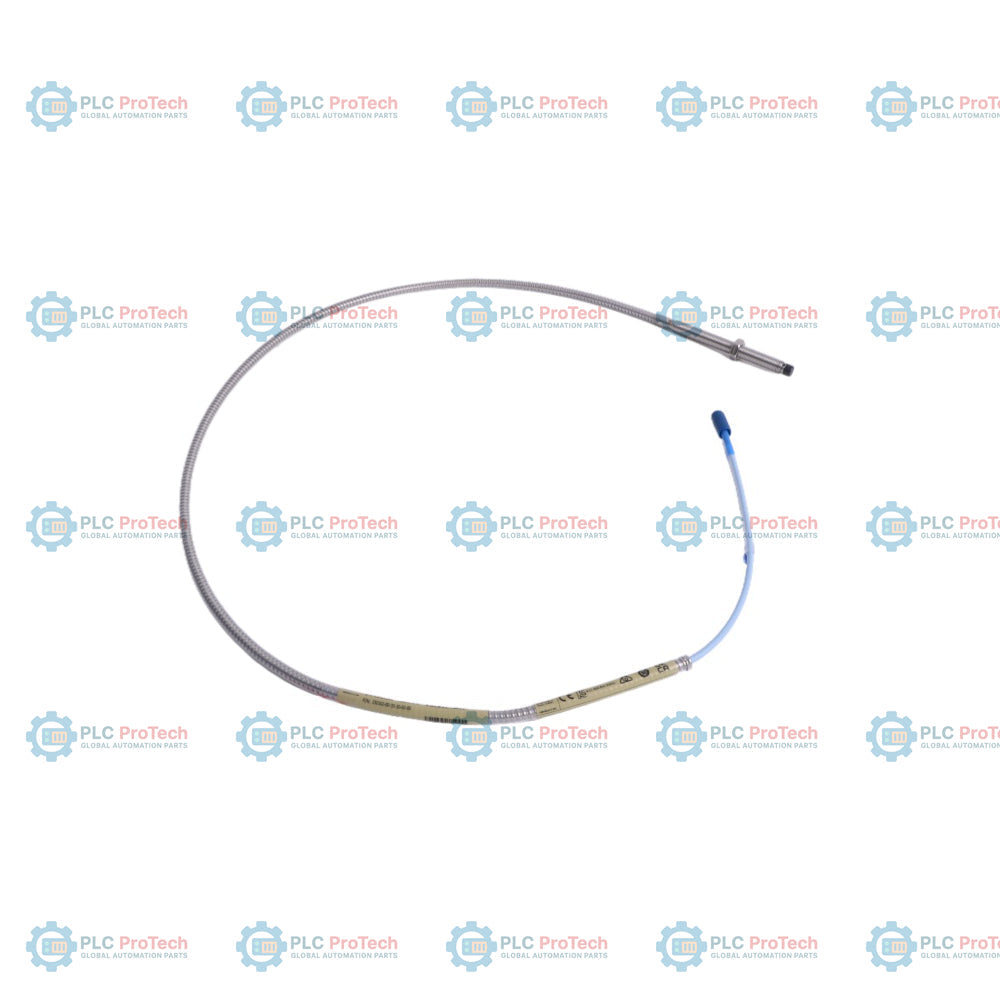

Bently Nevada 330102-00-35-10-02-00 3300 XL 8 mm Proximity Probe

Description

Option 00 (0.0 in unthreaded length), Option 35 (3.5 in overall case length), Option 10 (1.0 m total length), Option 02 (ClickLoc coaxial connector, standard cable), and Option 00 (no agency approvals required) specify the physical build of the 330102-00-35-10-02-00 armored proximity probe. This eddy-current transducer probe features a threaded 3/8-24 UNF steel body and integral stainless steel armor to shield the coaxial cable against mechanical damage, cutting, and abrasion in harsh rotating machinery environments. It pairs with a 3300 XL Proximitor sensor and standard extension cable to form a complete machinery protection system for measuring shaft vibration and axial position.

Unlike non-armored variants like the 330101, this armored 330102 model includes a protective stainless steel conduit over the standard FEP-insulated coaxial cable. The 0.0-inch unthreaded length provides maximum thread engagement for deep-well mounting setups, while the 3.5-inch case depth fits standard threaded entries. This specific configuration excludes agency approvals (Option 00), making it suitable for general-purpose, non-hazardous industrial areas where explosion-proof or intrinsically safe ratings are not required.

Features

• Standard flexible stainless steel conduit armor shields the coaxial cable against mechanical impact, crush forces, and abrasion.
• 3.5-inch (88.9 mm) overall case length with 0.0-inch unthreaded length provides maximum thread engagement depth.
• 1.0-meter (3.3 feet) total cable length terminated with a miniature ClickLoc male coaxial connector.
• 3/8-24 UNF-2A threaded steel case offers direct mechanical mounting into threaded machine housings.
• PPS (polyphenylene sulfide) molded probe tip (8.0 mm diameter) resists turbine oil, moisture, and chemical exposure.
• Gold-plated brass ClickLoc connector ensures a positive, vibration-resistant connection with the extension cable.

Applications

• Machinery vibration and shaft position monitoring.
• Industrial gas and steam turbines, centrifugal compressors, and generators.
• Non-hazardous industrial areas requiring robust mechanical protection for transducer cabling.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Observe minimum side-view and tip-to-tip clearances to prevent cross-talk or housing interference during calibration.
• Hand-tighten the coaxial ClickLoc connectors to avoid damage to the internal locking mechanisms.
• Do not twist or bend the armored cable beyond its minimum bend radius during installation into machine casings.
• Ensure maximum thread engagement does not exceed 0.563 inches (14.3 mm) to avoid binding in standard thread depths.
• Verify the probe gap using a digital multimeter at the Proximitor sensor output during initial machine commissioning.

Compliance and Certifications

• This probe variant is configured with Option 00 (No agency approvals required) and is suitable for non-hazardous industrial areas.
• Complies with general electrical safety and environmental requirements (RoHS).
