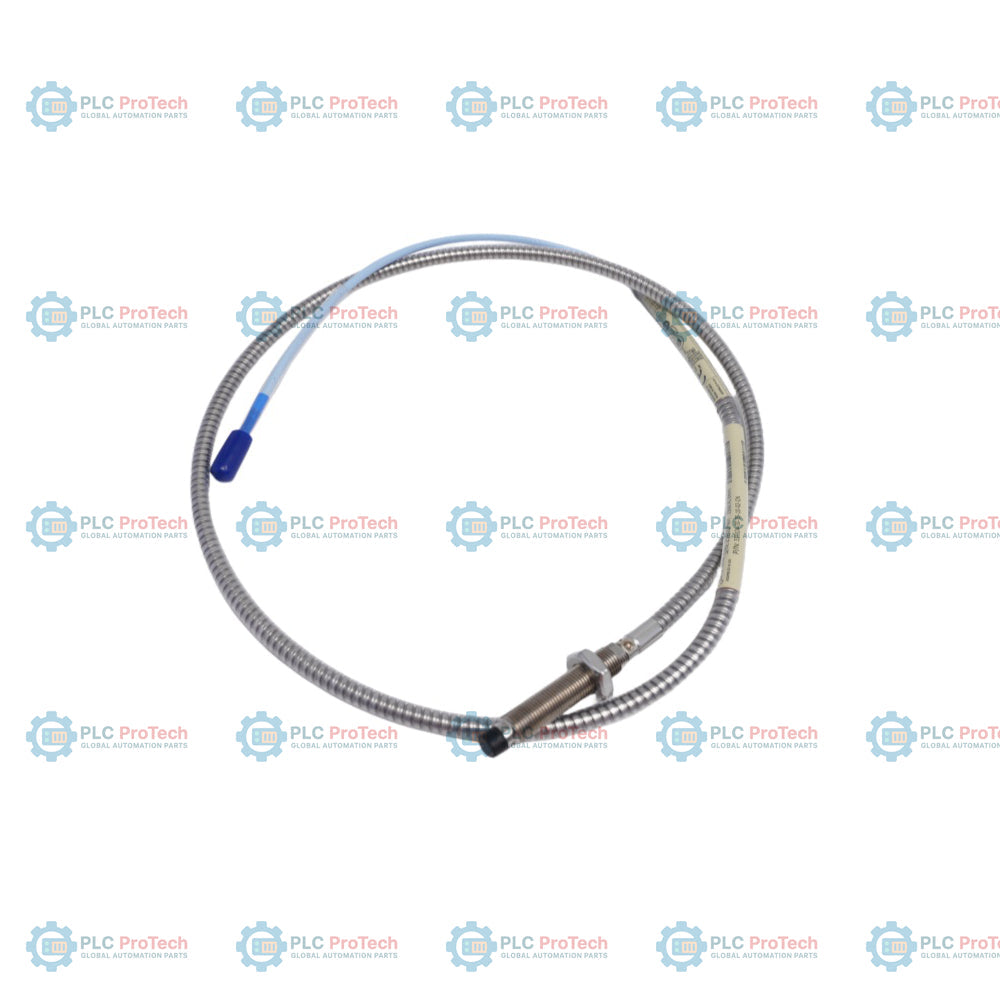

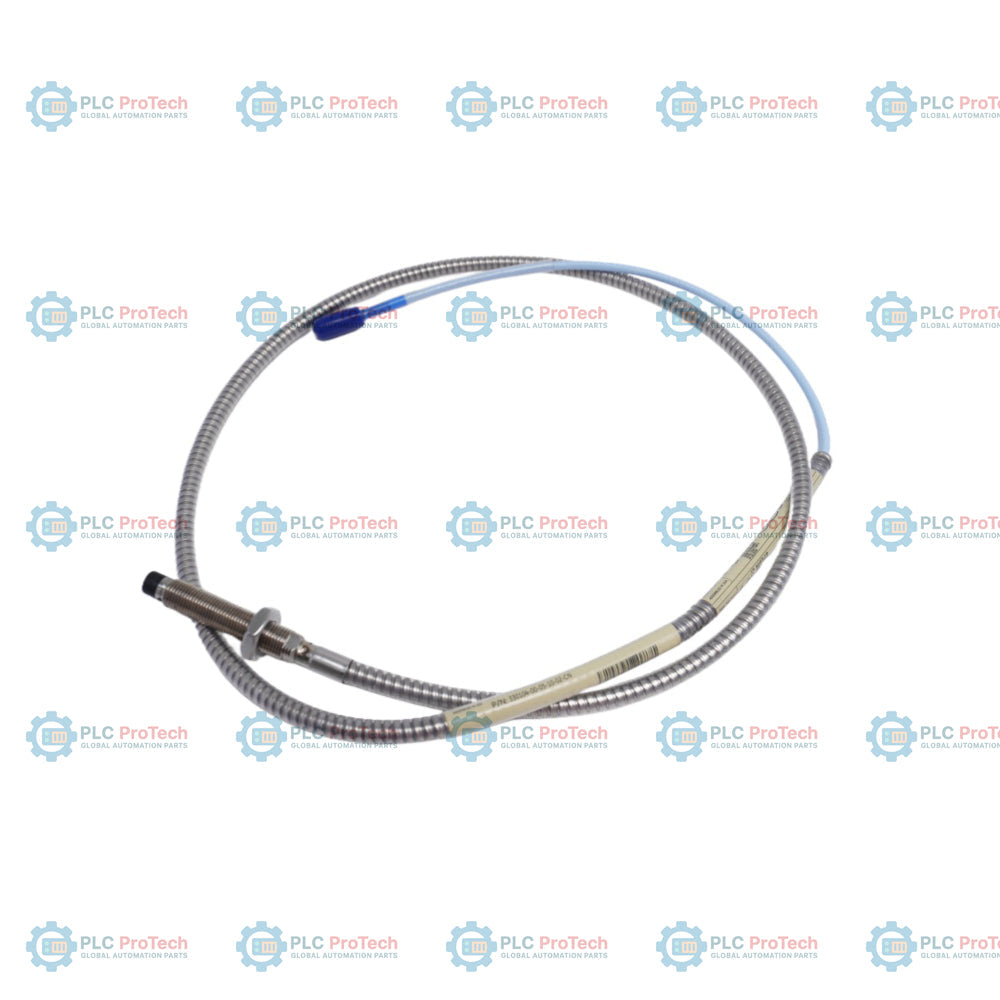

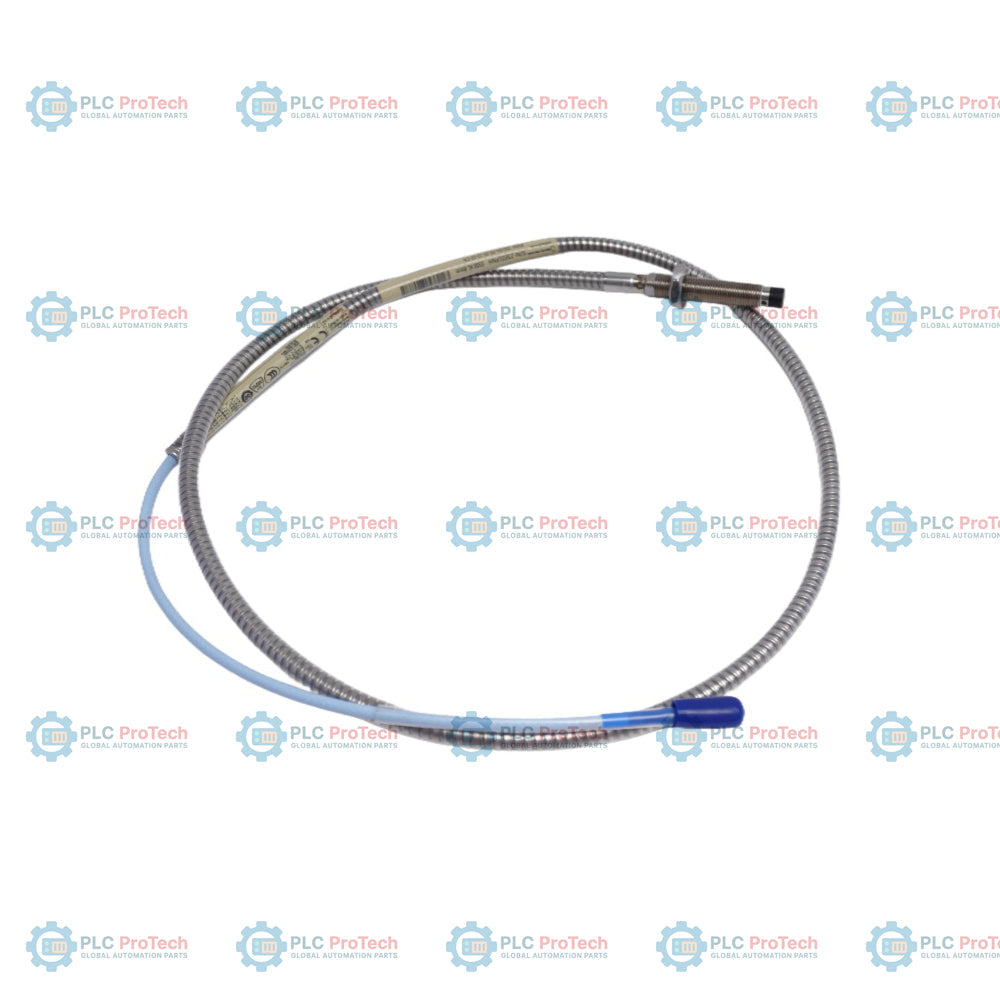

Bently Nevada 330104-00-05-10-01-05 3300 XL 8 mm Proximity Probe

Description

330104-00-05-10-01-05: Bently Nevada 3300 XL 8 mm metric proximity probe, M10 x 1 thread with integral stainless steel armor, Option 00 unthreaded length (0 mm), Option 05 case length (50 mm), Option 10 total length (1.0 m), Option 01 ClickLoc connector with protector, and Option 05 CSA, ATEX, and IECEx approvals.

This probe configuration features a fully threaded metric case (M10 x 1) wrapped in flexible stainless steel armor to shield the coaxial line from mechanical wear, abrasion, and harsh industrial environments. It differs from the unarmored 330103 metric probe by providing physical armored protection, and from the -02 option by including an integrated connector protector that seals the connection point against moisture and particulate contamination. This 1.0 m probe is designed to work as part of a complete 3300 XL transducer system, combining with a 3300 XL extension cable and a 3300 XL Proximitor sensor.

Features

• M10 x 1 metric thread with flexible stainless steel armor for physical line protection.
• 0 mm unthreaded length (fully threaded case) and 50 mm overall case length.
• 1.0 meter total probe length, compatible with standard 5 m and 9 m Proximitor sensor configurations.
• Miniature ClickLoc coaxial connector with pre-installed connector protector to seal out contamination.
• Agency approval Option 05 covering CSA, ATEX, and IECEx intrinsically safe certifications.
• Eddy-current transduction system providing non-contact displacement measurement.

Applications

• Radial shaft vibration measurement on high-speed rotating machinery.
• Axial rotor position monitoring in gas turbines, steam turbines, and centrifugal compressors.
• Casing expansion and thermal growth tracking in large steam turbine assemblies.
• Eccentricity measurement on turbine rotor assemblies.
• Condition monitoring and machinery protection in hazardous industrial locations.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

Ensure the probe is mounted with a nominal gap corresponding to the target center of the 3300 XL Proximitor linear range (typically 1.27 mm or 50 mils). Avoid overtightening the thread. The maximum thread engagement length for M10 x 1 is 15 mm; engagement beyond this may bind during installation. Lay the armored cable with a minimum bend radius of 25.4 mm (1.0 inch) to prevent damage. Use the integrated connector protector by pulling the protective sleeve over the mated coaxial connection to shield against oil, dirt, and moisture.

Compliance and Certifications

• CSA: Class I, Zone 0, AEx/Ex ia IIC T5...T1 Ga; Class I, Division 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III
• ATEX/IECEx: Ex ia IIC T5...T1 Ga; Ex ia IIIC T90C...T105C Dc; intrinsically safe when installed with barriers
• CE Compliant
• RoHS Compliant
