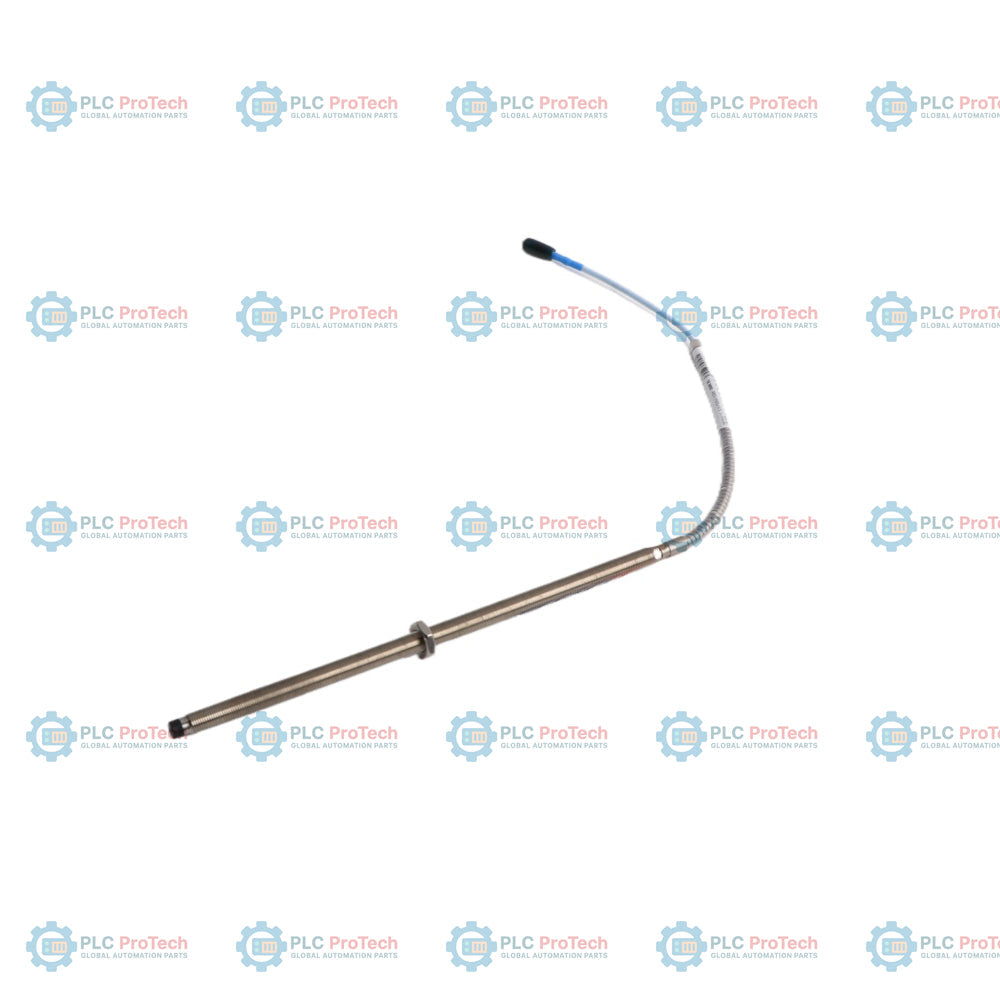

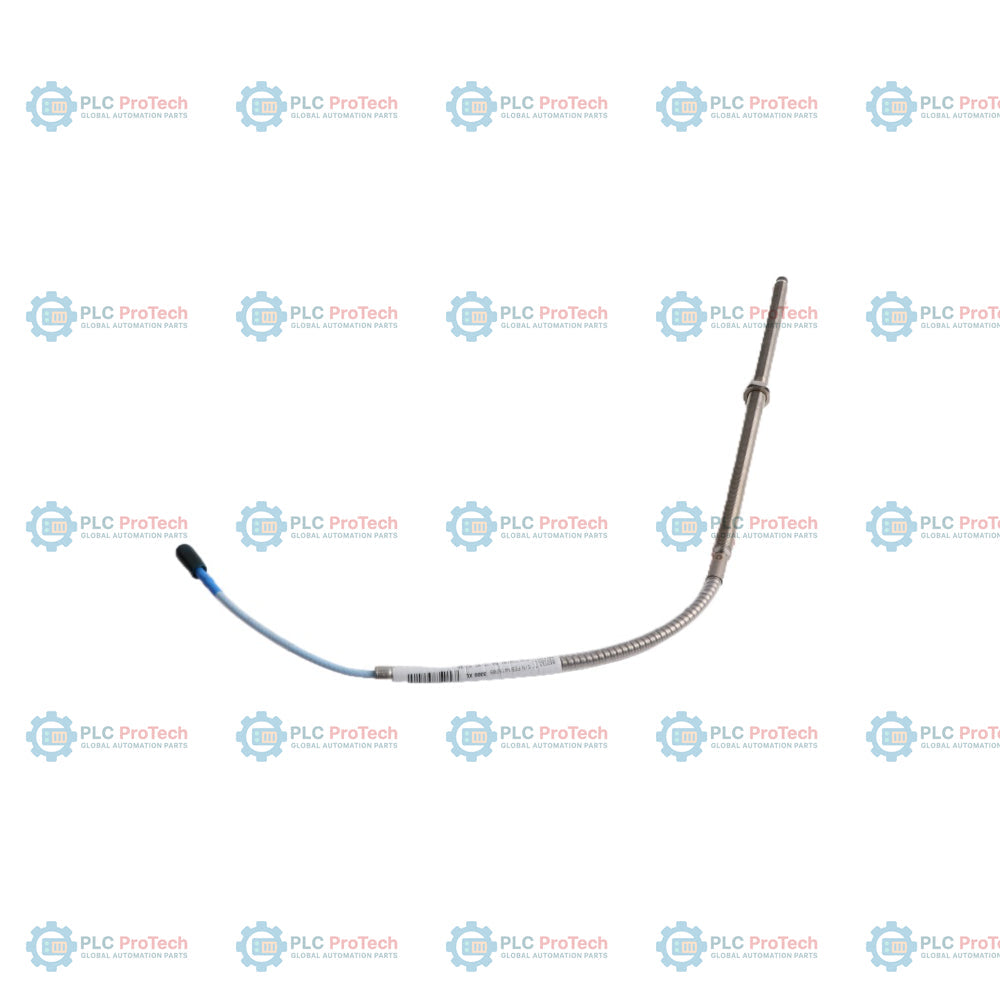

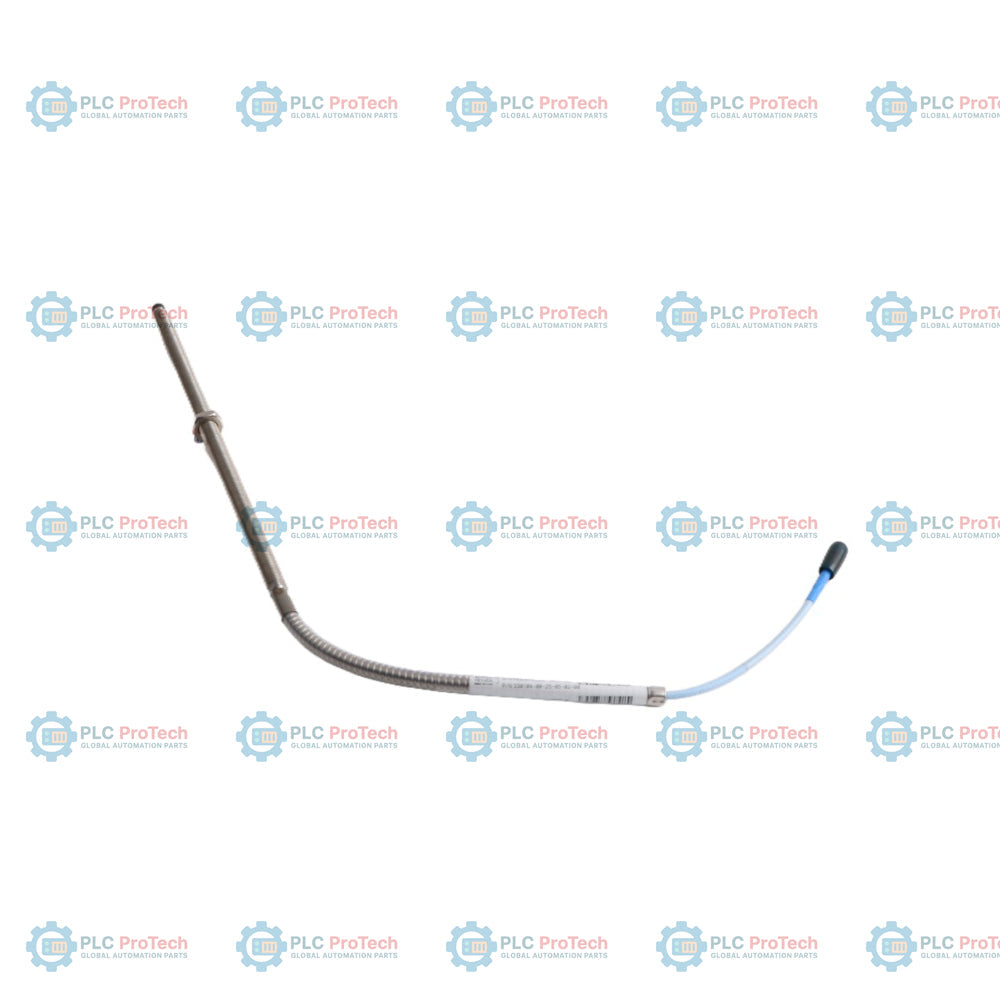

Bently Nevada 330104-00-25-05-02-00 3300 XL 8 mm Proximity Probe

Description

330104-00-25-05-02-00: 3300 XL 8 mm proximity probe, M10 x 1 metric thread, Option 00 (0 mm unthreaded length), Option 25 (250 mm case length), Option 05 (0.5 meter total length) with stainless steel armor. This proximity probe measures static and dynamic shaft position relative to bearings on industrial machinery, serving as a component in the 3300 XL machinery protection system to monitor shaft vibration and axial displacement on fluid-film bearing machines.

This specific option configuration utilizes a standard coaxial cable (Option 02) with a miniature coaxial ClickLoc connector and does not require hazardous area certifications (Option 00). The flexible stainless steel armor sheath provides physical protection for the transducer cable against abrasion and mechanical cutting in demanding industrial installations.

Features

• Option 00 specifies 0 mm of unthreaded length, providing full-body threading.
• Option 25 specifies a 250 mm case length with metric M10 x 1 threads.
• Option 05 specifies a 0.5 meter (1.6 feet) total probe length.
• Option 02 provides a standard ClickLoc coaxial connector without a connector protector.
• Option 00 specifies that agency approvals are not required for this configuration.
• Flexible stainless steel armor jacket shields the coaxial cable from harsh mechanical wear.
• Polyphenylene sulfide (PPS) probe tip offers durability in high-temperature environments.

Applications

• Radial vibration monitoring on fluid-film bearing turbomachinery.
• Thrust (axial) position measurements on steam and gas turbines.
• Shaft speed and Keyphasor reference tracking on industrial compressors.
• Shaft eccentricity monitoring on large electric motors and generators.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

Maintain the minimum cable bend radius of 25.4 mm (1.0 in) during installation to prevent damage to the FEP insulation and internal conductor. When securing the probe, avoid exceeding the maximum case torque of 22.6 N-m (200 in-lbf). Verify that thread engagement does not exceed 15 mm for this M10 x 1 thread option to prevent binding. Keep the coaxial ClickLoc connectors clean, dry, and finger-tightened during assembly with the standard 3300 XL extension cable.

Compliance and Certifications

This product configuration (Option 00) is supplied without specific hazardous area approvals. For hazardous area installations requiring certifications such as ATEX, IECEx, or CSA, reference the Option 05 configuration variants.
