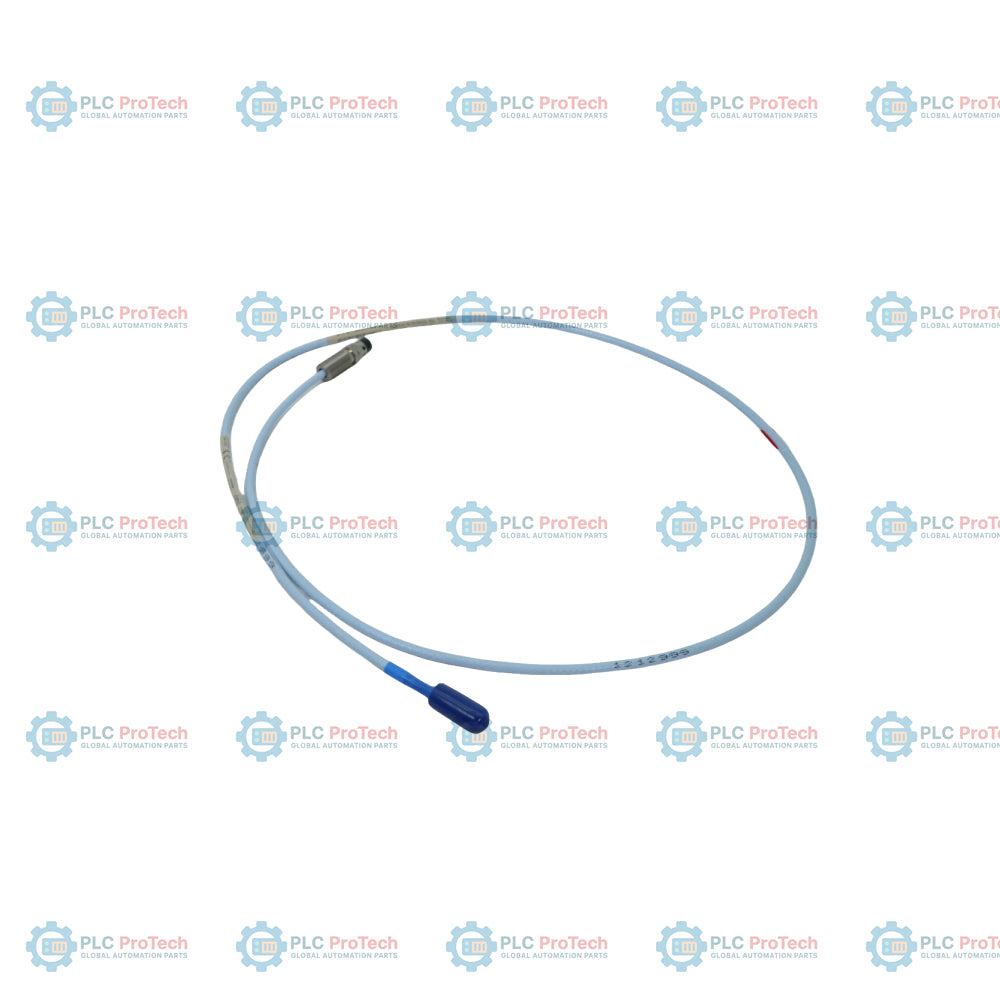

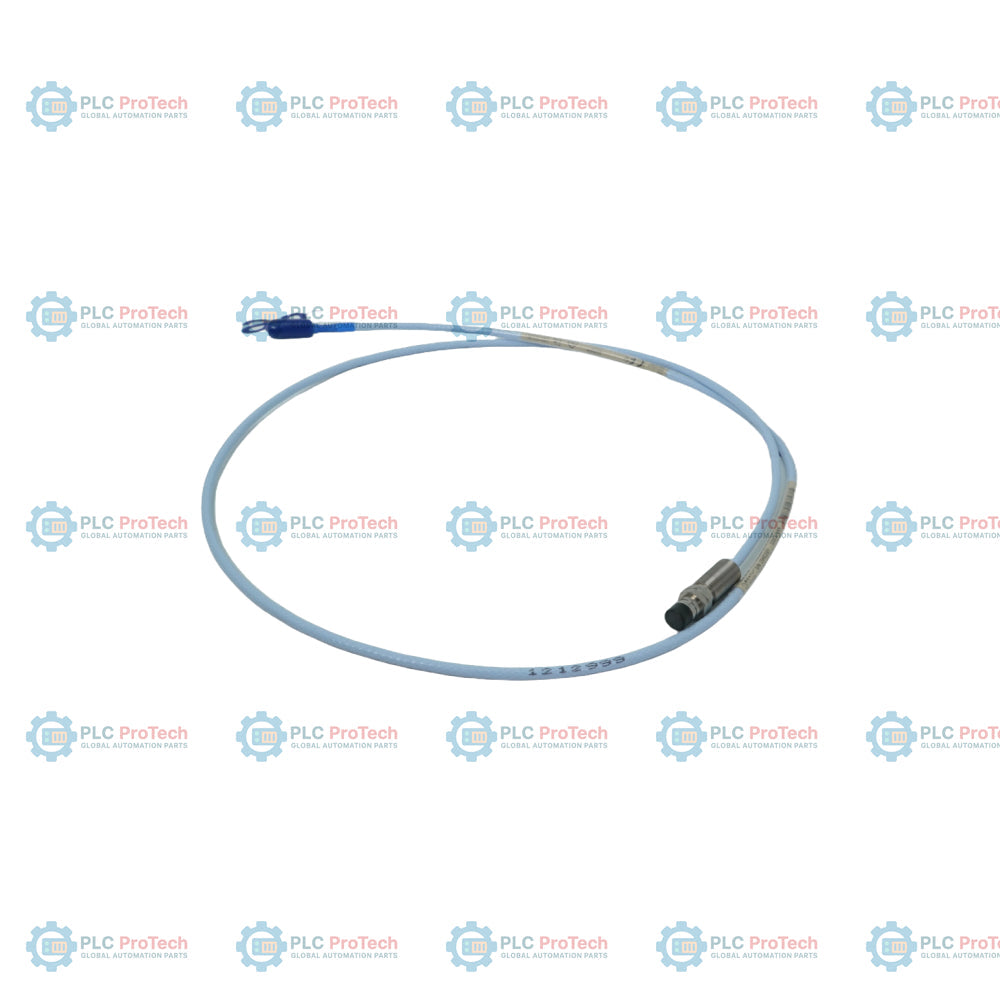

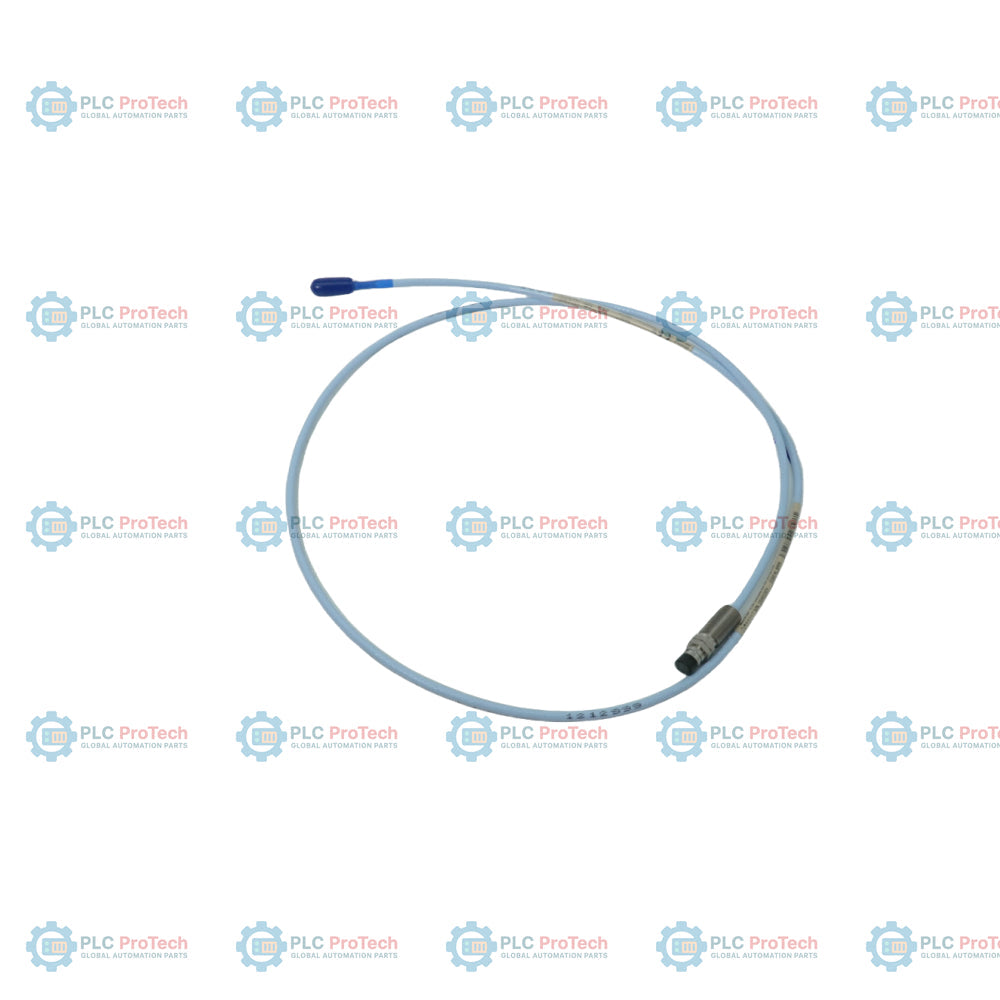

Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Proximity Probe

Description

Metric M10 x 1 threaded steel probe body featuring a 5.0 mm unthreaded length, a 30 mm overall case length, a 1.0 meter (3.3 feet) standard coaxial cable, and a miniature ClickLoc connector without connector protector specifies the configuration of the Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm reverse mount proximity probe. This reverse-mount variant mounts from the inside of a machine casing or sleeve using metric M10 x 1 threads, with the -CN suffix indicating China hazardous area approvals including NEPSI and CCC certifications.

Unlike sibling configurations with standard fractional inch threads (such as the 330105 3/8-24 UNF series) or armored cable protections, this 330106 option utilizes a standard unarmored coaxial cable. The miniature male ClickLoc coaxial connector (Option 02) terminates the 1.0 meter cable, connecting to a 3300 XL extension cable and Proximitor sensor to complete a 5 meter or 9 meter system loop. The system measures shaft vibration, axial position, and speed on rotating machinery.

Features

• Option 05 unthreaded length specifying 5.0 mm (0.20 inches).
• Option 30 case length specifying 30 mm (1.2 inches) overall body length.
• Option 10 total length specifying 1.0 meter (3.3 feet) of standard cable.
• Option 02 connector type providing a miniature male coaxial ClickLoc connector.
• Suffix -CN adding China hazardous area approvals with NEPSI and CCC certification.
• Reverse mount body design allowing installation through the machine casing.
• Metric M10 x 1 threads on the stainless steel probe body.
• Coaxial cable with 75 Ohm impedance and FEP insulation.

Applications

• Steam turbines, gas turbines, and hydro turbines.
• Centrifugal and axial compressors.
• Industrial pumps, gearboxes, and generators.
• Shaft vibration and axial position measurement.
• Speed and phase reference (Keyphasor) monitoring.
• Inside-casing installations requiring reverse-mount physical access.

Ordering Information

Technical Specifications

Connections and Interfaces

Compliance and Certifications

• NEPSI (China hazardous area approval)
• CCC (China Compulsory Certification)
• ATEX / IECEx / CSA
