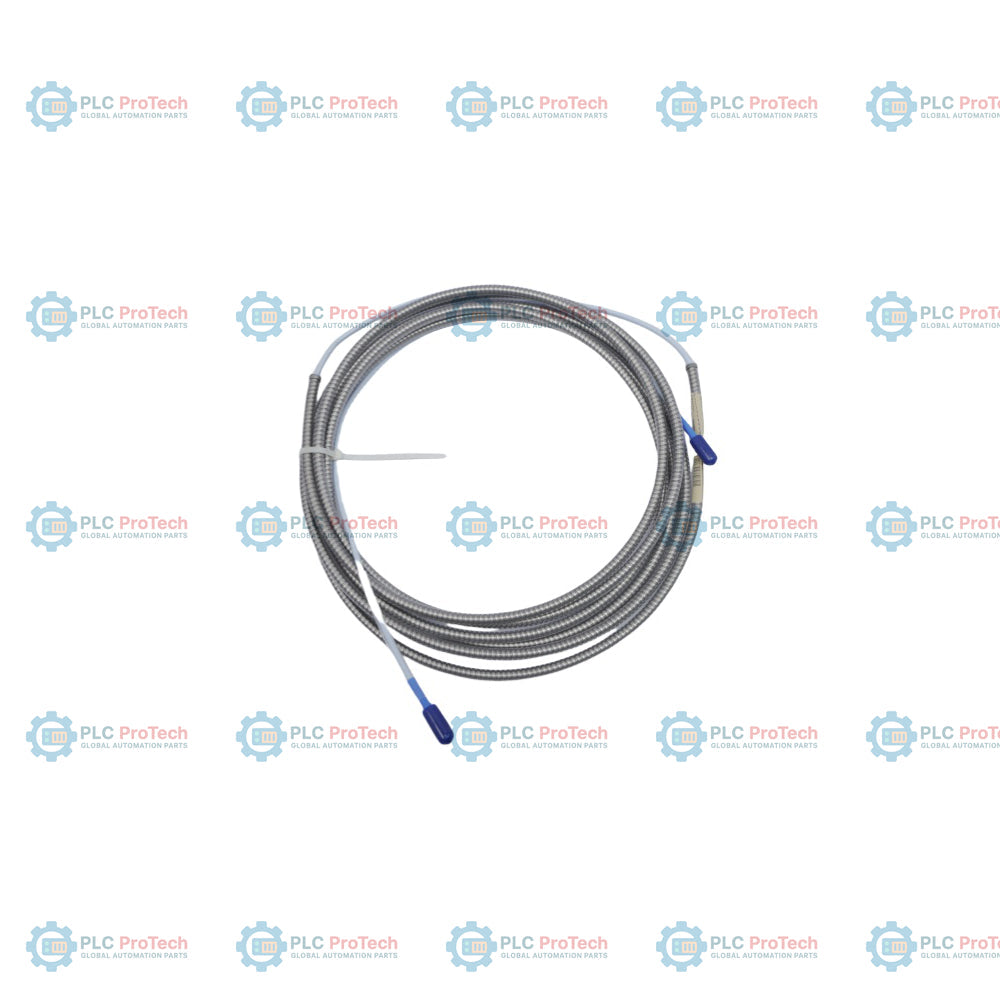

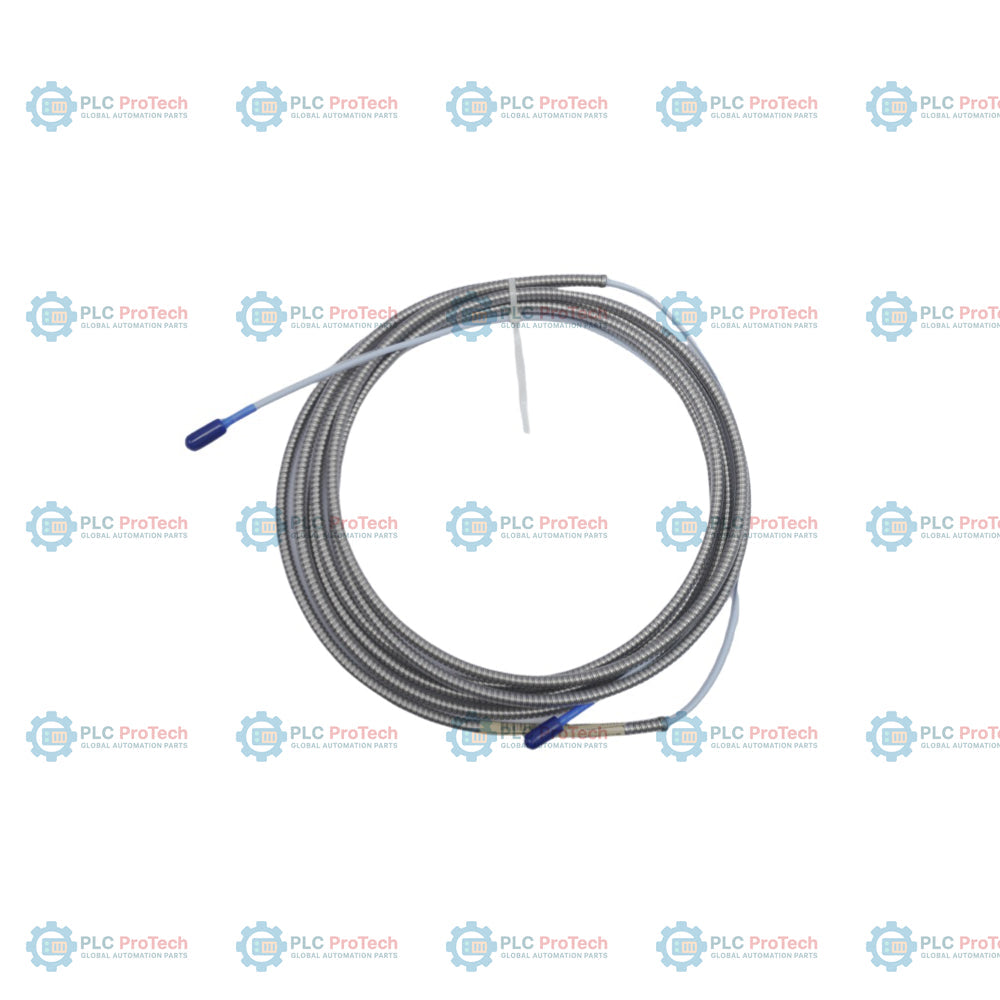

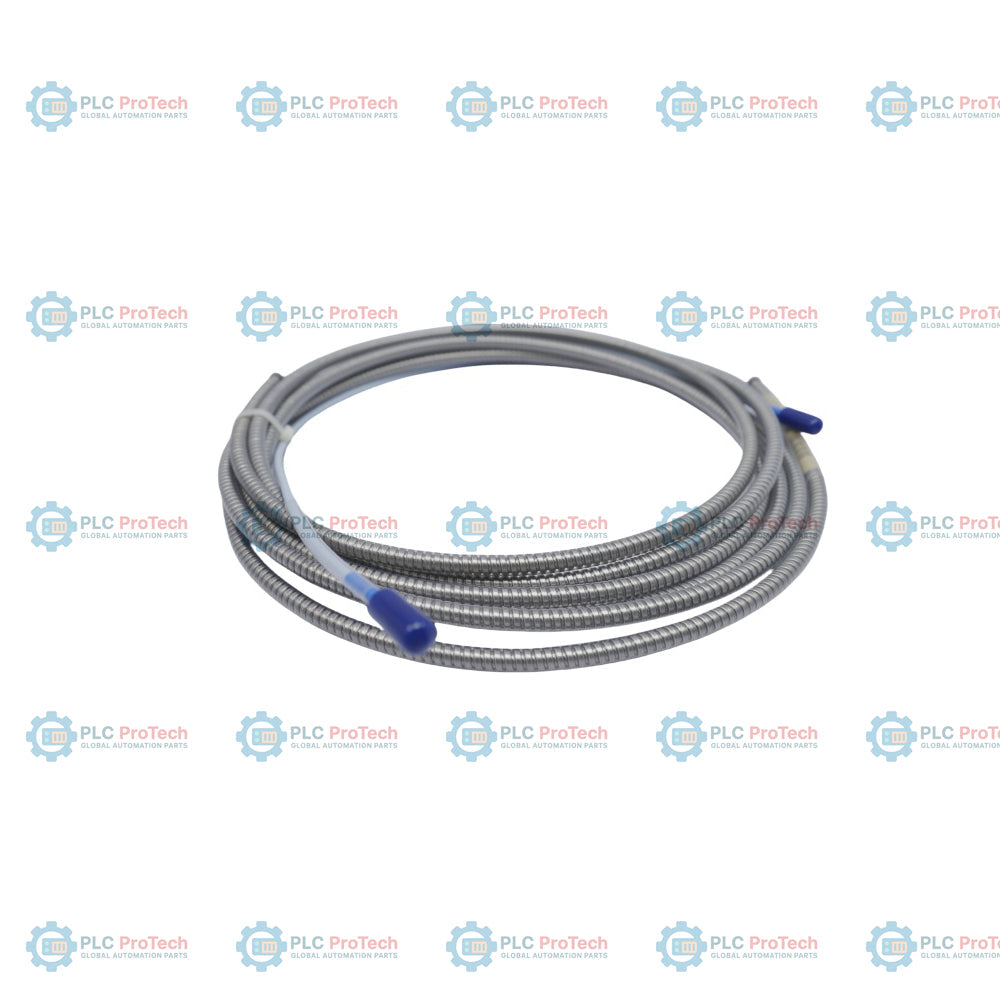

Bently Nevada 330130-045-01-00 3300 XL Standard Extension Cable

Description

Option 045 (4.5 m cable length) and Option 01 (stainless steel armored cable) specify this 3300 XL standard extension cable configuration — 330130-045-01-00.

This cable acts as the electrical link between a 3300 XL 8 mm proximity probe and a 3300 XL Proximitor sensor, facilitating shaft vibration and axial position measurement on rotating machinery. It features gold-plated ClickLoc coaxial connectors that click together securely with finger-tight torque. While standard cable versions like Option 00 lack physical armor, this Option 01 version is protected by a flexible stainless steel conduit with an outer fluorinated ethylene propylene (FEP) jacket, providing defense against mechanical wear and abrasion. The Option 00 agency approval selection denotes that hazardous area certifications are not required for this configuration, in contrast to Option 05 which carries regional hazardous area approvals such as ATEX and IECEx.

Features

• Option 045 provides a 4.5-meter (14.8 feet) total cable length for system installation.
• Option 01 incorporates flexible AISI 302 or 304 stainless steel armor with an outer FEP jacket to prevent mechanical damage.
• Option 00 designates that no hazardous area certifications are included with this specific cable.
• Gold-plated ClickLoc coaxial connectors at both ends provide secure coupling requiring only finger-tight torque.
• 75-ohm triaxial cable core insulated with fluorinated ethylene propylene (FEP) maintains signal integrity.
• Designed to pair with 3300 XL 8 mm proximity probes and 3300 XL Proximitor sensors to form a complete 5-meter or 9-meter transducer system.

Applications

• Shaft vibration measurement on industrial steam and gas turbines, compressors, and large pumps.
• Axial rotor position and thrust measurement on high-speed rotating equipment.
• Machinery protection systems in power generation, chemical, oil and gas, and wastewater treatment plants.
• Harsh mechanical environments requiring protective armoring against physical wear.

Ordering Information

Technical Specifications

Installation Guidelines

To ensure proper system operation and avoid signal noise or physical failure, adhere to the following installation guidelines:

• Cable Routing: Route the armored cable away from high-voltage conduit or alternating current sources to minimize electromagnetic interference (EMI).
• Bend Radius: Observe the minimum bend radius of 25.4 mm (1.0 in) along the entire cable length to prevent damage to the inner triaxial conductors.
• Connector Torque: Connectors are designed to be finger-tight; they will "click" when fully seated. Do not exceed the maximum connector torque of 0.565 N-m (5 in-lbf) when tightening.
• System Length Matching: Verify that the combined length of the extension cable and proximity probe equals the calibrated length of the Proximitor sensor (typically 5.0 meters or 9.0 meters). This 4.5-meter cable is typically paired with a 0.5-meter probe in a 5.0-meter system configuration.
• Moisture Protection: Use connector protectors if the connectors are exposed to high humidity, oils, or industrial liquids.
