Bently Nevada 330195-02-12-05-00 3300 XL 8 mm ETR Reverse Mount Proximity Probe

Description

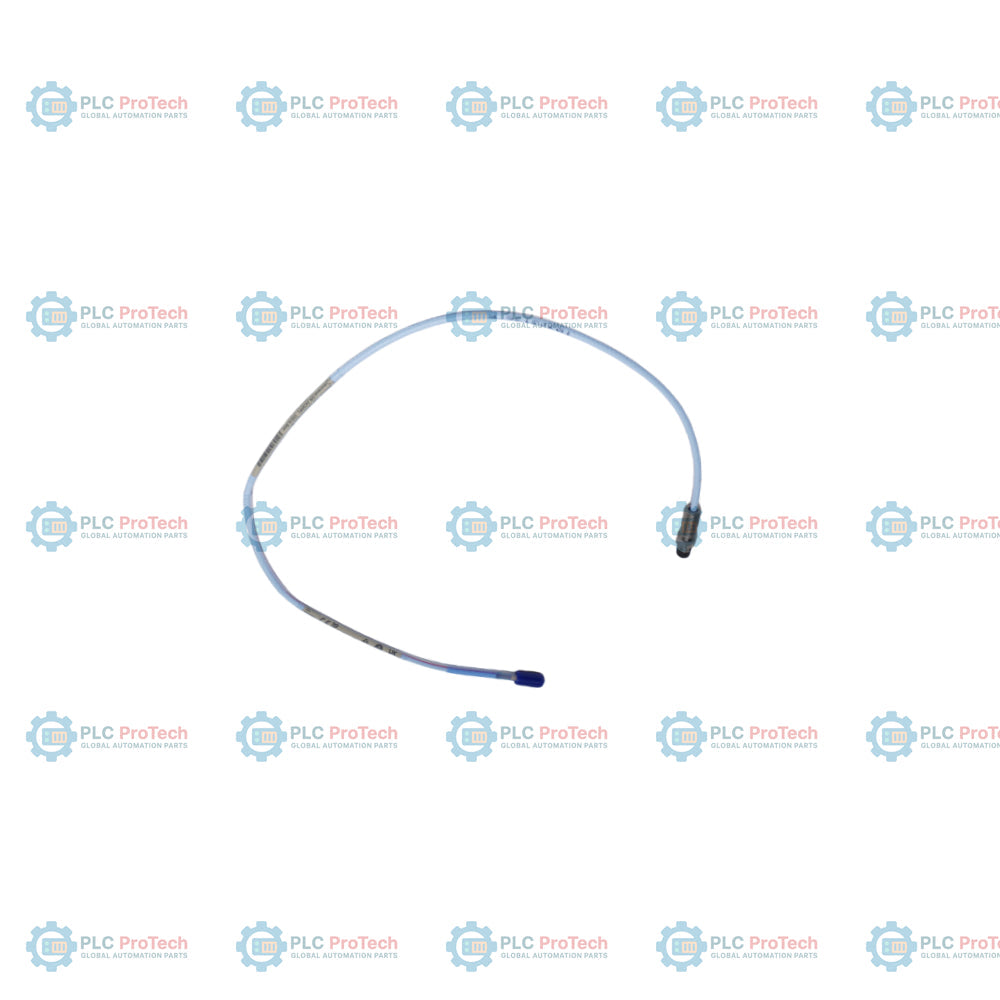

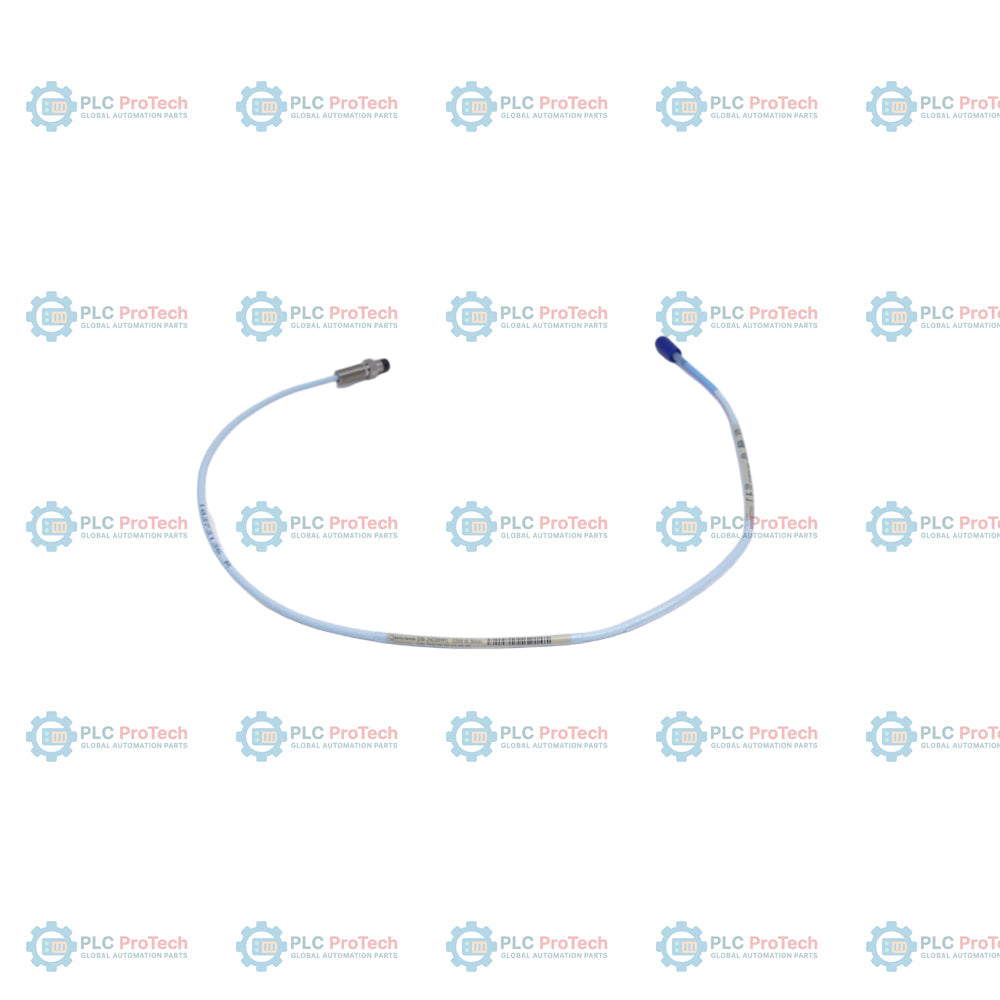

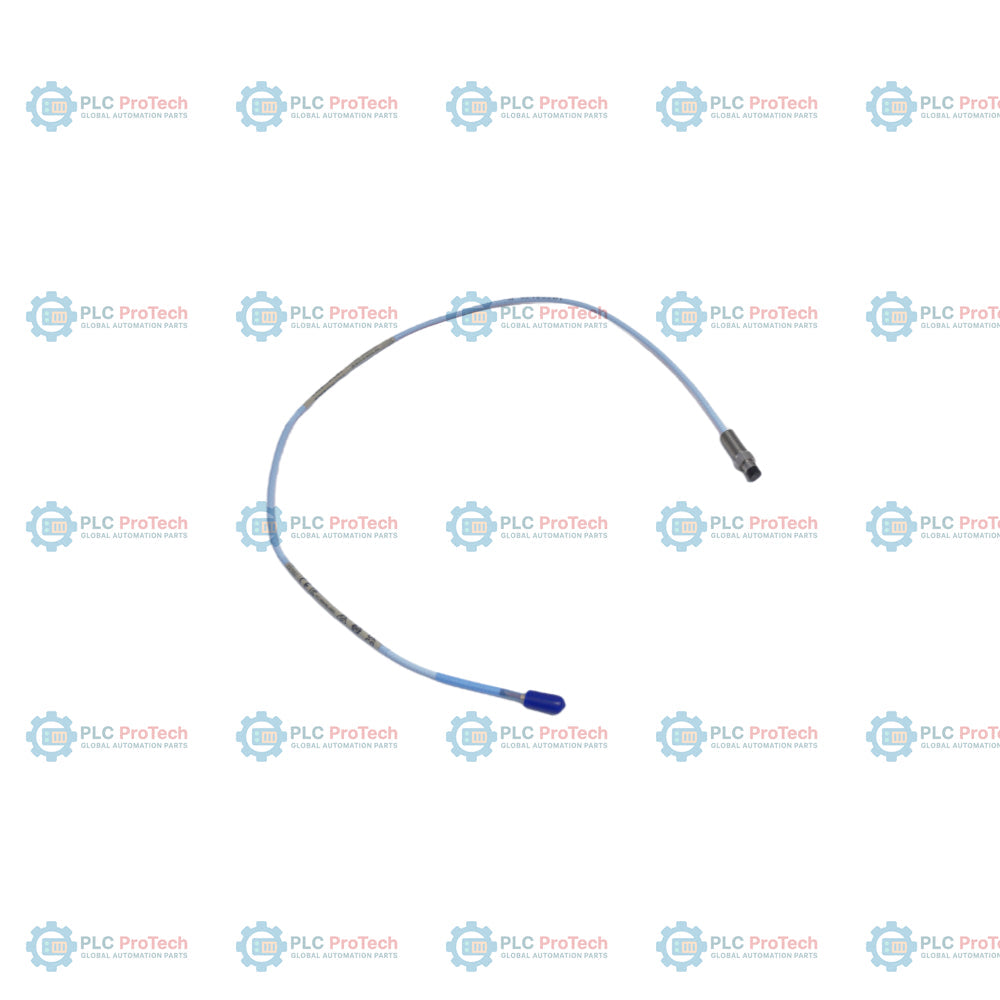

Option 02 (0.2 in unthreaded length) and Option 12 (1.2 in overall case length) specify this 3300 XL 8 mm Extended Temperature Range (ETR) reverse mount probe configuration — 330195-02-12-05-00. This proximity probe features a 3/8-24 UNF-2A thread design for reverse-mount sleeve installations, allowing insertion or replacement from the rear of the machine casing. The integrated ETR cable allows installation in environments where standard probe cables would exceed their thermal limits.

This configuration has a total length of 0.5 meter (1.6 feet) and does not require hazardous area agency approvals. It connects with standard 3300 XL Proximitor sensors and extension cables, maintaining physical and electrical compatibility across the 3300 XL 8 mm transducer family.

Features

• Supports probe tip operating temperatures up to 218 degC (425 degF) and cable operating temperatures up to 260 degC (500 degF).
• Features a 3/8-24 UNF-2A reverse-mount design with 0.20-inch unthreaded case and 1.2-inch case length for rear-mounting installations.
• Includes a 0.5 meter (1.6 feet) total probe cable length with ETR-rated outer jacket insulation.
• Equipped with a gold-plated miniature male coaxial ClickLoc connector for reliable, tool-free signal connection.
• Provides pressure seal up to rated limits with integrated Viton O-ring construction.

Applications

• Shaft vibration and axial position measurements in high-temperature rotating machinery environments.
• Sleeve housing installations requiring probe insertion and replacement from the rear of the machine casing.
• Thermal monitoring environments in gas turbines, steam turbines, and industrial expanders.

Ordering Information

Technical Specifications

Installation Guidelines

• Position and mount the probe back-side first into the reverse-mount probe sleeve to avoid twisting the internal cable.
• Check the initial probe gap using a micrometer or voltmeter to ensure it is set within the 3300 XL linear range before locking the sleeve nut.
• Avoid exceeding the maximum rated case torque of 11.2 Nm during installation to prevent thread damage.
• Keep ClickLoc connectors finger-tight; clean all connector contact points prior to mating to maintain low contact resistance.
• Ensure that cable routing does not bend the probe lead past the minimum bend radius of 25.4 mm (1.0 in).

Compliance and Certifications

The agency approval option for this configuration is 00 (Not required). The probe complies with standard industrial manufacturing and quality control standards of Bently Nevada for non-hazardous locations.
