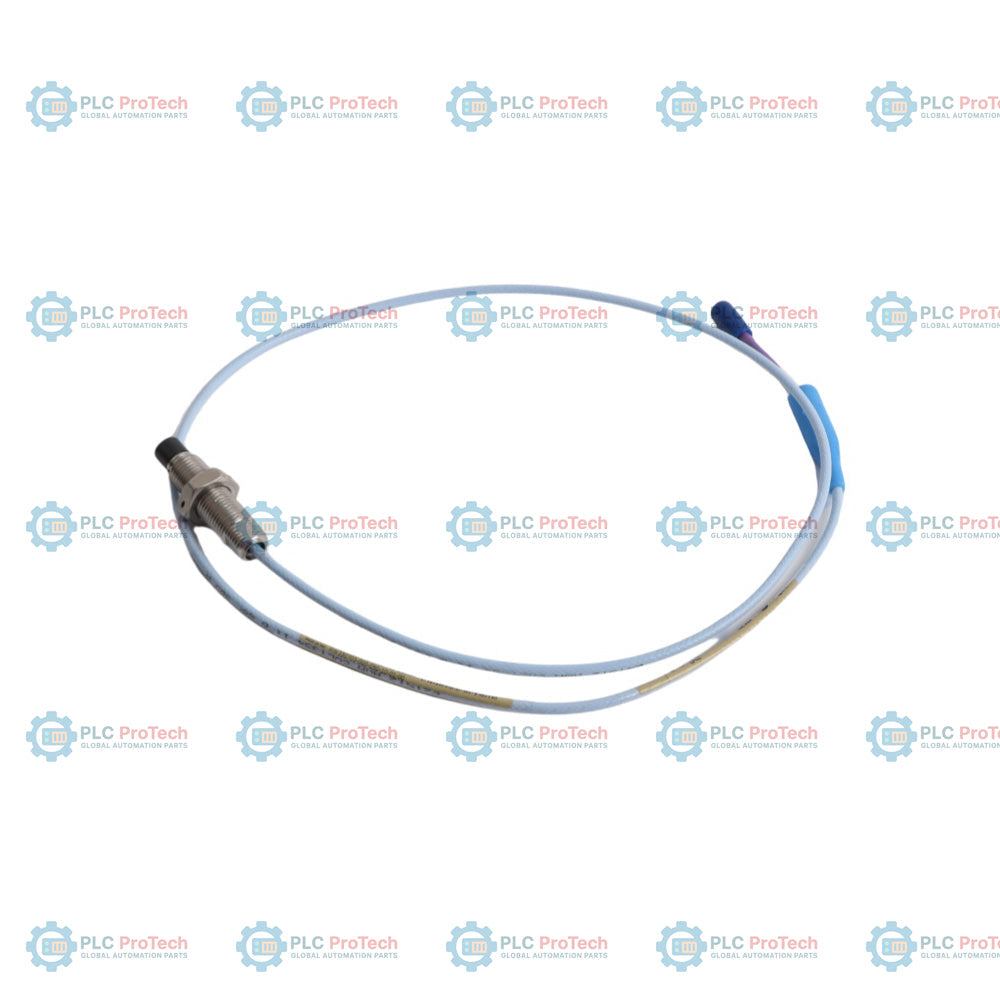

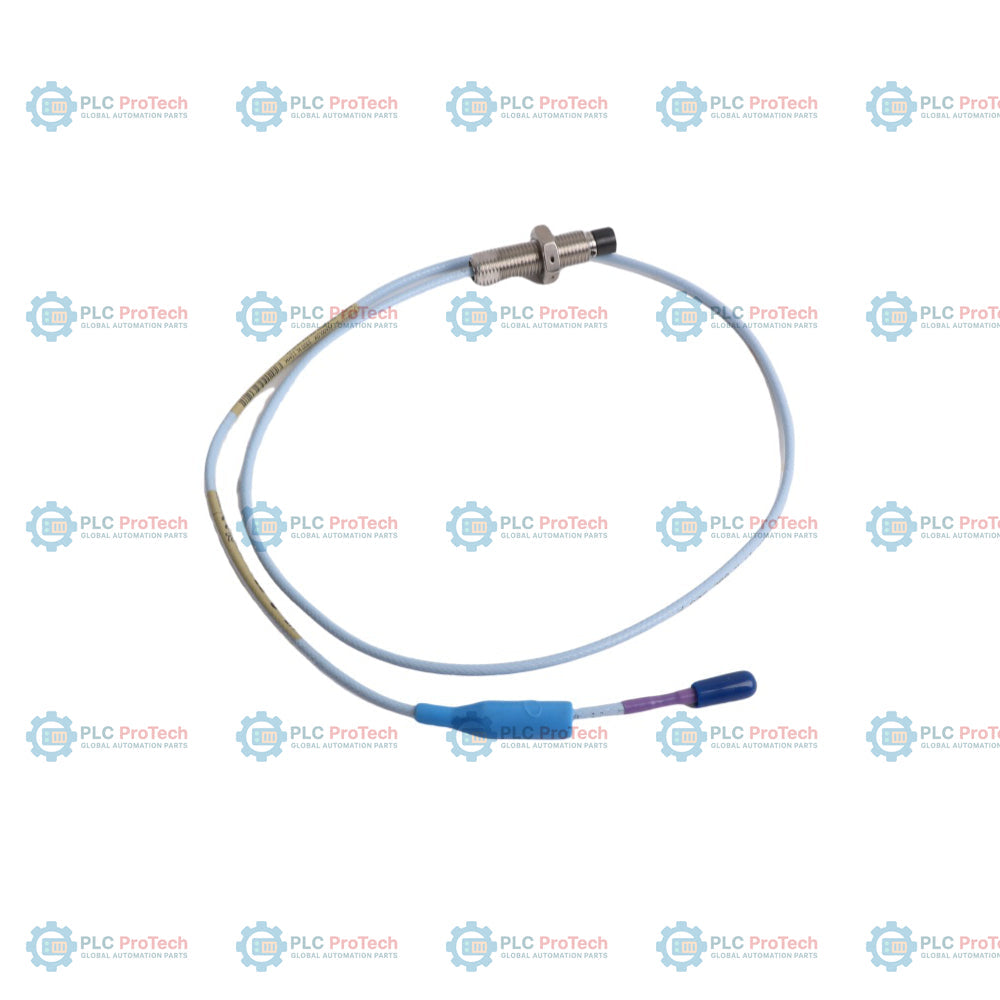

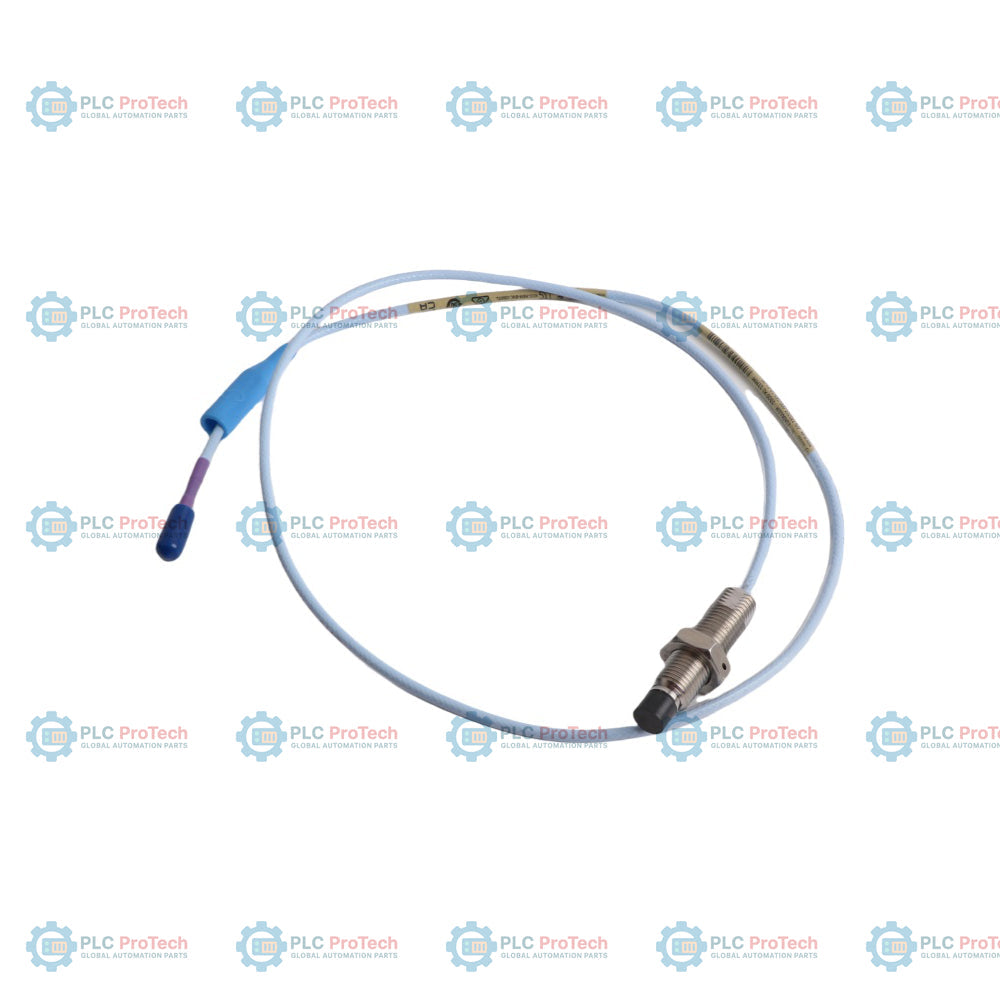

Bently Nevada 330730-080-12-05 3300 XL 11 mm Extension Cable

Description

330730-080-12-05 specifies this 8.0-meter 3300 XL 11 mm extension cable configuration, featuring an integrated FluidLoc cable with a coaxial connector protector (Option 12) and multiple hazardous area agency approvals (Option 05).

This specific configuration leverages a FluidLoc cable to block process fluids and oils from migrating through the internal structure of the cable. The inclusion of a connector protector shields the miniature coaxial ClickLoc connection from moisture, dust, and corrosive environments, making it distinct from standard unarmored and unprotected cables like option 00 or armored equivalents like option 01. The 8.0-meter length is typically combined with a 1.0-meter 11 mm probe to establish a standard 9.0-meter total system length, which connects directly to a 9.0-meter 3300 XL Proximitor sensor.

Features

• 8.0-Meter Cable Length (Option 080): Extends probe reach to span 8.0 meters (26.2 feet), providing the critical component to build a 9.0-meter transducer system length when paired with a 1.0-meter 11 mm probe.
• FluidLoc Cable Technology (Option 12): Features an oil-blocking core that prevents process lubricants, synthetic oils, and other machinery fluids from leaking out of the machine housing through the cable's interior.
• Integrated Connector Protector (Option 12): Includes a pre-installed fluorosilicone connector protector on the female ClickLoc connector, shielding the critical connection against humidity, moisture, and contamination.
• Multiple Agency Approvals (Option 05): Certified for hazardous areas with international approvals including ATEX, IECEx, and North American CNRTLUs standards.
• Gold-Plated ClickLoc Connectors: Uses premium gold-plated brass connectors that securely lock in place, ensuring low signal loss and preventing accidental loosening under high vibration.
• High Temperature Resistance: Formulated with durable FEP insulation to withstand continuous exposure in harsh industrial environments from -52 degC to +177 degC.

Applications

• Shaft radial vibration and axial position measurements on steam turbines, gas turbines, and large industrial compressors.
• High-moisture and fluid-exposed monitoring locations requiring oil leakage prevention via the cable interior.
• Heavy-duty machinery protection monitoring in chemical processing, power plants, and oil and gas industries.
• Extension of 11 mm non-contact proximity probe transducer setups to complete 9.0-meter system loops.

Ordering Information

Technical Specifications

Installation Guidelines

• System Length Matching: Ensure that the probe length and the extension cable length, when added together, equal the Proximitor sensor total length (e.g., 1.0-meter probe + 8.0-meter extension cable = 9.0-meter Proximitor sensor system).
• Connector Torque: ClickLoc connectors should be joined finger-tight. The maximum rated torque is 0.565 N-m (5 in-lb). Do not use pliers or excessive force.
• Minimum Bend Radius: Maintain a minimum bend radius of 25.4 mm (1.0 inch) during routing to prevent internal damage to the coaxial structure.
• Connector Protection: The female connector is fitted with a fluorosilicone protector. Ensure it is fully engaged over the male probe connector during installation to prevent ingress of oil and moisture.

Compliance and Certifications

• Hazardous Area Classifications: Multi-agency approvals (Option 05) including ATEX, IECEx, and CNRTLUs for Class I Zone 0, Zone 2, Div 1, and Div 2 environments.
• Functional Safety: Certified for use in SIL 2 applications (HFT = 0) and SIL 3 applications (HFT = 1).
• Environmental Standards: RoHS compliant.
