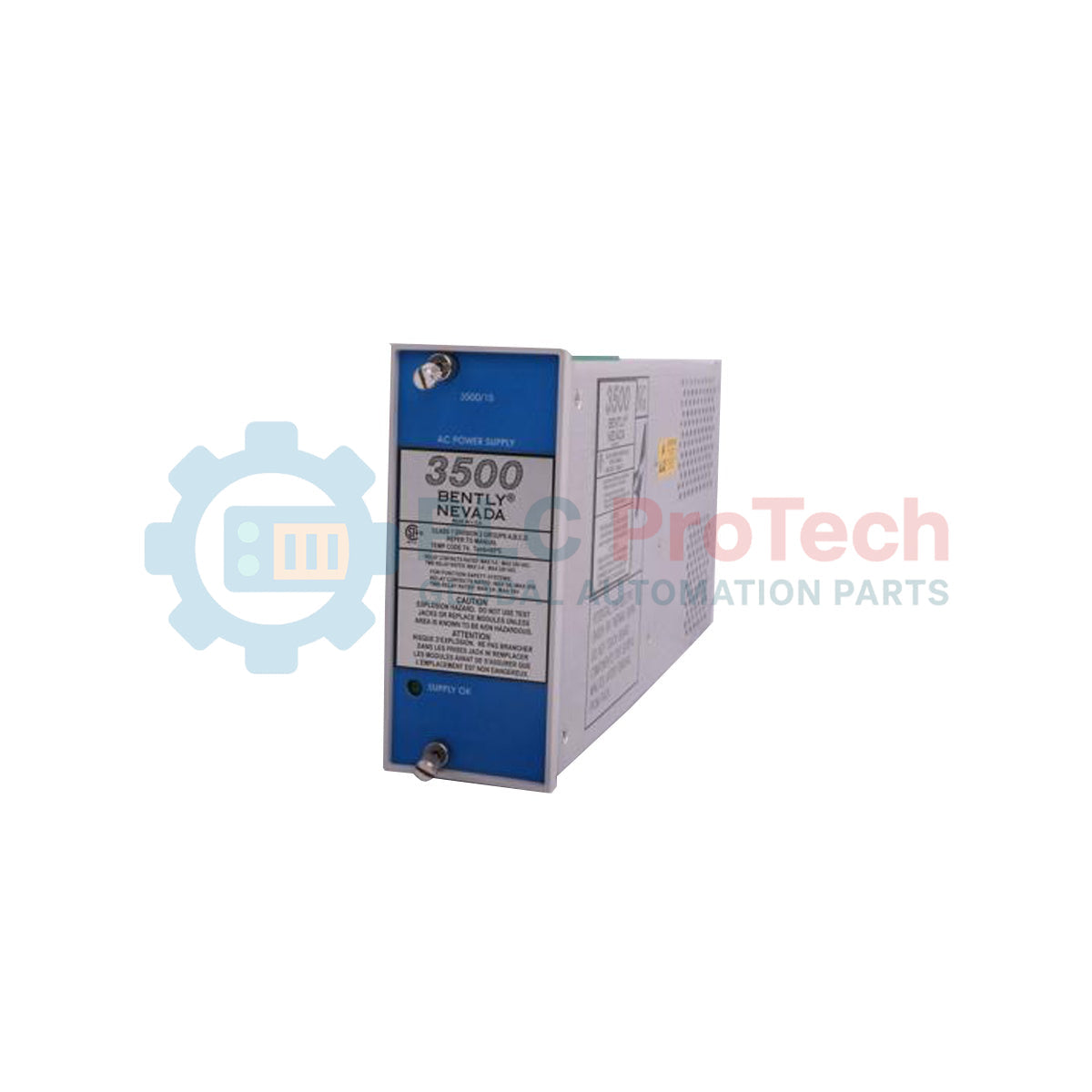

Bently Nevada 3500/15-04-00-00 3500 Series Power Supply Module

Description

Providing steady, regulated power directly to the backplane of the machinery protection system, the Bently Nevada 3500/15-04-00-00 is an essential half-height power module. It is engineered to accept a low-voltage DC input source and convert it to the precise voltage rails required by other modules within the 3500 rack. Designed for high-reliability continuous operations, this specific variant features a single-supply configuration configured for the top slot, enabling a cost-effective setup where redundant power paths are not mandatory. It integrates advanced line filtering and transient suppression to protect sensitive diagnostic and monitoring instrumentation from field power anomalies.

Features

• Low-Voltage DC Input: Specifically configured for 20 to 30 Vdc input ranges, ideal for industrial battery banks and localized DC distribution systems.
• Single Supply Configuration: Optioned with a top-slot active supply and a bottom-slot blank configuration (no supply) to minimize unnecessary hardware overhead.
• Internal Diagnostics: Continuously monitors output voltages and system status, reporting errors directly to the Rack Interface Module (RIM).
• Integrated Protection: Features robust overvoltage, overcurrent, and short-circuit protection on all output rails to safeguard downstream machinery protection modules.
• Front Panel Status LEDs: Includes high-visibility indicators for "Supply OK" and "Not OK" status verification at a glance.

Applications

• Turbomachinery vibration and position monitoring systems.
• Continuous monitoring of critical rotating assets in oil and gas refineries.
• Power generation plant steam and gas turbine diagnostic racks.
• Heavy industrial processing plants requiring unified rack-based instrumentation.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

This unit occupies the top half of the left-most power slot of a 3500 rack. Because this specific part number is a single, low-voltage DC module (option 04) with no secondary supply in the bottom slot (option 00), it cannot provide redundant operations. If redundant backup power is later mandated on-site, the bottom slot cannot be easily field-retrofitted with a mismatching module; you must upgrade the entire power entry module assembly to support dual power feeds of identical voltage specifications.

Application Pitfalls & Engineering Notes

When deploying the low-voltage DC option in hot environments, ensure that enclosure cabinets maintain active ventilation. Low-voltage high-current DC systems exhibit greater localized thermal dissipation at the connection terminals compared to their high-voltage AC counterparts. Additionally, the bottom slot must be covered with a proper half-height blanking panel to preserve designed chassis convection cooling paths and prevent electromagnetic interference (EMI) ingress.

Commissioning & Wiring Tips

To prevent common-mode noise issues on highly sensitive proximity probes and seismic channels, run isolated DC power lines directly from a regulated industrial battery source rather than using utility lines shared with variable frequency drives (VFDs) or heavy inductive contactors. Use a minimum of 2.5 mm2 (14 AWG) stranded copper wire for the DC input lines to limit voltage drop across longer runs, as drop below 20 Vdc at the rack power terminals will trigger an immediate under-voltage fault flag.

Installation Guidelines
