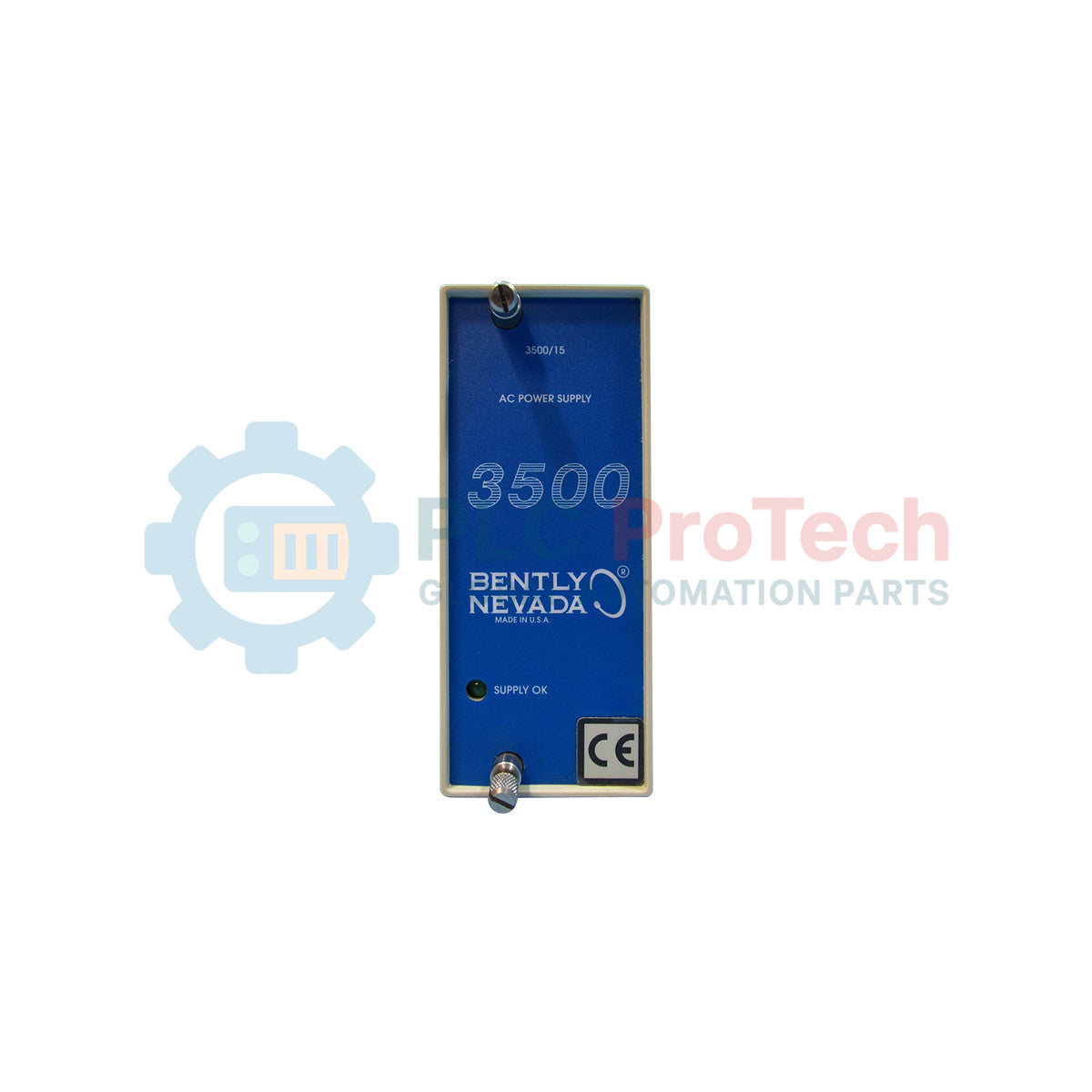

Bently Nevada 3500/15-04-04-CN 3500 Series Power Supply Module

Description

To ensure continuous, uninterrupted monitoring within the critical 3500 Machinery Protection System, the Bently Nevada 3500/15-04-04-CN provides redundant, highly stable power distribution to all rack-installed modules. This half-height module is configured with dual low-voltage DC inputs to accept power from independent sources, minimizing the risk of a single-point failure in high-availability industrial monitoring setups. By utilizing high-frequency filtering and precise voltage regulation, it safeguards sensitive internal measurement cards from external electrical transients and voltage drops common in heavy industrial facilities.

Key Features

• Dual Low-Voltage DC Input: Configured with option code 04 for both top and bottom slots, accepting input voltages from 20 to 30 Vdc.
• Redundancy Support: Allows installation of two power supplies within the same 3500 rack to ensure zero-downtime operations if a single supply fails.
• Internal Diagnostics: Continuously monitors output levels and communicates status backplane health directly to the Rack Interface Module (RIM).
• Active Surge Protection: Built-in transient voltage surge suppression (TVSS) prevents power grid anomalies from damaging down-stream components.
• CN Regional Approvals: Certified for specific regional compliance, facilitating straightforward commissioning in governed industrial zones.

Applications

• Power Generation: Ensures high-reliability machinery protection for steam, gas, and hydro turbines.
• Oil and Gas Processing: Delivers critical protection system power in petrochemical facilities, offshore platforms, and refinery control rooms.
• Heavy Manufacturing: Protects large-scale air compressors, high-power cooling pumps, and industrial fans.
• Water Treatment: Powers monitor systems in municipal pumping stations and high-volume wastewater plants.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The 3500/15-04-04-CN is designed specifically for integration with the standard 3500 series chassis. It cannot be mixed with high-voltage AC modules on the same input terminal configuration. Ensure your backplane jumpers are verified for DC distribution when performing migrations from older AC-based legacy 3500/15 systems.

Application Pitfalls & Engineering Notes

In enclosed field panels where ambient operating temperatures exceed 50 degC, running redundant power supplies generates localized hot spots. We advise maintaining a minimum 1U ventilation clearance directly above the rack or installing internal chassis fan assemblies to prevent thermal overload and minimize wear on the supply’s electrolytic smoothing capacitors.

Commissioning & Wiring Tips

Always use high-purity, multi-strand 14 AWG copper wire to handle the high current demands at the lower end of the 20 Vdc threshold. Prior to energizing, ensure the instrument earth and rack chassis grounds are securely bonded at a single point to prevent ground loops that could introduce high-frequency noise to adjacent machinery vibration cards.
