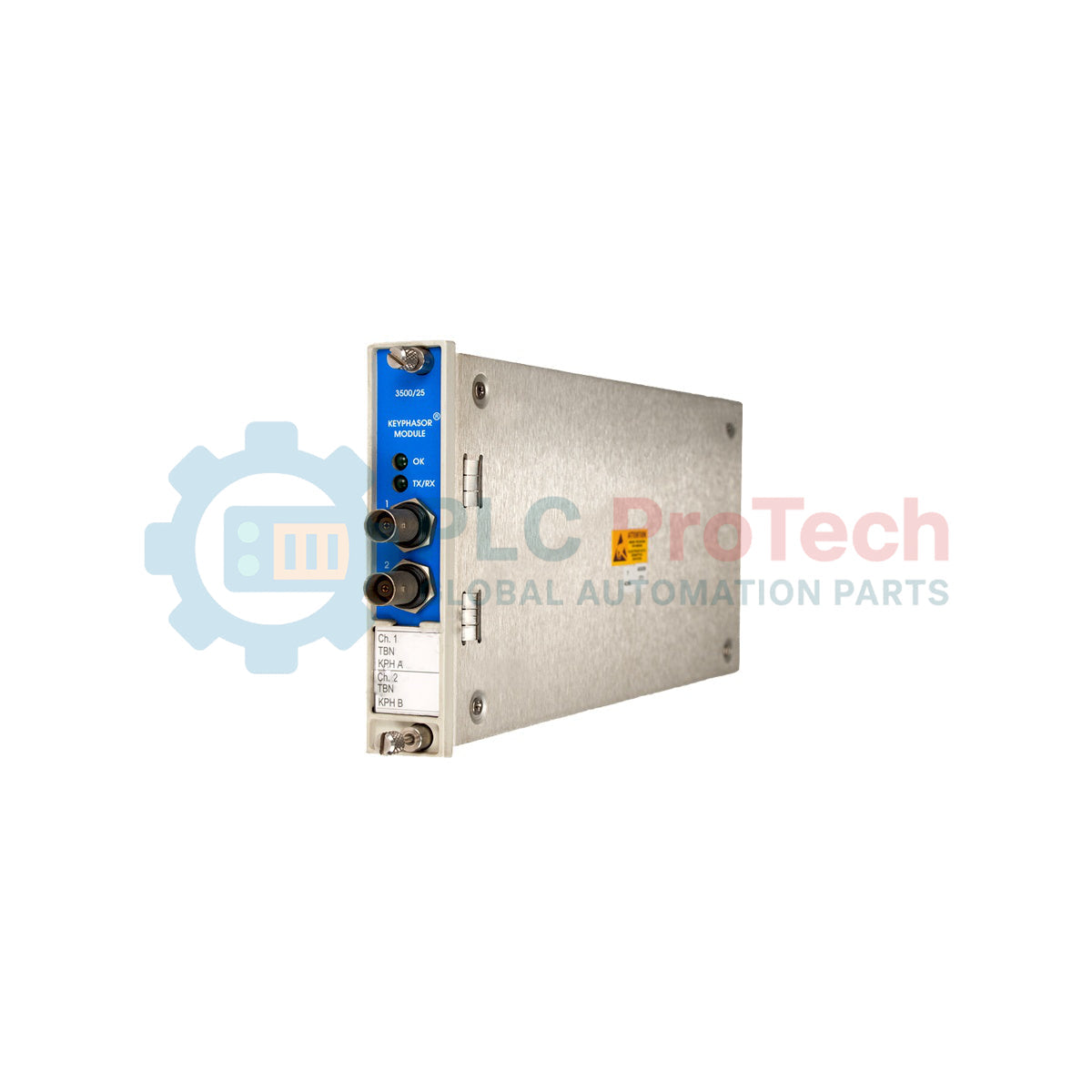

Bently Nevada 3500/25-02-01-CN 3500 Series Enhanced Keyphasor Module

Description

Providing critical phase reference and speed tracking for machinery diagnostics, the Bently Nevada 3500/25-02-01-CN is an Enhanced Keyphasor Module engineered for integration within the 3500 Series machinery protection system. This module processes input signals from proximity probes and magnetic pick-ups, converting them into digital phase and timing pulses. The -02-01-CN configuration designates a system containing two half-height 2-channel Keyphasor cards (enabling up to 4 channels of operation), an I/O module with Internal Terminations, and China-specific agency approvals.

Features

• Multi-Channel Processing: Houses two half-height cards supporting a total of 4 independent phase reference input channels.
• Internal Terminations: Simplifies back-of-rack wiring by enabling direct terminal connections without external termination panels.
• Enhanced Diagnostics: Captures once-per-turn phase and speed signals to drive vector, waveform, and spectrum analysis in turbine-generators and compressors.
• Versatile Transducer Compatibility: Direct integration with passive magnetic pickups, proximity transducers, and active speed sensors.
• High-Speed Signal Bus Integration: Shares real-time phase data across the 3500 backplane for synchronized dynamic monitoring.

Applications

• Steam and Gas Turbine Diagnostics: Real-time phase-angle measurements for precision rotor balancing.
• Centrifugal and Reciprocating Compressors: Precise shaft rotational speed and slip tracking.
• Heavy Rotating Machinery: Structural resonance and critical speed detection during startup and shutdown sequences.
• Power Generation: Generator phase synchronization reference validation.

Technical Specifications

Connections & Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The 3500/25 Enhanced Keyphasor Module replaces older legacy keyphasor units within the 3500 system. Note that firmware version 3.0 or higher inside the 3500/22 Transient Data Interface (TDI) or 3500/20 Rack Interface Module is required to unlock full multi-channel compatibility and diagnostics for the 4-channel configuration.

Application Pitfalls & Engineering Notes

When utilizing internal terminations (-01 option), maintain clean cable management within the cabinet. Signal crosstalk can occur if high-voltage AC lines run parallel to the low-voltage Keyphasor signal runs. Ensure your field wiring is routed in isolated instrument trays to prevent double-triggering faults on the phase signal.

Commissioning & Wiring Tips

Set proper hysteresis and threshold values in the 3500 Rack Configuration Software before startup. Magnetic pickups generate zero-crossing AC waveforms and require trigger levels set close to 0 volts, whereas proximity sensors tracking keyways require negative DC voltage thresholds (typically set to -5 to -8 VDC) corresponding to the probe gap voltage drop.

Installation Guidelines
