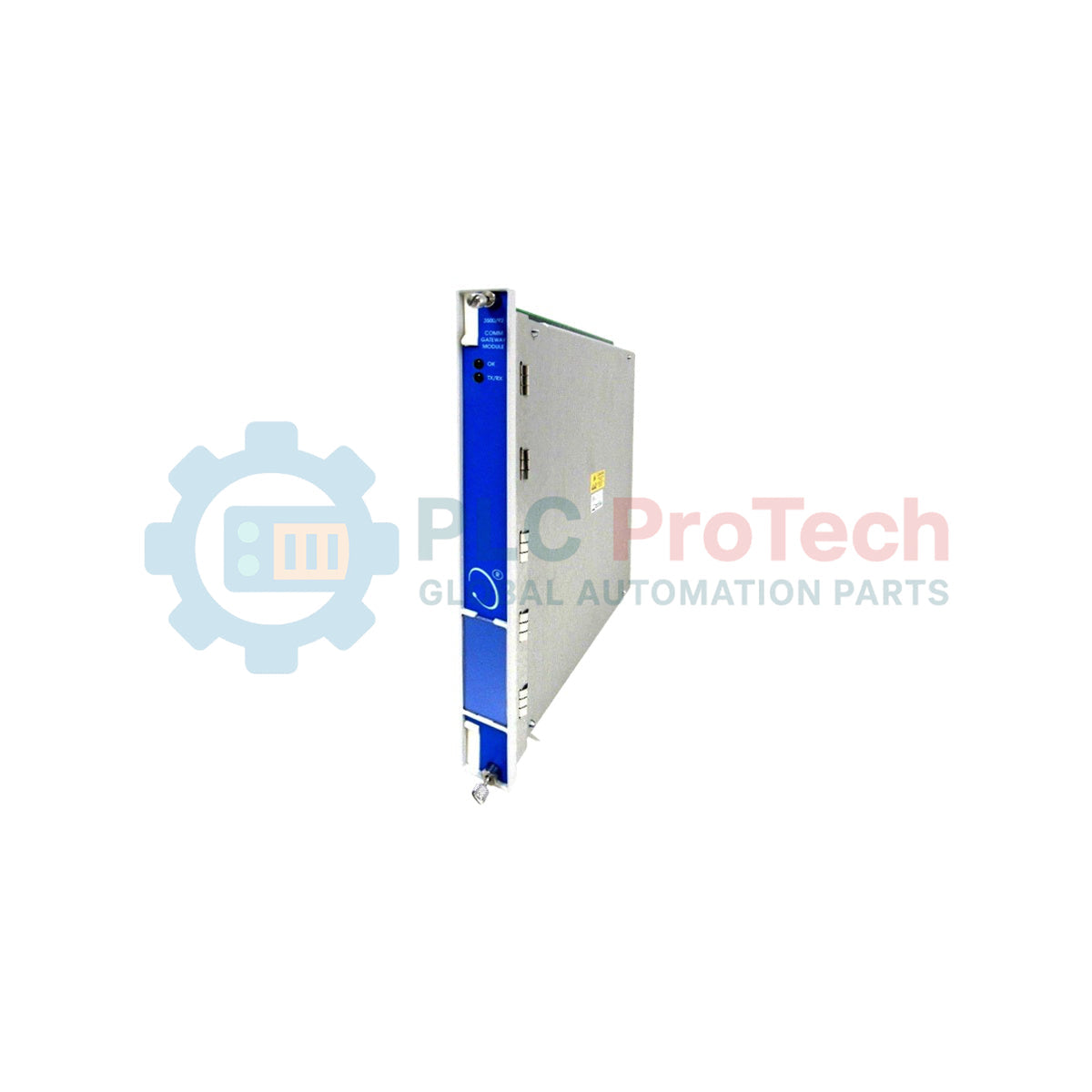

Bently Nevada 3500/92-03-01-00 3500 Series Communication Gateway Module

Description

Seamless machinery protection integration is achieved through the Bently Nevada 3500/92-03-01-00, a high-performance communication gateway module designed for the 3500 Series machinery protection system. This module facilitates high-speed digital communication by exporting crucial rack data—including current values, monitor statuses, configuration information, and event lists—to external plant control networks.

The specific configuration of the 3500/92-03-01-00 includes an Ethernet and RS232 Modbus I/O module, a low memory allocation framework, and no specific hazardous area agency approvals. Utilizing Modbus RTU and Modbus TCP/IP protocols, this gateway ensures compatible connectivity with Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), and plant historians, eliminating the need for complex custom drivers.

Features

• Provides continuous, high-speed digital data transmission from 3500 racks to external control architectures.
• Supports simultaneous Modbus RTU (serial) and Modbus TCP/IP (ethernet) communication protocols.
• Equipped with an Ethernet/RS232 interface for versatile industrial system physical connectivity.
• Front-panel OK LED status indicator provides rapid local diagnostic visual verification.
• Low-memory architecture tailored for efficient, dedicated static and dynamic register mapping.

Applications

• Real-time data integration with industrial Distributed Control Systems (DCS).
• Turbine, compressor, and rotating machinery condition monitoring loops.
• Plant-wide asset management and predictive maintenance database synchronization.
• Power generation, oil and gas processing, and chemical refining control systems.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Always install the main 3500/92 gateway module into a valid monitor slot in a standard 3500 rack.
• Ensure the corresponding Ethernet/RS232 I/O module is firmly seated directly behind the main module in the rear of the rack chassis.
• Verify all communication and power connections are secured prior to energizing the rack to prevent interface signal degradation.
• Adhere to recommended signal wiring separation guidelines to isolate communication cables from high-voltage transient fields.
