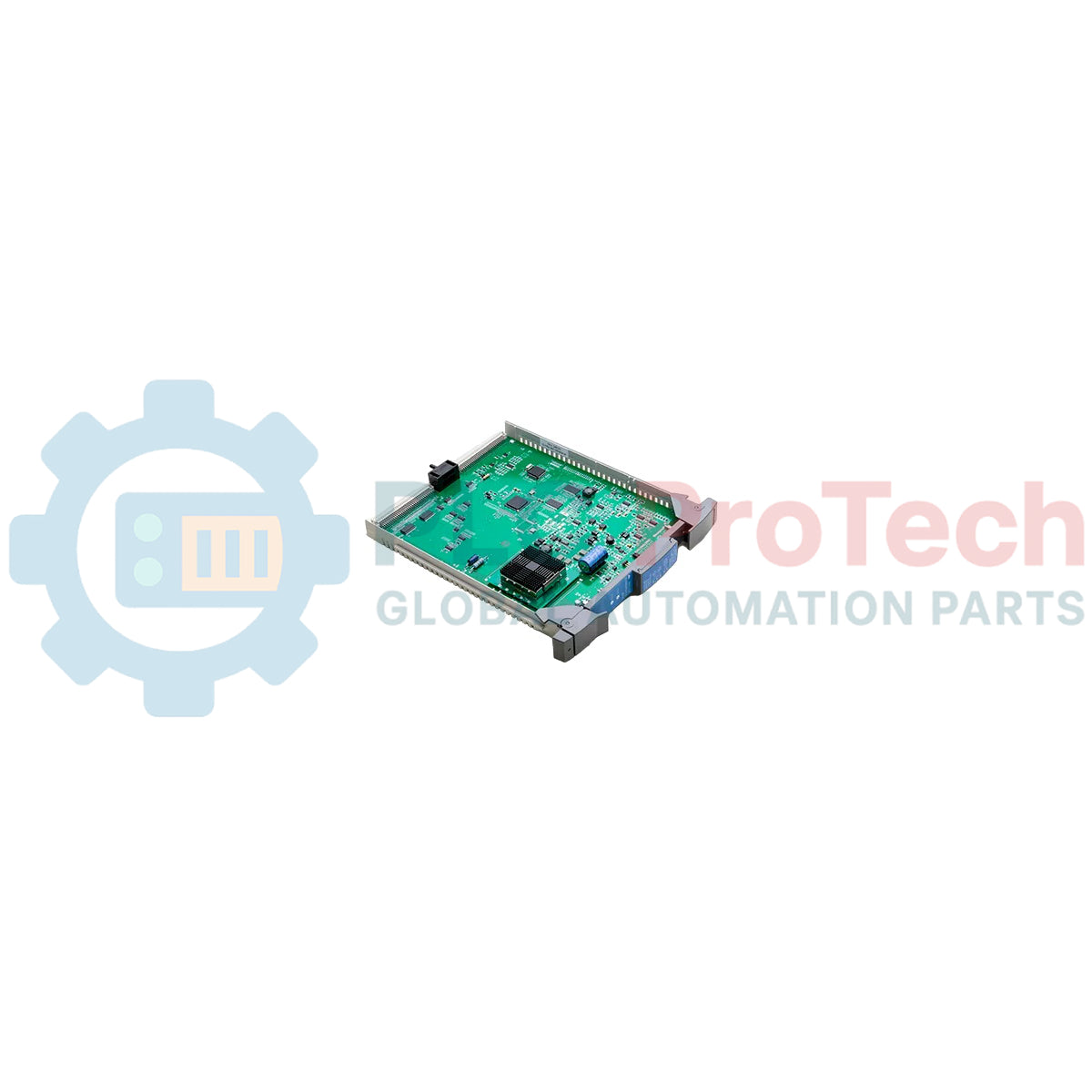

Honeywell 51307190-150 HPM I/O Link Communication Module

Description

Managing critical field communications within Honeywell TDC 3000 systems, the Honeywell 51307190-150 serves as a dedicated High-Performance Process Manager (HPM) I/O Link interface. This module coordinates deterministic data transfers between High-Performance Process Manager controllers and physical field I/O card files, ensuring synchronized processing and minimal signal propagation delay. By utilizing integrated hardware arbitration, the module maintains dual-path redundancy to protect against communication path failures in continuous process environments. The module mounts directly into the HPM card file, establishing clean, high-speed data pathways across the system bus without additional external protocol converters.

Features

• Dual-Redundant Architecture: Integrates dual link channels to automatically execute failover procedures without host controller intervention.
• Deterministic Processing: Synchronizes communications to prevent latency spikes during high-density I/O scans.
• Direct Backplane Interface: Connects directly to the controller chassis, minimizing signal loss and eliminating external cabling.
• Dynamic Diagnostics: Continuously monitors link health, physical layer integrity, and internal transceiver operations.

Applications

• Continuous chemical processing facilities requiring uninterruptible loop control.
• Oil and gas refining distributed control systems (DCS) with high-availability demands.
• Power generation plant turbine and auxiliary control architectures.
• Pulp and paper processing machinery requiring coordinated system bus monitoring.

Technical Specifications Table

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

This module is a drop-in replacement for older revisions within the standard HPM catalog. Users upgrading from legacy APM (Advanced Process Manager) units must verify that their HPM card file backplane firmware supports the faster baud rates associated with this newer module. Ensure matching revision states on dual-redundant pairs to prevent synchronization errors during failover execution.

Application Pitfalls & Engineering Notes

A common issue encountered on-site is link deterioration caused by incorrect cable termination. The coaxial paths for Link A and Link B must be terminated at their physical limits with high-precision 75-ohm resistors. Leaving a line unterminated or utilizing degraded couplers causes high RF signal reflection, generating false checksum faults and triggering unintended, rapid card-failover cycles.

Commissioning & Wiring Tips

When deploying redundant modules, always verify that the OK LEDs on both units stabilize before testing manual switchover control via the engineering workstation console. Route the primary and redundant coaxial cables through separate physical conduits or cable trays to minimize the probability of simultaneous physical damage to both communication links.

Installation Guidelines
